What Is Indoor High Voltage Switchgear Explained?

Indoor High Voltage Switchgear is a type of electrical control assembly that is used to manage, distribute, and safeguard power circuits that work at medium to high voltages inside of safe enclosures. These systems control the flow of electricity, cut off bad circuits, and make sure that industrial facilities, substations, and commercial complexes stay operational. Unlike outdoor versions that are exposed to harsh weather, indoor switchgear works in controlled environments, providing better accuracy, smaller footprints, and easier access for maintenance. This gear is what makes power infrastructure reliable. It keeps expensive downtime from happening and protects sensitive equipment from electrical problems in tough working conditions.

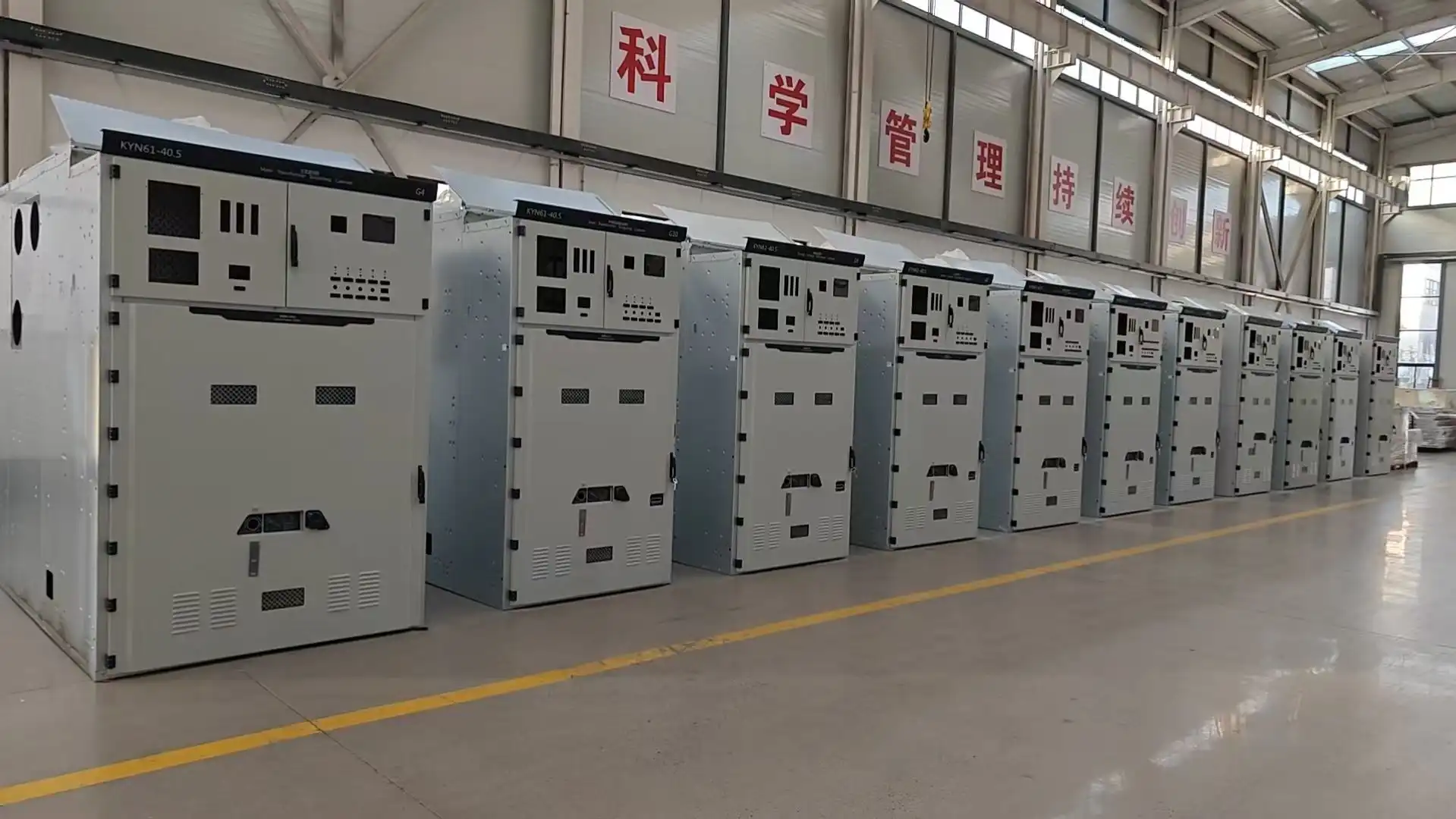

Understanding Indoor High Voltage Switchgear

What Exactly Is Indoor High Voltage Switchgear?

Indoor tall voltage switchgear acts as a central control framework for electrical systems, combining circuit breakers, transfers, busbars, and disengage switches in a metal walled in area. It confines flaws right away whereas keeping up control to unaffected regions, guaranteeing tall unwavering quality for basic offices like information centers and industrial facilities. Circuit breakers react to irregular conditions identified by defensive transfers, avoiding system-wide blackouts. Controlled exchanging conveys control securely over feeders, whereas compartmentalized plan limits blame spread, moving forward operational soundness and minimizing downtime in high-value mechanical and commercial environments.

Core Components and Their Functions

Core components incorporate circuit breakers, busbars, instrument transformers, and sensors working together for secure control dispersion. Circuit breakers hinder blame streams quickly utilizing vacuum or SF6 innovation to minimize circular segment harm. Busbars conduct power productively with negligible misfortunes. Instrument transformers diminish voltage and current for observing and control frameworks. Present day switchgear coordinating IoT sensors to track temperature, halfway release, and mechanical wear, empowering prescient upkeep. High-performance separator materials guarantee unwavering quality beneath IEC measures, keeping up secure operation over changing natural conditions and electrical stretch levels in all applications.

Primary Applications Across Industries

Indoor high voltage switchgear is widely used in industrial plants, data centers, hospitals, and utility substations. In factories, it supports motor control systems for automated production lines while preventing disruptions from power surges. Data centers rely on it for uninterrupted power alongside UPS and backup generators. Hospitals depend on stable electricity for life-critical equipment, using redundant configurations for reliability. Utility substations use switchgear to manage grid flow and integrate renewable energy, ensuring voltage stability and safe interconnection between transmission and distribution networks efficiently.

Indoor vs Outdoor High Voltage Switchgear: Detailed Comparison

Design and Environmental Considerations

The main difference lies in enclosure philosophy. Indoor switchgear is installed in climate-controlled environments, reducing exposure to humidity, temperature fluctuations, and UV damage, enabling compact layouts with 30–40% smaller footprints. This makes it ideal for space-limited sites like urban substations and hospitals. Outdoor switchgear uses weatherproof cabinets, sealed bushings, and anti-corrosion coatings, increasing size and cost but eliminating the need for buildings in remote installations. It is preferred for wind farms and solar projects where infrastructure investment must be minimized while ensuring reliable long-term outdoor operation.

Technology Variants and Application Fit

Indoor switchgear includes air-insulated and gas-insulated systems. Air-insulated designs rely on natural dielectric properties, requiring larger clearances but offering easier maintenance. Gas-insulated switchgear (GIS) uses SF6 or eco-friendly alternatives like fluoronitrile blends to reduce space requirements, making it suitable for compact high-voltage substations above 72.5 kV. Vacuum circuit breakers dominate medium-voltage applications due to long lifespan and minimal maintenance, reaching up to 10,000 mechanical cycles or 30 years of service. These technologies balance reliability, cost, environmental impact, and operational efficiency for different industrial applications.

Cost and Maintenance Implications

Indoor high voltage switchgear typically costs 15–25% less than outdoor systems, excluding building construction expenses that may reach $150–300 per square foot depending on codes. Outdoor installations save building costs but increase maintenance difficulty, especially in harsh climates. Indoor systems require longer inspection cycles (18–24 months) due to reduced contamination, while outdoor systems need yearly checks. Over a 25-year lifecycle, maintenance labor, accessibility constraints, and weather-related delays significantly increase total costs. Therefore, lifecycle cost and operational efficiency are more important than initial purchase price.

How to Choose the Best Indoor High Voltage Switchgear for Your Business?

Defining Technical Requirements

Clear specifications are the foundation of procurement decisions. Voltage ratings must align with system nominal levels, such as 15 kV, 27 kV, and 38 kV distribution classes in the U.S. Load-based sizing typically adds 25–30% margin for future expansion; insufficient capacity leads to premature replacement, while oversizing increases capital cost unnecessarily. Environmental conditions also affect performance, including altitude and temperature. Above 1,000 meters, insulation derating is required, and high ambient temperatures demand enhanced thermal design. Modular and sectional switchgear improves scalability and maintenance flexibility in continuous-process industries.

Evaluating Manufacturers and Technologies

When evaluating Indoor High Voltage Switchgear, manufacturer capability and technological strength are critical. Xi'an Xikai stands out with advanced patented technologies and a comprehensive product portfolio covering multiple voltage levels and applications. Its equipment meets strict national standards and performs reliably even in high-altitude environments up to 4,000 meters. With proven experience across power grids, rail transit, and renewable energy sectors, Xi’an Xikai delivers customized, stable, and efficient system solutions.

Navigating Procurement Processes

Successful procurement requires ensuring full compatibility with existing transformers, relays, and control systems. Standardized interfaces such as ABB VD4 or VS1 improve multi-vendor flexibility and reduce single-source dependency risks. RFQ documents should include single-line diagrams, environmental conditions, applicable IEC or IEEE standards, and project timelines. Lead times vary from 8–12 weeks for standard units to 16–20 weeks for customized designs. Factory acceptance testing (FAT) is essential to verify performance before shipment. Warranty terms of 12–18 months and service agreements help stabilize lifecycle maintenance costs.

Maintenance, Safety, and Standards of Indoor High Voltage Switchgear

Routine Inspection and Preventive Strategies

Setting up regular maintenance schedules for Indoor High Voltage Switchgear increases its lifespan and stops catastrophic failures. Visual inspections every three months find problems with the control circuit, oil leaks from instrument transformers, and loose connections. Every year, thermographic surveys find hotspots that mean contacts are wearing out or busbars are overloaded before insulation damage happens. With these non-invasive methods, interventions can be based on conditions instead of just replacing parts at random times. Testing for mechanical operations makes sure that the circuit breaker works. Breakers should trip within the time frames set by the manufacturer. For medium-voltage units, this is usually between 30 and 50 milliseconds. Operating mechanisms that are worn out and respond slowly need to be oiled or have their springs adjusted. Attention is needed for hand cart mechanisms that can be pulled out. Every 1,000 operations, the guide rails should be checked for deformation and lithium-based grease should be applied to all contact surfaces to avoid jamming incidents that could be dangerous.

Built-In Safety Features

Dielectric testing proves that the insulation is solid. Mega-ohm readings between the phases and the ground should be higher than the baseline values that were set during commissioning. When trends go down, it means that moisture is getting in or the insulation is getting old, which leads to more research. Corona activity is picked up by partial discharge monitoring in gas-insulated compartments. This is an early warning sign that the insulation is about to break down, which lets planned outages happen instead of emergency repairs. Advanced interlocking systems stop operators from making mistakes that could lead to arc-flash injuries or damage to equipment. To make sure the right order is followed, mechanical interlocks physically stop the breaker from closing when the disconnect switches are still open. Electrical interlocks that are watched over by control logic offer extra safety by stopping racking operations if voltage is found. These multiple layers of safety are in line with NFPA 70E's strategies for lowering the risk of arc flash.

Designs that are resistant to arcs move fault energy away from areas where operators can access them. Ionized gases can be directed upwards or backwards by pressure relief vents, which protects people working at control interfaces during internal arcing events. IEC 62271-200 classification systems, which include Accessibility types A, B, and C, set the levels of protection. In U.S. industrial settings, Type B configurations that allow operators to interact with the system during normal switching are the norm. The amount of personal protective equipment that is needed changes based on the incident energy. Facilities doing energized maintenance set arc-flash boundaries using IEEE 1584 calculations and specify the right PPE categories. Modern switchgear designs with current-limiting fuses and faster protective relay settings lower incident energy levels. This means that bulky arc-flash suits aren't always needed for normal work.

Compliance and Quality Benchmarks

Design and testing rules are set by international standards. IEC 62271-200 sets the standards for type testing, which includes validations for temperature rise, short-circuit withstand, and mechanical endurance. IEEE C37.20.2 gives similar rules that are common in North American markets, with only small differences in how hard the tests are and what the acceptance criteria are. Specifications for purchases should include references to relevant standards to make sure that the equipment meets the requirements for connecting utilities in the region. Quality certifications show that a product is made with care. ISO 9001 certification shows that quality management systems are documented. Suppliers should provide traceability documentation that connects the equipment they sell to factory test reports. ISO 14001 environmental certifications show that a company uses responsible manufacturing practices. This is becoming more important as companies' sustainability requirements affect the purchases they make.

Future Trends and Innovations in Indoor High Voltage Switchgear

Eco-Friendly Insulation Technologies

New types of insulation are made possible by rules that limit SF6 emissions. Fluoronitrile gas mixtures, like the ones made by 3M and called Novec alternatives, work about the same as dielectrics but cause 99% less global warming. Early adopter utilities in California and the northeastern states require equipment that doesn't use SF6 because they expect regulations to get stricter. Even though it's a little more expensive now, prices will return to normal within this decade thanks to economies of scale. Vacuum technology keeps getting better. Manufacturers are adding voltage ratings to ranges that were only available in gas-insulated designs before. For example, 72.5 kV vacuum interrupters are now on the market. This step-by-step process gets rid of SF6 across a wider range of voltage classes. This makes maintenance easier because vacuum bottles don't need to be handled with gas or checked for leaks.

Smart Switchgear and Digital Integration

Adding IoT sensors to Indoor High Voltage Switchgear turns it from a passive piece of infrastructure into a smart asset. Temperature sensors built into busbar joints keep an eye on changes in temperature, and algorithms can tell weeks in advance when a connection will fail. Partially discharge sensors constantly check on the health of insulation, going beyond testing on a regular basis to evaluating the situation in real time. This information flows to central platforms where AI algorithms look for patterns that humans can't see. Setting up digital twins—virtual copies of physical assets that are in sync with each other—allows for scenario modeling. Operators use software to simulate load transfers or maintenance breaks. This helps them find operational risks before they happen physically. These features are life-changing for large, complicated buildings like hospitals, where power outages directly affect the safety of patients. Remote diagnostic capabilities reduce service response times. Manufacturers use secure connections to get to equipment data, where they can read fault records and suggest fixes without sending out technicians. This method cuts down on downtime for common problems while saving on-site visits for situations that really need them.

Modular and Future-Proof Designs

Scalable architectures can adapt to changing power needs. With switchgear lineups that are made with placeholder bays, you can add more capacity without having to do major renovations. This protects your infrastructure investments as your facilities grow. Standardized bus connections and bay widths make expansions easier and lower the cost of engineering for later phases. Adding renewable energy makes configurations more flexible. When buildings put up solar panels or join demand response programs, switchgear has to handle two-way power flows. Protective relay settings need a lot of coordination to find faults and let distributed generation help keep the grid stable. Installing equipment with adaptive protection algorithms makes installations ready for when grid interconnection standards change in the future.

Conclusion

Indoor High Voltage Switchgear is an important part of the infrastructure that keeps electricity running smoothly in commercial, utility, and industrial settings. Knowing the differences between indoor and outdoor designs, comparing technology options like vacuum versus gas-insulated versions, and knowing how important maintenance is can help you make smart buying decisions. Safety and interoperability are guaranteed by IEC and IEEE standards, and new smart technologies make operations run more smoothly. As concerns about the environment change how businesses work and digital tools change how assets are managed, choosing switchgear that fits both current needs and future trends is important to protect infrastructure investments. Facilities that put uptime, safety, and lifecycle value at the top of their list of priorities find that these systems pay for themselves in less downtime, lower maintenance costs, and better operational resilience.

FAQ

1. How often should indoor high voltage switchgear undergo maintenance inspections?

When to do routine maintenance depends on how the machine is being used and what the manufacturer suggests. Every three months, you should do a visual inspection to look for loose connections, strange noises, or damage that you can see. Thermographic surveys, contact resistance measurements, and dielectric testing are all part of full annual inspections. Because breaker operating mechanisms wear out faster in high-cycle applications like motor control centers, they may need to be checked every six months for Indoor High Voltage Switchgear.

2. Can existing outdoor switchgear be converted to indoor installations?

Because of fundamental differences in design, direct conversion is not possible. For outdoor use, equipment has weatherproofing, drainage, and corrosion-resistant coatings that aren't needed for indoor use. The most cost-effective method is to shut down outdoor units and specify indoor equipment that was specifically made for that purpose. Outdoor switchgear can be moved indoors if the building enclosures allow for enough space and climate control, but the extra cost of making the changes is usually not worth it when compared to buying new equipment.

3. What safety precautions apply when operating indoor high voltage switchgear?

NFPA 70E says that people must get arc-flash training before they can work with electrical equipment. Arc-flash boundary calculations figure out the shortest distances to avoid and the levels of personal protective equipment that are needed. Lockout-tagout procedures make sure that the power is turned off during maintenance, and the voltage must be checked before any parts are touched. You should never get around mechanical interlocks because they keep people and equipment from getting hurt or damaged by bad switching sequences.

Partner with Xi'an Xikai for Reliable Indoor High Voltage Switchgear Solutions

For Reliable Indoor High Voltage Switchgear Solutions, Partner with Xi'an Xikai. Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. designs and builds engineered switchgear that meets the needs of North American businesses, utility companies, and infrastructure projects. Our product line includes over 100 different types of GBC-40.5 hand-cart switchgear and KYN series metal-clad designs that work with ABB VD4 and VS1 circuit breakers. Our equipment works reliably in temperatures ranging from -25°C to +55°C and at heights above 4,000 meters because it is made in ISO 9001-certified facilities that go through strict dielectric and mechanical endurance tests. Our patented technologies, 24/7 technical support, and quick delivery of spare parts make us a great choice for procurement managers looking for reliable medium-voltage switchgear suppliers. Email serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about the details of your project and get custom solutions backed by decades of engineering experience.

References

1. IEEE Standards Association. (2020). IEEE C37.20.2 Standard for Metal-Clad Switchgear. Institute of Electrical and Electronics Engineers.

2. International Electrotechnical Commission. (2021). IEC 62271-200: High-voltage switchgear and controlgear – Part 200: AC metal-enclosed switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV. IEC Publications.

3. National Fire Protection Association. (2022). NFPA 70E: Standard for Electrical Safety in the Workplace. NFPA Press.

4. Zhang, L., & Kumar, R. (2019). Modern Switchgear Technologies: Design, Application, and Maintenance. McGraw-Hill Education.

5. U.S. Department of Energy. (2021). Grid Modernization and Smart Grid Technologies: Infrastructure Reliability Assessment. DOE Office of Electricity.

6. Electrical Power Research Institute. (2020). Lifecycle Cost Analysis of Medium-Voltage Switchgear Technologies. EPRI Technical Report Series.
