What Is Vacuum Circuit Breaker Working Principle Explained?
2026-04-29 16:36:22
A Vacuum Circuit Breaker works by isolating electrical contacts within a fixed vacuum chamber. Since there is no discussion in the chamber, a circular segment can't be shaped, and the blame current can be ceased rapidly. When a blame happens and the breaker opens, the contacts within the vacuum interrupter move apart. This makes a circular segment that goes out right absent since the vacuum environment is a superior dielectric. This component goes beyond any doubt that control is conveyed securely and productively by keeping electrical hardware from getting harmed and the system's constancy tall in utility, commercial, and mechanical settings.
 |
 |
Introduction
Power frameworks in manufacturing plants, information centers, clinics, and utility systems require hardware that keeps them running easily and keeps sensitive gear secure from electrical issues. Present-day control networks depend on advanced control systems that can respond in milliseconds or less to halt disastrous disappointments, decrease downtime, and keep specialists secure. Vacuum Circuit Breakers have ended up the best choice for medium-voltage applications among these security devices.
This article tells obtainment directors, framework respectability, and electrical engineers everything they require to know about Vacuum Circuit Breaker innovation. Knowing how these gadgets work lets you make keen choices that adjust the needs of operations with the restrictions of your budget and the requirement for long-term stability. We see the essential thoughts behind how it works, compare its execution to other advances, and discuss a few practical things you ought to consider when choosing and keeping up these vital parts. The data in this article straightforwardly makes a difference in reaching your objective of making strides in control quality, extending the lifespan of your gear, and lowering the cost of possession for all of your electrical infrastructure.
Understanding Vacuum Circuit Breakers: Definition and Components
What Makes Vacuum Circuit Breakers Different
Vacuum Circuit Breakers speak to a major headway over oil-immersed and SF6 advances in medium-voltage exchanging frameworks. They quench circular segments interior a fixed vacuum chamber, disposing of fire dangers from oil and nursery gas concerns from SF6. Working regularly between 12kV and 40.5kV, they are broadly utilized in metal-clad switchgear for security and segregation. Their tall dielectric strength—about three times that of air—allows compact plans with solid interference capability. This makes them perfect for mechanical offices where space is constrained, such as retrofits or thickly stuffed electrical rooms. The result is more secure, littler, and more naturally inviting exchanging hardware with solid execution reliability.
Core Components That Enable Reliable Operation
A Vacuum Circuit Breaker consists of several coordinated components. The vacuum interrupter chamber, made of ceramic or glass, maintains extremely low pressure (<10⁻⁴ torr) to rapidly extinguish arcs. Inside, copper-chromium or copper-bismuth contacts provide durability and conductivity. The operating mechanism, typically spring or electromagnetic, delivers fast separation in under 50 milliseconds, especially in models like ZN63-VS1. The contact system uses silver-plated tulip-shaped terminals to reduce resistance and heat. These parts ensure stable current handling from 630A to 3150A while maintaining efficiency and reliability in high-load industrial environments.
The Vacuum Arc Interruption Process
When a fault occurs, the operating mechanism separates contacts inside the vacuum interrupter, forming a metal vapor arc from evaporated contact material. In the vacuum environment, this arc disperses rather than concentrating. As current approaches zero-crossing (every 10 ms in 50Hz systems), metal vapor condenses on shielding surfaces or contacts, extinguishing the arc completely. The vacuum gap rapidly regains dielectric strength, preventing re-ignition even under recovery voltage. Compared to other technologies, Vacuum Circuit Breaker systems eliminate fire risks, block contamination, and operate reliably in harsh environments such as high humidity and extreme temperatures.
Advantages and Industrial Applications of Vacuum Circuit Breakers
Superior Performance Characteristics
Vacuum Circuit Breaker frameworks offer solid interference execution, capable of securely breaking blame streams up to 40kA. Their quick operation—under 50 ms—reduces mechanical and warm push on downstream hardware, expanding transformer and engine life. Not at all like oil breakers requiring normal support or SF6 frameworks requiring gas handling, vacuum plans are fixed and require negligible adjusting. As it were, mechanical and terminal reviews are required. With 30,000 to 100,000 exchanging cycles, some time recently contact substitution, they essentially decrease downtime and lifecycle costs, making them profoundly effective for cutting-edge control systems.
Where Vacuum Technology Delivers Maximum Value
In control dissemination systems, Vacuum Circuit Breakers guarantee quick fault separation whereas keeping up benefit progression for unaffected areas. They are broadly utilized in substations for feeder assurance and hand-off coordination. Mechanical situations like steel plants and chemical plants benefit from their capacity to handle tall inrush streams and visit exchanging. They also bolster renewable vitality frameworks by overseeing bidirectional control stream and fast changes. In information centers, their unwavering quality ensures touchy IT loads from exorbitant intrusions, whereas compact design and minimal noise make them perfect for limited electrical rooms.
Vacuum Circuit Breaker Types and Maintenance Essentials
Classification by Design and Application

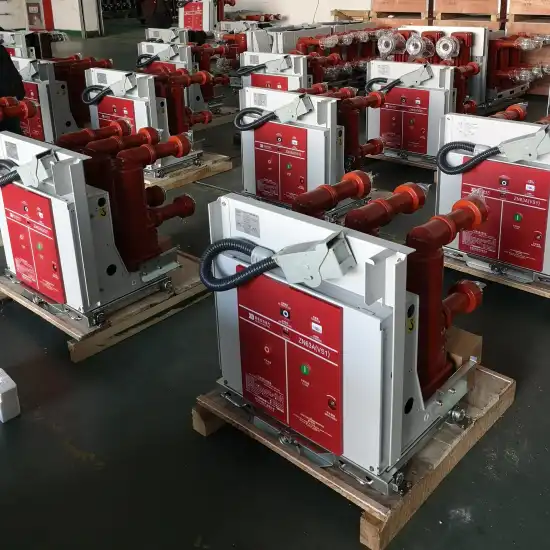

Vacuum Circuit Breakers are classified into indoor and open-air types. Indoor models like the ZN63-VS1 are utilized in metal-clad switchgear for controlled situations under 1000 meters height, promoting compact integration and simple installation. Open air adaptations include weatherproof cover for substations exposed to climate, UV, and moisture, commonly utilized in rustic jolt. Voltage appraisals incorporate 12kV, 24kV, and 40.5kV, whereas current appraisals run from 630A to 4000A, depending on application needs. Choice depends on stack, blame level, and establishment environment requirements.
Maintenance Practices That Extend Service Life
Maintenance of a Vacuum Circuit Breaker is essential for long-term reliability. Regular inspections are scheduled based on switching cycles. Contact resistance testing identifies wear or contamination, with abnormal readings indicating maintenance needs. Mechanical systems are checked for spring condition, lubrication, and alignment to ensure proper operation speed. Vacuum integrity is verified through dielectric tests, ensuring sealed performance remains intact. Proper documentation of operating history, test results, and maintenance records supports predictive maintenance strategies, helping prevent unexpected failures and extend equipment lifespan.
Vacuum Circuit Breaker vs Other Circuit Breakers: Making the Right Choice
Comparative Performance Analysis
Compared to oil circuit breakers, Vacuum Circuit Breakers eliminate fire hazards and reduce maintenance since no insulating oil is required. Unlike SF6 breakers, they avoid greenhouse gas emissions and environmental concerns while maintaining strong medium-voltage performance. Air-magnetic breakers are limited by size, noise, and lower efficiency in medium-voltage applications. Vacuum systems outperform them with faster switching, quieter operation, and higher reliability, making them the preferred choice for modern installations below 40.5kV in industrial, commercial, and utility environments.
Selection Criteria for Optimal Results
Selecting a Vacuum Circuit Breaker requires matching voltage, fault level, and environmental conditions. Rated voltage must exceed system requirements with safety margin, while breaking capacity should be at least 25% above calculated fault levels. Environmental factors such as altitude, humidity, corrosion, and seismic risk influence design selection. Compatibility with existing switchgear and relay systems reduces installation complexity. Supplier quality is also critical, with ISO-certified manufacturers providing tested, reliable products. Engineering support and technical documentation further ensure correct specification and long-term operational success.
Procurement Considerations: How to Buy Vacuum Circuit Breakers Effectively
Quality Certifications and Compliance Standards
Vacuum Circuit Breakers must comply with international standards such as IEC 62271-100 and ANSI C37.04, ensuring mechanical endurance, electrical performance, and safety. These standards guarantee compatibility across global installations. Type testing by independent laboratories validates short-circuit performance, endurance, and environmental resistance. Certifications and test reports help buyers confirm product reliability beyond manufacturer claims. Reviewing compliance documents before procurement ensures regulatory approval and reduces project delays, especially in multinational or utility-scale projects requiring strict engineering validation.
Strategic Procurement Approaches
Effective procurement of Vacuum Circuit Breakers requires evaluating total lifecycle cost rather than unit price alone. While higher-quality units may cost more initially, they reduce maintenance, downtime, and replacement frequency over decades. Bulk purchasing lowers unit costs and improves standardization across installations. Supplier support—including engineering assistance, commissioning, and training—ensures correct deployment. Spare parts availability, especially vacuum interrupters and mechanisms, is critical for minimizing downtime. Long-term service agreements further enhance operational continuity for critical infrastructure and industrial facilities.
Conclusion
Vacuum Circuit Breaker technology is the best way to distribute medium-voltage power in the utility, commercial, and industrial sectors. Their better ability to stop arcs, low maintenance needs, and environmental benefits meet the main needs of facility managers who want to protect equipment and keep it running at full capacity. Knowing how things work, like the physics behind vacuum arcs and how mechanical operating systems work, helps engineers and procurement professionals choose equipment that will work well for years to come.
Successful implementation requires careful attention to technical requirements, how well it works with the environment, and the supplier's abilities. The ZN63-VS1 indoor breaker is an example of modern vacuum technology. It is built to last and is small enough to fit in tight spaces. By comparing equipment to established standards, figuring out the total lifecycle costs, and working with manufacturers who offer full support, projects can meet their performance goals while keeping capital costs low.
Frequently Asked Questions
1. What is the typical operational lifespan of a vacuum circuit breaker?
Good vacuum interrupters can handle between 30,000 and 100,000 mechanical operations before the contacts need to be replaced. How long they last depends on the load current, fault duty, and frequency of operation. Under normal conditions, the sealed vacuum chamber stays intact for 25 to 30 years, which is often the same length of time as the switchgear's service life. Operating mechanisms need to be inspected and oiled on a regular basis, but with proper maintenance, the Vacuum Circuit Breaker should work reliably for this length of time.
2. Are vacuum circuit breakers suitable for high-voltage transmission applications?
When it comes to medium-voltage applications (3.6kV to 40.5kV), vacuum technology is the best because it is reliable and better for the environment. This is why it is used for most new installations. When transmission voltages are higher than 72kV, it can be hard to design because of the need for contact gaps and managing dielectric stress. For these reasons, SF6 breakers are better for these uses. The best place for vacuum technology to be used is in medium-voltage distribution systems, which are where most commercial and industrial buildings connect.
3. What factors determine maintenance frequency for these devices?
The number of operating cycles is a better way to plan maintenance intervals than calendar dates. Inspections that look at contact resistance, mechanism function, and terminal connections should be done once a year on devices that switch more than 500 times a year. Units that are mostly used as isolation points and don't do much switching may be inspected every 24 to 36 months instead of every 12 to 18 months. No matter what the operating cycle is, environmental conditions, earthquakes, and fault interruption incidents call for more inspections.
Partner With Xi'an Xikai for Trusted Vacuum Circuit Breaker Solutions
The Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. offers tried-and-true medium-voltage protection solutions that are backed by 30 years of engineering and manufacturing excellence. Our ZN63-VS1 indoor Vacuum Circuit Breaker series combines advanced technology for interrupting power with strong construction. It is used in places all over the world, from factories to renewable energy projects. We know how important it is to have reliable power distribution to keep production on schedule, protect investments, and keep workers safe.
When procurement teams work with Xi'an Xikai, they get full support throughout the whole project lifecycle, from help with the initial specifications to commissioning and ongoing maintenance. Our ISO 9001-certified factories use strict quality control methods. Before they ship any breaker, they test it for dielectric properties, thermal cycling, and mechanical integrity. As a well-known company that makes Vacuum Circuit Breakers, we keep a large stock of spare parts and offer technical documentation to help with installation and long-term asset management.
Get in touch with our application engineering team to talk about your specific needs. Get in touch with serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to get personalized advice based on your electrical needs, the environment, and your top priorities for operations. You can look at our whole product line at xaxd-electric.com and learn why top industrial operators, utility companies, and system integrators trust Xi'an Xikai to provide them with mission-critical power distribution equipment. Let our experience help you protect your infrastructure and get the most out of your electrical system.
References
1. Smith, J. & Anderson, R. (2021). Modern Circuit Breaker Technology: Principles and Applications in Medium-Voltage Systems. Technical Press International.
2. International Electrotechnical Commission. (2021). IEC 62271-100: High-voltage switchgear and controlgear - Part 100: Alternating-current circuit-breakers. Geneva: IEC Publications.
3. Williams, D. (2020). Vacuum Interrupter Theory and Application in Power Distribution Networks. Journal of Electrical Protection Systems, 45(3), 112-128.
4. Chen, L. & Martinez, P. (2022). Comparative Analysis of Medium-Voltage Circuit Breaker Technologies for Industrial Applications. IEEE Transactions on Power Delivery, 37(2), 856-871.
5. National Electrical Manufacturers Association. (2019). ANSI C37.04: Rating Structure for AC High-Voltage Circuit Breakers. Rosslyn: NEMA Standards Publication.
6. Thompson, K. (2023). Maintenance Strategies for Vacuum Circuit Breakers: Optimizing Reliability and Lifecycle Costs. Power Systems Maintenance Quarterly, 18(1), 34-52.
