What’s the Role of Shunt Capacitor in Electrical Distribution System?
2026-04-17 16:11:26
Shunt capacitors are very important parts of electricity distribution systems because they provide reactive power replacement right where it is needed. Inductive loads, like motors, transformers, and heavy machinery, cause delayed power factors, which are problems that the Low Voltage Shunt Capacitor-square is designed to fix. By putting these capacitors in parallel with the stack, office supervisors can settle issues with the control calculate, keep voltage levels steady, cut down on exchange misfortunes, and maintain a strategic distance from costly fines from the utility companies. Since of this, shunt capacitors are exceptionally imperative for keeping the framework solid, bringing down vitality costs, and ensuring that mechanical and commerce settings can keep running without any problems.
 |
|
Understanding Low Voltage Shunt Capacitor-Square: Fundamentals and Design
What Defines the Square Form Factor?

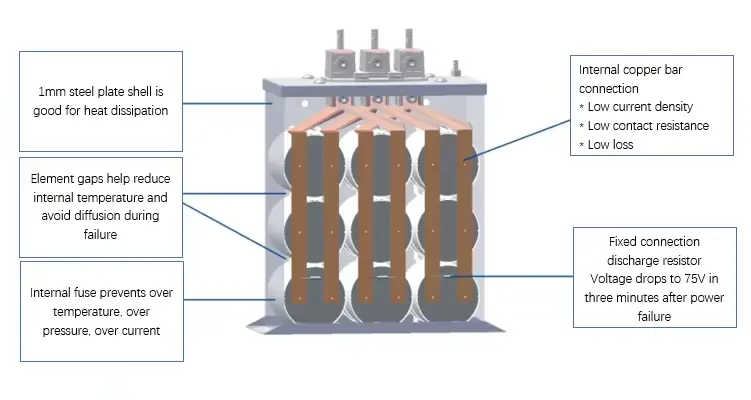

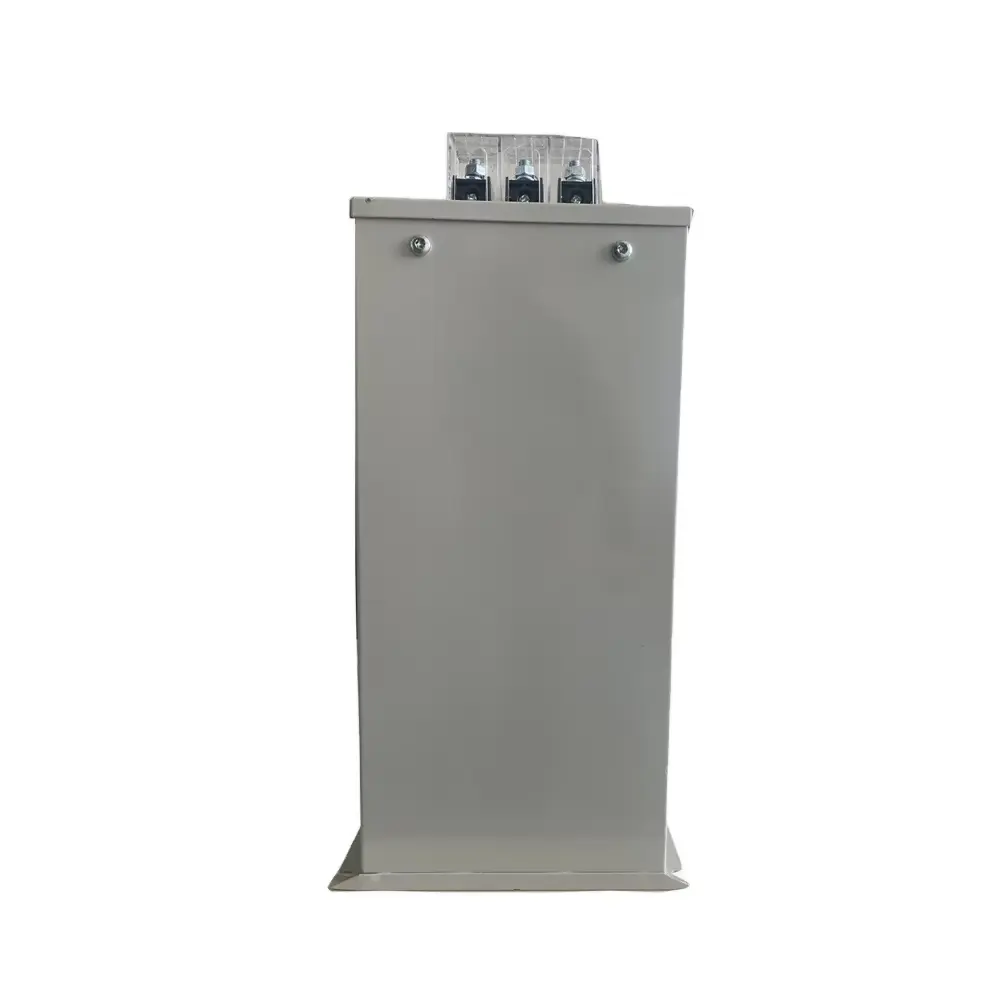

The Low Voltage Shunt Capacitor-square features a compact rectangular housing optimized for efficient cabinet space usage in APFC panels. Its flat-sided design improves thermal dissipation through natural airflow and prevents hotspots. A galvanized steel enclosure enhances durability and shields internal components from environmental stress, making it suitable for demanding industrial and data center environments.
Working Principles Behind Reactive Power Compensation
Shunt capacitors utilize metallized polypropylene film with self-healing properties to compensate responsive control caused by inductive loads. By providing driving receptive control, they decrease current stream and progress control calculate. Capacitive reactance diminishes with recurrence, making them compelling at standard control frequencies. The self-healing instrument segregates flaws right away, guaranteeing proceeded operation with negligible execution loss.
Critical Specifications for Industrial Applications
Key determinations incorporate voltage appraisals from 100V to 1000V, with common mechanical levels like 400V–690V. Capacitance resistance regularly ranges from -5% to +10%, guaranteeing consistency. Moo scattering calculate minimizes vitality misfortune, whereas working temperatures from -25°C to 50°C suit shifted situations. Adaptable association sorts and legitimate establishment dispersing back dependable execution and warm management.
Core Benefits and Applications of Low Voltage Shunt Capacitor-Square
Measurable Economic Advantages
Low Voltage Shunt Capacitor-square solutions deliver clear financial benefits by eliminating utility penalties caused by low power factor. Improving power factor reduces apparent power demand, lowering infrastructure loading and delaying costly upgrades. It also decreases transmission losses by reducing current flow, leading to significant annual energy savings and enabling most capacitor investments to achieve payback within a short period.
Operational Reliability Enhancements
By stabilizing voltage levels, shunt capacitors reduce fluctuations caused by inductive loads, preventing equipment malfunctions and extending operational life. They support consistent voltage within tighter tolerances, which is critical for sensitive systems like medical equipment and CNC machines. Durable construction, self-healing technology, and built-in safety mechanisms further enhance reliability while minimizing maintenance and failure risks.
Diverse Application Environments
These capacitors are widely used in industrial plants, commercial buildings, and renewable energy systems. In manufacturing, they improve motor efficiency and reduce transformer stress. Commercial facilities benefit from lower energy costs and quieter operation. In renewable energy networks, they help stabilize voltage fluctuations caused by variable generation, ensuring consistent power quality across connected systems.
Comparing Low Voltage Shunt Capacitor-Square with Other Capacitor Types
Square Versus Cylindrical Designs

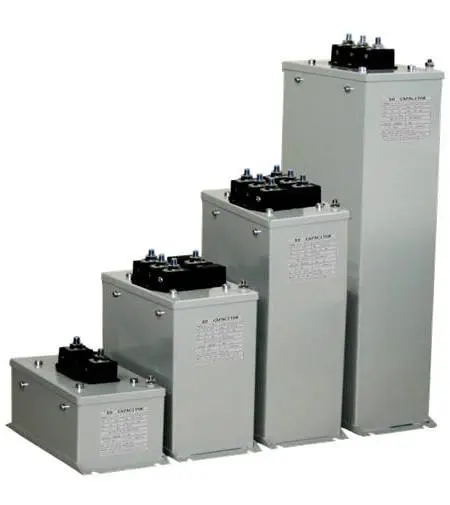

Low Voltage Shunt Capacitor-square designs maximize enclosure space by eliminating gaps common with cylindrical units, increasing kVAR density by up to 30–40%. Their flat surfaces improve airflow and heat dissipation, enhancing thermal stability. Additionally, the lower center of gravity and wider base provide better mechanical stability under vibration or seismic conditions, reducing structural stress and improving long-term reliability.
High Voltage Versus Low Voltage Applications
High voltage capacitors serve large-scale transmission systems, managing reactive power across wide networks, while low voltage units operate within facilities to improve efficiency locally. By reducing reactive current at the source, they lower demand charges and system losses. Easier installation, safer operating levels, and simplified maintenance make them more practical for facility-level applications.
Film Capacitor Technology Comparisons
Modern capacitors use metallized polypropylene film, replacing older paper-oil and ceramic designs. This technology offers self-healing capability, preventing catastrophic failures and extending lifespan significantly. Compared to other correction methods, these capacitors deliver high efficiency with minimal losses, avoiding mechanical or switching drawbacks, and providing a reliable, environmentally safe solution for long-term reactive power compensation.
Maintenance, Safety, and Testing of Low Voltage Shunt Capacitor-Square
Preventive Maintenance Protocols
Regular inspections of Low Voltage Shunt Capacitor-square systems improve reliability and lifespan. Quarterly visual checks identify swelling, discoloration, or loose terminals, while thermal imaging detects abnormal temperature rises. Annual electrical tests verify capacitance, dissipation factor, and insulation resistance. Tracking these values over time enables predictive maintenance, ensuring early fault detection and preventing unexpected failures during critical operations.
Safe Installation and Handling Requirements
Capacitors retain stored energy even after shutdown, requiring strict safety procedures. Proper lockout-tagout practices, voltage verification, and waiting periods ensure safe handling. Adequate spacing and ventilation prevent overheating, while correct torque ensures secure connections. In systems with nonlinear loads, detuning reactors are used to avoid harmonic resonance, protecting equipment from overvoltage and maintaining stable operation.
Diagnostic Testing Methodologies
Advanced diagnostics help identify early-stage failures and optimize maintenance timing. Partial discharge testing detects insulation breakdown through high-frequency emissions, while frequency response analysis reveals internal defects. Thermographic inspections highlight overheating units by comparing temperature differences. Combining these methods provides a comprehensive condition assessment, enabling informed replacement decisions and improving overall system reliability.
Procurement Guide for Low Voltage Shunt Capacitor-Square: Making the Right Choice
Evaluating Manufacturer Credentials
When looking for a dependable Low Voltage Shunt Capacitor-square provider, the first thing you should do is check their manufacturing quality certifications and name in the industry. Getting ISO 9001 approval shows that you have well-established quality control systems that cover the planning, making, and testing stages. The ISO 14001 environmental certification shows that a company is committed to using sustainable production practices, such as treating products and waste streams in the right way. The ISO 45001 occupational health and safety certification shows that the workplace meets certain safety standards that protect workers in production.
Product approvals that are special to electrical equipment give you even more peace of mind that the equipment meets regional safety and performance standards. If a product is listed or recognized by UL (Underwriters Laboratories), it means it meets North American safety standards for building, heat performance, and fault behavior. The CE mark shows that a product meets the safety standards set by the European Union for low-voltage equipment, electromagnetic compatibility, and limits on dangerous chemicals in the environment (RoHS). Adhering to the IEC 60831-1 standard makes sure that mechanical requirements are the same all over the world.
The technical skills of the manufacturer affect how well the product works and how much it can be customized. Companies that put money into research and development relationships, like taking part in state technology programs like China's 863 Program, show that they can come up with new ideas that lead to better products. Patented technologies in areas like self-healing mechanisms, connection systems, or heat management set top makers apart from mass-produced goods that copy existing designs without making any major changes.
Specification Matching and Application Engineering
The right Low Voltage Shunt Capacitor-square ratings for each placement are found by doing accurate estimates of the reactive power requirements. Power factor, voltage, current, and harmonic content measurements taken at suggested installation sites by facility electrical checks are very important information. When choosing the right size capacitor, it's best to aim for corrected power factors between 0.95 and 0.98 instead of 1.00 to avoid leading power factor situations that can cause voltage to rise and transformer overload when there isn't much load.
To find the needed reactive power correction, use the formula kVAR = kW × (tan θ₁ - tan θ₂), where θ₁ is the power factor angle that hasn't been corrected and θ₂ is the angle that needs to be adjusted. A building that uses 1000kW of power at a power factor of 0.75 (θ₁ = 41.4°) and wants to fix it so that it has a power factor of 0.95 (θ₂ = 18.2°) needs 553 kVAR of capacitance, which is equal to 1000 times (tan 41.4° - tan 18.2°).
When choosing a voltage grade, you need to think about how the system works, such as voltage changes, harmonic distortion, and transient conditions. Voltage stress on capacitors is related to both the basic voltage and the harmonic content. For example, systems with 5% total harmonic distortion need capacitors rated 10% above the nominal system voltage. The 50KVAR self-healing capacitor for PFC can handle a wide range of voltages, from 100V to 1000V. It can work with 400V, 415V, 440V, 480V, and 690V systems that are common in foreign markets.
Commercial Terms and Supply Chain Considerations
When buying Low Voltage Shunt Capacitor-square tools, you should talk about the guarantee coverage, the availability of expert support, and the delivery wait times. Standard warranties cover production flaws for 12 to 36 months. For an extra fee, you may be able to get guarantees that last up to 60 months. The warranty terms should make it clear what kinds of things are not covered, such as misuse, poor fitting, or use beyond the rated limits.
Total ownership cost is affected by expert help after the sale in a big way, especially for difficult installs or troubleshooting needs. Manufacturers who offer technical support hotlines 24 hours a day, seven days a week, full installation instructions, and application engineering help add value beyond the price of the parts. Access to field service experts for help with commissioning or to improve performance after installation is worth a small price increase because it lowers the risk of installation and improves performance.
Prices for bulk orders usually offer savings of 10% to 25% for orders of more than 50 units, with more discounts available for orders of higher volumes. Lead times for standard stock items are usually four to six weeks from the time an order is confirmed. However, lead times for special designs that require non-standard voltage ratings, terminal arrangements, or connection configurations can take up to twelve weeks. Strategic purchase planning lines up the delivery of capacitor banks with building plans. This keeps expensive project delays from happening because of problems with getting parts.
Conclusion
Shunt capacitors are important infrastructure parts that make it possible for industrial and business buildings to efficiently distribute electricity. Modern power quality problems can be solved by the Low Voltage Shunt Capacitor-square design, which saves room, uses advanced self-healing technology, and has been shown to work reliably in harsh environments. Facility operators and system integrators can make smart purchasing decisions that save money by lowering energy costs, making equipment last longer, and improving voltage stability for essential operations. This is possible if they understand basic operating principles, the benefits of one technology compared to others, and the right way to do routine maintenance.
Frequently Asked Questions About Low Voltage Shunt Capacitor-Square Systems
1. How Do I Determine the Correct Capacitor Size for My Facility?
To get the right size, you need to find out what the reactive compensation needs to be in order to hit the goal power factor, which is usually 0.95. You can do this by looking at your energy bills or power quality meters. The formula kVAR = kW × (tan θ₁ - tan θ₂) gives the theoretical needs, but in real life, installations usually use capacitors in multiple steps that are swapped automatically based on the load. When engineers talk about Low Voltage Shunt Capacitor-square setups, they look at voltage levels, harmonic content, and load variability.
2. What Maintenance Schedule Should I Follow?
Visual inspections every three months to check the physical state and electrical tests once a year to measure capacitance, dissipation factor, and insulation resistance keep things running at their best. Thermal image scans are done once a year to find problems that are getting worse by looking for changes in temperature. Units with dissipation factors above 0.002 or capacitance decline rates above 10% should be replaced.
3. Can These Capacitors Integrate with Existing APFC Panels?
Yes, Low Voltage Shunt Capacitor-square units made to IEC 60831-1 standards work well with automatic power factor adjustment controls from many brands. Before buying, make sure that the voltage levels, connection types (D, Y, YN, or III), and physical measurements match the specs of the current panel.
Enhance Your Power Quality with Xi'an Xikai's Advanced Capacitor Solutions
The Low Voltage Shunt Capacitor-square technology from Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. has been used for decades by many industries, including State Grid systems, steel and metallurgy, petrochemicals, rail transportation, and renewable energy. Our 50KVAR self-healing capacitor for PFC is made of strong stainless steel, works steadily at heights of up to 4000 meters, and meets strict international standards. Whether you're an EPC contractor looking for parts for large-scale utility projects or a site manager trying to make the most of current distribution systems, our technical team can help you with your specific power quality problems. As a reliable Low Voltage Shunt Capacitor-square manufacturer, you can reach our experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about large purchases. Working with Xi'an Xikai will help you save money on energy costs and make your business more reliable.
