What to Check Before Buying an Indoor Voltage Transformer

Before committing to a purchase, knowing what to check when buying an indoor voltage transformer can save your team significant time, cost, and operational headaches. An indoor voltage transformer—also called a potential transformer—steps down high primary voltage to a standardized, measurable secondary level, enabling accurate metering and protective relaying inside switchgear assemblies. Key checkpoints include accuracy class (0.2, 0.5, or 3P), rated burden (VA), insulation level, dimensional fit within the cabinet, and compliance with IEC 61869-2 or GB 20840.2-2014. Getting these right from the start is the foundation of a reliable power system.

Understanding Indoor Voltage Transformers – Key Basics to Know

Measurement Principles and Accuracy Fundamentals

An indoor voltage transformer is basically a device for measuring electromagnetic fields. It changes a main voltage that is too high to be safe, like 24kV, into a secondary voltage that is safe and standard, like 100V, 110V, or 480V, so that instrumentation and safety switches can work with it. Potential transformers are not meant to carry loads, but to accurately measure signals. This is why accuracy class and phase shift are so important.

Types and Construction

The main way that indoor voltage transformers are grouped is by how they are insulated. Cast-resin (epoxy-encapsulated) units are the most common type of indoor switchgear today because they are sealed and don't need any upkeep. The Xi'an Xikai 24kV indoor voltage transformer has a full cover made of vacuum-cast epoxy resin. This keeps wetness out and eliminates the risk of partial discharge. Its precision-wound copper coils and layered cold-rolled silicon steel core keep phase displacement below 30 minutes, which is a requirement for revenue-grade metering.

Indoor vs. Outdoor: Why It Matters

It is designed so that indoor potential transformers can work in controlled settings like switchgear rooms, fixed substations, and industrial control panels. To fit inside 24kV switchgear bays, they put a high priority on having a small footprint, keeping arc flashes contained, and exact dimensional tolerances. On the other hand, outdoor units need housings that are resistant to weather and longer creepage distances, which means they can't be used with most OEM cabinet designs. Manufacturers of switchgear that want to sell their products in South and Southeast Asian countries, where 24kV is the normal distribution voltage, must have an indoor-rated unit with the right mounting dimensions.

Essential Criteria to Evaluate Before Purchasing

Accuracy, Burden, Insulation, and Ferroresonance Mitigation

Usually, procurement teams look at price first and then find problems with compatibility. Before asking for a price, the smarter way looks at five technical factors.

Here are the main requirements that every indoor voltage transformer that is approved for use with 24kV switchgear must meet:

• Accuracy Class: Class 0.2 or 0.5 is needed for revenue metering, while Class 3P is used for protection circuits. When accuracy classes don't meet, payment conflicts and relay problems happen. According to IEC 61869-3, the Xi'an Xikai unit can handle both 0.2 and 0.5, so it can be used for both metering and protection.
• Rated Secondary Burden (VA): If the burden capacity is too low, the transformer has to work outside of its linear range, which makes it less accurate. With outputs of 30, 80, and 200VA, you can perfectly match them to the loads of connected instruments without going too big.
• Insulation Level: A 24kV system for an indoor voltage transformer needs a rated insulation level of 17.5, 55, or 105kV for lightning impulse, power frequency withstand, and um. When there aren't enough of these things, there is a risk of dielectric breakdown, especially in target export markets that are wet and warm.

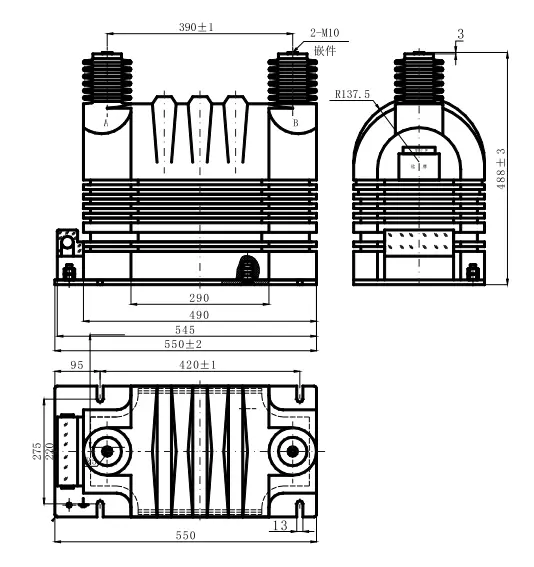

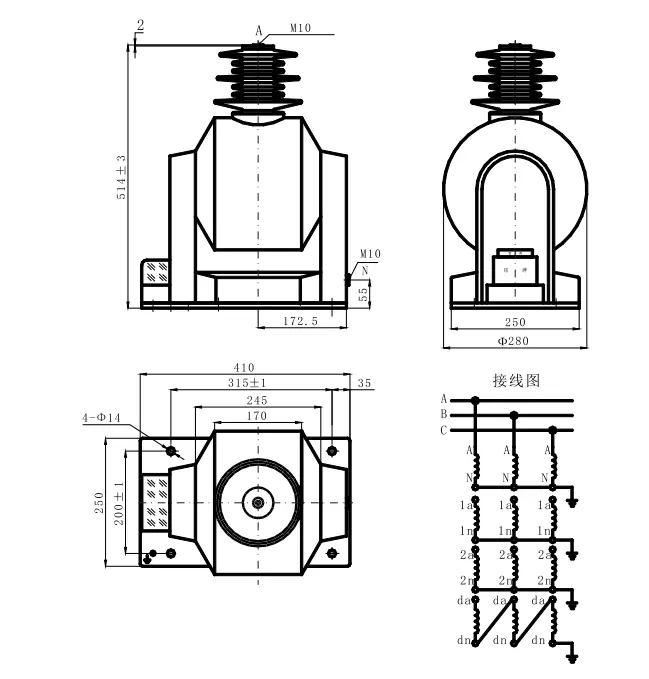

• Physical Dimensions and Mounting Interface: Companies that make OEM switchgear need to make sure that the mounting pattern, primary terminal clearance, and overall envelope of the transformer match the design of the cabinet bay. Costly rework can be avoided by asking for approved dimensional models before the tools are used.
• Ferroresonance Mitigation: Ferroresonance is a known danger in 24kV networks that are not grounded or are grounded in a way that causes resonance. For network stability, it is important to choose a unit that can work with an external damping resistor or a specialized ferroresonance reduction device.

These five factors are the technical foundation of a good buying choice. If you don't pay attention to even one, especially the insulation level or burden rating, it can lead to field failures that are hard to figure out and cost a lot of money and time.

Safety compliance is the last part of the review. Some standards, like IEC 61869-1, IEC 61869-2, and GB 20840.2-2014, spell out what type tests are required, what regular tests are needed, and how much paperwork is needed. No matter how low their prices are, suppliers who can't show original test papers for partial discharge (target: <10pC), power-frequency withstand (55kV/1 min), and impulse voltage (105kV) should be thrown out.

Comparing Leading Brands and Supplier Selection Tips

Beyond Brand Recognition: Process Control, Customization, and Logistics

Siemens, ABB, Schneider Electric, and a number of other specialized makers are all global providers of medium-voltage instrument transformers. Each has a recognized certification, but there are other things that are needed for OEM switchgear applications besides brand recognition.

When choosing an indoor voltage transformer supplier, it's more important to look at how well they handle logistics, how authentic the certificates are, and how much customization is possible. A supplier that has ISO 9001 and ISO 14001 manufacturing certification, vacuum casting in-house, and automated coil winding has better process control than a trading middleman that sells production made by someone else.

For more than 25 years, Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. has been making instrument transformers, which they used to build their indoor voltage transformer line. Before it was shipped, the 24kV unit went through all of its regular tests, such as measuring the partial discharge, checking the dielectric withstand, and making sure the ratio accuracy was correct. OEM users who need non-standard secondary voltages (for example, 24kV/120V for certain foreign markets) can get custom ratio setups from the plant. The prototyping process takes four to eight weeks. Large orders are usually shipped within three weeks, thanks to logistics coordination that takes place in Asia, Europe, and the Americas.

Troubleshooting and Maintenance Tips for Indoor Voltage Transformers

Insulation Monitoring, Thermal Management, and Visual Inspection

Epoxy-cast indoor voltage transformers are much more durable than older oil-filled models, but they still need regular upkeep to keep their accuracy and insulation integrity for 25–30 years.

The main long-term worry for the indoor voltage transformer is that insulation is wearing out. Thermal cycles and continuous partial discharge activity break down epoxy resin over time, which increases the ratio error beyond what is reasonable. Using power frequency withstand or insulation resistance measurement to schedule dielectric tests every three to five years finds damage before it causes a service delay. Operating temperatures should stay between -25°C and +55°C; temperatures above this range speed up aging in a way that is not linear.

Unexpected humming or shaking is often a sign of loose core laminations or resonance with parts of nearby equipment. Every time the panels are serviced, they should be looked at visually for surface cracks in the epoxy coating. Surface tracking can start with contamination on terminal surfaces, even in environments that are supposed to be completely sealed. A cheap way to stop this from happening is to clean the terminals with a dry, lint-free cloth during planned outages.

Unplanned power outages are much less likely to happen when repair workers on switchgear are taught to spot early warning signs like high temperatures at secondary terminals or strange relay signals.

Making the Final Decision – Tailoring Your Choice to Business Needs

Engineering Precision, Total Cost Optimization, and Pre-Production Validation

When you match the indoor voltage transformer specification to your specific switchgear design, procurement stops being a list-based process and turns into an engineering decision. OEMs that are making products to sell in South and Southeast Asia should make sure that the unit they choose has both IEC certification and the national certifications needed for that country.

A study of the total cost of ownership repeatedly shows that specifying a higher-accuracy, properly rated potential transformer during the planning stage costs less over ten years than the repairs that need to be done in the field for units that were not specified correctly. The optimized silicon steel core of the Xi'an Xikai 24kV indoor voltage transformer cuts hysteresis and eddy current losses by a measurable margin. This helps the system use less energy, which is in line with ISO 50001 goals. Because it is IEC 61850-ready, it can be easily added to smart grid and Internet of Things (IoT)-enabled substation designs without the need for new hardware.

Before signing an annual framework contract, it's smart to ask for a factory model or prototype for the switchgear bay you need. Before mass production starts, it checks the accuracy, physical fit, and terminal torque specs under your real secondary load.

Conclusion

To choose the correct indoor voltage transformer for a 24kV switchgear application, you need to carefully consider its accuracy class, load capacity, insulation level, physical compatibility, and ferroresonance resistance. Suppliers must show that they can support custom specifications and provide test documentation that has been checked. If you buy an indoor voltage transformer that meets these requirements from a company with quality processes that can be checked, it will provide reliable metering and protection throughout its service life. This will protect both your switchgear's reputation and the grid stability of your end customers.

FAQ

1. What accuracy class should I specify for 24kV metering applications?

Class 0.2 is needed for energy meters that are used for billing, where accuracy is controlled. The class 0.5 is good for general monitoring. Class 3P is for uses that need safety relays. There are a lot of 24kV switchgear systems that use a dual-secondary indoor voltage transformer to do both jobs at the same time.

2. How do I determine the correct burden rating?

Add up how much VA all the connected devices—like energy meters, power quality testers, and relays—use, and then choose the next standard rated load (30VA, 80VA, or 200VA) that is higher than that amount. Working well below the rated load doesn't hurt accuracy, but going over it will.

3. What is ferroresonance and how can it be prevented?

When the non-linear inductance of a voltage transformer interacts with the system capacitance, it can cause ferroresonance, which is an oscillating overvoltage condition. It happens most often in 24kV networks that are not grounded or have high-impedance grounding. By connecting a ferroresonance suppression device, such as a damping resistor across the secondary, oscillation can't happen for a long time.

Connect with Xi'an Xikai for Your Indoor Voltage Transformer Needs

The 24kV indoor voltage transformer from Xi'an Xikai is a good choice for OEM switchgear manufacturers because it is accurate, has a strong epoxy coating, and can be customized in a number of ways. As an experienced maker of indoor voltage transformers, we can handle both yearly framework deals and monthly purchase orders. You can get in touch with our tech team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com. You can get a datasheet or prototype quote by going to xaxd-electric.com.
