How to Choose an SF6 Circuit Breaker for Industrial Applications

Choosing the right SF6 circuit breaker for a high-voltage substation or industrial facility is not a decision you make lightly. With project budgets running into tens of millions and grid reliability on the line, procurement engineers and EPC project managers need a clear, evidence-based framework. This guide walks you through the core technical criteria, procurement considerations, and real-world application insights so you can make a confident, defensible equipment selection.

Understanding SF6 Circuit Breakers: Core Concepts and Working Principles

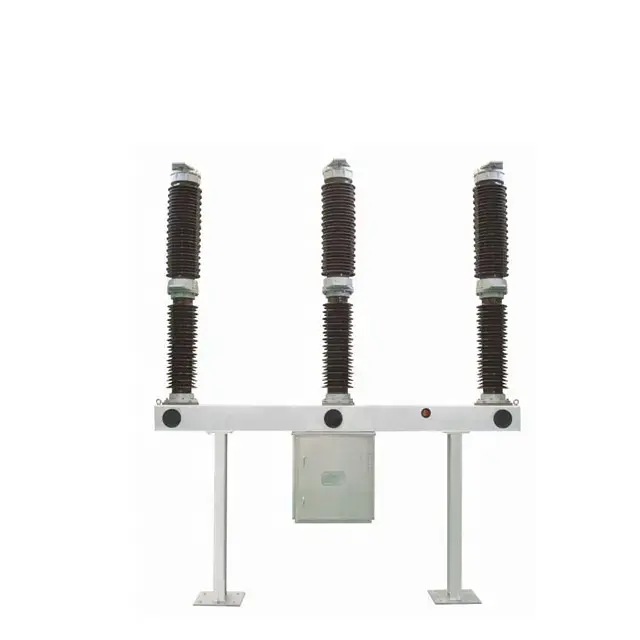

An SF6 circuit breaker is a high-voltage switching device that uses sulfur hexafluoride gas to stop arcs and keep the electricity flowing. SF6 has a dielectric strength that is about 2.5 to 3 times that of air at standard atmospheric pressure. This means that it can be used in small interrupter chambers and reliably stop faults at voltages from 40.5 kV to 252 kV and higher. IEC 62271-100 says that these devices must work the same way in thousands of different mechanical operations and be able to handle short-circuit duties that would damage less durable equipment.

Puffer vs. Self-Blast Design: Which Suits Your Project?

The market is dominated by two main delay methods. Some designs, like the LW24 Dead Tank SF6 circuit breaker from Xi'an Xikai, use the arc energy to build the gas-blast pressure needed for interruption. Other designs, like the puffer designs, use mechanical compression of the SF6 gas during the opening stroke. When you use the self-blast method, you greatly lessen the mechanical stress on the working mechanism. This means that it lasts longer and needs less upkeep. Self-blast technology is a great way to improve the efficiency of 110–330 kV substations that handle fault currents of 40 kA or more.

Dead Tank vs. Live Tank Configuration

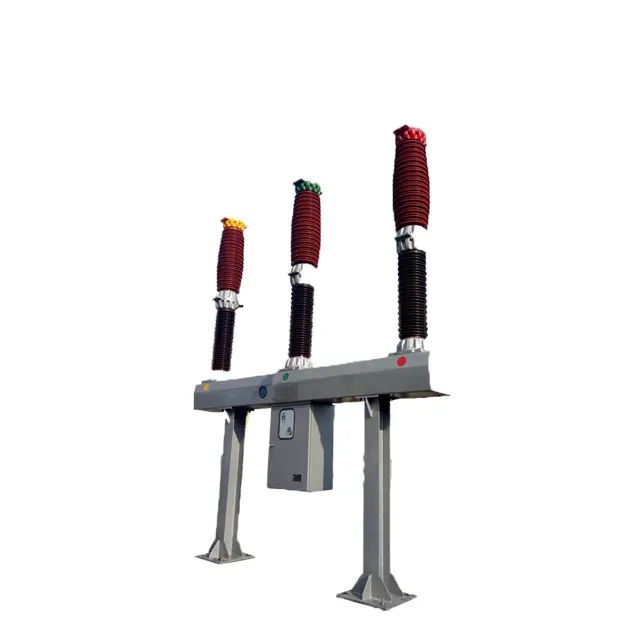

Dead tank breakers put the interrupter unit inside a metal box that is grounded and filled with SF6 gas. This arrangement makes mounting the current transformer easier, makes it less likely that it will be damaged by earthquakes, and lowers the center of gravity in general. This is an important factor in areas along Belt and Road corridors that are prone to wind or earthquakes. On the other hand, live tank breakers put the interrupter on a ceramic or composite insulation at line potential. IEC and ANSI standards are met by both setups. However, dead tank designs are often easier to maintain in open substations because they keep the gas system better sealed from the environment.

Key Decision Criteria When Choosing an SF6 Circuit Breaker

Core Performance Parameters and Environmental Compliance

Once you know the basics of the technology, the selection process can be boiled down to a set of technical and operational factors that can be measured. Before approving a blueprint, procurement engineers at design schools usually look at the following factors:

Here are the core technical parameters that drive equipment selection in 110–330 kV projects:

• Rated voltage and breaking capacity: Check the breaker's rated voltage (40.5 kV, 72.5 kV, 126 kV, 145 kV, or 252 kV) and making sure it fits your system voltage. Also, check the breaker's rated short-circuit breaking current. The LW24 can break up to 63 kA, which is more than enough to handle demanding 40 kA system fault levels.
• Rated normal current: 3150 A or 4000 A continuous current values work for SF6 circuit breaker transformer feeders and bus-tie uses with heavy industry and utility loads without thermal derating.
• Annual SF6 leakage rate: Leakage rates must be less than 0.5% per year to meet regulations, especially in areas that use EU F-gas standards. Low leakage lowers the lifecycle cost of gas and shows project owners that you care about the environment.
• Operating mechanism reliability: The LW24's CT20 spring mechanism reduces the amount of pre-charged energy needed and gets rid of problems with older hydraulic mechanisms' oil management.

These parameters collectively determine whether a breaker will perform reliably over a 25-year service life in tough outdoor environments.

SF6 vs. Vacuum: A Practical Comparison

Vacuum circuit breakers work well with middle voltages up to 36 kV and can handle switching tasks that happen often. Above 72.5 kV, SF6 technology is still theoretically better because it has a faster dielectric recovery speed after the arc ends and can stop inductive currents without causing dangerous overvoltages to start up again. Standard in both the State Grid and Southern Grid procurement catalogs for 110 kV and above is the SF6 circuit breaker.

Procurement Process and Practical Considerations

Lead Times, Certification Verification, and Lifecycle Costing

It takes more than picking a specification to find high-voltage switching tools for a multi-bay substation job. Lead times for custom voltage variations are usually between 12 and 20 weeks from the time an order is confirmed. To avoid delays on the key path, EPC project managers should make sure that the plans for purchases and foundation work are in sync.

To make sure a provider of the SF6 circuit breaker is trustworthy, you need to look at type-test certificates from third-party labs that are recognized by organizations like KEMA or CEPRI. Ask suppliers for original test results, not summary sheets, and make sure the test configuration fits what you ordered. Xi'an Xikai makes core parts like interrupters and working mechanisms in-house using ISO 9001, ISO 14001, and ISO 45001 quality systems. This lets them fully track products from raw materials to finished goods.

A lifecycle cost analysis should look at more than just the unit price. If you have a breaker with flexible independent-pole interrupters, like the LW24's three-chamber design, you can repair just one pole without having to shut down the whole bay. Over the course of 20 years, the CT20 spring mechanism cuts down on the number of scheduled maintenance visits and the amount of labor needed for maintenance.

Case Studies: Successful Application of SF6 Circuit Breakers in Industry

Field Performance, Renewable Integration, and High-Altitude Adaptations

Field success data shows how important it is to choose tools carefully. An upgrade to a 220 kV substation in a major industrial corridor was needed to support a steel complex drawing more than 300 MW. The update needed dead tank breakers that could handle frequent load switching and rare capacitor bank operations. The SF6 circuit breaker design chosen for that project had no unexpected outages during the first three years of operation. This proved that self-blast interruption technology works reliably in heavy cycling circumstances.

Using renewable energy in projects isn't as easy as it sounds. Solar and wind farms add irregular power that puts a lot of stress on the equipment that switches power to and from the grid because it has to close and open so often. The LW24 can quickly close and open again after an O-0.3s-CO-180s-CO fault. This makes it a good choice for protecting feeders in these settings, where the speed at which faults are cleared directly affects energy flow and grid code compliance.

For Belt and Road infrastructure projects that work at high elevations, equipment that is rated for normal weather conditions often fails in unpredictable ways. The engineering team at Xi'an Xikai makes specifications that are adjusted for places that are up to 4,000 meters above sea level. This fills a need that standard catalog specifications can't meet.

Conclusion

To choose the right high-voltage SF6 circuit breaker for a 110–330 kV substation, you need to carefully look at its breaking power, leaking performance, mechanism stability, and overall cost over its entire lifecycle. It is possible for both utility and industrial EPC projects to use dead tank setups with self-blast interruption and flexible maintenance design, like the LW24. When you choose equipment based on strict technical criteria, check the records of the seller, and plan ahead for purchase, it will help the grid stay reliable for decades.

FAQ

1. Why choose an SF6 circuit breaker over a vacuum breaker at 110 kV and above?

Around 36 kV is the highest voltage that vacuum equipment can handle. Above that point, SF6 breakers offer better dielectric recovery, can handle capacitive switching without restriking, and keep up their consistent interruption performance at fault currents above 40 kA. These are all requirements that vacuum interrupters at transmission voltages can't meet right now.

2. How often does an SF6 circuit breaker require maintenance?

Modern self-blast designs with spring mechanisms usually need to be checked mechanically every 2,000 operations or 10 years, whichever comes first. Through built-in density relays, gas pressure monitoring is always on. If the density of the gas goes below the warning level, it needs to be refilled before the next action can happen.

3. How do evolving F-gas regulations affect SF6 equipment procurement?

EU F-gas rules say that closed-loop gas collection has to happen during repair and shutting down. SF6 can still be used in high-voltage situations, but projects that are meant to be exported can lower their compliance risk by selecting breakers with yearly leakage rates at or below 0.5% per year and keeping records of how the gas is handled.

Partner With Xi'an Xikai for Your Next Substation Project

Xi'an Xikai offers tested SF6 circuit breaker options, such as the LW24 Dead Tank line. These are backed by in-house production, type testing that meets IEC 62271 standards, and technical support that can handle projects in harsh environments. Our team can help you with technical issues, offer reasonable prices, and quickly organize your tasks. Get in touch with our SF6 circuit breaker specialists directly:

📧 serina@xaxd-electric.com | amber@xaxd-electric.com | luna@xaxd-electric.com

🌐 xaxd-electric.com

References

1. IEC 62271-100: High-Voltage Switchgear and Controlgear — Part 100: Alternating-Current Circuit Breakers. International Electrotechnical Commission, 2021.

2. IEEE C37.04: Standard Rating Structure for AC High-Voltage Circuit Breakers. Institute of Electrical and Electronics Engineers, 2018.

3. CIGRÉ Working Group A3.28: Failure Survey on Circuit Breaker Control Systems. CIGRÉ Technical Brochure 216, 2021.

4. Christophe Prévé: Protection of Electrical Networks. ISTE Ltd. and John Wiley & Sons, 2006.

5. European Parliament: Regulation (EU) No 517/2014 on Fluorinated Greenhouse Gases. Official Journal of the European Union, 2014.

6. Das, J.C.: Power System Analysis: Short-Circuit Load Flow and Harmonics, 2nd edition. CRC Press, 2012.
