Maintaining an SF6 circuit breaker properly is one of the most consequential responsibilities in high-voltage substation management. These devices rely on sulfur hexafluoride gas to quench arcs and provide insulation across voltage levels ranging from 40.5 kV to 252 kV. When maintenance is neglected, the consequences extend beyond equipment damage — they affect grid reliability, personnel safety, and regulatory compliance. This guide walks through the essential practices that keep your SF6 circuit breaker performing at its best, while addressing the real concerns that procurement engineers and EPC project managers face every day.

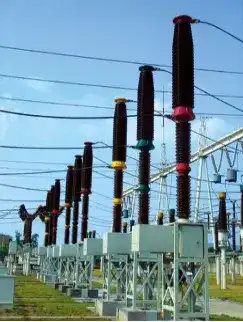

Understanding SF6 Circuit Breakers and Their Maintenance Requirements
How These Devices Actually Work
An SF6 circuit breaker stops fault currents by separating contacts inside a chamber full of sulfur hexafluoride gas. The gas's dielectric strength is about 2.5 to 3 times higher than air at standard pressure, which lets interrupter chambers be small and arcs to be put out reliably. There are two main types: the puffer type, which uses mechanical pressure to blast the arc, and the self-blast type, which makes the pressure using the arc's energy. It is the self-blast method used in the LW24 Dead Tank SF6 circuit breaker that makes the working device work a lot less hard.
Why Maintenance Frequency Matters
If you keep your SF6 circuit breaker in good shape, it should work well for at least 25 years. But this length is directly related to how often it is inspected. IEC 62271-100 says that utilities should check the functionality of their systems at least every three years when things are running normally, and more often in harsh environments. Not getting regular maintenance done speeds up the wear and tear on seals, lets water in, and lowers the purity of the gas. All of these things lower interrupting capacity just when you need it the most.

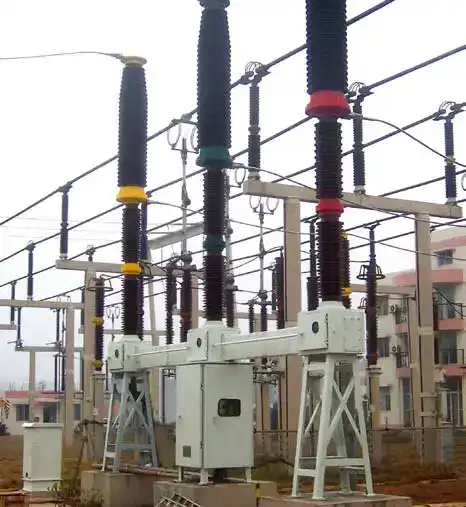

Core Maintenance Practices for SF6 Circuit Breakers
Gas Management, Mechanical Integrity, and Performance Verification
Engineers with a lot of experience know that any SF6 circuit breaker needs to have an organized maintenance program that includes three areas that work together: gas management, functional testing, and physical inspection. If you treat these as separate tasks, you miss how breaker health works as a whole.
Here are the core maintenance activities that a competent program must include:
- Visual and mechanical inspection: Check the case, bushings, and electrical connections for signs of rust, mechanical damage, or water getting in. On spring-driven systems like the CT20 mechanism used in the LW24, check the working mechanism linkages and spring tension. These systems are made to have as few repair cycles as possible.
- SF6 gas pressure and purity monitoring: The gas density for the SF6 circuit breaker must stay within the range given by the manufacturer. At Stage 1, a density relay sets off an alarm. At Stage 2, it stops all operations. A usual level for repair is moisture content above 150 ppm by volume. Low-purity gas makes arc-quenching less effective and speeds up the breakdown inside the metal.
- Contact resistance and timing tests: A contact resistance above the manufacturer's limit shows contact wear or contamination. Opening and closing speeds must meet specifications, as shown by timing tests. Deviations usually mean that the lubrication has worn out or the springs are too old.
- Gas recovery and refilling: The only certified closed-loop recovery equipment that should be used for gas servicing is certified closed-loop recovery equipment. The IPCC Fourth Assessment Report says that SF6 is a strong greenhouse gas that has the ability to warm the Earth 23,500 times more than CO2 over 100 years. In the EU, purposeful venting is against the rules for F-gas, and other markets are looking more closely at it too.
Taken together, these practices form a defensible maintenance record that supports both practical dependability and environmental compliance.
Troubleshooting and Addressing Common SF6 Circuit Breaker Problems
Identifying Gas Leakage Early
Most of the time, problems with old SF6 circuit breakers are caused by gas leaks. Most national grid procurement standards in China say that annual leakage rates below 0.5% are acceptable. This standard directly affects the choice of vendor. The LW24 series has low annual leak rates thanks to improved gas-sealing technology and a shell that doesn't rust, which has been tested at temperatures ranging from -30°C to +40°C. Technicians can find seal failures before the pressure drops to an alarm level using ultrasonic detectors and leak detection sprays made just for SF6.
Diagnosing Trip Failures and Sluggish Operation
A lot of problems with SF6 circuit breakers happen in the field because they trip or respond slowly. Usually, the root causes are not enough oil in the working mechanism, worn-out springs, or dirt in the control circuit. The LW24 Dead Tank SF6 circuit breaker's CT20 spring drive system is designed to be easy to maintain. Its flexible three-chamber structure lets you service a single pole without having to turn off the whole breaker. This shortens the time needed for corrective upkeep and keeps the system safe while fixes are being made.
Trend monitoring using SCADA-integrated sensors lets you plan ahead for repair needs. Instead of waiting for something to go wrong, teams can keep track of timing drift or contact travel deviation over time and plan to step in before something goes wrong.
Comparing SF6 Circuit Breaker Maintenance with Alternative Technologies
Performance Trade-Offs, Regulatory Pressures, and Design Evolution
Vacuum circuit breakers don't need to handle gas and don't need as much regular upkeep as SF6 units. At medium voltages up to 40.5 kV, they work reliably. Above that point, the SF6 circuit breaker is still the most popular option because a vacuum interrupter of the same size cannot match its dielectric recovery speed and interrupting capacity at 40 kA and higher.
Oil circuit breakers, which used to be common in transmission systems, need to be drained, filtered, and replaced regularly. This is a labor-intensive process that also has environmental impacts. On the other hand, an SF6 circuit breaker that is properly sealed works as a nearly closed system between major repairs.
The pressure on SF6 from the outside world is real. After 2024, the EU's new F-gas rule will make it harder to use SF6 in new distribution network equipment. However, there isn't an economically developed alternative that meets the SF6 circuit breaker's performance-to-cost ratio for 110 kV to 330 kV transmission applications across Belt and Road markets right now. As a result, the industry has worked hard to lower the amount of gas that goes through each interrupter and get leak rates well below the 0.5% annual threshold. New products like the LW24 have made real progress in both of these areas.
Selecting the Right SF6 Circuit Breaker and Maintenance Support Partner
Evaluating Technical Specifications Against Project Requirements
There is more to choosing the right high-voltage SF6 circuit breaker for a 110 kV to 330 kV substation than just considering the maximum voltages. The total cost of ownership is based on the breaking capacity, the estimated normal current, the dependability of the working mechanism, and the yearly leak rate. The LW24 Dead Tank SF6 circuit breaker can handle voltages of 40.5 kV, 72.5 kV, 126 kV, 145 kV, and 252 kV. It can also handle currents of 3150 A and 4000 A and can break up to 63 kA. Its self-optimized gas blast technology uses arc energy to create pressure inside, which lowers the load on the operating mechanism and makes service intervals longer.
For more than 50 years, Xi'an Xikai has designed and built high-voltage switching equipment. Third-party testing confirms that the LW24 series meets the requirements of IEC 62271 and IEEE C37.04. It is made in line with ISO 9001, ISO 14001, and ISO 45001 quality management systems. Before being sent out, every unit that is made in-house goes through strict factory acceptance testing. In the field, support includes on-site setup help and quick spare parts logistics.
Conclusion
Maintaining an SF6 circuit breaker properly is not a one-time thing that needs to be done; it's something that needs to be done all the time to protect both infrastructure and investment. Gas purity, mechanical state, and contact performance are all things that need to be checked on set cycles. When procurement engineers look at SF6 circuit breaker providers for transmission substations, they look at more than just the listed specs. They also look at how the products were made, how well they handle gas, and how long they can last in service. The Xi'an Xikai LW24 Dead Tank SF6 circuit breaker is a developed design that has been used in the field and directly solves these issues.
FAQ
1. How often should an SF6 circuit breaker be inspected?
According to the rules in IEC 62271-100, breakers that are normally used should be inspected every three years. Installations that are in environments that are corrosive, humid, or heavily polluted should be checked once a year. No matter what time it is, any alarm from the gas density relay needs to be looked into right away.
2. What are the signs of an SF6 gas leak?
The main sign is a decreasing density relay signal. Technicians use ultrasonic sound monitors or fluorescent tracer gas to find leaks at seal faces, flange joints, or bushing contacts while they are out in the field. A buildup of white powder inside the cage is a sign of arc byproducts, which are poisonous and need to be handled by a professional.
3. How should SF6 gas be handled during maintenance?
All gas removal must be done with approved recovery tools that keeps the gas from escaping into the air. The recovered gas is tested for purity, and if it meets the requirements, it can be used again. Gas that is contaminated or broken down needs to be thrown away through approved processing centers. This protocol is in line with both IEC standards and the rules that major markets have for F-gas.
