400V Self-healing Capacitor-cylindrical BKMJ0.46-30-3

1.Rated Voltage(Ue)：250v~525v, up to 2000v
2.Frequency：50/60Hz
3.Compact design，equipped with grounding bolt
4.Potting material: PU resin (soft resin)
5.Easy installation and wiring
6.Small size, Light weight
7.Self-healing, Maintenance-free
View details
50KVAR Self-healing Capacitor for PFC(Power factor correction)-square BKMJ

1.Rated Voltage(Ue)：100v~1000v
2.Installation Indoor
3.Case material Galvanized steel sheet
4.Output Range 10~100kvar
5.Frequency 50/60Hz
6.Connection configuration D, Y, YN, III
7.Terminal Block ：M6, M8, M10 (According to capacitor power)
8.Lose tanδ<0.001 (20°C 50Hz)
9.Temprature -25°C~50°C
10.Highest Altitude 2000m
11.Capacitor (to wall) pitch ≥50mm
12.Capacitance Deviation -5%~+10%
View details
BKMJ0.4KV Submerged Arc Furnace Capacitor

1.Frequency 60Hz
2.Capacitance Deviation -5%~+10%
3.Max Current 2.5×In
Equipped with discharge resistors
4.Integrated with independent over-voltage protection devices
5.Superior self-healing performance and extended service life
6.Low-loss factor, dry-type design with leakage-free construction
7.Equipped with discharge resistors
View details
10KV High voltage Shunt High-Voltage Capacitors

1.Rated Voltage:6kV,10kV,35kV
2.Rated Capacity:1-100Mvar(per bank)
3.The capacitor is mainly consisted of container and device body.
4.The core is consisted of severalelements and insulation parts. The element is rolled, pressed andmade of two aluminum foilsand somepiece of thin dielectric polypropylene films sandwiched betweenthe two aluminum foils. In order to reach the differentdemand of voltage and capacity, the elements in core is connected by someseriesand parallelmethod. The technology of aluminum foiledge folding and protruding weldingare used to reduce the loss and increase the performance of partial discharging.
View details

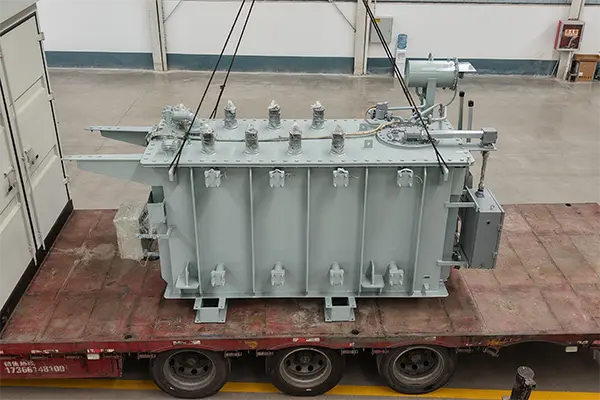

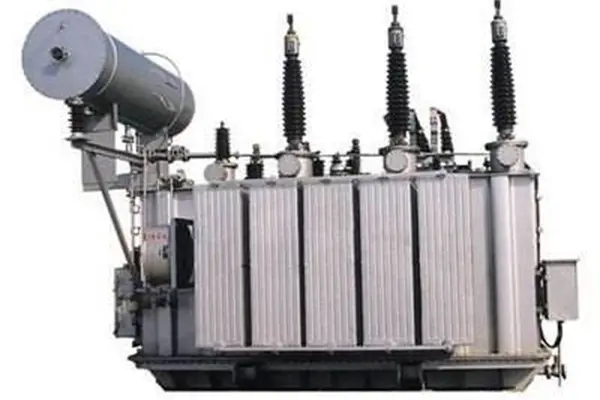

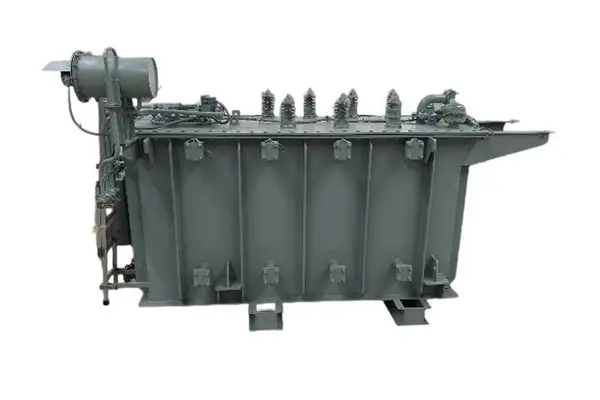

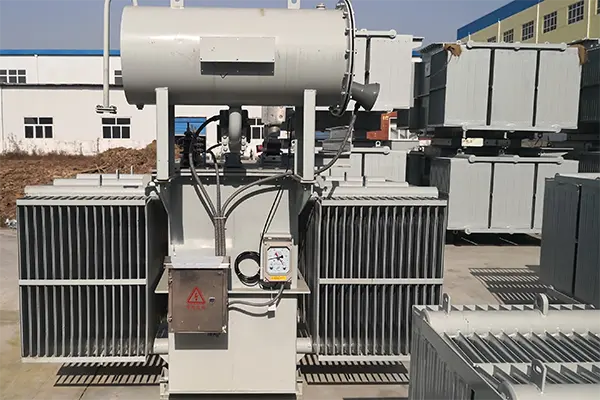

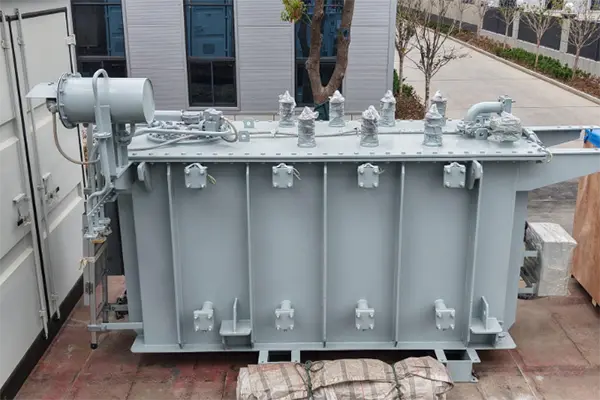

110kV Oil-immersed Distribution Transformer

1.Input voltage:110kV,Output voltage:440V
2.Frequency:50/60Hz
3.High voltage:110kV,Low Voltage:6.3/6.6/10.5/11kV
4.Winding material:copper\Aluminum
5. Dual-winding (SF/SFZ) or three-winding (SFSZ) designs with on-load (OLTC) or off-circuit (OCTC) tap changers.
6.Cooling: ONAN (self-cooled) or ONAF (forced-air).

Send Inquiry

Download

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

1.110kV Oil-immersed Distribution Transformer: Powering Reliable Energy Networks

When your operations demand stable, efficient energy distribution, the 110kV Oil-immersed Distribution Transformer stands as a cornerstone of modern power infrastructure. Designed for utilities, industries, and large-scale projects, this transformer combines advanced engineering with rugged durability to deliver seamless voltage conversion across grids, factories, and renewable energy systems. With configurations tailored for 50/60Hz networks and compliance with global standards like IEC 60076, it ensures your systems stay resilient under dynamic loads and harsh environments.

110kV Oil-immersed Distribution Transformer

2.Technical Specifications

Input Voltage: 110kV
Output Voltage: 440V (adjustable to 6.3/6.6/10.5/11kV)
Frequency: 50/60Hz
Winding Materials: Copper or Aluminum
Cooling Methods: ONAN (self-cooled) or ONAF (forced-air)
Designs: Dual-winding (SF/SFZ) or three-winding (SFSZ) with on-load/off-circuit tap changers

Type	Rated Capacity (kVA)	HV(kV)	Connection Symbol	No-load Loss (kW)	Load Loss (kW)	No-load Current	Short-circuit impedance (%)
Type	Rated Capacity (kVA)	HV(kV)	Connection Symbol	No-load Loss (kW)	Load Loss (kW)	No-load Current	Short-circuit impedance (%)
SZ9-1000/35	1000	35	YNyn0dll	1.55	12.78	1.2	6.5
SZ9-1250/35	1250			1.88	15.41	1.2	6.5
SZ9-2500/35	2000			2.88	20.25	1.1	6.5
SZ9-3150/35	2500			3.4	21.74	1.1	6.5

3.Key Features & Benefits

1. Customized Performance for Diverse Needs

Choose between copper or aluminum windings to balance cost and conductivity. Our transformers support dual- or three-winding configurations, enabling precise voltage regulation for industries like metallurgy, rail transit, and urban power grids.

2. Energy Efficiency & Loss Reduction

Optimized magnetic cores and low-loss materials minimize no-load and load losses, achieving up to 99.7% efficiency. This reduces operational costs and supports sustainability goals.

3. Robust Construction for Harsh Conditions

The oil-immersed design provides superior insulation and heat dissipation, ensuring stable operation in temperatures ranging from -40°C to 50°C. Seismic reinforcements and corrosion-resistant tanks make it ideal for coastal or earthquake-prone regions.

4. Smart Monitoring Compatibility

Integrate IoT sensors for real-time dissolved gas analysis (DGA) and temperature tracking, enabling predictive maintenance and reducing downtime risks.

4.Applications

Be used in a wide range of industries.

Industrial Plants

Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.

Substation

Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.

Commercial Buildings

Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.

5.Design & Construction

The 110kV Oil-immersed Distribution Transformer features a laminated silicon steel core to minimize eddy current losses. The oil-filled tank acts as both coolant and insulator, while pressboard barriers and porcelain bushings enhance dielectric strength. Radial and axial clamping systems prevent winding displacement during short circuits.

6.Manufacturing & Quality Assurance

Materials: Grain-oriented steel cores, ASTM-certified transformer oil.
Testing: Routine impulse, temperature-rise, and partial discharge tests (per IEC 60076).
Certifications: ISO 9001 (quality), ISO 14001 (environmental).

7.Why Partner With Us?

National 863 Program Contributor: Leverage R&D expertise from China’s top tech initiatives.
End-to-End Support: From site-specific design to 24/7 after-sales service.
Global Compliance: Units pre-certified for IEEE C57.12, and GOST standards.
Proven Reliability: 25+ year lifespan with <0.5% annual failure rate in field tests.

Certificate

8.FAQs

Q: How do I transport a 3150kVA+ transformer safely?

A: Keep tilt angles below 15° (major axis) and 10° (minor axis). Adjust oil levels to 100mm below the tank cover before shipping.

Q: What maintenance ensures long-term performance?

A: Conduct biannual oil testing for moisture/acid content and annual thermographic inspections.

Q: Can it handle overloads?

A: Yes—150% overload capacity for 30 minutes, 125% for 60 minutes.

Q: Are fire-resistant models available?

A: Yes—ask about our low-flammability ester-oil transformers compliant with IEC 61039.

9.Contact Us

Need a Quote or Technical Advice?

Email our team at xaxd_electric@163.com for responsive, expert support.

Engineered for resilience, trusted by global operators—explore how our 110kV Oil-immersed Distribution Transformer can future-proof your energy infrastructure.

10.Factory Show

11.Equipment Display

Equipment

12.Application Cases

State Grid systems, power engineering, steel and metallurgy, petrochemicals, rail transportation, energy and water conservancy, construction, environmental protection, and renewable energy sectors
