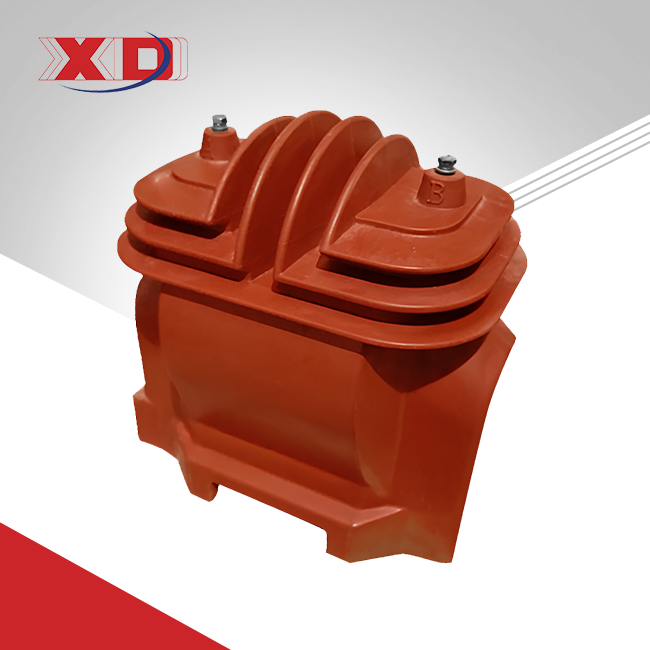

24kV Indoor Voltage Transformer(Potential transformer)
2.Frequency:50/60Hz
3.Rated secondary output:30/80/200VA
4.Rated insulation level:17.5/55/105kV
5.Standard:GB 20840.2-2014/IEC 61869-1 & 61869-2
6.The transformer is epoxy resin cast fully-enclosed electromagnetic.It features high accuracy, large capacity, and stable performance.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1.24kV Indoor Voltage Transformer(Potential Transformer): Precision Power Measurement for Modern Grids
When upgrading your power infrastructure, the 24kV Indoor Voltage Transformer(Potential Transformer) stands as a critical component for accurate voltage measurement and grid protection. Designed for indoor substations, this epoxy resin-cast device delivers exceptional precision (≤0.5% ratio error) while complying with global standards like IEC 61869-2 and GB 20840.2-2014. Whether you're retrofitting legacy systems or deploying smart grid solutions, our transformer ensures reliable performance in space-constrained environments.
2.Technical Specifications
- Input Voltage: 24kV
- Output Voltage: 480V
- Frequency: 50/60Hz
- Rated Secondary Output: 30/80/200VA
- Insulation Level: 17.5/55/105kV
- Accuracy Class: 0.2, 0.5 (IEC 61869-3)
- Operating Temperature: -25°C to +55°C
- Standards: IEC 61869-1/2, IEEE C57.13, GB 20840.2-2014
-
Type Rated voltage ratio(V) Class combination Rated secondary output (VA) Limited output(VA) Rated insulation level ( kV) JDZX11-15 15000/√3, 100/√3, 100/√3 0.2/6P 30/100 500 17.5/55/105 0.5/6P 50/100 15000/√3, 100/√3, 100/√3, 100/√3 0.2/0.2/6P 20/20/100 0.2/0.5/6P 20/40/100 JDZX11-20 20000/√3, 100/√3, 100/√3 0.2/6P 30/100 24/65/125 0.5/6P 50/100 20000/√3, 100/√3, 100/√3, 100/√3 0.2/0.2/6P 20/20/100 0.2/0.5/6P 20/40/100
3.Key Features & Advantages
1. High Precision & Stability
Engineered with advanced electromagnetic design, this product maintains ≤0.5% ratio error even under fluctuating loads, ideal for revenue metering and protective relaying.
2. Compact & Durable Design
The epoxy resin encapsulation provides IP67 protection, making it resistant to moisture, dust, and partial discharge—perfect for retrofitting older substations with limited space.
3. Smart Grid Compatibility
Equipped for integration with digital architectures (IEC 61850-ready), it supports real-time monitoring in IoT-enabled power systems.
4. Low Energy Loss
Optimized core materials reduce hysteresis and eddy current losses by up to 30%, aligning with ISO 50001 energy efficiency goals.
4.Real-World Applications
Be used in a wide range of industries.
Industrial Plants
Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.
Substation
Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.
Commercial Buildings
Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.
5.How It Works？
The 24kV Indoor Voltage Transformer(Potential transformer) steps down high primary voltage (24kV) to a standardized secondary output (480V,380V,220V,110V and so on, based enduser's requirement) via electromagnetic induction. Its fully enclosed structure uses layered silicon steel cores and precision-wound copper coils to minimize phase displacement (<30 minutes).
6.Manufacturing & Quality Assurance
- Materials: High-grade epoxy resin, cold-rolled steel cores.
- Process: Vacuum casting eliminates air pockets; automated winding ensures consistency.
- Testing: 100% routine tests include partial discharge (<10pC), power frequency withstand (55kV/1min), and impulse voltage (105kV).
- Certifications: ISO 9001, ISO 14001, 3C (China), and 12+ international patents.
7.Why Choose Us?
- 25+ Years of Expertise: Trusted by national grids in 30+ countries.
- End-to-End Support: From custom ratios (e.g., 24kV/120V) to surge protection add-ons.
- Fast Turnaround: 3-weeks lead time for bulk orders.
- Localized Service: Regional warehouses in Asia, Europe, and the Americas.
8.FAQs
1. What standards does this transformer meet?
It complies with IEC 61869-1/2, IEEE C57.13, and GB/T 20840.2-2014.
2. How often should maintenance be performed?
Routine inspections every 5 years; no disassembly required due to maintenance-free design.
3. Can it work with digital substations?
Yes—optional fiber-optic or analog outputs are available for SCADA integration.
4. What’s the lifespan?
30+ years with proper installation (operating within rated parameters).
5. Do you provide test reports?
Yes—we supply type test reports from CNAS-accredited labs.
9.Contact Us
Need a reliable 24kV Indoor Voltage Transformer(Potential transformer) tailored to your grid?
Email: xaxd_electric@163.com
Optimized for performance. Trusted by utilities worldwide.
