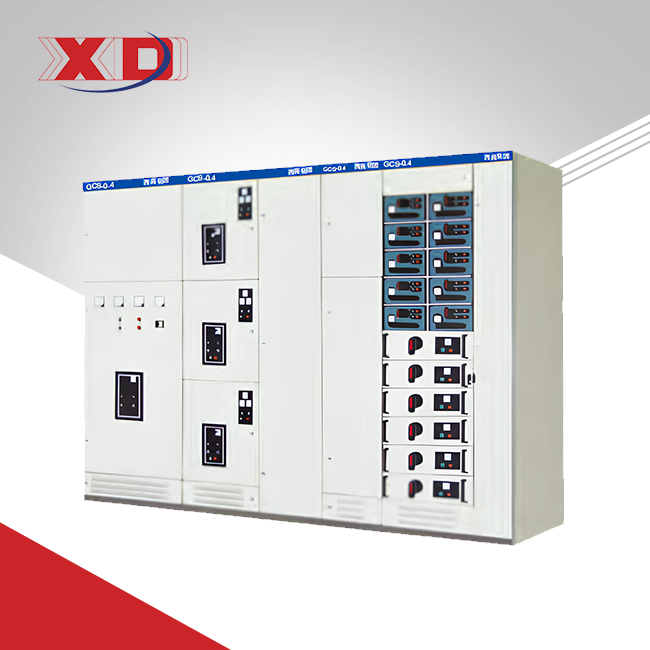

GCS-0.4 Withdrawable Low Voltage Switchgear
2.Rated Insulation Voltage:660,1000V
3.High breaking capacity & stability.
4.Flexible configurations for diverse applications.
5.Competitive performance against imported alternatives.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1.GCS-0.4 Withdrawable Low Voltage Switchgear: Powering Reliable Electrical Distribution
If you’re searching for a robust, future-ready solution to upgrade your power distribution network, the GCS-0.4 Withdrawable Low Voltage Switchgear offers unparalleled stability and flexibility. Designed for demanding industrial and utility applications, this switchgear combines advanced modular engineering with high fault tolerance to minimize downtime and adapt to evolving grid requirements. Whether you’re modernizing aging infrastructure or expanding capacity, its smart design ensures seamless integration with both legacy systems and IoT-enabled grids.
2.Technical Specifications
- Rated Frequency: 50/60 Hz
- Rated Insulation Voltage: 660V/1000V
- Breaking Capacity: Up to 50kA (IEC 60439-1 certified)
- Protection Class: IP40+ (dust and corrosion-resistant)
- Operational Lifespan: 20+ years with minimal maintenance
3.Key Features & Benefits
1. Enhanced Grid Stability
Engineered for high-demand scenarios, the product handles short-circuit currents up to 50kA, ensuring uninterrupted power distribution even during grid disturbances. Its withdrawable mechanism allows safe, tool-free maintenance without shutting down the entire system—ideal for utilities prioritizing uptime.
2. Smart Grid Compatibility
Integrated with IoT-ready modules, this switchgear supports real-time monitoring of energy efficiency, harmonic distortion, and load profiles. Utilities can optimize renewable energy integration and reduce transmission losses by up to 15%.
3. Modular & Customizable
From compact substations to large industrial hubs, its flexible configurations adapt to diverse layouts. Choose from standard (≤4000A), high-capacity (5000A+), or region-specific variants (e.g., seismic-proof or tropicalized models).
4. Cost-Effective Durability
Precision manufacturing with high-quality alloys and eco-friendly coatings minimizes lifecycle costs. Corrosion-resistant enclosures withstand harsh environments like deserts or coastal areas.
5.NormaI Operation Conditions
5.1. AItitude：≤ 2000m
5.2. Ambient temperature: -10。C ~ +40。C (temperature can be as Iow as -25。C during transportation and storage)
5.3. ReIative humidity: daiIy reIative humidity < 95% on average; monthIy reIative humidity < 90% on average
5.4. seismic scaIe of earthquake < 8
5.5. The switchgear is appIicabIe to category ,, contaminated environment.speciaI Operation Conditions ，If the switchgear wiII be used in conditions that exceed the normaI environmentaI conditions, users shaII negotiate with the manufacturer.
|
Item No. |
Item |
unit |
VaIue |
|
1 |
Rated VoItage |
V |
400,690 |
|
2 |
Rated insuIation VoItage |
V |
660, 1000 |
|
3 |
Rated current |
A |
400~6300 |
|
4 |
Rated current of drawer accessories |
A |
250, 400, 630 |
|
5 |
Rated short-circuit current |
KA |
20~120 |
|
6 |
InsuIation: power frequency withstand VoItage |
V |
Main circuit:2500; AuxiIiary circuit 2000 |
|
7 |
protection degree |
|
Ip4X |
|
8 |
oPerating mechanism |
|
ManuaI mechanism; EIectric mechanism |
|
9 |
oPerationaI Power suPPIy |
V |
DC:110,220; AC:110,220 |
|
10 |
oVeraII dimension(width*DePth*Height) |
mm |
600(800,1000)x800(1000)x2200 |
|
11 |
weight |
Kg |
300~1000 |
4.Applications
Be used in a wide range of industries.

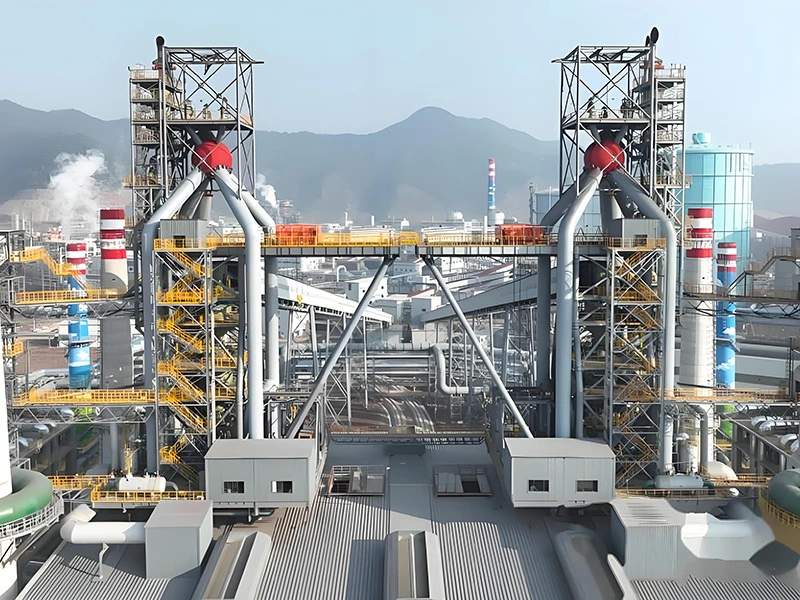

Industrial Plants
Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.

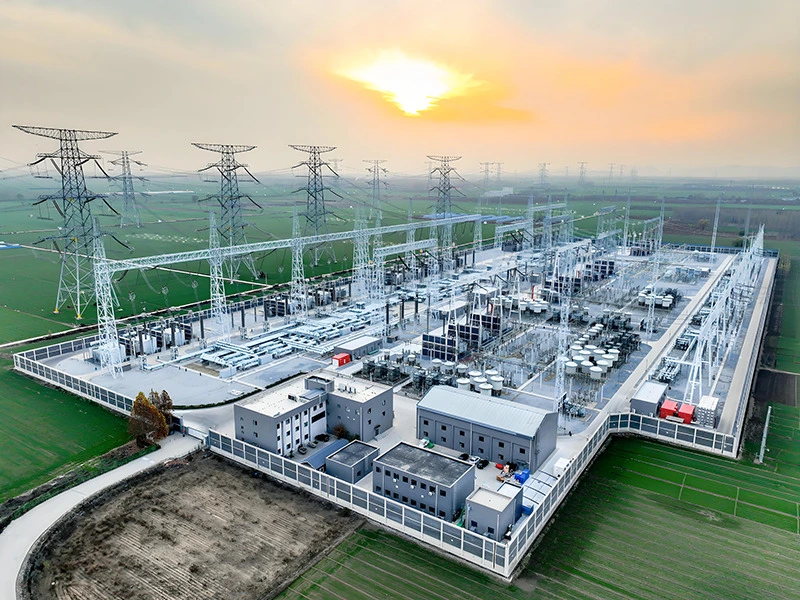

Substation
Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.

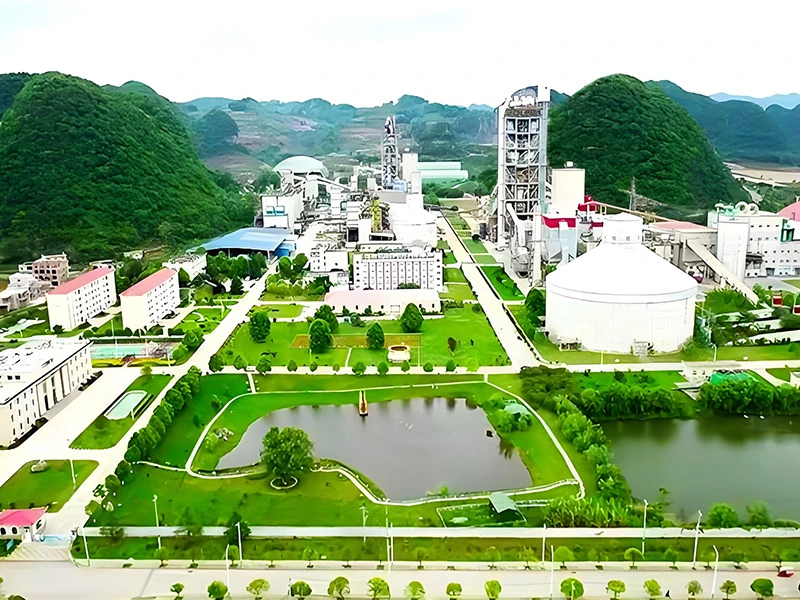

Commercial Buildings
Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.
5.Design & Safety
The GCS-0.4 Withdrawable Low Voltage Switchgear uses a partitioned structure to isolate functional units (e.g., circuit breakers, busbars), reducing arc flash risks. Withdrawable compartments enable live maintenance without exposure to high-voltage zones, complying with IEC 61439-2 and UL 1558 safety standards.
6.Manufacturing Excellence
Our ISO 9001-certified facilities employ CNC machining and robotic welding for millimeter precision. Each unit undergoes 12+ quality checks, including thermal stability tests and partial discharge monitoring, to guarantee compliance with GB7251, IEC 60439-1 standards.
7.Why Choose Us?
- Certified Quality: ISO 9001, ISO 14001, and IEC 60439-1 certifications.
- Proven Expertise: 15+ years serving power grids in 30+ countries.
- End-to-End Support: From custom engineering to 24/7 technical assistance.
- Sustainable Practices: Energy-saving designs reduce carbon footprint by 20%.
8.FAQs
1. How does this switchgear reduce maintenance costs?
The withdrawable design allows isolated repairs, avoiding full system shutdowns.
2. Can it handle renewable energy fluctuations?
Yes, advanced harmonic filtering ensures stability with solar/wind inputs.
3. What certifications does it hold?
Compliant with IEC, GB7251.
4. Is customization available?
We offer tailored solutions for voltage ratings, busbar layouts, and IoT modules.
9.Contact Us
Need a Quote or Technical Details?
Email our team: xaxd_electric@163.com
Optimize your grid’s performance with the GCS-0.4 Withdrawable Low Voltage Switchgear—where innovation meets reliability.
10.Factory Show
11.Equipment Display
12.Application Cases
State Grid systems, power engineering, steel and metallurgy, petrochemicals, rail transportation, energy and water conservancy, construction, environmental protection, and renewable energy sectors
