Product Introduction

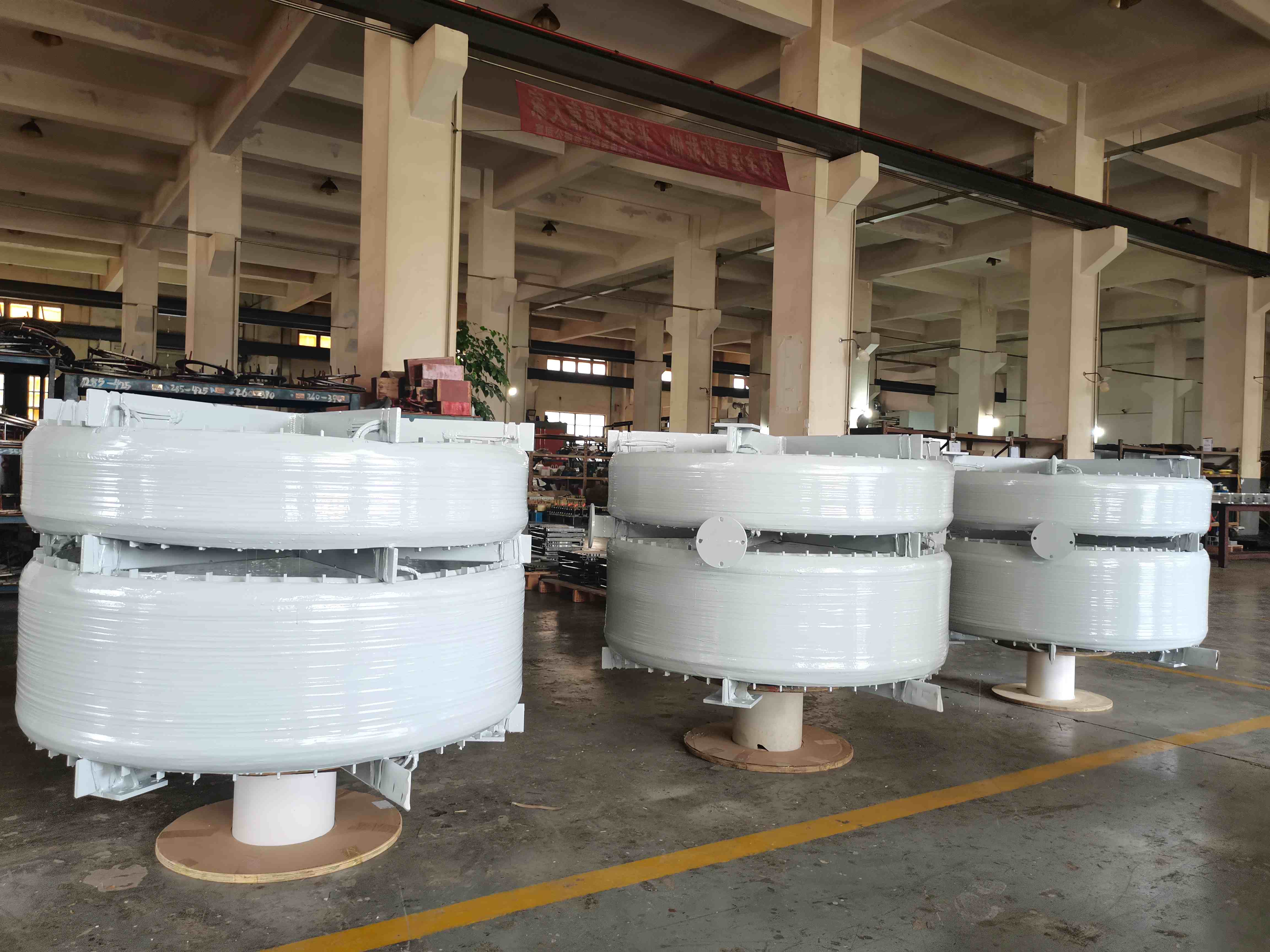

When your power system faces dangerous short-circuit currents, you need reliable protection that won't let you down. Our Busbar Current Limiting Reactor is an advanced inductive component specifically engineered to safeguard your electrical infrastructure from catastrophic failures. This critical device connects in series with your system busbar, introducing calculated impedance that immediately restricts fault currents to manageable levels. By keeping short-circuit currents below your circuit breaker's interrupting capacity, our reactor prevents costly equipment damage and dangerous system failures that could shut down your operations for weeks.

Technical Specifications

Main Features and Advantages

Superior Protection Performance

Your electrical system deserves the best protection available. Our reactors feature epoxy-impregnated fiberglass windings that withstand massive electrodynamic forces during fault conditions. This ensures your equipment stays protected even under the most demanding circumstances.

Zero Fire Risk Design

Unlike oil-filled alternatives, our dry-type construction eliminates fire hazards and environmental contamination risks. You can install these units with confidence in any location without worrying about oil leaks or explosive failures.

Exceptional Durability

Built to last in harsh industrial environments, our reactors resist UV radiation, pollution, and extreme weather conditions. The robust design guarantees years of maintenance-free operation, reducing your total cost of ownership.

Linear Performance

The air-core design prevents magnetic saturation during high-current faults, ensuring consistent and predictable performance when you need it most. This reliability gives you peace of mind during critical operations.

Practical Applications

Grid Substations

In modern power networks, our Busbar Current Limiting Reactor serves as a critical link between bus sections. During normal operations, it enables load sharing between different sections. When faults occur, it prevents total station blackouts by limiting current flow from healthy sections.

Industrial Power Plants

Heavy industries like steel and chemical plants generate enormous fault currents that can destroy standard equipment. Our reactors protect your investment by limiting inrush currents during motor startups and isolating faults from high-stress machinery.

Renewable Energy Integration

As renewable energy sources increase grid complexity, our reactors help maintain system stability by dampening voltage transients and smoothing current waveforms, ensuring reliable power delivery to your customers.

How It Works

Your reactor operates on a simple yet effective principle. When normal currents flow through the system, the reactor presents minimal impedance, allowing efficient power transmission. However, during short-circuit conditions, the sudden current surge encounters the reactor's inductive reactance.

This reactance immediately opposes the fault current, limiting it to safe levels before it can damage downstream equipment. The magnetic field created by the current surge generates a back-EMF that naturally restricts current flow, protecting your entire system without requiring external control systems.

Manufacturing Excellence

At Xi'an Xidian Medium and Low Voltage Electric Co., Ltd., we bring decades of engineering expertise to every Busbar Current Limiting Reactor we manufacture. Our state-of-the-art production facilities utilize advanced winding techniques and precision assembly methods to ensure consistent quality.

We maintain strict quality control throughout the manufacturing process, from raw material selection to final testing. Every reactor undergoes comprehensive electrical and mechanical testing to verify performance parameters and ensure it meets your exact specifications.

Our ISO9001 quality management system, combined with ISO14001 environmental certification and OHSAS18001 safety standards, guarantees that you receive products manufactured to the highest international standards.

Why Choose Us

Proven Track Record

With over 100 product varieties across 34 series, we've established ourselves as China's leading manufacturer of power protection equipment. Our products have earned recognition as famous brand products in China, demonstrating our commitment to excellence.

Comprehensive Solutions

We don't just sell equipment – we provide complete system solutions tailored to your specific needs. Our engineering team works closely with you to design the optimal protection strategy for your facility.

Technical Support

Our experienced engineers provide ongoing technical support throughout your product's lifecycle. From initial specification to installation and maintenance, we're here to ensure your Busbar Current Limiting Reactor delivers optimal performance.

Customization Capabilities

Every electrical system is unique, and we understand that standard solutions don't always fit. Our manufacturing flexibility allows us to customize reactors to meet your exact voltage, current, and environmental requirements.

FAQ

Q: How do I determine the correct reactor rating for my system?

A: Our engineering team will analyze your system's short-circuit capacity and protection requirements to specify the optimal inductance and current ratings for your application.

Q: Can these reactors operate at high altitudes?

A: Yes, our high-prototype products are specifically designed to meet requirements for installations up to 4000m above sea level without derating.

Q: What maintenance is required?

A: Our dry-type design requires minimal maintenance. Regular visual inspections and periodic electrical testing are typically sufficient to ensure continued reliable operation.

Q: How quickly can you deliver custom specifications?

A: Delivery times vary based on specifications and quantity. Contact our team for specific delivery schedules based on your requirements.

Contact Us

Ready to protect your electrical system with our industry-leading Busbar Current Limiting Reactor solutions? Our technical specialists are standing by to discuss your specific requirements and provide expert recommendations.

For technical inquiries, custom specifications, or pricing information, contact us today:
