Reactive & Harmonic Mitigation Capacitor

Reactive & Harmonic Mitigation Capacitor - Professional Power Quality Solution

Product Introduction

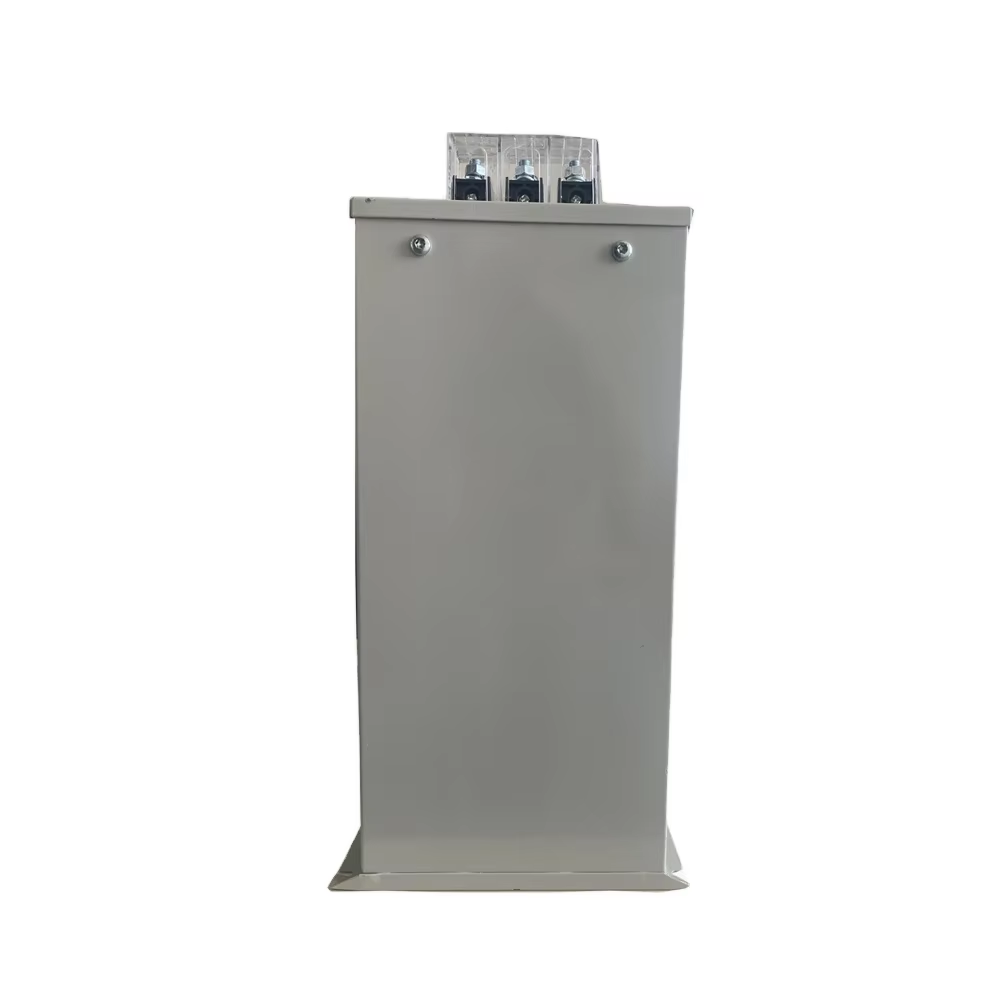

Our Reactive & Harmonic Mitigation Capacitor is an advanced electrical component designed to correct power factor and handle harmonic distortion in modern electrical networks. Unlike standard capacitors, this specialized unit withstands the challenges of non-linear loads like Variable Frequency Drives, UPS systems, and LED lighting without overheating or resonance issues. With metallized polypropylene film technology and reinforced construction, this capacitor ensures reliable performance in demanding industrial environments.

This robust solution eliminates utility power factor penalties while preventing premature equipment failure. You'll experience improved power quality and reduced thermal stress on your transformers and distribution systems. Our engineering team has developed this product to meet the growing demands of industrial facilities dealing with harmonic pollution.

Technical Specifications

Main Features and Advantages

Self-Healing Technology: When localized breakdown occurs, the surrounding metal layer evaporates instantly. This restores insulation automatically and prevents total failure.

Environmental Safety: Our oil-free design eliminates leakage risks completely. The epoxy resin encapsulation meets all environmental standards.

Enhanced Durability: Heavy-edge slope metallization handles high inrush currents up to 200 times rated current. This ensures long-term reliability in harsh conditions.

Superior Thermal Management: Maximized surface area design maintains low operating temperatures. The advanced construction prevents thermal runaway.

Built-in Protection: Overpressure disconnectors physically isolate the unit during internal failure. This prevents casing rupture and fire hazards.

Practical Applications

Industrial Manufacturing: Perfect for steel plants and automotive facilities with robotic welding lines. Your APFC panels will maintain stable voltage profiles despite massive harmonic distortion.

Data Centers: Large server farms benefit from near-unity power factor correction. This reduces KVA demand on UPS systems and optimizes energy efficiency.

Oil & Gas Platforms: In isolated grid networks, our capacitors prevent harmonic resonance blackouts. They ensure generator stability and maximize active power availability.

Commercial Buildings: Modern facilities with LED lighting and VFD-controlled HVAC systems require harmonic mitigation. Our solution maintains power quality standards.

How It Works

The capacitor operates by providing reactive power compensation while withstanding harmonic pollution. When paired with detuned reactors, it forms an LC circuit that prevents resonance at critical harmonic frequencies.

The metallized polypropylene film dielectric offers exceptional self-healing properties. If electrical stress causes a small breakdown, the metal coating vaporizes around the fault. This creates an insulating gap that restores normal operation.

The higher voltage rating provides safety margin when used with series reactors. This prevents dielectric breakdown from voltage rise in the LC circuit.

Manufacturing Excellence

At Xi'an Xidian Medium and Low Voltage Electric Co., Ltd., we maintain strict quality control throughout production. Every unit undergoes comprehensive testing including voltage withstand tests and capacitance verification.

Our ISO9001 certified facility ensures consistent product quality. We use advanced materials and proven manufacturing processes to deliver reliable performance.

Each capacitor receives thorough aging tests to simulate years of operation. This guarantees long service life under actual harmonic load conditions.

Why Choose Us

Comprehensive Product Range: With over 100 varieties across 9 categories, we provide complete power distribution solutions. Our products serve applications from 0.4kV to 40.5kV.

Technical Expertise: Our engineering team brings decades of experience in power quality solutions. We understand the challenges you face with modern electrical loads.

Quality Assurance: Triple certification (ISO9001, ISO14001, OHSAS18001) demonstrates our commitment to excellence. Your investment is protected by proven quality systems.

Reliable Support: Our technical service team provides ongoing assistance throughout product lifecycle. You receive professional guidance for optimal system performance.

FAQ

Q: Why choose higher voltage rating for my 400V system?

A: The series reactor creates voltage rise across the capacitor terminals. Higher voltage rating provides necessary safety margin to prevent failure.

Q: Can this replace my existing standard capacitors?

A: Yes, this is actually a recommended upgrade. The heavy-duty design offers longer life and better resilience against grid disturbances.

Q: How do I know when replacement is needed?

A: Monitor for current drop, casing bulging, or pressure disconnector activation. Regular maintenance checks help identify these warning signs.

Q: Does this filter all harmonics completely?

A: It provides passive detuning to prevent resonance and absorbs some harmonics. For complete harmonic removal, consider our active harmonic filter solutions.

Q: What maintenance is required?

A: Periodic current measurements and visual inspections are sufficient. The robust design minimizes maintenance requirements compared to standard units.
