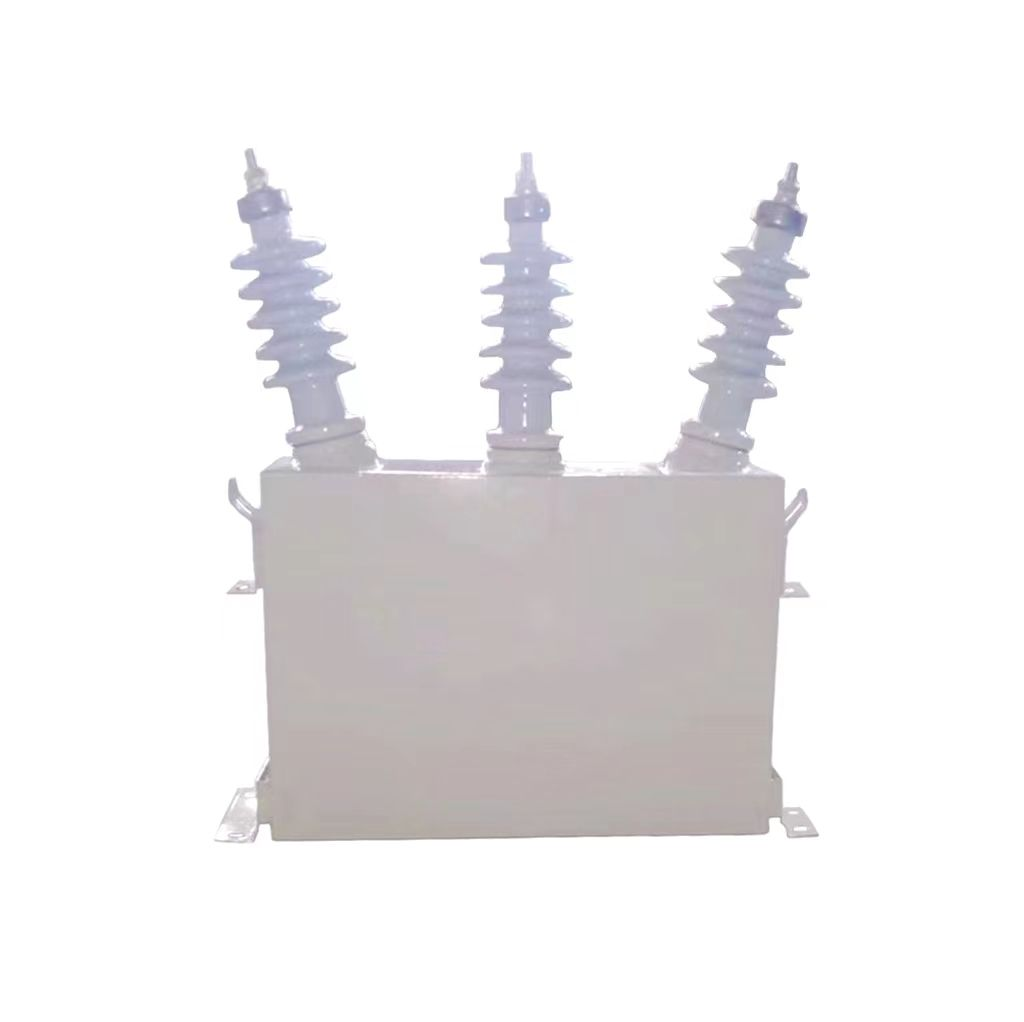

10KV 3 Phase Capacitor

10KV 3 Phase Capacitor - Professional Medium Voltage Power Solution

Product Introduction

Looking for reliable power factor correction in your medium voltage systems? Our 10KV 3 Phase Capacitor delivers exceptional performance for industrial distribution networks operating at 10,000 volts. This high-performance static capacitor unit functions as a reactive power generator, utilizing advanced dielectric technology to compensate for lagging currents caused by inductive loads like large motors and transformers. You'll eliminate costly utility penalties while improving system efficiency and voltage stability.

Our capacitors address critical operational challenges in your facility. They prevent heavy penalties from low power factor situations and mitigate voltage sags that cause sensitive equipment failures. By supplying reactive power locally, these units reduce transmission losses and free up transformer capacity for actual productive loads.

Technical Specifications

Main Features and Advantages

Advanced Dielectric Technology

Our capacitors use double-roughened polypropylene film with aluminum foil electrodes. This ensures minimal internal heating and maximum efficiency in your power systems.

Superior Safety Design

Built-in discharge resistors automatically reduce residual voltage below 50V within five minutes. Pressure-sensitive protection prevents catastrophic failures during fault conditions.

Environmental Durability

Designed for harsh industrial environments, these units withstand extreme temperatures and high pollution levels. Your investment remains protected even in demanding conditions.

Low Maintenance Requirements

Vacuum-impregnated insulation system ensures long-term reliability. You'll spend less time on maintenance and more on productive operations.

Practical Applications

Utility Substations

Install our 10KV 3 Phase Capacitor units in distribution substations to regulate voltage and reduce transmission losses. They maintain grid stability during peak demand periods.

Heavy Industry Operations

Perfect for mining operations with large crushers and hoists. These capacitors handle rapid load fluctuations while filtering harmonics from variable frequency drives.

Chemical Processing Plants

Ideal for 24/7 operations driving compressors and pumps. The robust design resists corrosive atmospheres while ensuring continuous voltage stability.

How It Works

Your 10KV 3 Phase Capacitor operates by storing electrical energy in its dielectric field. When inductive loads create lagging current, the capacitor releases leading current to balance the system.

The vacuum-impregnated polypropylene film creates a stable dielectric medium. This design minimizes losses while maximizing reactive power output. Internal discharge resistors ensure safe handling during maintenance periods.

Manufacturing Excellence

At Xian Xikai Medium And Low Voltage Electric Co.,Ltd., we maintain strict quality standards throughout production. Our manufacturing process includes comprehensive testing protocols.

Every unit undergoes rigorous voltage testing at 2.15 times rated voltage. We verify capacitance tolerance within -5% to +10% limits. Partial discharge testing ensures long-term reliability in your applications.

Our ISO9001 certified facility guarantees consistent quality. Environmental management systems ensure responsible production practices for sustainable operations.

Why Choose Us

Proven Track Record

With expertise in medium voltage equipment, we understand your power system challenges. Our solutions deliver measurable improvements in power factor and system efficiency.

Comprehensive Product Range

Beyond capacitors, we offer complete switchgear solutions from 0.4kV to 40.5kV. This allows coordinated system design for optimal performance.

Technical Support

Our engineering team provides application guidance and system analysis. We help you select the right 10KV 3 Phase Capacitor configuration for your specific needs.

Quality Assurance

All products meet national and international standards. Our certifications include ISO9001, ISO14001, and OHSAS18001 for complete quality assurance.

FAQ

Q: How do these capacitors handle harmonic distortion?

A: Standard units work well in clean power environments. For applications with high harmonic content, we recommend detuned reactor-series configurations to prevent resonance issues.

Q: What causes capacitor case bulging?

A: Bulging indicates internal overpressure from dielectric breakdown. This typically results from overvoltage, excessive temperature, or end-of-life conditions requiring immediate replacement.

Q: Can I use higher voltage rated units?

A: Yes, using 11kV or 12kV units on 10kV systems increases safety margins and lifespan. The effective reactive power output decreases slightly by the voltage ratio squared.

Q: How often should I inspect the capacitors?

A: Perform visual inspections monthly for leaks or bulges. Annual electrical testing should include capacitance verification and connection torque checks.

Q: What's the expected service life?

A: Under rated conditions, you can expect 10-15 years of reliable service from our industrial-grade film capacitors.
