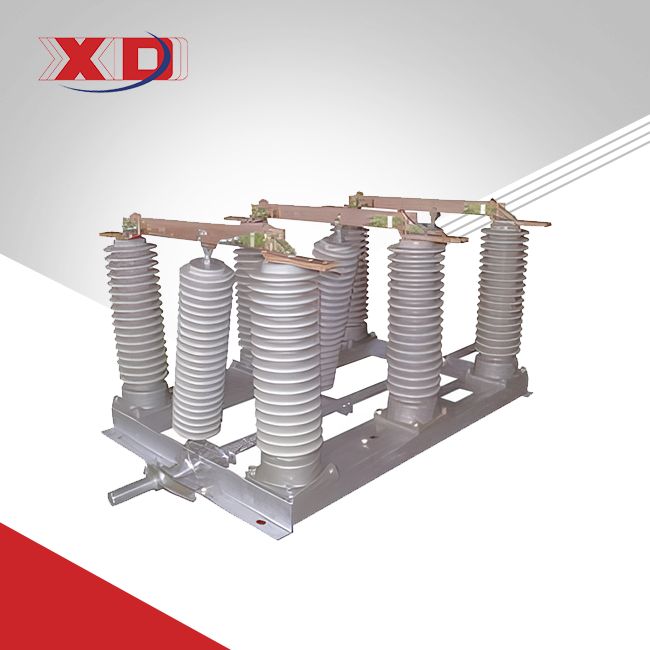

GN2 High Voltage Disconnect Switch
2.Rated Current:400,630,1000,1250,2000A
3.Features an integrated earthing switch 4.through-wall mounting capability
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1.GN2 High Voltage Disconnect Switch: Reliable Power Grid Protection
When managing high-voltage power systems, safety and reliability are non-negotiable. The GN2 High Voltage Disconnect Switch stands as a critical component for utilities and grid operators seeking to enhance grid stability, reduce downtime, and ensure operator safety. Designed for 40.5kV systems with current ratings up to 2000A, this switch combines robust engineering with smart features like an integrated earthing switch and through-wall mounting flexibility. Let’s explore why it’s trusted globally for power infrastructure projects.
2.Technical Specifications at a Glance
- Rated Voltage: 40.5kV
- Rated Current: 400A, 630A, 1000A, 1250A, 2000A
- Mounting: Through-wall installation
- Earthing Switch: Integrated design for safe maintenance
- Standards Compliance: IEC 62271-102, IEEE C37.32, CE, RoHS
| model type | rated voltage | rated current | limit current | Thermally stable current | weight |
| KA | А | peak value kA | 4s KA | Kg | |
| GN2-40.5/400 | 40.5 | 400 | 52 | 14 | ~110 |
| GN2-40.5/630 | 40.5 | 630 | 64 | 25 | ~110 |
| GN2-40.5/1000 | 40.5 | 1000 | 70 | 27.5 | ~110 |
| GN2-40.5/1250 | 40.5 | 1250 | 80 | 31.5 | ~110 |
| GN2-40.5/2000 | 40.5 | 2000 | 100 | 40 | ~160 |
3.Key Features & Advantages
1. Built to Withstand Extreme Conditions
The product uses hot-dip galvanized steel and aluminum alloys to resist corrosion in coastal or high-humidity environments. Its IP65-rated sealing prevents dust and water ingress, ensuring reliable performance during storms, ice buildup, or temperatures up to 55°C.
2. Low Maintenance, High Endurance
With a mechanical lifespan exceeding 10,000 operations and self-lubricating bearings, this switch minimizes upkeep costs. Precision-aligned contacts reduce energy loss, while modular components enable swift replacements.
3. Safety First
An interlock system prevents accidental operation, and the earthing switch ensures zero residual current during maintenance. Arc-resistant materials and fail-safe mechanisms add layers of protection for personnel.
4. Smart Grid Ready
IoT-enabled variants (optional) integrate seamlessly with SCADA systems for real-time monitoring, helping utilities transition to automated, data-driven grids.
4.Real-World Applications
Be used in a wide range of industries.
Industrial Plants
Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.
Substation
Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.
Commercial Buildings
Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.
5.How It Works?
The product operates via a rotating insulator column, which physically separates contacts to break the circuit. The earthing switch provides a safe discharge path for trapped charges. Its through-wall mounting allows installation in tight spaces without compromising accessibility.
6.Manufacturing Excellence & Quality Assurance
Every GN2 High Voltage Disconnect Switch undergoes:
- Material Testing: Spectrometer checks for alloy composition.
- Operational Trials: 10,000+ mechanical cycles simulate decades of use.
- Dielectric Tests: 85kV/1min withstand voltage validation.
- Third-Party Audits: ISO 9001-certified.
7.Why Partner With Us?
1. Proven Expertise: National 863 Program participant with 15+ patents in HV switchgear.
2. Global Compliance: GB/T certifications pre-qualify projects worldwide.
3. Custom Solutions: Adapt designs for legacy grids or smart-city integrations.
4. Lifecycle Support: 24/7 technical assistance, spare parts logistics, and onsite training.
8.FAQs
Q: How does the GN2 handle high winds or ice storms?
A: Reinforced brackets and low-inertia mechanisms prevent mechanical stress during extreme weather.
Q: Can it retrofit older substations?
A: Yes! Modular components fit most legacy systems without structural changes.
Q: What’s the lead time for bulk orders?
A: Standard orders ship in 3–6 weeks; expedited options available.
Q: Is remote monitoring possible?
A: Smart Tier models include IoT sensors for real-time status updates via SCADA.
9.Contact Us
Need a Quote or Technical Details?
Email our team at xaxd_electric@163.com to discuss your project’s voltage, current, and environmental needs.
Optimize your grid’s safety and efficiency with the GN2 High Voltage Disconnect Switch—where innovation meets reliability.
