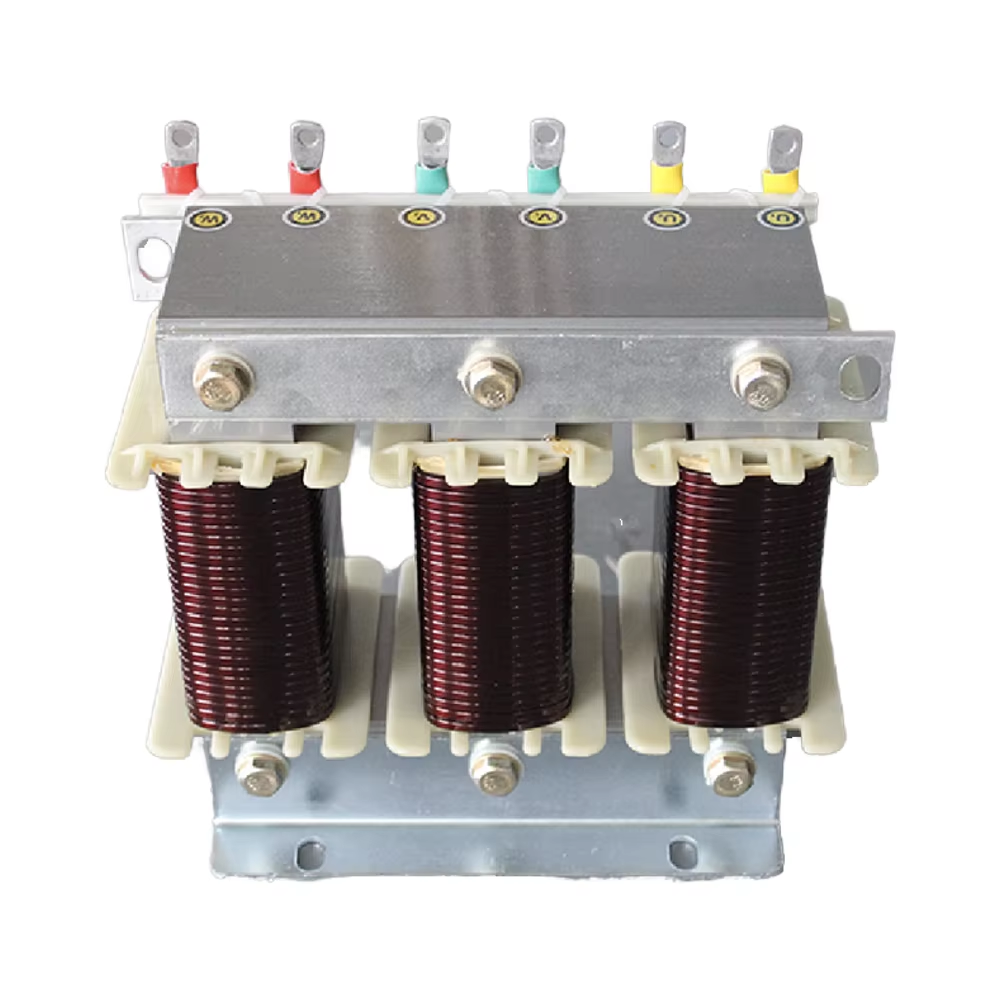

SVG Connection Reactor - High-Performance Grid Interface Solution

Product Introduction

Looking for a reliable grid interface solution for your static var generator system? Our SVG Connection Reactor delivers exceptional performance in demanding power quality applications. This specialized inductive component serves as the critical link between your grid and voltage source inverter bridge, transforming your VSI into a controllable current source.

Our reactor specifically addresses the high-frequency switching harmonics generated by IGBT Pulse Width Modulation processes. You get complete grid contamination protection while ensuring IEEE 519 compliance for Total Harmonic Distortion. The component protects your internal IGBTs from thermal destruction during short circuits by limiting current rise rates.

Whether you're managing renewable energy farms, electric arc furnaces, or EV charging infrastructure, this SVG Connection Reactor provides the reactive power stability you need. Your system benefits from smooth bidirectional reactive power flow for dynamic power factor correction.

Technical Specifications

Main Features and Advantages

High Linearity Performance: Your reactor maintains constant inductance even under currents exceeding 1.5 times rated load. This ensures your control algorithm remains stable during fault ride-through scenarios without magnetic saturation.

Superior Frequency Response: Our optimized design handles switching frequencies from 2kHz to 10kHz effectively. You benefit from segmented iron core structures with distributed air gaps that minimize fringing flux and eddy current losses.

Advanced Insulation System: Class H insulation materials with vacuum pressure impregnation technology protect against high voltage spikes and mechanical vibration. Your investment stays protected in harsh operating conditions.

Exceptional Noise Control: Advanced clamping mechanisms and magnetostriction-resistant core materials keep acoustic noise below 65dB. This makes our units perfect for urban installations where noise matters.

Premium Material Construction: High-permeability silicon steel sheet cores minimize hysteresis loss. High-purity copper windings reduce skin effect and proximity effect losses, maximizing your system efficiency.

Practical Applications

Renewable Energy Integration: In wind and solar power plants, our reactor enables Low Voltage Ride Through support. You maintain grid connection stability during voltage dips caused by variable generation patterns.

Heavy Industrial Operations: Steel manufacturing facilities benefit from extreme flicker compensation and unbalanced load management. The reactor withstands mechanical stress from rapid current surges inherent to arc melting processes.

EV Charging Infrastructure: Large commercial charging stations use our SVG Connection Reactor to mitigate harmonic distortion from multiple DC fast chargers. You protect local distribution transformers while ensuring safe power delivery.

Data Centers: Critical facilities require uninterrupted power quality. Our reactor provides the reactive power support needed for sensitive equipment protection.

How It Works

Your SVG Connection Reactor functions as the inductive component of an L or LCL filter system. Positioned between the AC side of your SVG inverter bridge and the point of common coupling, it manages the phase angle difference between inverter voltage and grid voltage.

The reactor suppresses high-order harmonics generated by PWM carrier frequencies. It limits rush current during startup and short-circuit conditions while facilitating reactive power transfer. The specialized core design prevents overheating from eddy currents and hysteresis losses common in high-frequency applications.

During operation, the reactor maintains system stability by providing consistent inductive reactance. Your control loop receives accurate feedback, enabling precise reactive power compensation when you need it most.

Manufacturing Excellence

Xi'an Xikai Medium And Low Voltage Electric Co., Ltd. brings decades of expertise to every reactor we manufacture. Our comprehensive product line covers high and low voltage switchgear, transformers, and power electronics across 9 categories and over 100 varieties.

We maintain ISO9001 quality management, ISO14001 environmental management, and OHSAS18001 occupational health and safety certifications. Your reactor undergoes rigorous testing to meet national and industry standards.

Our high-altitude rated products perform reliably at elevations up to 4000m. Advanced manufacturing processes ensure consistent quality and long-term reliability in your most demanding applications.

Why Choose Us

Proven Track Record: As a leading medium and low voltage power distribution equipment provider, we deliver reliable solutions across multiple industries. Our products serve customers worldwide with excellent performance records.

Technical Innovation: Our engineering team continuously develops advanced solutions for evolving power quality challenges. You benefit from cutting-edge technology backed by extensive field experience.

Comprehensive Support: We provide complete system solutions and service support beyond just equipment supply. Your project receives full technical assistance from design through commissioning.

Quality Assurance: Every product meets stringent quality standards with comprehensive testing protocols. You receive equipment that performs reliably in your specific operating conditions.

FAQ

Q: Why might SVG reactors generate noise?

A: Noise typically results from magnetostriction in core sheets driven by high-frequency harmonics or loose clamping. Our units use multi-step lap joints and high-pressure vacuum impregnation to dampen vibration effectively.

Q: Can standard line reactors substitute for SVG dedicated reactors?

A: No. Standard reactors handle only 50/60Hz applications. SVG reactors manage specific PWM switching frequencies and require specialized core designs to prevent overheating from eddy currents.

Q: How does linearity affect system performance?

A: Poor linearity causes inductance drop at high currents, confusing the SVG control loop. This leads to system instability during critical compensation moments like voltage sags.

Q: What maintenance do dry-type SVG reactors require?

A: They need minimal maintenance - periodic cleaning of air ducts to prevent dust accumulation and torque checks on terminal connections to prevent hotspots from vibration.

Q: How do you manage heat dissipation in high-current applications?

A: We utilize foil winding technology and multi-strand conductors to reduce skin effect losses, plus designed air channels within coil structures for maximum cooling efficiency.
