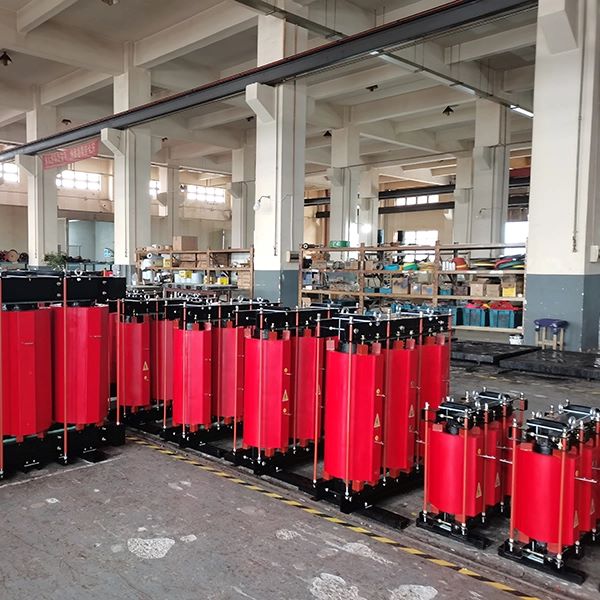

CKSC Series Dry-Type Iron Core Reactor
2.The coil insulation performance is good, high mechanical strength, the ability after glass fiber reinforcement is impacted by the large current shock and hot and cold cracks.
3.Moistureproof performance is good.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
CKSC Series Dry-Type Iron Core Reactor - Premium Power Quality Solution
Looking for reliable reactive power compensation? The CKSC Series Dry-Type Iron Core Reactor delivers exceptional performance for your electrical systems. These specialized high-voltage inductive components are engineered for series connection with capacitor banks in 6kV, 10kV, and 35kV power grids. You'll get superior harmonic suppression, inrush current limiting, and enhanced system stability. Our reactors effectively prevent capacitor bank failures while ensuring optimal power quality for your industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage Rating | 6kV, 10kV, 35kV |
| Reactance Rates | 1%, 6%, 7%, 12%, 14% |
| Insulation Class | Class F (155°C) / Class H (180°C) |
| Linearity Factor | ≥ 1.35 |
| Partial Discharge | < 10pC |
| Noise Level | 50-60dB |
| Protection Rating | IP00 (Indoor) / IP54 (Outdoor with enclosure) |
| Cooling Method | Natural Air Cooling (AN) |
| Standards Compliance | IEC 60076-6, GB/T 1094.6 |
Main Features and Advantages
Superior Construction Quality
- Grain-oriented cold-rolled silicon steel core with optimized air gap structure
- Epoxy resin vacuum casting technology for enhanced durability
- High-permeability materials ensuring excellent linearity performance
Enhanced Safety and Reliability
- Fire-resistant dry-type insulation system
- Moisture-proof design suitable for harsh environments
- Zero oil leakage risk compared to traditional oil-filled reactors
Operational Excellence
- Low noise operation through precision core clamping
- Compact footprint saves valuable substation space
- Maintenance-free design reduces operational costs
Practical Applications
Heavy Industry and Metallurgy
You'll find these reactors essential in steel mills and arc furnace facilities. They protect capacitor banks from extreme harmonic pollution while withstanding conductive dust and vibrations.
Urban Rail Transit Systems
Metro stations and underground substations require fire-safe equipment. Our dry-type design meets strict safety codes while handling rapid load fluctuations from traction motors.
Renewable Energy Integration
Wind and solar farms benefit from voltage stabilization and harmonic filtering. The CKSC Series Dry-Type Iron Core Reactor ensures grid compliance for inverter-generated power.
How It Works
Your reactor functions as a current-limiting impedance in series with capacitor banks. When capacitors switch on, the reactor prevents dangerous inrush currents that could damage equipment. The iron core design provides precise inductance values targeting specific harmonic frequencies.
The silicon steel core maintains magnetic linearity even during current surges. This prevents saturation that would compromise protection. Our multi-stage air gap structure ensures consistent performance across varying load conditions.
Manufacturing Excellence
At Xi'an Xidian Medium and Low Voltage Electric Co., Ltd., we bring over years of expertise in power distribution equipment. Our manufacturing process follows strict quality standards with comprehensive testing at every stage.
Quality Assurance
- ISO9001 quality management system certification
- Advanced production facilities with precision manufacturing
- Rigorous testing protocols ensuring reliable performance
Technical Innovation
- Continuous R&D investment in reactor technology
- Advanced materials and manufacturing techniques
- Comprehensive product testing and validation
Why Choose Us
Proven Track Record
We're recognized as a leading medium and low voltage power distribution system integrator. Our products serve diverse industries with exceptional reliability.
Comprehensive Product Range
Beyond reactors, we offer complete electrical solutions including switchgear, transformers, and circuit breakers rated from 0.4kV to 40.5kV.
Expert Support
Our technical team provides personalized assistance for reactor selection and application guidance. You'll receive optimal solutions tailored to your specific requirements.
FAQ
Q: How do I select the correct reactance rate for my application?
A: Choose 6-7% for 5th harmonic suppression and 12-14% for 3rd harmonic control. Our engineers can analyze your system harmonics for optimal selection.
Q: Can these reactors operate in outdoor environments?
A: Standard units are designed for indoor use. We provide IP54 enclosures for outdoor installations with additional weather protection.
Q: What maintenance is required?
A: Minimal maintenance needed. Annual visual inspections and periodic dust cleaning maintain optimal performance.
Q: How does dry-type construction benefit my facility?
A: You eliminate fire hazards, oil maintenance requirements, and environmental concerns while gaining installation flexibility.
