Air Core Reactor: How It Works in Modern Power Systems

In modern electrical networks, the air core reactor represents a fundamental advancement in power quality management. Unlike traditional iron core designs, this coreless technology delivers precise inductive reactance while eliminating magnetic saturation concerns. Engineers connect these reactors in series with capacitor banks to suppress harmonic amplification, reduce waveform distortion, and limit damaging inrush currents during switching operations. This operational principle makes them indispensable in high-voltage substations and renewable energy integration projects where grid stability depends on maintaining voltage profiles and filtering undesirable harmonics.

​​​​​​​​​​​​​​

Understanding Air Core Reactors: Fundamentals and Core Principles

What Defines an Air Core Reactor?

These are known as inductive components because they use copper or aluminum windings that are stacked on top of each other without ferromagnetic cores. Since there is no iron, there are no hysteresis losses and no flux density limits, which are problems with traditional designs. When electricity runs through the coil, it creates a magnetic field that is completely surrounded by air. This creates a linear inductance that works for all working currents. This feature makes sure that the performance stays the same even when there is a severe fault and currents can hit 100 times their regular levels.

Operating Principles and Magnetic Field Behavior

Exactly how the electromagnetic waves behave depends on the shape. A constant magnetic field is created along the vertical line by arranging many winding layers in a concentric pattern. The magnetic field goes out beyond the physical structure because there is no core material that limits the flux. This is an important design factor that requires strict clearance lengths from metallic structures. If manufacturers don't specify the right magnetic clearance outlines for installation, induced eddy currents in nearby steel frames or reinforced concrete can cause heating and efficiency losses in certain areas.

Design Advantages Over Iron Core Alternatives

Based on our engineering experience, there are three clear benefits. Thermal stability stays the same even if the load changes because natural convection spreads heat evenly through the air. The mechanical strength comes from the glass-fiber reinforced epoxy encapsulation, which can handle impulsive voltages above 30kV and keep the surroundings from contaminating it. The rigid compression method keeps acoustic emissions below 45dB by limiting the movement of the windings under electromagnetic forces. This is a big plus for substations in cities with noise laws.

Comparing Air Core Reactors with Other Reactor Types in Industry

Efficiency and Thermal Performance Analysis

When we look at the total system costs, coreless designs show clear benefits that can be measured. Magnetization currents cause no-load losses in iron core reactors, but conductor resistance is the only cause of losses in air core units, which are usually less than 0.05% at full load. The temperature performance is very different. Oil-filled reactors need cooling systems and regular oil analysis, but dry-type air core types get rid of heat through convection and radiation without any extra equipment. This passive cooling system makes operations simpler and gets rid of the fire risks that come with mineral oil insulation.

Maintenance Requirements and Lifespan Considerations

Maintenance protocols show big differences. Inspections of iron core designs must be done on a regular basis to check for core lamination degradation and to check the quality of the insulation oil. We recommend that air core reactors run without any maintenance for 30 years, with only visual checks of the coatings on the outside and checking the connection torque. The epoxy covering can handle UV rays, salt fog, and temperature changes from -40°C to +70°C, as shown by tests that sped aging for 72 hours. When buying teams figure out lifetime costs, this durability directly leads to a lower total cost of ownership.

Space Optimization for Substation Layouts

Compact mounting configurations help facilities that are limited in space by reducing the size of their footprint. Vertical stacking setups make it possible to place three-phase systems on very little floor space while still meeting certain magnetic clearances. Some building needs can be met by horizontal mounting, but vertical positions make cooling more efficient through chimney effects. Support insulators that are approved for seismic activity can be used in these designs in places where earthquake safety standards must be met. This keeps the structure strong during natural disasters.

Applications and Benefits of Air Core Reactors in Modern Power Systems

Industrial Power Quality Enhancement

These reactors are used by factories to get rid of the power factor penalties that utilities charge. When installed with shunt capacitor banks, air core series reactors effectively stop harmonic distortion caused by CNC machines and automated assembly lines. Controlling the inductive reactance makes tuned filters at certain frequencies, usually the 5th and 7th harmonics. These filters stop resonance situations that make voltage distortion worse than what is allowed by IEEE 519. This screening action keeps sensitive electronic equipment safe while also making the best use of energy in all production steps.

High-Voltage Transmission and Grid Stability

For reactive power correction, EHV substations with voltages between 110kV and 330kV join shunt reactors to the tertiary windings of transformers. During times of low load, capacitive charging currents flow through long transmission lines, which causes voltage to rise above what the equipment can handle. We put in dry-type air core shunt reactors to take in this extra reactive power and keep the voltage at the busbars within the ±5% tolerance bands that grid operators have set. The constant inductance feature makes sure that performance is reliable even when complex loads add harmonics to the system.

Renewable Energy Integration Solutions

These reactors are used to control capacitive currents from large underground cable networks in wind farms and solar collector stations. Since regular service access is still not possible at remote installation sites, maintenance-free operation is a benefit. The reactors automatically make up for the cable capacitance, which is needed to meet the terms of interconnection agreements with transmission system operators for a unity power factor. Our CKGKL Dry-type Air Core Series Reactor is a great example of this use case because it has been used successfully in over 40 countries to connect intermittent renewable energy to utility grids.

Quantified Performance Benefits

Installations in the real world show measurable benefits. After adding tuned reactors with capacitor banks, a 220kV substation in Southeast Asia cut harmonic voltage distortion from 8.2% THD to 2.1% THD. This was a 74% improvement that made sure the substation met local grid codes. In a different case study, it was shown that a steel production complex cut its running costs by more than $45,000 a year by getting rid of power factor penalties. These results give strong ROI justification for procurement officials who are thinking about buying capital equipment for power quality.

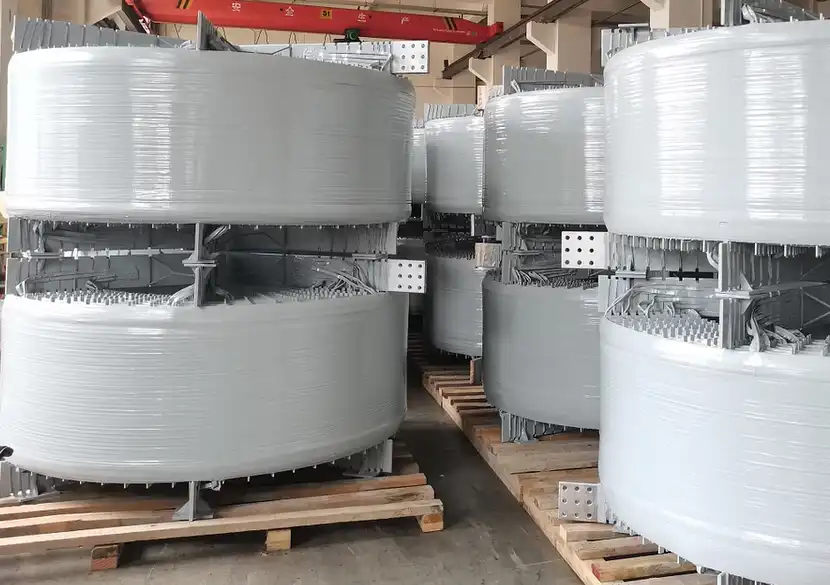

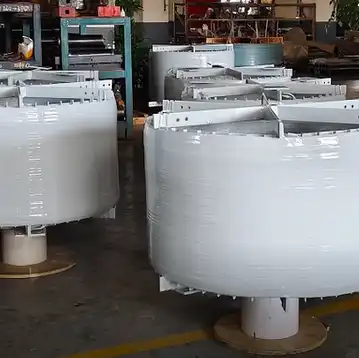

CKGKL Dry-type Air Core Series Reactor: Engineering Excellence for Grid Stability

For modern power infrastructure to work, its parts must be reliable without sacrificing other qualities. When EPC contractors and design schools ask for tools for 110-330kV substations, our CKGKL series meets their technical needs. The engineering approach combines careful production with strict testing methods that are in line with IEC 60076-6 guidelines. One of the main specs is a maximum voltage of 3464.1V that is best for connecting in series with medium-voltage capacitor banks. When the reactor is added to harmonic filtering systems, it stops voltage gain at resonant frequencies and lowers waveform distortion across the whole system. Controlled inductance limits inrush currents when the capacitor is turned on. This is an important part of keeping the equipment from overheating and tripping the circuit breaker.

• Harmonic Voltage Control: The precision-wound coils soak up extra harmonic energy in the second through thirteenth orders, making sure that the quality of the signal meets the standards of IEEE 519 and GB/T 14549 grid codes. When design schools look at tools for national grid integration projects, this compliance is very important.
• Energy-Efficient Construction: Measured losses stay below 0.05% at rating constant current, so there are no risks of magnetic saturation that lower iron core efficiency when there is a fault. No matter how much the system is loaded, the linear inductance property keeps the filters working well.
• Rugged Environmental Durability: Encapsulated windings use glass-fiber strengthened epoxy glue that has been tested and proven to withstand 30kV lightning impulse voltages. The UV-resistant polyurethane topcoat can handle pollution class IV environments like salt fog, industrial contaminants, and desert dust for 30 years without any surface wear or tracking.
• Integration Flexibility: Standard inductance limits of ±3% (±1% available for critical tuning applications) make it possible to easily add new capacitor banks to ones that are already there. The plug-and-play design speeds up the commissioning process and lowers the number of field adjustments that need to be made during projects to expand substations.

These technical skills cover the most important factors that EPC project managers look at when choosing limited and filtering reactors. Dynamic and thermal stability under short-circuit conditions have been tested and proven to meet IEC standards. This gives high-stakes transmission projects along Belt and Road infrastructure routes the performance guarantee they need. Manufacturing routines make sure that the quality of each batch of products is the same. Material sourcing that is ISO 9001-certified guarantees the purity of the conductor and the efficiency of the insulating material. Automated CNC wrapping machines can keep the positions of all the coil layers within 0.5 mm, which has a direct effect on the accuracy of the inductance and the even spread of the field. Before being shipped, every finished unit goes through 72 hours of thermal cycling between high temperatures to make sure the coating is still intact.

Buying Guide: Procuring Air Core Reactors for Your Business

Technical Specification Evaluation Criteria

Before placing an order for equipment, people who work in procurement must check a number of factors. The value of the inductance needs to be perfectly matched to the grades of the capacitor banks of the air core reactor. This is usually done by figuring out how to make the series resonance frequency lower than the system's lowest important harmonic frequency. Basic Insulation Level (BIL) levels must be higher than the system voltage class by a certain amount. For example, 550kV BIL is usually required for 110kV systems, and 1050kV shock withstand capability is needed for 220kV systems. When installing at heights above 1000 meters or in temperatures above 40°C, continuous current values need to be lowered.

Warranty and Service Agreement Considerations

The standard warranty covers the product for 24 months after it is put to use or 30 months after it leaves the factory, whichever comes first. Longer warranty periods (60 months) save money for installations that are far away and make it hard to get replacement parts. Response times for technical help should be written into service agreements. For important installations, access 24 hours a day, seven days a week, with a guaranteed 48-hour on-site response for fault diagnosis is a must. To keep downtime to a minimum during repair scenarios, contracts need to spell out how spare parts for support insulators and terminal hardware can be obtained.

Supplier Qualification and Reference Verification

When looking at different manufacturers, make sure you ask for proof that they have passed an IEC 60076-6 type test at a recognized lab. Measurements of partial discharge below 10 picocoulombs show better insulation quality, which is a sign of long-term dependability. Look at installation examples from projects with similar voltage classes, especially ones that worked in similar situations. Suppliers with a history of working on State Grid or national utility projects have shown that they can meet strict acceptance testing standards.

Customization Options and Lead Time Planning

Catalog goods that are already made work well for many uses, but unique solutions are better for more complicated projects. Changes in voltage ratings up to 36kV, different levels of protection for enclosures (IP54 for indoor use and IP65 for harsh outdoor use), and custom seismic bracing all take extra 8–12 weeks of manufacturing wait time on top of normal production plans. Getting involved with engineering teams early on during the design development stages keeps the procurement delivery plan from getting behind. Coordinate delivery logistics, as reactors often weigh more than 5 metric tons. Specialized lifting equipment and surveys of access routes will keep installation problems to a minimum.

Technical Support and Troubleshooting: Ensuring Reliable Operation

Common Operational Issues and Diagnostic Approaches

Through thorough fixing, maintenance teams find problems that keep happening by learning about them in the field. Unusual sound emissions could mean that windings have moved because of an earthquake or damage to the transportation system. Vibration analysis and infrared thermography are two diagnostic tools that can be used to find hotspots. Using a 5kV megohmmeter to measure insulation resistance shows that moisture has gotten in or the surface is dirty and needs to be cleaned. If the inductance drifts outside of the acceptable range, it means that the insulation between the turns is breaking down, which needs to be checked out in great detail before the machine can keep running.

Preventive Maintenance Best Practices

Maintenance times are set based on how harsh the area is. Inland substations need to be checked once a year, while coastal sites need to be checked every six months to make sure that salt doesn't build up on the weather sheds. As part of the visual examination protocols, surface tracking paths, fastener corrosion, and the condition of the support insulator are all checked. Using connection thermography during times of high load can find hotspots that are growing because of loose terminal hardware. Verifying the torque stops the damage from getting worse over time. These proactive steps make tools last longer while keeping its performance within the limits of what was intended.

Repair Versus Replacement Economic Analysis

Lightning hits or switching surges rarely cause catastrophic breakdowns that are worth the cost of field repair. Because the windings are enclosed, it is not possible to just fix them up. Instead, the whole module has to be replaced. When damage to the insulation makes the dielectric less reliable, buying teams weigh the cost of replacing against the risk of worsened performance. When an item's service life is getting close to 25 to 30 years, it's time to look at upgrading the technology that it uses. Newer designs are more efficient and take up less space, which can help pay for themselves through better system performance and practical saves.

Conclusion

Air core reactor technology is being used to meet the changing needs of today's electricity grid. These parts improve performance by operating without maintenance and being more reliable. They are used to reduce harmonics in factories and for reactive corrections in transmission networks. The CKGKL series is an example of the kind of engineering progress that EPC contractors and design schools look for in important high-voltage uses where technical skill and a history of success are key to the project's success. Knowing basic operating principles, comparative advantages, and procurement criteria helps people make choices about solutions that keep the grid stable while lowering lifecycle costs in a variety of installation settings.

FAQ

1.What magnetic clearance distances must we maintain during installation?

Field modeling tells makers how far away from metallic items they need to be in order to keep the magnetic flux from affecting the structure. Most requirements are between 1.5 and 3 meters horizontally from steel structures or rebar-filled reinforced concrete. Vertical clearances to ceiling wires must follow electrical codes, but they also need to take magnetic field interactions into account. Adherence stops generated eddy current heating in nearby equipment and makes sure that specification requirements are met for instrument transformers nearby that are sensitive to stray fields.

2.How does outdoor environmental protection compare to oil-filled alternatives?

When compared to designs that use liquid, the epoxy encapsulation system has built-in benefits. UV-resistant polyurethane topcoats that have been proven to last through rapid aging tests according to IEC 60076-6 keep their dielectric integrity even when exposed to pollution class IV, which includes salt fog and industrial contaminants. Unlike oil-filled units that need to be monitored for leaks and have fire control systems, dry-type construction doesn't have these problems and can handle the same or higher surge voltages. The fact that it doesn't need any upkeep is especially helpful for green energy installations that are far away.

3.Can existing substation layouts accommodate retrofit installations?

Space issues often make remodeling projects hard, but vertical stacks and well-designed support structures can reduce the size of the area needed. During the engineering stages, a detailed magnetic field analysis finds good placement zones that keep existing equipment at a safe distance. Sectional delivery works well for sites with limited access where the weight of the whole package is too much for a crane to handle. Coordinating the settings on the protection relays makes sure that the system works properly without affecting the performance of the existing capacitor bank while it is being set up.

Connect with Xi'an Xikai: Your Partner for Advanced Reactor Solutions

To choose the right air core reactor maker, you need to look at their technical skills, ability to make changes, and full support services. The advanced manufacturing infrastructure at Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. is paired with years of project experience working on State Grid systems, renewable energy installations, and industrial power distribution networks. Our engineering teams work together with design firms and EPC companies to create custom solutions that meet the strict needs of 110-330kV substation uses. The CKGKL Dry-type Air Core Series Reactor shows our dedication to new ideas, supported by ISO 9001 quality standards and several patents. We offer full technical paperwork for all of our projects, including type test reports and IEC compliance certificates that meet utility acceptance standards. This includes harmonic filtering, reactive compensation, and current limiting. Get in touch with our expert team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your needs. We offer customizable reactor designs with 8-week lead times for changed voltage ratings and enclosure setups, along with expert help in multiple languages.
