Choosing the Right Voltage Transformer for Your Application

Selecting the right voltage transformer for your application is one of the most consequential decisions in switchgear design and power system engineering. Whether you are sourcing instrument transformers for medium-voltage switchgear panels or specifying protection circuits for a grid substation, the wrong choice can compromise measurement accuracy, delay cabinet assembly, or create costly compliance failures. This guide walks through the core principles, technical parameters, and procurement considerations that help engineers and procurement teams confidently specify the right potential transformer for their exact operational needs.

Understanding Voltage Transformers: Fundamentals and Types

A voltage transformer, which is also sometimes written as a potential transformer (PT), is an electric device that lowers high-voltage signals to secondary levels that can be measured and defined. In medium-voltage systems, it lets safety relays, energy meters, and control circuits work on lower voltage signals without coming into direct contact with harmful primary potentials.

Single-Phase vs. Three-Phase and Core Material Differences

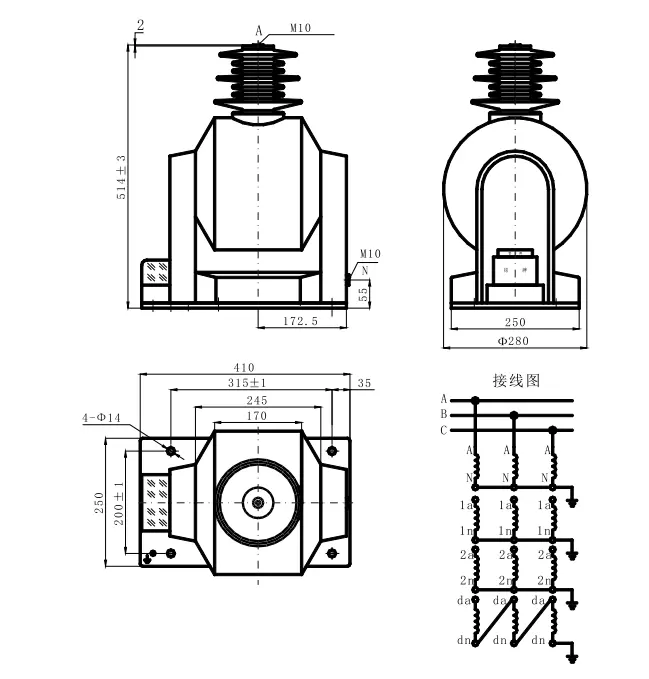

Single-phase voltage transformers wired in a V-V or star pattern are used in most medium-voltage equipment. There are three-phase units, but they are not used very often in small panel designs because of space issues. Core material is very important for precision and load efficiency. Silicon steel cores are a good, low-cost starting point for standard metering and protection classes. Cores that are amorphous or nanocrystalline have much lower core loss and better stability. This is especially important for 0.2S accuracy class applications that need to be very precise with their measurements.

Dry-Type vs. Oil-Filled and the Case for Epoxy Resin

Outdoor substations have used oil-filled designs for a long time, but dry-type epoxy resin cast units are the most common type of indoor switchgear today, and for good reason. The fully enclosed epoxy resin design keeps out moisture, gets rid of the risk of fire and leaks that come with insulating oil, and makes upkeep a lot easier. This is exactly how Xi'an Xikai's 10kV Outdoor/Indoor Voltage Transformer is built: it has an electromagnetic design that is totally sealed and encased in epoxy resin. This design works reliably at temperatures ranging from -40°C to +55°C.

Key Factors to Consider When Choosing a Voltage Transformer

Long-term dependability depends on how well the voltage transformer works with the switchgear box around it. There are a number of factors that should be carefully considered before agreeing to a plan.

Accuracy Class Selection: Matching the Circuit Function

The accuracy class is not a single specification; it needs to match the function of the circuit that it is meant to do. Most metering cores need 0.2S or 0.5 class ratings. The "S" at the end of the class name means extended accuracy down to 1% of rated current, which is important for energy meters that are used to collect money. Protection cores use the numbers 5P or 10P to show the maximum mistake that can happen when there is a problem. It is unnecessary to use a 0.2S core in a protection-only circuit, and a 10P core in a precision metering loop causes measurement drift that is not acceptable. If this difference is clear during the specification stage, costly field corrections will not be needed.

Secondary Burden, Insulation Level, and Physical Dimensions

Secondary burden of a voltage transformer, which is measured in VA, must be enough to handle the total load of meters, relays, and wiring resistance without going over the rated capacity. The 10kV unit at Xi'an Xikai can handle a continuous secondary load of 1000VA and a short-term capacity of 3000VA, which leaves a lot of room for protection plans that cover multiple devices. The 12/42/75kV insulation level choice for a 10kV system is based on IEC 61869-1 and GB 20840.2-2014 standards and takes into account the estimated insulation class, lightning impulse withstand, and power frequency withstand voltage. Cabinet engineers also have to make sure that the physical mounting envelope fits within the panel bay that was assigned. This is a limitation that often rules out products that would otherwise be technically suitable.

Here are the core factors that most frequently determine selection outcomes in switchgear OEM procurement:

• Accuracy class alignment: Before you sign off on the specification, make sure you know whether the circuit is for revenue metering (0.2S/0.5) or safe relaying (5P/10P). IEC 61869-2 has different error tolerance rules for each class.
• Rated burden vs. connected load: Figure out the real secondary burden from all the devices that are connected plus the wire impedance. Then, choose a unit whose rated VA is well above this number so that accuracy stays the same across the entire working range.

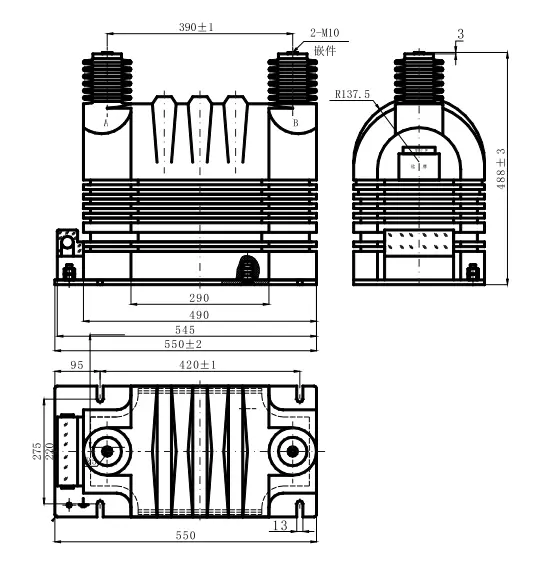

• Dimensional compatibility: Switchgear panels in the 10kV–35kV range have set mounting zones per bay width. Before placing an order, compare the cabinet plans to the transformer's mounting size and terminal clearance.
• Environmental rating: Units that are meant to be used outside need to have enclosures that are rated IP54 or higher. Indoor units that are meant to be used in clean, climate-controlled switchrooms may use IP30 ratings, which change the cost and type of housing used.

All of these things come together to make a specification that can withstand long-term panel operation without losing accuracy or breaking down too soon.

Industrial Use Cases and Application Scenarios

Substation Protection, Industrial Metering, and Renewable Integration

The range of uses for a properly defined voltage transformer that can be measured is greater than what many buying teams first think. In power distribution substations, instrument transformers send voltage signals to protection relays. These relays handle overcurrent, earth fault, and differential protection systems. For relay coordination to work correctly, the secondary outputs must be stable and have low error. Accuracy of voltage measurements has a direct effect on power factor adjustment systems and energy audit compliance in factories and other industrial sites. To handle grid synchronization and anti-islanding security, the switchgear that connects solar inverters and wind turbine output to the distribution grid needs to be able to accurately sense voltage.

Switchgear OEM Applications: Where Dimensional Accuracy Matters Most

When switchgear manufacturers put together 10kV panels on a production schedule, the voltage transformer has to fit perfectly inside the cabinet. The 10kV Outdoor/Indoor Voltage Transformer from Xi'an Xikai has flexible connections that make it easier to retrofit into existing switchgear frames. This cuts down on the time it takes to put together each bay. The 10kV input voltage is stepped down to a normal 400V output at 50/60Hz, which meets both GB and IEC circuit requirements. The lightning impulse withstand rating of 75kV gives strong protection against transient overvoltages that are common in outdoor and partially outdoor installations.

Supplier and Brand Selection: Finding Trusted Voltage Transformer Manufacturers

Regional Value, Customization, and Technical Responsiveness

In Western utility markets, well-known global brands in the instrument transformer segment, such as ABB, Siemens, and Schneider Electric, have good reputations. For switchgear OEMs in China, South Asia, Southeast Asia, and the Middle East, domestically produced voltage transformer units that meet GB and IEC standards often offer better value, faster delivery that fits in with panel production schedules, and easier access to technical support for custom winding configurations.

Evaluating a Voltage Transformer Supplier Beyond Brand Recognition

A trustworthy voltage transformer provider should have ISO 9001 quality management certification, follow IEC 61869-1 and IEC 61869-2, and have test records that include shock withstand and partial discharge tests. Xi'an Xikai is certified by ISO 9001 and ISO 14001, and they have come up with more than eight unique improvements in transformer design. There is a 12-step checking process that makes sure the quality of the manufacturing process, from the entry of raw materials to the final assembly. Before they are shipped, products are put through 75kV impulse testing and 28kV inductive withstand testing. This gives a guaranty that the products won't fail in the field.

Procurement Guide: How to Buy Voltage Transformers with Confidence

Lead Time Reliability, Custom MOQ Flexibility, and Documentation Quality

For switchgear manufacturers who have annual framework contracts and monthly purchase orders, the efficiency of procurement depends on how reliable lead times are, how flexible the MOQ is for custom voltage transformers and winding configurations, and how good the technical documentation is for cabinet type testing submissions.

Structuring the Procurement Process for OEM Switchgear Production

Lock the basic technical details, like the accuracy class, load, insulation level, and physical measurements, to the cabinet design model to begin. Send this specification to the shortlisted suppliers at least 6–8 weeks before the first batch of production so that samples can be made and approved. Xi'an Xikai's usual sample cycle for new winding configurations is 4–6 weeks, which fits in with the time it takes to normally put together a switchgear panel. Pricing and delivery schedules are more stable with annual framework deals and monthly call-off orders. This makes it easier for the procurement team to manage high-volume panel sets.

Conclusion

When picking the right voltage transformer for integrating switchgear, you need to pay close attention to its accuracy class, secondary burden, insulation grade, physical dimensions, and the trustworthiness of the provider. Each variable adds up—a mistake in any one measure can lead to problems with security coordination, metering errors, or delays in panel assembly. The 10kV Outdoor/Indoor Voltage Transformer from Xi'an Xikai is designed to meet the strict requirements of GB 20840.2-2014 and IEC 61869-1 & 61869-2. It is specifically made for OEM switchgear settings that require accuracy and consistent dimensions. When buying teams have to balance technical accuracy with production schedules, the best instrument transformer provider is one that knows both aspects well.

FAQ

1. What is the difference between a voltage transformer and a potential transformer?

In medium-voltage power engineering, the words can be used interchangeably. "Voltage transformer" is the term used in IEC 61869-2 and GB 20840.2-2014, whereas "potential transformer" is the older IEEE-aligned word. There are two types of electromagnetic instruments. The first type steps down a high primary voltage to a normal secondary level that can be used in circuits for measuring, protecting, and controlling electricity.

2. How do I choose between accuracy class 0.2S and 0.5 for a metering application?

Class 0.2S is required for revenue-grade energy meters, which means that the correctness of the bills must be checked by the government. Class 0.5 is good enough for internal energy audits and operational monitoring that don't need a tight billing tolerance. Before making your choice, look at IEC 61869-2 Table 4 to see the full error band specifications for each accuracy class.

3. Can a dry-type epoxy resin voltage transformer be installed outdoors?

Outdoor use is possible for epoxy resin cast units that have the right IP ratings and UV-stabilized enclosures. The 10kV unit from Xi'an Xikai can be installed both indoors and outdoors. It can work in temperatures ranging from -40°C to +55°C and has a corrosion-resistant body that can handle marine and high-humidity areas.

Connect with Xi'an Xikai for Your Next Voltage Transformer Project

Xi'an Xikai makes reliable voltage transformer solutions for OEM switchgear manufacturers who need accuracy, consistent dimensions, and quick technical support. You can see all of our products at xaxd-electric.com, or you can call our expert team to talk about your needs, get examples, or start the quotation process. You can email us at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com. We offer yearly framework agreements and unique winding setups that are made to fit the production plan of your cabinets.

References

1. IEC 61869-1: Instrument Transformers – Part 1: General Requirements. International Electrotechnical Commission, 2007.

2. IEC 61869-2: Instrument Transformers – Part 2: Additional Requirements for Current Transformers. International Electrotechnical Commission, 2012.

3. GB 20840.2-2014: Instrument Transformers – Part 2: Additional Requirements for Current Transformers. Standardization Administration of China, 2014.

4. IEEE C57.13: Standard Requirements for Instrument Transformers. Institute of Electrical and Electronics Engineers, 2016.

5. Blume, L. F., et al. Transformer Engineering: A Treatise on the Theory, Operation, and Application of Transformers. John Wiley & Sons, 1951.

6. Wentz, E. C., and Skeats, W. F. "Effect of Residual Flux on the Accuracy of Current Transformers." Transactions of the American Institute of Electrical Engineers, 1937.
