How Does an Indoor Voltage Transformer Work? A Simple Explanation

An indoor voltage transformer — also called a potential transformer (PT) — steps down high primary voltage to a lower, measurable secondary voltage through electromagnetic induction. Installed inside switchgear panels and substations, it allows metering instruments and protective relays to operate safely without direct contact with medium-voltage circuits. In a 24kV system, the primary winding connects to the high-voltage bus, while the secondary winding delivers a standardized output (typically 100V or 110V) to measurement devices. The fully enclosed epoxy resin structure of a modern indoor voltage transformer ensures stable accuracy and reliable insulation even under continuous operational stress.

​​​​​​​

Understanding Indoor Voltage Transformers: Basic Principles

What Is an Indoor Voltage Transformer?

A potential transformer is a type of instrument transformer. Its main job is to separate voltages and send out proportional signals. It does not supply power. It sends accurate voltage messages to energy meters, safety relays, and tracking systems by keeping the ratio between the primary and secondary windings exact. A power transformer moves load energy, but a PT works with almost no load. This is why secondary output values of 30VA, 80VA, or 200VA are more than enough for most metering and relaying needs.

Core Working Principle

Faraday's law of electromagnetic induction tells us how the device works. A changing voltage on the primary winding makes a magnetic flux in the core made of laminated silicon steel. The secondary winding gets a proportional voltage from this flux. The Xi'an Xikai 24kV indoor voltage transformer steps down the primary voltage of 24kV to a secondary output of 480V (or other ratios as needed by the end user). The phase displacement is kept below 30 minutes. The vacuum-cast epoxy resin structure gets rid of any empty spaces, which lowers the partial discharge directly to less than 10pC, which is a key requirement under IEC 61869-2 and GB 20840.2-2014.

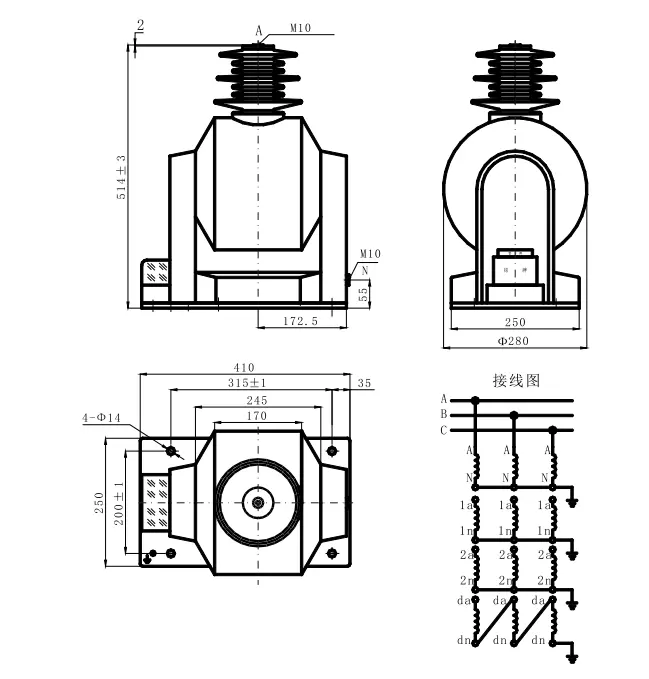

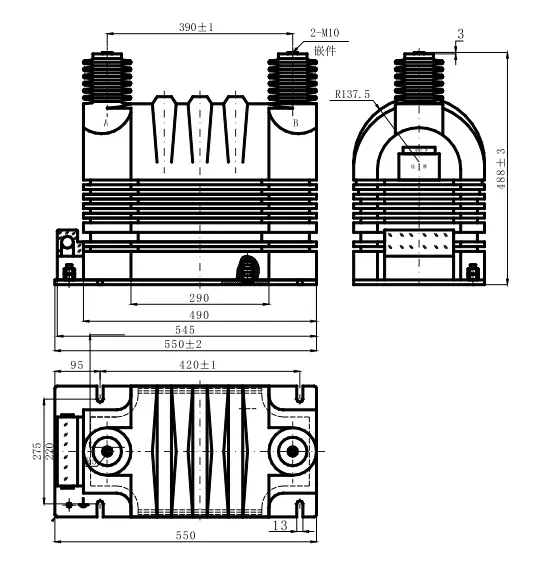

Key Technical Specifications at a Glance

The following specs spell out the limits of what this gadget can do:

• Input / Output Voltage: 24kV main; 480V secondary (can be changed to 220V, 110V, 100V, etc.)
• Frequency: 50 or 60Hz
• Rated Secondary Output: 30VA, 80VA, or 200VA
• Insulation Level: 17.5kV, 55kV, and 105kV (withstand lightning impulse)
• Accuracy Class: 0.2, 0.5, or 3P (IEC 61869-3)
• Operating Temperature: -25°C to +55°C
• Standards: IEC 61869-1 and 61869-2, GB 20840.2-2014

These parameters make sure that the unit meets the needs of both the Chinese grid and international buyers in South and Southeast Asia, where 24kV is the standard for medium-voltage power.

Key Applications and Advantages for B2B Procurement

Where Indoor Potential Transformers Are Deployed

When manufacturers of switchgear look for indoor voltage transformers for 24kV panel assemblies, they need parts that can fit inside small cabinets and meet strict safety and measurement standards. The Xi'an Xikai indoor voltage transformer is built into ring main units, metal-clad switchgear, and indoor substations that serve factories, shopping malls, and utility distribution networks. It has a small resin body that fits into tight spaces without affecting the dielectric stability.

Beyond cabinet fit, reliability in all kinds of operating environments is very important. For the most part, this device works well in the following situations:

• Industrial Plants: The PT allows revenue-grade energy measuring for CNC machining centers and production lines. It keeps the ratio error at ≤0.5% even when the load changes, so there are no more billing issues because of wrong measurements.
• Utility Substations: The unit, an indoor voltage transformer, keeps the quality of the voltage signal stable when renewable energy transformers cause harmonic distortion. This helps protect relay accuracy in projects that connect solar and wind power to the power grid.
• Commercial Infrastructure: The operation is quiet, and the flame-resistant epoxy enclosure meets international fire safety standards. This is good for hospitals, data centers, and large commercial buildings.

When OEM switchgear makers need solid, certified parts for more than one export market, these application benefits directly lead to lower total cost of ownership.

Indoor vs. Outdoor and Dry-Type Comparisons

An indoor voltage transformer is better in terms of structure and operation than an outdoor oil-filled unit. The epoxy resin body gets rid of the risk of oil-related fires and the need to sample the oil on a regular basis, which is a common maintenance task for designs that use liquid insulation. The fully enclosed electromagnetic design of this PT avoids moisture ingress and partial discharge better than open-type dry transformers. This makes it perfect for construction sites along the coast and in humid Southeast Asia.

How to Choose the Right Indoor Voltage Transformer for Your Needs

Matching Accuracy Class to Application

The most important technical choice is which accuracy class to use. Class 0.2 is good for revenue metering where accurate billing is required to meet contractual responsibilities. General metering and power quality tracking are part of Class 0.5. Class 3P is for safety circuits that need to respond quickly to faults more than they need to be precise with ratios. For 24kV switchgear assemblies going to be sold abroad, it is possible to specify dual secondary windings—one metering winding and one protection winding—on a single PT body. This makes cabinet planning easier and cuts down on the number of parts needed.

Evaluating Insulation Level and Ferroresonance Risk

One issue that procurement engineers often bring up is ferroresonance, which happens when the nonlinear magnetic core of the transformer interacts with the capacitance of the system to cause damaging overvoltages. This is a real risk in 24kV networks that are isolated-neutral or resonant-earthed. According to GB/T guidelines, the best way to reduce the problem is to pair the indoor voltage transformer with a special ferroresonance suppression device (消谐器). To meet this need in the OEM assembly package, Xi'an Xikai offers matching suppression tools.

Concerns about precision error and insulation aging are linked. The epoxy resin used in this unit goes through accelerated thermal aging tests that show it will stay the same size and electrically inactive for 25 years, which is the same amount of time as the IEC 62271 lifetime standards for medium-voltage equipment.

Procurement Cycle and Customization

For OEM switchgear makers who work with yearly framework contracts and monthly purchase orders, it usually takes 4–6 weeks to finish sample prototypes for new specs. Standard combinations, such as 24kV/100V, 24kV/110V, and 24kV/√3 / 100V/√3 ratios, can be shipped in less than three weeks for large orders. You can get custom ratios, terminal configurations, and secondary burden ratings if you confirm the drawings in writing before production.

Maintenance, Troubleshooting, and Safety Tips

Routine Inspection Practices

Epoxy resin cast units don't need as much maintenance as oil-filled ones, but they still need to be looked at every so often. Check the resin's surface for tracking marks, cracks, or changes in color. These are early signs of partial discharge activity or mechanical stress. Make sure that the connections between the secondary terminals are still torqued to the required level. Loose connections add load resistance that changes the accuracy of the ratio.

Grounding the secondary circuit of the indoor voltage transformer at one point only is mandatory. When there are more than one ground, currents flow through them, messing up measurement data and possibly damaging instruments that are linked. When the power is on, secondary circuits should never be left open. Unlike current transformers, an open PT secondary does not create dangerous voltages, but it does break the integrity of the circuit safety.

Troubleshooting Voltage Irregularities

If the secondary voltage readings don't match the expected ratio, the first thing that needs to be done to figure out what's wrong is to compare the secondary burden to the rated output. When you connect more than the recommended 30VA, 80VA, or 200VA load, accuracy class performance goes down. Most complaints about accuracy can be fixed without replacing the indoor voltage transformer itself. This can be done by replacing wiring that is too small or combining instruments that are connected.

Conclusion

An indoor voltage transformer changes a high primary voltage into a scaled, isolated signal that metering and protection systems can trust. This is a very important and precise job. The 24kV epoxy resin potential transformer from Xi'an Xikai has a small size and fully meets the requirements of IEC 61869-1/2 and GB 20840.2-2014. It performs accurately from 0.2 to 3P. If switchgear manufacturers sell 24kV systems in both domestic and international markets, they should choose a well-specified indoor voltage transformer from a reputable manufacturer to lower integration risk, support grid protection reliability, and meet end-user metering accuracy requirements for the life of the product.

FAQ

1. How long does a 24kV indoor voltage transformer typically last?

Epoxy resin cast PTs that are kept in well-ventilated indoor environments have service lives that meet IEC 62271 standards, which are usually 25 to 30 years under rated electrical and thermal conditions. During this time, the accuracy should stay stable within the class tolerance as long as the secondary load stays within the 30VA–200VA range and the unit doesn't experience sustained overvoltage.

2. Can this indoor voltage transformer handle ferroresonance conditions?

There is no built-in way for the unit to stop ferroresonance. In 24kV networks that are separated from each other and the neutral, a matching ferroresonance suppression device should be put in the secondary circuit. Xi'an Xikai sells suppression devices that are compatible and are made to be put together in the same switchgear section.

3. What accuracy class should I specify for revenue metering?

For billing at the revenue level, you need Class 0.2 meters. Class 0.5 is good for monitoring substations and checking the quality of power. The purpose of Class 3P is to provide safe relays. A lot of 24kV switchgear designs call for a dual-winding PT with both a measuring secondary and a protection secondary. This way, one fixed part can do both jobs.

Partner With Xi'an Xikai for Your 24kV Switchgear Assembly

Manufacturers of OEM switchgear in more than 30 countries buy approved indoor voltage transformer solutions from Xi'an Xikai. We can support both annual framework contracts and monthly PO schedules because we have been in production for 25 years, are ISO 9001 certified, and have a 3-week lead time on standard configurations. Get in touch with our tech team to talk about accuracy class needs, secondary burden matching, and ferroresonance reduction choices. Feel free to email us at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com. You can also download the full product list at xaxd-electric.com.

References

1. IEC 61869-2: Instrument Transformers — Additional Requirements for Current Transformers, International Electrotechnical Commission, 2012.

2. IEC 61869-1: Instrument Transformers — General Requirements, International Electrotechnical Commission, 2007.

3. GB 20840.2-2014: Instrument Transformers — Part 2: Additional Requirements for Current Transformers, Standardization Administration of China, 2014.

4. IEEE C57.13: IEEE Standard Requirements for Instrument Transformers, Institute of Electrical and Electronics Engineers, 2016.

5. Blume, L. F., et al. Transformer Engineering: A Treatise on the Theory, Operation, and Application of Transformers, John Wiley & Sons, 1951 (4th ed. reference standard in transformer design literature).

6. Tleis, N. Power Systems Modelling and Fault Analysis: Theory and Practice, Newnes/Elsevier, 2008.
