Best Indoor Disconnect Switch Features for Safe Power Control
2026-09-10 11:38:21
Indoor disconnect switch is one of the most essential components in the complete power distribution chain when assessing high-voltage isolation equipment for substation installations. These devices isolate energised circuits from de-energized parts, created a verifiable open gap, therefore protecting maintenance persons and equipment. They are not like circuit breakers which remove faults automatically – their usefulness is in purposeful, safe isolation. Knowing the difference between a good indoor disconnect switch and a bad one has a direct impact on project safety, schedule and lifecycle cost whether you’re involved in a legacy substation upgrade or a greenfield EPC project.
Understanding Indoor Disconnect Switches: Functionality and Types
What an Indoor Disconnect Switch Actually Does
In enclosed substations or switchgear rooms, an indoor disconnect switch establishes a visible, physical break in a high-voltage circuit. It does not interrupt fault current — that task belongs to circuit breakers — but it confirms dead-circuit conditions before maintenance begins. Rated specifications such as voltage class, rated current, short-time withstand current, and peak withstand current define whether a given unit is suitable for a specific application. Mismatching these parameters with site conditions is a leading cause of premature equipment failure.
Common Types and Their Trade-offs
Procurement engineers typically encounter three classification axes when specifying these devices. Fusible variants incorporate fuse elements for overload protection, while non-fusible types rely entirely on upstream breakers. Load-break designs can interrupt magnetizing or small charging currents, whereas non-load-break units require the upstream breaker to open first — a critical operational distinction. Manual operation suits lower-switching-frequency applications, while motorized or electrically actuated mechanisms integrate with SCADA platforms for remote control. Understanding which combination aligns with your operational cadence prevents costly re-specification mid-project.
Key Features Ensuring Safety and Reliability
Lockout/Tagout Compatibility and Arc Flash Resistance
Facilities governed by OSHA 29 CFR 1910.147 or equivalent standards require lockout/tagout (LOTO) provisions on every isolation point. A quality indoor disconnect switch incorporates hasp-compatible padlock provisions directly on the operating handle or shaft. Arc flash energy at 40.5 kV can reach catastrophic incident energy levels; arc-resistant enclosures with pressure-relief venting reduce exposure risk substantially. IEC 62271-102 governs rated performance characteristics for alternating-current disconnectors, and compliance with this standard provides a defensible baseline for procurement specifications.
Mechanical Endurance and Contact Integrity
The contact resistance is the strongest predictive measure of thermal stability under prolonged load for the indoor disconnect switch. For switches in this voltage class, IEC and GB standards generally require the main circuit resistance to be less than 50 μΩ. Silver-plated copper contacts reduce resistance creep caused by oxidation, a typical deterioration process in humid industrial conditions. The frequency of inspection and servicing of the contact interface is based on a mechanical durability rating of 2,000 to 10,000 operations, depending on product tier.
Here are additional reliability attributes worth confirming during vendor qualification:
- Dielectric withstand capability: The switch must survive power-frequency and lightning-impulse voltage tests — typically 95 kV (1 min) and 185 kV for 40.5 kV-class equipment — without flashover or puncture.
- Thermal stability under rated current: Temperature rise at rated current must remain within permissible limits, commonly 65°C above ambient for silver-faced contacts, confirming the device handles continuous load without accelerated wear.
- Interlock integration: Mechanical or electrical interlocks prevent the disconnector from opening under load, eliminating a common operator error that can destroy contact surfaces and injure personnel.
These attributes collectively determine whether a switch will perform reliably through tens of thousands of operating hours, not just through factory acceptance tests.
Comparing Indoor Disconnect Switches with Other Power Devices
How They Differ from Circuit Breakers and Fuses
A circuit breaker interrupts fault and overload current automatically. A fuse performs a similar sacrificial function. An indoor disconnect switch does neither — it isolates confirmed dead circuits and provides a visible open gap. Attempting to open a disconnect switch under load generates a sustained arc that damages contacts, can rupture enclosures, and endangers nearby personnel. This operational boundary is non-negotiable and distinguishes the device categorically from breakers and fuses.
Indoor vs. Outdoor Disconnect Switches
Indoor units are located in enclosed enclosures where UV, rainfall and wind are not design restrictions. This permits the use of resin or ceramic post insulators scaled for interior clearances, without weatherproofing fees. Outdoor disconnect switches need coatings that are corrosion resistant, greater IP ratings and wider creepage distances to combat contamination from precipitation and airborne contaminants. Using an indoor rated device outside without the proper protective enclosure is out of its design envelope and probably violates certification.
Choosing the Best Indoor Disconnect Switch for Your Procurement Needs
Specification Criteria That Matter Most in Retrofit Projects
Retrofit and legacy substation upgrade projects introduce a constraint that greenfield projects don't face: existing foundation bolt patterns. When the civil works cannot be modified within the available outage window, equipment that matches the original bolt spacing eliminates concrete rework entirely. This single compatibility factor often drives final vendor selection more decisively than price in time-critical EPC contracts.

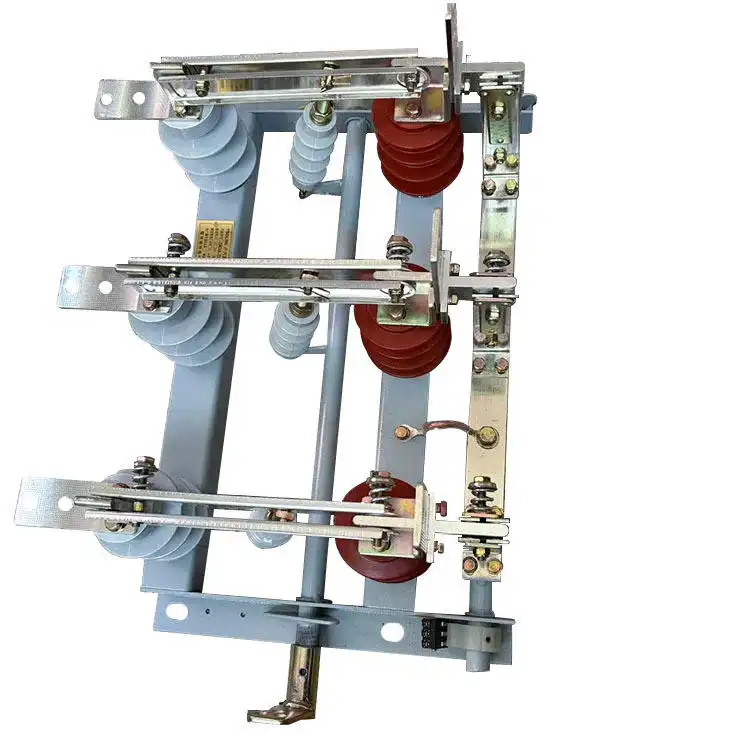

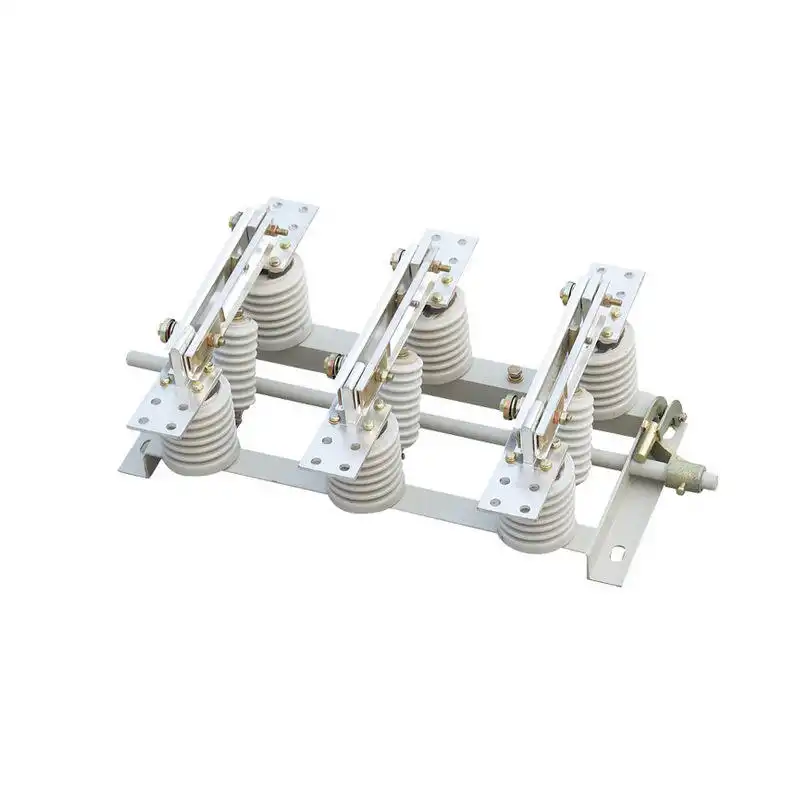

The GN2 High Voltage Disconnect Switch from Xi'an Xikai addresses this constraint directly. Rated at 40.5 kV with current options spanning 400 A, 630 A, 1,000 A, 1,250 A, and 2,000 A, it covers the full range of distribution substation ratings encountered in legacy grid upgrades. Its through-wall mounting configuration allows installation in confined switchgear rooms where full front access is unavailable — a recurring challenge in older substation layouts. The integrated earthing switch eliminates the need to mount a separate grounding device, reducing both parts count and installation time within a constrained outage window.
Here are the core advantages that make this indoor disconnect switch well-suited to retrofit procurement:
- Integrated earthing switch: Provides a safe discharge path for trapped charges immediately after isolation, without requiring a separate grounding assembly. This reduces installation steps during short outage windows.
- Through-wall mounting capability: Enables placement across partition walls in compact switchgear rooms, preserving aisle clearance and avoiding civil modification costs.
- Mechanical lifespan exceeding 10,000 operations: Self-lubricating bearings and precision-aligned contacts sustain contact integrity across the product's service life, reducing unplanned maintenance interventions.
- Hot-dip galvanized steel frame: Resists corrosion in high-humidity or coastal substation environments where uncoated steel degrades within a few years.
- Standards compliance (IEC 62271-102, IEEE C37.32, ISO 9001): Pre-qualifies the product for State Grid, EPC contractor, and international project specifications without requiring supplementary testing.
These benefits immediately translate to speedier installation, less risk of re-work and longer service intervals – results that matter in projects where schedule slippage and unanticipated failures entail contractual penalties. Each GN2 unit is put through material testing validated by spectrometer, operational trials of 10,000 cycles and dielectric withstand validation of 85 kV/1 minute before it is sent from the manufacturer, with the whole production process covered by third-party ISO 9001 audit.
Installation and Best Practices for Safe Operation
Site Preparation and Initial Testing
Before mounting, verify that foundation bolt spacing matches the switch's base plate dimensions. Clean insulator surfaces with a dry, lint-free cloth to remove transport residue. Confirm phase sequencing against the single-line diagram prior to connecting busbars. After installation, perform a contact resistance test with a micro-ohmmeter — readings above 50 µΩ warrant investigation before energization. A power-frequency withstand test at rated dielectric strength confirms insulation integrity across the assembled indoor disconnect switch.
Maintenance Cadence and Common Failure Indicators
Annual comprehensive inspection is a baseline expectation for medium-voltage disconnectors in moderate-duty applications. Inspect insulator surfaces for tracking marks or carbonization, re-torque all bolted connections to manufacturer specifications, and apply a thin layer of conductive contact grease to silver-plated contact faces. Linkage mechanisms should be inspected for binding or play, particularly in installations subject to vibration from adjacent heavy machinery. Any anomalous temperature reading during infrared thermographic scanning of energized contacts warrants immediate follow-up measurement and root-cause investigation.
Conclusion
When selecting a dependable indoor disconnect switch for substation applications, consideration should be given to the voltage class, rated current, contact resistance, mechanical durability and, in retrofit applications, compatibility with existing foundations. The GN2 High Voltage Disconnect Switch is a single, standards compatible product that incorporates 40.5 kV, current ratings up to 2,000 A, an earthing switch and installation through the wall. For EPC contractors facing tightened outage windows and legacy infrastructure restrictions, these characteristics remove risk from installation and the pressure on project timelines simultaneously.
FAQ
1. What is the difference between an indoor disconnect switch and a circuit breaker?
An indoor disconnect switch creates a visible physical break in a confirmed dead circuit. It cannot interrupt load or fault current. A circuit breaker interrupts energized circuits automatically or manually and handles fault-clearing duties. These two devices serve sequential functions in a protection scheme — the breaker opens under load, then the disconnector isolates the dead section for safe maintenance access.
2. How do I select the correct amp rating for my substation application?
Match the switch's rated current to the continuous load current of the circuit, with a margin for future load growth. Verify the short-time withstand current rating against the maximum prospective fault current at the installation point. For 40.5 kV distribution substations, ratings of 630 A to 1,250 A cover the majority of transformer feeder and bus section applications.
3. Can an indoor disconnect switch be installed in an outdoor environment?
A standard indoor-rated unit should not be deployed outdoors without an appropriate weatherproof enclosure. Indoor designs assume controlled temperature, humidity, and contamination levels. Outdoor exposure accelerates insulator tracking and contact oxidation, reducing both dielectric performance and mechanical reliability below acceptable thresholds.
What causes contact overheating in medium-voltage disconnectors?
Contact overheating stems from elevated contact resistance caused by oxidized contact surfaces, reduced spring pressure due to spring fatigue, or misalignment between blade and clip contacts. Remediation involves cleaning contact surfaces, applying conductive grease, and verifying contact pressure against manufacturer torque specifications.
Connect with Xi'an Xikai for Your Indoor Disconnect Switch Needs
Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. manufactures indoor disconnect switch solutions compliant with IEC, GB, and IEEE standards, covering voltage classes through 40.5 kV. Our engineering team provides compatibility assessments for legacy substation foundations, supports bulk procurement planning for EPC projects, and delivers responsive after-sales service. Reach our technical sales team directly at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or visit xaxd-electric.com to explore our indoor disconnect switch supplier catalog and request a project-specific quotation.
