Dry Type Transformer Applications in Power Distribution
2026-04-21 16:28:47
Power distribution systems are an important part of modern infrastructure. Choosing the right transformer technology has a direct effect on how well, safely, and cheaply operations run. In the industrial, commercial, and utility sectors, dry type transformers have become the go-to choice because they don't require oil and perform admirably under pressure. These units are either cooled by air or solidly insulated, and they are made of epoxy resin or cast resin instead of liquid dielectrics. This meets fire safety and environmental standards without affecting the electrical performance. From factories that need to keep working without stopping to data centers that need clean power, this technology has real-world benefits that translate into measurable business results for both facility managers and engineering teams.
|
|
|

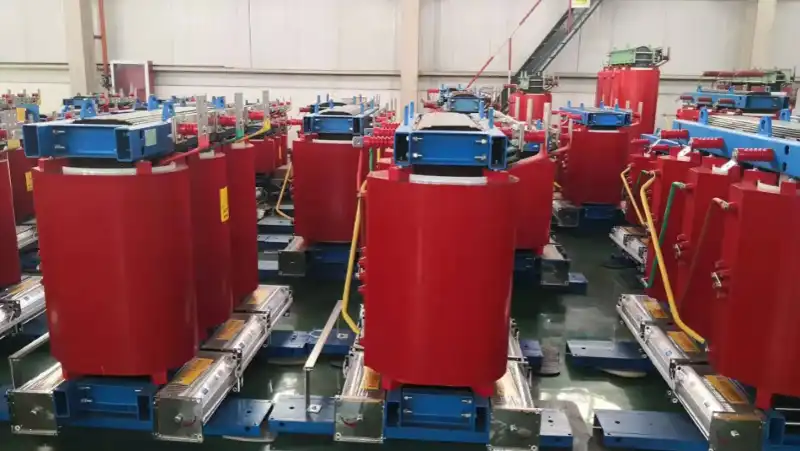

Understanding Dry Type Transformers in Power Distribution
Construction and Operating Principles
A Dry type transformer employments vacuum weight impregnated windings and strong separators in place of liquid-filled tanks, minimizing fire hazard and empowering secure indoor use. Centers made from silicon steel or nebulous amalgams diminish no-load misfortunes, whereas copper or aluminum windings guarantee proficient current exchange. Operation depends on electromagnetic acceptance, comparable to conventional transformers. Warm dissemination happens through normal or constrained discuss cooling, with temperature rises regularly constrained to 80K–150K. This air-based cooling permits the establishment of interior buildings without vaults or broad fire security systems.
Key Advantages for Modern Facilities
The Dry type transformer offers major benefits for present-day offices, counting progressed security due to the absence of combustible fluids, lessening protections and compliance costs. Upkeep costs drop altogether since oil testing and filtration are superfluous. Naturally, strong cover anticipates soil defilement and bolsters reusing of up to 98% of materials. Compact plans empower the establishment near stack centers, diminishing cable length and voltage drop. This adaptability is important in retrofits, clinics, and campuses where space imperatives constrain basic modifications.
Common Applications Across Industries
A Dry type transformer is broadly utilized in businesses with shifting prerequisites. Fabricating offices utilize 500kVA–2000kVA units for mechanization and handle control, whereas chemical plants favor epoxy cover for dampness and erosion resistance. In commercial genuine domain, cast tar plans overwhelm high-rise buildings due to fire security and space effectiveness. Renewable vitality applications require K-rated units to handle sounds from inverters, guaranteeing steady operation in sun based and wind establishments whereas assembly IEEE 519 lattice standards.
Comparing Dry Type Transformers with Other Transformer Types
Safety and Environmental Impact Analysis
Safety and environmental considerations strongly favor the Dry type transformer. Oil-filled units require control frameworks, fire concealment, and clearance separations, expanding installation costs altogether. In contrast, flame-retardant separator (UL 94 V-0) permits a closer situation to structures without extra security. Natural dangers are moreover diminished, as there is no oil spillage or dangerous waste transfer. Dispensing with administrative prerequisites such as spill reaction planning brings down long-term operational costs and avoids potential environmental liabilities.
Technical Distinctions in Design Variants
Dry type transformer designs mainly include cast gum and vacuum weight impregnated (VPI) sorts. Cast tar completely typifies windings, giving fabulous dampness resistance for cruel situations like coastal or sticky ranges. VPI plans permit simpler support get to and lower halfway release levels, ordinarily underneath 10 picocoulombs. Whereas cast tar prioritizes strength, VPI offers adaptability and serviceability, making it reasonable for bigger units where support contemplations exceed natural introduction concerns.
Performance Criteria for Industrial Selection
Selecting a Dry type transformer requires evaluating load capacity, efficiency, and noise. Harmonic-rich loads may require derating or K-factor designs to prevent overheating. Efficiency typically ranges from 99.2% to 99.5%, comparable to oil-filled units, while no-load losses vary based on core material. Noise levels are critical for sensitive environments, often requiring operation below 50 dB. Forced air cooling increases capacity but adds noise, requiring careful trade-offs between performance and environmental constraints.
Technical Insights and Maintenance for Optimal Performance

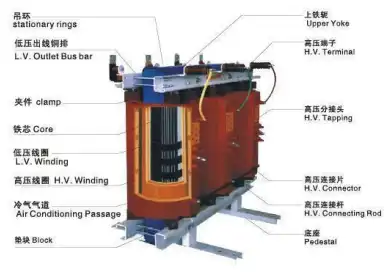

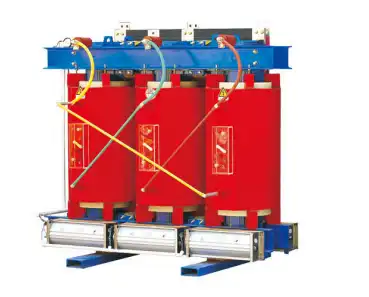

Core Components and Design Features
The internal design of a Dry type transformer includes laminated cores that minimize vortex current misfortunes and optimized winding setups for proficient cooling. Silicon steel gives toughness, whereas nebulous centers diminish hysteresis misfortunes. Disk-type windings make strides short-circuit quality, withstanding tall blame streams. Inserted temperature sensors screen hotspots and trigger cautions or stack shedding when limits are surpassed. Integration with IoT frameworks permits real-time execution following and prescient upkeep planning.
Actionable Maintenance Practices
Proper maintenance ensures reliable Dry type transformer operation. Annual visual inspections check insulation for cracks or contamination, while thermal imaging identifies hotspots early. Electrical testing, including insulation resistance and power factor measurements, confirms dielectric integrity. Ventilation systems must remain clean to prevent overheating, requiring periodic cleaning of air pathways and fan inspections. Installing air filters in dusty environments further protects internal components and maintains cooling efficiency.
Installation Best Practices and Common Errors
Correct installation is essential for long-term Dry type transformer performance. Site selection must consider ambient temperature, ventilation, and maintenance clearance. High temperatures reduce available capacity unless higher-rated designs are used. Seismic requirements demand proper anchoring systems in earthquake-prone regions. Electrical connections must follow torque specifications to prevent overheating or damage. Phase rotation checks before energization avoid equipment failure and ensure proper system operation.
Procurement Considerations and Supplier Selection
Pricing Factors and Lead Time Expectations
Dry type transformer pricing depends on materials, customization, and market conditions. Standard units typically cost $8,000–$25,000 for 500kVA–1500kVA ratings. Copper price fluctuations significantly impact costs, requiring careful budgeting. Custom designs increase costs by 15–30% and extend lead times by several weeks. Standard delivery ranges from 10–16 weeks, while engineered units may take up to 26 weeks or longer. Early supplier engagement reduces risk and improves scheduling reliability.
Evaluating Manufacturers and Distribution Networks
Supplier selection for a Dry type transformer should include quality systems, testing capabilities, and support networks. ISO 9001-certified manufacturers ensure consistent production quality. Routine and type testing validate electrical and thermal performance. Distributor networks affect availability, pricing, and technical support. Direct manufacturer relationships may reduce costs, while distributors offer faster delivery and localized service. Strategic sourcing improves reliability and lifecycle performance.
Warranty Terms and After-Sales Support
Warranty coverage is critical when selecting a Dry type transformer. Standard warranties range from 24 to 36 months, but coverage scope varies. Comprehensive warranties that include labor and service provide better value. Extended warranties are beneficial for critical applications, offering predictable costs and reduced downtime risk. Strong technical support, including 24/7 assistance and field services, ensures faster issue resolution and improved operational reliability.
Future Trends and Energy Efficiency Optimization
Innovations in Insulation Materials and Design
Advancements in materials are improving Dry type transformer performance. Nano-composite insulation enhances thermal conductivity, allowing higher power density. Biodegradable materials reduce environmental impact while maintaining performance. Additive manufacturing enables optimized cooling designs, improving airflow and reducing temperature rise. These innovations increase efficiency, extend service life, and support sustainability goals.
Energy Efficiency Standards and Optimization Strategies
Efficiency regulations are driving improvements in Dry type transformer design. Standards limit no-load losses, encouraging high-performance core materials. Amorphous cores reduce losses significantly, offering long-term energy savings despite higher initial costs. System-level optimization, such as load balancing across multiple units, further enhances efficiency. Automated systems improve performance under variable load conditions, supporting energy management goals.
Environmental and Regulatory Trends Shaping Procurement
Sustainability increasingly influences Dry type transformer procurement. Lifecycle assessments evaluate environmental impact from production to disposal. Designs emphasizing recyclability and reduced carbon footprint align with ESG objectives. Modular construction supports material recovery, while manufacturer take-back programs promote circular economy practices. Climate adaptation requirements, including higher temperature ratings and improved cooling, ensure long-term performance under changing environmental conditions.
Conclusion
To choose the right distribution equipment, you have to weigh a lot of technical, financial, and operational factors that are in line with the needs of your facility. When compared to oil-filled alternatives, air-cooled distribution transformers meet important needs in industrial, commercial, and utility settings thanks to better safety features, better environmental benefits, and easier maintenance. Knowing about different design options, performance standards, and buying factors helps you make smart choices that maximize lifecycle value while also meeting operational goals and regulatory requirements. New standards for efficiency and sustainability are continuing to shape the development of technology, which should lead to ongoing improvements in performance and impact on the environment.
Frequently Asked Questions
1. How do air-cooled distribution transformers perform in high-humidity coastal environments?
Modern epoxy resin and cast resin insulation systems don't lose their electrical integrity when the humidity level goes up to 95%. For installations near the coast, it's best to choose enclosures with an IP54 or IP65 rating that keep salt spray out. Conformal coatings on electrical connections and regular cleaning of the outside to get rid of salt deposits ensure long-term reliability. Testing the insulation power factor once a year according to IEEE C57.12.91 can find damage caused by moisture early on. Values below 2% mean the insulation is in good enough shape to continue to be used.
2. What maintenance schedule should facilities implement for optimal reliability?
Preventive maintenance programs are based on visual inspections done once a year to record the condition of the insulation and the tightness of the connections. Every two to three years, thermal imaging surveys find hot spots that are starting to form before they break. Electrical testing, such as measuring insulation resistance and power factor, confirms the dielectric integrity every 3 to 5 years, depending on how important it is. Cleaning the ventilation system every three months in dusty places and once a year in clean places keeps the thermal performance from going down. If your building uses forced-air cooling, you should check the fan assemblies once a year and replace the bearings every 5 to 7 years to make sure the cooling system doesn't break down when it's most needed.
3. Can these units handle non-linear loads from LED lighting and variable frequency drives?
Standard designs can handle some harmonic content, but buildings that have a lot of nonlinear loads should ask for K-factor rated equipment. Transformers with a rating of K-13 can handle the usual loads found in commercial buildings, such as LED lighting, computer equipment, and electronic ballasts. Industrial buildings with a lot of VFDs may need K-20 ratings to keep things from getting too hot. Three-phase, four-wire distribution systems that supply single-phase electronic loads can avoid overheating by specifying 200% neutral conductor capacity and oversizing by 15–25% more than the calculated kVA demand. During the design phase, IEEE 519 harmonic analysis makes sure that the voltage THD stays below 5% and the current THD stays within acceptable limits.
Partner with Xi'an Xikai for Your Distribution Transformer Needs
Don't look any further than Xi'an Xikai for your distribution transformer needs. Through 20 years of engineering excellence and manufacturing innovation, Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. has developed tried-and-true solutions for tough power distribution tasks. Our cast resin distribution transformers are made to international standards like IEC 60076 and IEEE C57.12.01. They can also be customized to fit the needs of each project. Whether you are in charge of industrial facilities that need to be able to handle 150% overload, commercial installations that need to be very quiet, or utility projects that need equipment that can work at high altitudes, our experienced team can help you with everything from developing specifications to starting up the project. Send an email to serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your project needs and find out why top EPC companies, facility operators, and utilities choose Xi'an Xikai as their dry type transformer supplier. You can look at all of our products and technical information at xaxd-electric.com.
