What Is Outdoor Disconnect Switch Working Principle Explained

An Outdoor disconnect switch is an imperative security feature in electrical conveyance systems since it cuts off all control to circuits during repairs, crises, or routine maintenance. Not at all like circuit breakers, which consequently trip when there is an overload, this switch can be worked by hand and appears that the circuit is detached, making the work region more secure for specialists. Since it is weatherproof and has a solid mechanical plan, it is fundamental for utility substations, manufacturing plants, data centers, and other commercial buildings that require to oversee control dependably in exterior areas.

Understanding What an Outdoor Disconnect Switch Is

Outdoor disconnect switches are mechanical gadgets that are designed to keep electrical equipment from touching other things exterior. These switches are, in a general sense, distinctive from indoor units since they have superior natural assurance features, such as enclosures that do not rust, fixed working components, and UV-stabilized materials that can handle temperatures extending from -40°C to +85°C.

Core Purpose and Design Philosophy

The primary work is to make an discuss hole in electrical circuits so that energized conductors can be seen to be isolated from hardware encourage down the line. This clear break makes it beyond any doubt that professionals can affirm that the control is off some time recently they do support, which is an exceptionally critical security necessity set by OSHA and NFPA 70E. In present-day plans, load-break highlights are built in for certain employments, but most units, as a rule, work when there is no load to avoid arcing damage.

Types and Variants for Different Applications

The Outdoor disconnect switch is accessible in fusible and non-fusible arrangements. Fusible sorts combine segregation and overcurrent security, whereas non-fusible forms require upstream gadgets. Mechanical models run from 600A to 6300A, whereas littler units handle 30A–200A loads in HVAC frameworks. Walled in area evaluations are basic: NEMA 3R suits common open air utilize, whereas NEMA 4X stainless steel secures against erosion in coastal or chemical situations, directly influencing life expectancy and upkeep needs.

Compliance Standards Governing Selection

Selecting an Outdoor disconnect switch requires compliance with guidelines like UL 98, IEC 62271-102, and IEEE C37.32. These characterize security, strength, and seismic execution prerequisites. Legitimate certification guarantees administrative endorsement, protections acknowledgment, and operational security. Non-compliant gear increments legitimate and operational dangers. Obtainment details ought to clearly reference pertinent measures and prioritize providers with recorded certification forms to guarantee steady item quality and compliance.

Working Principle of Outdoor Disconnect Switches

The operational mechanics of the Outdoor disconnect switch are based on simple but reliable rules that have been improved over many years of use in industry. Understanding these basics helps engineers choose the right devices and fix problems with performance quickly.

Fundamental Electrical Operation

The Outdoor disconnect switch operates by physically isolating conductive contacts to make an discuss crevice that avoids current stream. Not at all like circuit breakers, it cannot hinder stack current, so upstream gadgets must de-energize circuits to begin with. Quick-break instruments diminish arcing dangers, whereas spring-loaded contacts keep up weight for moo resistance. These mechanical standards guarantee dependable separation amid support whereas minimizing overheating and wear amid typical operation.

Practical Wiring Configuration Example

In a typical setup, an Outdoor disconnect switch connects between a department circuit breaker and hardware such as HVAC frameworks. Line terminals connect to the control source, whereas stack terminals nourish the gear. Legitimate establishing guarantees blame security. Establishment requires vertical mounting, weatherproof conduit fittings, and adjust torque on terminals. Obvious edge positions and lockable handles back secure lockout/tagout strategies, guaranteeing compliance with upkeep security regulations.

Comparison with Circuit Breakers and Fuses

The Outdoor disconnect switch differs from circuit breakers and fuses in function. Breakers provide automatic overload protection and frequent operation, while fuses offer single-use fault protection. Disconnect switches are manual devices used for isolation during maintenance. Combining all three creates layered protection: breakers manage normal faults, fuses handle extreme conditions, and disconnect switches ensure safe equipment isolation, improving overall system reliability.

Benefits of Using Outdoor Disconnect Switches in Industrial Applications

When the Outdoor disconnect switch isolation devices are strategically placed, they make safety, reliability, and operational efficiency better in ways that facility managers and utility engineers value.

Enhanced Personnel Safety During Maintenance

An Outdoor disconnect switch improves safety by providing visible isolation points. Technicians can confirm disconnection without relying solely on instruments. Lockout/tagout features prevent accidental re-energization, allowing multiple workers to secure equipment safely. This is especially important in continuous operations where maintenance overlaps with active systems, reducing accident risks and ensuring compliance with safety protocols.

Durability in Harsh Environmental Conditions

The Outdoor disconnect switch is designed for harsh environments using corrosion-resistant materials like galvanized steel and stainless components. Advanced designs include aluminum structures and grading rings to improve heat dissipation and reduce electrical stress. These features extend service life beyond 30 years, even in coastal or industrial conditions, reducing replacement frequency and lowering lifecycle costs.

Ampacity Ratings and Load Compatibility

An Outdoor disconnect switch must match application load requirements. Industrial systems typically use 200A–400A units, while substations require up to 6300A. High surge capacity ensures stability during fault conditions. Voltage ratings from distribution to sub-transmission levels allow flexible use. Proper sizing prevents overheating, equipment damage, and operational interruptions while maintaining safety margins.

How to Choose the Best Outdoor Disconnect Switch for Your Needs

For Outdoor disconnect switch specification to work, electrical parameters, environmental factors, and lifecycle costs must be carefully considered. This organized method makes sure that the best device is chosen based on operational needs and budget limits.

Essential Technical Criteria

Choosing an Outdoor disconnect switch involves matching voltage, current, and short-circuit ratings to system requirements. Environmental factors like temperature, altitude, and pollution levels also influence selection. Adequate safety margins ensure reliable operation under varying conditions. Certification testing confirms performance under fault and environmental stresses, ensuring long-term reliability.

Brand Comparison and Market Positioning

Manufacturers differentiate Outdoor disconnect switch products through quality, support, and application focus. Some brands specialize in commercial systems, while others focus on industrial automation or utility applications. Selecting the right supplier depends on technical requirements, service support, and compatibility with existing infrastructure, ensuring consistent performance and lifecycle efficiency.

Budget Optimization Strategies

Cost planning for an Outdoor disconnect switch includes evaluating purchase price and lifecycle expenses. Bulk procurement reduces unit costs, while higher-quality designs lower maintenance and downtime expenses. Lifecycle analysis often shows that durable equipment provides better long-term value, making it a strategic investment rather than a simple purchase.

Installation, Troubleshooting, and Maintenance Guide

When the Outdoor disconnect switch equipment is deployed correctly, it works better and is safer for many years to come. Common installation mistakes that hurt reliability can be avoided by following the manufacturer's instructions and electrical codes.

Step-by-Step Installation Procedures

Proper installation of an Outdoor disconnect switch requires stable foundations, correct mounting height, and compliance with safety distances. Weatherproof fittings prevent moisture ingress, while proper torque ensures secure electrical connections. Pre-energization tests verify insulation resistance and contact performance, ensuring safe and reliable operation from the start.

Common Troubleshooting Techniques

Common issues in an Outdoor disconnect switch include overheating, mechanical binding, and intermittent connections. Infrared inspections detect hot spots, while cleaning and lubrication restore mechanical function. Contact maintenance prevents voltage instability and equipment damage. Timely troubleshooting ensures system reliability and prevents escalation of faults.

Preventive Maintenance Best Practices

Routine maintenance for an Outdoor disconnect switch includes annual inspections, cleaning, and lubrication. Electrical tests every few years verify insulation and contact condition. Monitoring trends helps predict failures and schedule maintenance proactively. Proper record-keeping supports compliance and improves long-term asset management efficiency.

Conclusion

The Outdoor disconnect switch is still an important part of modern electrical distribution systems because it shows that the power is off, which is important for keeping people safe during maintenance work. Facility operators and utility engineers can choose devices that are more reliable and have a higher lifecycle value if they understand operational principles, environmental requirements, and the right selection criteria. New designs like the GW4 series show how advances in electrical engineering and materials science can make things last longer and require less maintenance. Strategic partnerships with experienced manufacturers make sure that you can get compliant, field-tested products that are backed by technical support throughout the lifecycle of a project.

Frequently Asked Questions

1. What distinguishes Outdoor disconnect switches from circuit breakers?

The Outdoor disconnect switch creates a safe space between energized conductors and downstream equipment so that maintenance can be done without risk. This is done by separating the blades so that they can be seen. It has to be operated by hand when there is no load, and it doesn't have automatic overcurrent protection. Circuit breakers use thermal or magnetic trip mechanisms to automatically stop fault currents, and they often work when they are loaded. Both switches and breakers are important parts of complete electrical protection systems. Switches are responsible for isolation safety, while breakers are in charge of dynamic protection.

2. Are these switches able to work with installations of HVAC equipment?

Of course. Building codes usually say that Outdoor disconnect switches have to be close to air conditioners and heat pumps so that technicians can make sure they are turned off before they start work. Fusible versions offer both isolation and short-circuit protection in a single, cost-effective package that can be installed on roofs. Choosing the right ampacity that matches the loads of the compressor and fan motors is important for reliable operation during seasonal cycling.

3. How often should the parts be inspected and replaced?

Visual inspections done once a year find environmental damage or mechanical wear that needs to be fixed. Electrical testing every three to five years makes sure that the insulation and contact integrity are still good. When contact erosion stops the reliable flow of current, insulator damage lowers the dielectric strength, or mechanical wear leads to binding, the device needs to be replaced. Well-kept units in mild climates can last 30 to 40 years, but units in harsh coastal or industrial environments may need to be replaced after 15 to 20 years, depending on the quality of the materials and how well they are maintained.

Partner with Xi'an Xikai for Reliable Outdoor Disconnect Switch Solutions

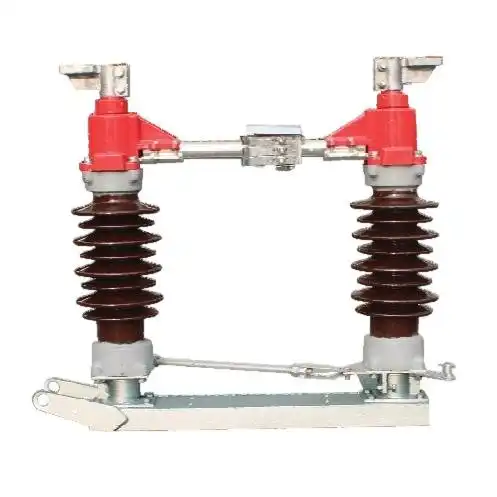

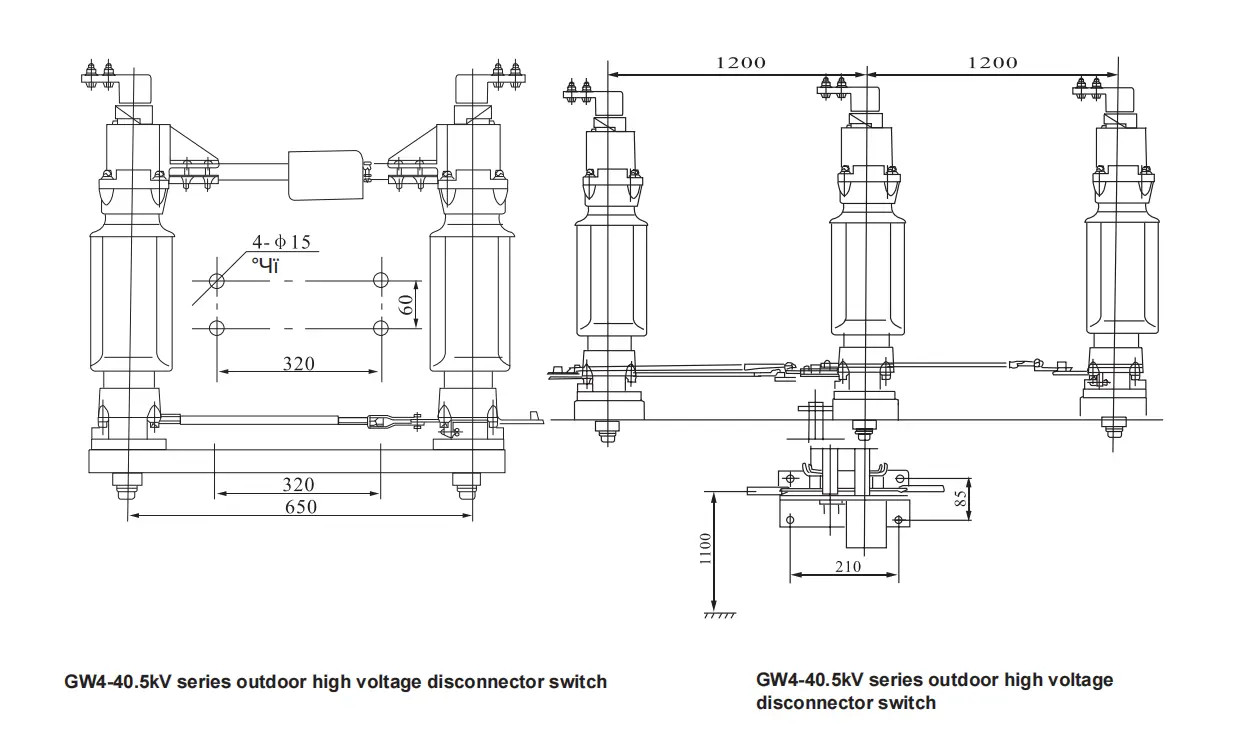

Outdoor disconnect switch solutions from Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. are backed by 20 years of manufacturing excellence. Our GW4 High Voltage Outdoor disconnect switch is an example of advanced engineering. It has hot-dip galvanized parts, transmission systems made of stainless steel, and better electric field distribution for utility and industrial uses from 40.5kV to 252kV. Our custom manufacturing, bulk pricing, and global compliance certifications, such as IEC, IEEE, and ISO standards, make us a great choice for procurement teams looking for suppliers. For application-specific advice and competitive quotes on support for your important infrastructure projects, email our technical experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com.
