Outdoor Disconnect Switch vs Indoor Switch Key Differences

When choosing disconnect switches for power systems, it's important to know whether an Outdoor disconnect switch or an indoor switch is best for your building. This is for security reasons and to save cash in the long run. The primary distinction is how the switches are associated with the exterior world. The lodgings of open-air switches are made of hot-dip galvanized steel and materials that do not rust, so they can handle rain, UV beams, and tall and moo temperatures. Interior, on the other hand, switches center on being small and controlling temperature for secure places. Making the off-base choice can lead to early hardware breakdowns, impromptu downtime, and repairs that cost a chunk of change. Businesses like manufacturing plants, information centers, healing centers, and utility substations can't make as much cash since of these issues.

Understanding Outdoor and Indoor Disconnect Switches

It is exceptionally vital for electrical security to have disengage switches so that upkeep specialists can turn off all circuits before they work on transformers, circuit breakers, or transmission lines. Detach switches have to be worked by hand when there is no or an exceptionally small stack, and they take off obvious discoloration holes to appear that they have been turned off. Circuit breakers halt blame streams naturally. Since of this clear partition, the control won't be turned back on by botch whereas the work is being done. This keeps individuals from getting stunned and keeps apparatuses from breaking.

Design Philosophy for Different Environments

Outdoor disconnect switch meets NEMA 3R or NEMA 4X requirements with its weatherproofing. Units are held together by hot-dip galvanized steel outlines. The transmission frameworks have stainless steel pins, bushings, and joints and UV-resistant protection materials. Warm may elude through aluminum combination profiles, but water cannot enter walled in areas. Evaluating rings and shields at contact areas disseminate the electric field. Crown release and RF obstructions diminish. Imperative for establishments close houses or communication gear.However, insides disengage switches moderate space and utilize building-safe materials. Secured steel or composite bodies secure these switches from climate and shinning daylight. Warm administration employments openings for wind current instep of convection-friendly surfaces. Electrical rooms, substations, and gear racks are valuable for putting away little items.

Functional Roles Across Applications

Disconnect switches are used to move loads between backup generators and utility feeds in data centers. They are also used to keep motor control centers from being affected by upgrades to other equipment in industrial plants. Outdoor disconnect switches are put at substation yards and on transformers that are mounted on poles so that they are easy to get to and won't break in bad weather. To keep delicate medical equipment safe from voltage spikes while switches are being used, hospitals need indoor switches with housings that can't catch electricity.

Key Differences Between Outdoor and Indoor Disconnect Switches

When deciding between Outdoor disconnect switch and indoor disengage switches, you ought to think around how the switches will be influenced by the climate, how long they will final, and how simple they are to keep up. How dependable the framework is and how much it costs to possess will both alter straightforwardly over the another 20 to 30 years.

Environmental Exposure and Enclosure Integrity

Outdoor disconnect switch equipment must endure extraordinary temperatures from -40°C to +85°C, along with rain, snow, ice, and salt splash. Walled in areas ordinarily require at slightest IP65 security to square clean and water entrance. Materials like hot-dip galvanized steel and 316L stainless steel stand up to erosion viably, indeed in coastal conditions. Indoor switches confront milder situations but must still handle stickiness, condensation, and mechanical tidy. NEMA 1 or NEMA 12 walled in areas with gasketed entryways give satisfactory assurance, whereas appropriate ventilation and warm dissemination guarantee solid operation.

Construction Materials and Mechanical Design

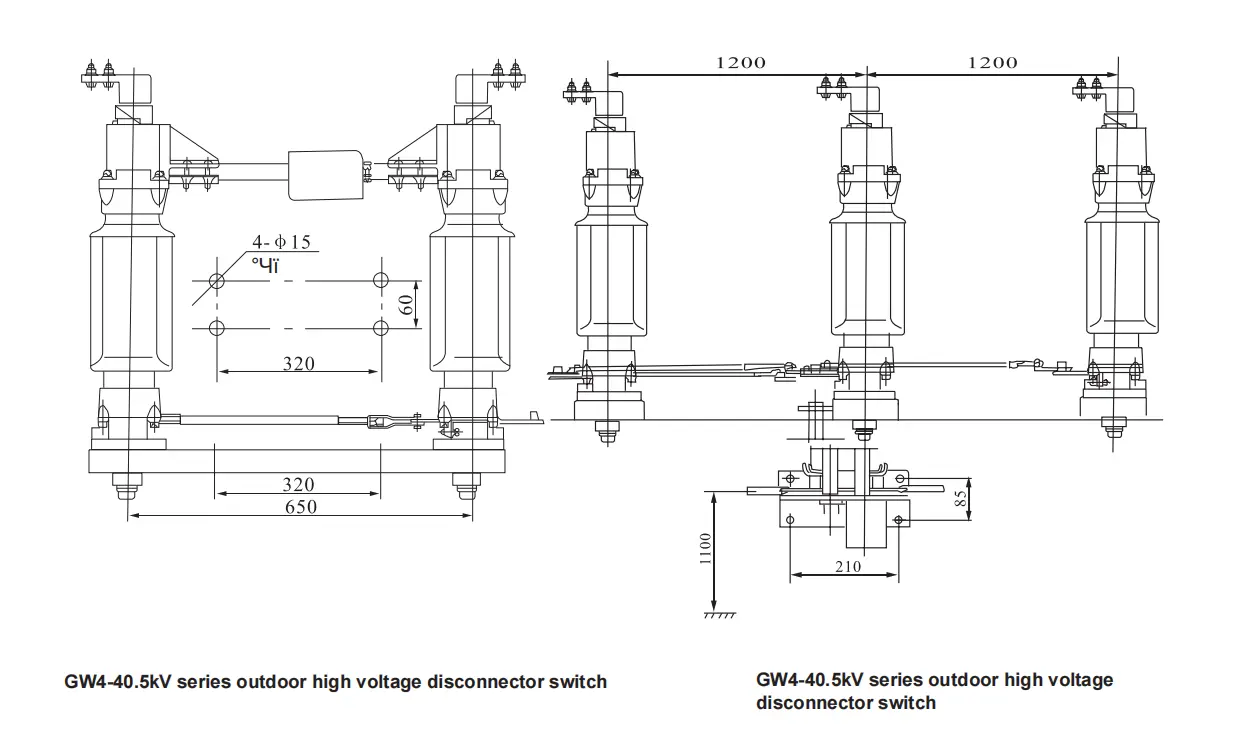

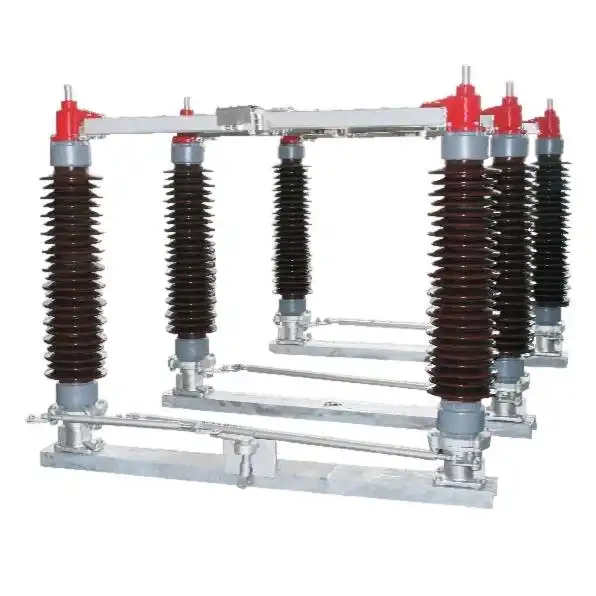

Outdoor disconnect switch designs like the GW4 emphasize strength and tall current capacity, supporting voltages from 40.5kV to 252kV and streams up to 6300A. Highlights such as outside weight springs, adaptable busbars, and exactness heading keep up steady contact weight and decrease wear. These improvements amplify benefit life past 10,000 operations. Indoor switches frequently utilize compact molded-case structures with circular segment chutes for fast bend termination. Whereas space-efficient and more secure for encased situations, they ordinarily handle lower streams compared to open air air-break configurations.

Installation Complexity and Site Requirements

Installing an Outdoor disconnect switch requires steady establishments, seismic fortification, and satisfactory dispersing. Guidelines like ASCE 7 request structures competent of standing up to tall winds and ice loads. Adaptable mounting alternatives back retrofits in obliged substations. Weatherproof organs and fixing packs ensure associations. Indoor establishments center on circular segment streak security and legitimate conduit directing. Compliance with NFPA 70E guarantees secure working separations and defensive measures. Basic bolster like backing plates disperses mechanical push, whereas integration with fire and EMI frameworks avoids operational conflicts.

Performance Characteristics and Reliability Factors

Grading rings uniformly disperse electric fields to avoid flashovers in dirty or humid outdoor disconnect switches. Silicone-coated insulators strengthen dielectrics in polluted settings. Integrated surge protection protects downstream equipment from lightning. Indoor switches use auxiliary connections and interlocks for monitoring and safety. IEEE-validated arc-resistant designs route fault energy away from workers, enhancing safety and system dependability in enclosed electrical systems.

How to Choose the Right Disconnect Switch for Your Application

There are a lot of things that B2B procurement teams have to think about when they choose disconnect switches. These include technical needs, budget constraints, and the supplier's abilities. An organized method cuts down on risk and makes sure that the gear picked fits with the mission's main goals.

Matching Switch Type to Installation Environment

Outdoor disconnect switch units are essential in corrosive environments like chemical plants, where galvanized steel and stainless components prevent rapid degradation. Data centers rely on indoor switches with interlocks to maintain uninterrupted operations. Hospitals in seismic regions require equipment certified to withstand earthquakes. Space constraints may limit outdoor installations in urban retrofits, while solar rooftops demand UV-resistant designs. Utilities benefit from lightweight aluminum structures that reduce load on transmission towers without compromising electrical performance.

Evaluating Safety Certifications and Environmental Ratings

Outdoor disconnect switch selection must consider certifications like UL 98 and IEC 62271-102 to ensure compliance with safety and performance standards. NEMA ratings define enclosure protection levels, such as 3R for weather resistance and 4X for corrosion protection. IP ratings further specify ingress protection, with IP65 suitable for harsh outdoor cleaning conditions. Arc flash ratings per IEEE 1584 enhance worker safety. Procurement teams should verify compliance through certified test reports rather than relying solely on product labeling.

Fused vs Non-Fused Configurations

Fused or non-fused outdoor disconnect switches are available for protection. Overcurrent protection in fused switches simplifies installation and limits short circuit failure energy. Protects transformers and wires well. Non-fused switches are cheaper but need upstream protection. System coordination and fault current levels determine the option. Fused solutions work well in high-fault situations, although rural systems may run without them.

Supplier Evaluation and Lifecycle Support

Reliable suppliers ensure consistent performance of Outdoor disconnect switch systems over decades. Companies with extensive experience, proven project references, and strong engineering capabilities reduce operational risks. High-quality manufacturing, precision components, and durable contact surfaces enhance long-term reliability. After-sales support, including rapid spare part delivery and technical assistance, significantly impacts total cost of ownership. Certifications like ISO 9001 and environmental compliance standards further demonstrate commitment to quality and sustainability.

Cost Optimization Without Compromising Quality

Optimizing costs for Outdoor disconnect switch procurement requires balancing upfront investment with long-term savings. Corrosion-resistant materials may increase initial costs but reduce maintenance and repainting expenses. Maintenance-free designs lower labor costs, especially in remote locations. Bulk purchasing can secure discounts and favorable payment terms, while standardizing equipment simplifies spare parts management. However, undersized switches should be avoided, as overheating and accelerated wear can lead to failures, increasing overall lifecycle costs and operational risks.

Installation, Maintenance, and Safety Guidelines for Outdoor Disconnect Switches

If you install and take care of Outdoor disconnect switch the right way, they will last longer and keep workers safe from electrical hazards. You can avoid having to pay a lot of money for repairs or breaking the law by following the manufacturer's instructions and the rules in your area.

Site Assessment and Foundation Preparation

Sites for installing an Outdoor disconnect switch must provide stable soil, effective drainage, and safe clearance from energized lines. In cold regions, foundations must resist frost heave and remain stable under seismic forces. Anchor bolt spacing and torque values defined in design drawings must be followed to maintain structural integrity. Grounding grid effectiveness requires soil resistivity testing to ensure proper fault current dissipation. Cable routing should avoid sharp bends to protect insulation, while weatherproof glands with strain relief prevent vibration damage. Clearance zones based on NEMA CC 1 or utility standards ensure safe maintenance and operation access.

Wiring Best Practices and Termination Quality

Proper conductor sizing for an Outdoor disconnect switch follows NEC ampacity tables, considering ambient temperature and conduit fill. Aluminum conductors require antioxidant compounds at terminations to prevent galvanic corrosion when paired with copper. Correct torque application on lugs avoids overheating or insulation damage, while under-torquing risks arcing faults. Verifying phase rotation ensures safe three-phase operation. Flexible busbar connections accommodate thermal expansion without stressing insulators. Maintaining recommended bend radii prevents localized stress. Clear labeling using ANSI Z535-compliant color coding improves safety and simplifies identification during installation, maintenance, and troubleshooting tasks.

Routine Inspection and Preventive Maintenance

Routine maintenance of an Outdoor disconnect switch includes annual inspection of contact surfaces for discoloration or pitting caused by arcing. Contact resistance measurements using micro-ohmmeters help identify deterioration; increases beyond 20% indicate issues. Insulators should be examined for cracks using magnification tools and replaced if damaged. Quarterly operation cycles maintain mechanical movement and bearing condition. Grounding resistance must remain below 5 ohms for effective fault clearing. Advanced designs with self-cleaning contacts reduce maintenance needs, though coastal installations still require periodic cleaning to remove salt deposits that degrade insulation performance.

Safety Protocols and Lockout-Tagout Compliance

Before servicing an Outdoor disconnect switch, OSHA 1910.147 lockout-tagout procedures must be applied to ensure energy isolation. Voltage testers rated for system levels verify de-energization and must be checked against known sources for accuracy. Each worker should apply individual locks to maintain personal safety control. NFPA 70E guidelines define arc flash protection levels, which vary depending on operating conditions. While de-energized equipment may present minimal risk, energized maintenance can require higher PPE categories. Minimum approach distances from NFPA tables must always be observed to reduce electrical hazard exposure.

Comparative Analysis of Outdoor Disconnect Switch Variants

When purchasing teams know the pros and cons of the different Outdoor disconnect switch arrangements, they can choose products that meet operational needs. As far as reliability goes, there are different types of weatherproof ratings, fused vs. non-fused designs, and built-in surge protection.

Fused Outdoor Disconnect Switches: Protection and Limitations

Fused Outdoor disconnect switch assemblies combine isolation and overcurrent protection using current-limiting fuses. These fuses can clear faults rapidly, often within 0.01 seconds, minimizing damage to transformers and cables. However, maintenance complexity increases because blown fuses must be replaced before restoring service. Proper coordination studies are essential to ensure correct fuse selection. Environmental conditions also affect fuse performance, with temperature influencing clearing times. Incorrect fuse choices may lead to nuisance tripping or insufficient protection, especially when indoor-rated fuses are used in outdoor environments.

Non-Fused Outdoor Disconnect Switches: Simplicity and Coordination

Non-fused Outdoor disconnect switch designs rely on upstream protection devices such as circuit breakers or reclosers for fault interruption. This simplifies switch construction and reduces maintenance by eliminating fuse replacement. Models like the GW4 handle high voltages and currents without fuse-related limitations. However, proper coordination is critical to ensure upstream devices clear faults effectively. These switches perform well in systems with reliable backup protection and lower fault currents, commonly used in utility distribution networks where isolation and visibility are primary requirements.

Weatherproof Rating Impact on Longevity

The durability of an Outdoor disconnect switch depends heavily on enclosure ratings. NEMA 3R provides basic weather protection, while NEMA 4 and 4X offer enhanced resistance to water and corrosion, especially in coastal environments. IEC IP ratings further define ingress protection, with IP65 suitable for harsh conditions. Material choices like silicone gaskets and stainless steel hardware improve long-term sealing and corrosion resistance. Field data shows higher-rated enclosures significantly extend service life, justifying higher initial costs through reduced maintenance and replacement frequency.

Surge Protection Integration

Outdoor disconnect switch systems benefit from integrated surge protection to manage voltage spikes caused by lightning or switching events. Metal-oxide varistor arresters divert surge currents safely to ground, protecting insulation and internal components. Design features such as grading rings improve electric field distribution and reduce corona discharge, which can degrade insulation over time. Lower partial discharge levels extend equipment lifespan and reduce electromagnetic interference, ensuring reliable operation in sensitive electrical environments.

Performance Benchmarks for 2026

Modern Outdoor disconnect switch designs balance performance, cost, and maintenance efficiency. Advanced models feature maintenance-free operation with self-cleaning contacts and durable stainless steel components. High current capacity, such as 6300A, is supported by efficient thermal dissipation using aluminum alloy structures. Low operating torque enables manual operation without complex actuators. Key performance metrics include contact resistance, mechanical endurance exceeding 10,000 cycles, and minimal temperature rise. Compliance with IEEE and IEC standards ensures reliability, while factory acceptance testing provides confidence in consistent product quality and long-term operational performance.

Conclusion

Based on their purpose, safety, and maintenance, choose outdoor or interior disconnect switches. Outdoor disconnect switches like the GW4 are ideal for utility substations and commercial yards because to their hot-dip galvanized steel, stainless steel transmission systems, and maintenance-free designs. Small arc-resistant indoor switches are excellent for electrical rooms and equipment shelters. Procurement teams consider NEMA ratings, surge protection, and supplier responsiveness for optimal outcomes. If installed and maintained properly, equipment lasts 20–30 years. It protects workers and boosts mission-critical facility uptime.

Frequently Asked Questions

1. Can indoor disconnect switches be used outdoors if protected by enclosures?

Even in extreme circumstances, indoor switches can't be utilized outdoors since they're neither weatherproof or rustproof. Condensation damages secondary enclosure connections and insulators. Outdoor disconnect switches include drainage holes, UV-resistant materials, and environmental testing. Using indoor switches outdoors thereafter will result in certification loss and increased lawsuit risk. Choose outdoor units designed for that environment from the outset.

2. What safety standards apply to outdoor disconnect switches in the United States?

UL 98 describes how to build and operate disconnect switches up to 600V, whereas IEEE C37.32 describes medium-voltage outside switches over 1kV. Switches must be encased under NEMA KS 1. OSHA 1910.269.1 requires lockout-tagout and approach distances. In NFPA 70E, arc flash risk may be assessed. Talk to the relevant individuals throughout specification since state and local codes may have additional regulations.

3. How can I tell when an outdoor disconnect switch needs replacement or servicing?

When contact resistance reaches 20% over baseline, the component is worn and requires repair. Pits or color changes on contact surfaces indicate arcing damage. Cracked or damaged insulators must be replaced immediately. Too much force or odd sounds indicate worn-out moving parts. A thermogram is used annually to discover hot regions produced by loose connections. Replace a switch that has been operated over 10,000 times or 80% of the time to avoid an unexpected breakdown.

Partner with Xi'an Xikai for Reliable Outdoor Disconnect Switch Solutions

If you want to make sure your power system works, Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. has Outdoor disconnect switch options that are made for harsh industrial settings. The State Grid and industrial plants trust our GW4 High Voltage Disconnect Switch because it doesn't need any maintenance because it's made of precision stainless steel parts, is hot-dip galvanized, and manages the electric field better. Purchasing teams that care about quality and durability can count on us to make outdoor disconnect switches that last. The standards for our certifications are set by IEC, IEEE, and GB/T. Write to serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk to a tech expert about how to buy in bulk, make changes, and get lifecycle support that works for your business.
