How Polymeric Lightning Arrester Works in Surge Protection

A polymeric lightning arrester is a gapless metal oxide surge protection device that uses zinc oxide (ZnO) varistors housed in a silicone rubber composite shell. Under normal operating voltage, the varistors maintain high resistance, drawing negligible leakage current. When a lightning strike or switching surge drives voltage above the device's protective level, resistance drops almost instantaneously — within microseconds — channeling the excess energy safely to ground. Once the surge dissipates, resistance restores automatically, keeping the connected equipment unharmed. This self-resetting, solid-state mechanism makes the polymeric lightning arrester a dependable choice for modern AC power systems worldwide.

​​​​​​​

What Is a Polymeric Lightning Arrester?

Construction and Core Components

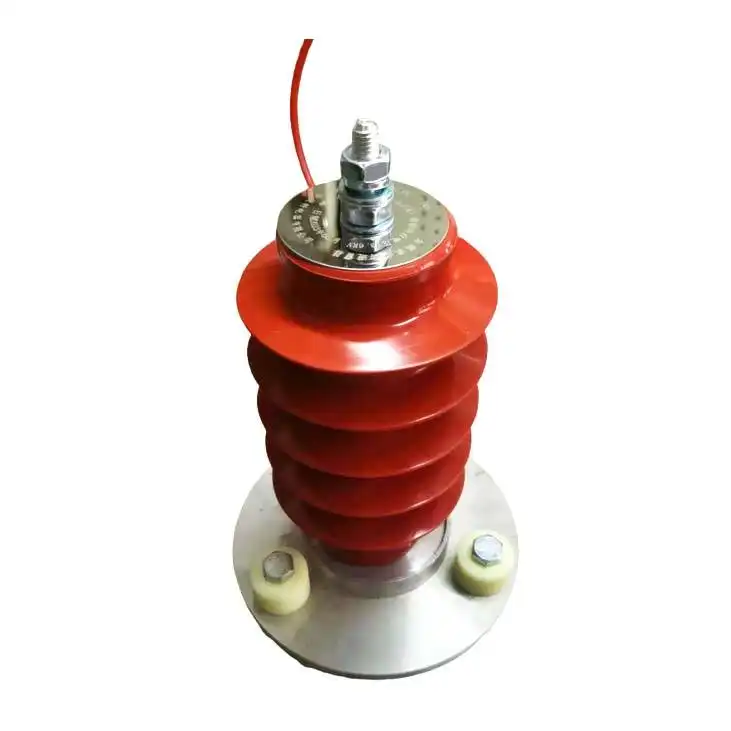

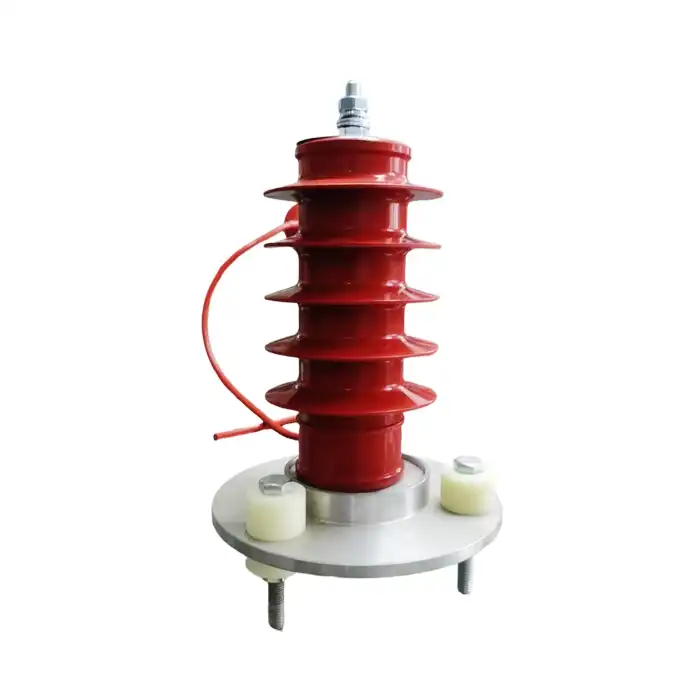

In place of the old, fragile ceramic or glass shells, a polymeric lightning arrester has a housing made of silicone rubber mixture that is sealed directly around a column of zinc oxide varistor disks. The silicone sheds create a hydrophobic surface that keeps water away and slows down surface tracking. This is especially helpful in humid warm conditions or highly polluted coastal areas. End fittings made of aluminum alloy or stainless steel automatically clamp the stack, and a multi-layer closing system stops moisture from getting in, which is known to be the main reason why older ceramic units' arresters fail too soon.

The electrical work is done by the ZnO varistors themselves. Because their current–voltage relationship is not linear, they don't conduct much current at their standard voltage but become very conductive very quickly after a surge threshold is passed. This behavior was first described in Eda's (1984) published study on metal oxide varistors. It is still the physical basis for all current surge arresters, no matter what material they are housed in.

How the Surge Clamping Mechanism Operates

When lightning causes a brief or switching overvoltage on the line, the resistance of the varistor column drops. This sends the surge current through the arrester and to earth. The energy is taken in by the ZnO blocks and then given off as heat. The polymer housing then helps heat escape, stopping the kind of localized overheating that can lead to thermal runaway. From the arrival of the surge to the absorption of energy, the whole event happens in less than one microsecond, which is well within the time frame needed to protect the insulation and contacts on the transformer.

Advantages of Polymeric Lightning Arresters Over Traditional Types

Superior Pollution Resistance, Mechanical Safety, and Logistics Efficiency

When looking for surge safety for export projects, procurement teams often wonder why they should not use porcelain options. The performance data consistently backs up the change.

Here are the core advantages that separate polymeric lightning arresters from their ceramic predecessors:

• Pollution resistance: The hydrophobic silicone surface keeps its water-repelling quality even after it has been contaminated. This makes flashover much less likely in places with a lot of humidity or pollution. IEC 60815 divides creepage standards into groups based on how polluting they are. Polymeric housings usually meet the strictest groups without needing any extra insulator length.
• Mechanical robustness: When there is an internal fault, porcelain can break apart explosively, which can be dangerous in substations. Silicone composite housings on the polymeric lightning arrester break in a controlled way, keeping debris inside and saving people and things close.
• Weight reduction: A polymeric unit usually weighs 60–70% less than a similar porcelain arrester. This makes logistics easier, cuts down on shipping costs, and makes it easier to install on overhead line towers or small switchgear enclosures.
• Sealed integrity over service life: The multi-stage vulcanization bonding between the housing and the end caps gets rid of the seals that depend on gaskets, which are common in porcelain designs. Over time, gaskets wear out and let water in.

These benefits directly lead to lower lifecycle costs and fewer unplanned power outages, which are important for both utility companies and the trading companies that sell full substation packages to projects in developing markets.

Because of these factors, IEC 60099-4 now uses polymeric-housed arresters as the standard for new installations, while porcelain is mostly kept for older replacement situations.

How to Choose the Right Polymeric Lightning Arrester for Your Operation

Key Parameters to Evaluate

To choose the right arrester model, you have to make sure that the electrical values of the device match the conditions of the system. There must be a voltage (Ur) higher than the highest continuous phase-to-ground voltage that the system can show during a ground fault. This moves Ur into the 216 kV range for a 220 kV network that is well grounded. The DC reference voltage (U1mA) checks the quality of the varistor; higher numbers mean that the manufacturing tolerances were better and the performance will be more stable over time.

The pollution level of an installation is based on the creepage distance per unit voltage, which is given in millimeters per kilovolt. There are 31 mm/kV levels that meet the severity class IV requirements of IEC 60815 standards. These levels cover heavy industrial and coastal areas that are popular in Africa, Southeast Asia, and South America, where many grid growth projects are currently underway.

Matching Specifications to Export Projects

The YH10W-216/562W polymeric lightning arrester from Xi'an Xikai is a good example of how specs can be used to meet real project needs for trade sellers putting together full substation packages. It is designed for 220 kV AC transmission substations in harsh environments and has a rating of 216 kV, a creepage distance of 31 mm/kV, and a DC reference voltage of ≥314 kV. Its operating temperature range of −40 °C to +85 °C covers the thermal extremes encountered from highland African sites to tropical Southeast Asian coastal substations. Response time under one microsecond ensures transformer shielding is never exposed to harmful overvoltage durations.

Installation and Maintenance Guide for Polymeric Lightning Arresters

Pre-Installation Assessment

Before installing a surge protector, make sure that the height of the site meets the device's recommended insulation coordination. At elevations above 1,000 meters, air density drops, which makes it harder for external insulation to withstand. The plateau-grade equipment from Xi'an Xikai can work at heights of up to 4,000 meters, which is important for substation projects in the highlands of South America's Andes or East Africa.

If there is grounding resistance at the installation site for the polymeric lightning arrester, check it. IEEE Std 80 says that grounding grid resistance should be less than 1 Ω for high-voltage substations. A higher resistance makes the arrester less effective by raising the ground potential rise during discharge events.

Routine Maintenance Practices

During normal use, polymeric lightning arresters don't need much attention, but a structured check program keeps the investment safe. Annual checks should include visual examination of the silicone sheds for physical damage, measurement of leakage current with a milliammeter at the grounding terminal, and verification of ground connection integrity. If the resistive leakage current goes up a lot between annual readings—usually more than 500 µA above baseline—it means that the varistor column might be breaking down. This means that it needs a DC reference voltage test to make sure it is still good enough to be used.

Future Trends and Innovations in Polymeric Lightning Arrester Technology

Smart Monitoring Integration

More and more, the next version of metal oxide surge arresters has wireless sensor nodes that send information to substation control systems about leaking current, the number of discharge events, and the temperature of the housing. This condition-based maintenance plan lowers the cost of routine patrols and lets operators change arresters before they break instead of after they do. Offering arresters that are ready for smart tracking is a real practical plus for trade distributors who work on projects in remote areas.

Eco-Conscious Material Development

Silicone rubber formulas are moving toward lower-carbon and halogen-free mixes that don't lose their ability to repel water or their mechanical strength. In the European Union and, more and more, Southeast Asia, regulations are starting to encourage the use of low-impact electrical components. This means that material provenance should be considered when buying electronics, along with price and certification.

Conclusion

It is necessary for any effective power system to have surge protection, and the polymeric lightning arrester is now the best choice for both new installs and retrofit jobs across high-voltage AC networks. Its silicone composite housing, nonlinear ZnO varistor core, and strong sealing work together to give it fast response, long service life, and stable performance in a wide range of weather conditions. When procurement professionals put together whole substation packages to be exported, they need to make sure that the arrester they choose has the right creepage distance and altitude ratings. This saves both the equipment further down the line and the supply chain's image in the business world.

FAQ

1. What distinguishes a polymeric lightning arrester from a standard metal oxide arrester?

The part of the gadget called the "metal oxide arrester" is what the term refers to. This is what "polymeric" means: the material of the house. A polymeric lightning arrester has the same zinc oxide varistor stack as a porcelain-housed metal oxide arrester, but it is covered in a silicone rubber mixture that makes it less likely to absorb water, lighter, and safer when it does fail.

2. What is a typical service life under industrial conditions?

Well-made polymeric lightning arresters are meant to last at least 25 years under normal working conditions, as long as the leakage current stays within acceptable limits and the housing doesn't get damaged.

3. Does altitude affect arrester selection?

Yes. When you go above 1,000 meters, you have to recalculate the external insulation coordination. The required creeping distance goes up by the same amount. Before finishing a design for a highland job, you should always check the supplier's altitude derating data.

Connect with Xi'an Xikai for Your Next Surge Protection Project

Xi'an Xikai has an approved selection of polymeric lightning arresters, such as the YH10W-216/562W MOA. These come with full technical datasheets, IEC 60099 compliance, and flexible bulk order options. Standard models can be shipped within 3–7 days. Our team helps export-focused distributors with specifications for high altitudes, custom creepage configurations, and safe shipping around the world. You can email our experts directly at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com. You can also go to xaxd-electric.com to get a quote from a reliable polymeric lightning arrester seller.

References

1. Eda, K. (1984). Zinc Oxide Varistors. IEEE Electrical Insulation Magazine.

2. International Electrotechnical Commission. (2014). IEC 60099-4: Surge Arresters — Part 4: Metal-Oxide Surge Arresters Without Gaps for A.C. Systems. IEC.

3. International Electrotechnical Commission. (2008). IEC 60815-1: Selection and Dimensioning of High-Voltage Insulators Intended for Use in Polluted Conditions. IEC.

4. IEEE Power Engineering Society. (2000). IEEE Std 80: Guide for Safety in AC Substation Grounding. IEEE.

5. Christodoulou, C. A., Vita, V., Mladenov, V., & Ekonomou, L. (2018). On the Computation of the Voltage Distribution Along the Non-Linear Resistive Elements of Gapless Metal Oxide Surge Arresters. Energies, 11(4), 883.

6. Hinrichsen, V. (2012). Metal-Oxide Surge Arresters in High-Voltage Power Systems: Fundamentals. Siemens AG Energy Sector.
