Indoor Voltage Transformer: A Complete Guide to Reliable Power

If you work in power distribution or switchgear manufacturing, selecting the right indoor voltage transformer is one of the most consequential decisions you will make. These compact but precision-engineered devices sit at the heart of every medium-voltage panel, translating high primary voltages down to measurable secondary levels so that protective relays, revenue meters, and automation systems can function accurately. Whether you are sourcing components for a 24kV switchgear lineup destined for South Asian utilities or evaluating a new instrument transformer supplier for your OEM production line, this guide gives you the technical clarity and procurement confidence you need.

Understanding Indoor Voltage Transformers: Basics and Benefits

The indoor voltage transformer, sometimes known as a potential transformer (PT), lowers a high primary voltage to a safe, standard secondary voltage that can be used in protection and metering circuits. It does this by using electromagnetic induction. Its secondary winding drives instruments instead of loads, which means accuracy and phase fidelity are more important than raw capacity.

How the Electromagnetic Principle Translates to Real Performance

A potential transformer has a core made of high-permeability silicon steel that is wound with precise copper coils. A corresponding secondary voltage is caused by magnetic flux when main voltage is applied. The transformation ratio is the ratio of the two windings. Phase shift, which is the angle difference between the primary and secondary volts, must not go above 30 minutes for class 0.2 and 0.5 projects. Grain-oriented cold-rolled silicon steel reduces hysteresis losses as much as possible, keeping measurement drift within the limits set by IEC 61869-3 from -25 °C to +55 °C.

Why Indoor Deployment Changes the Design Requirements

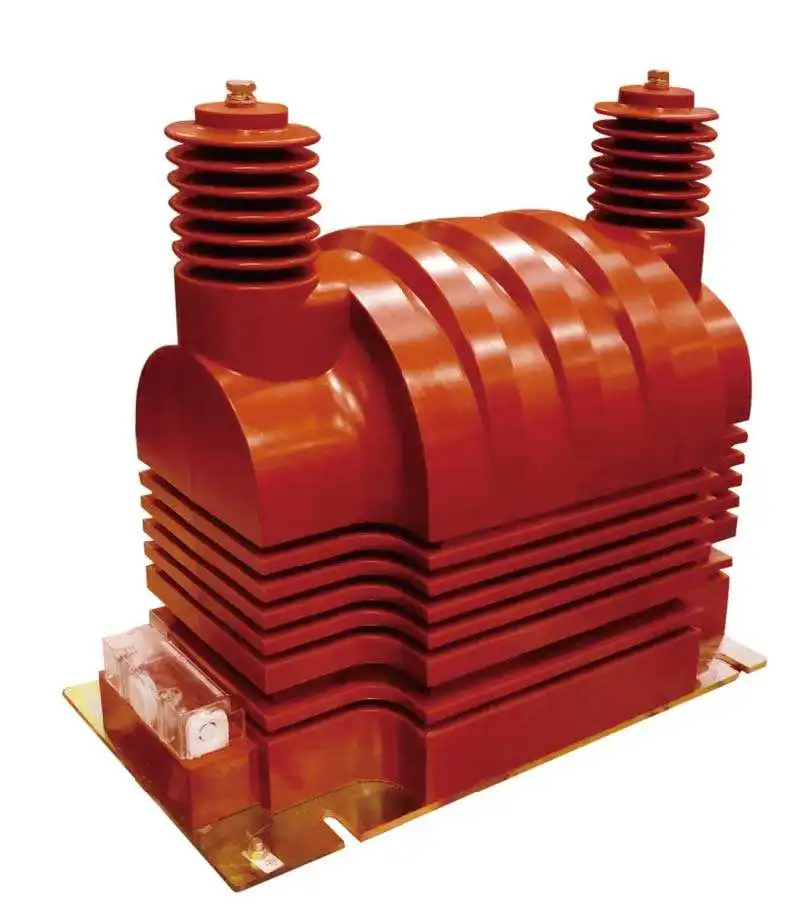

Indoor voltage transformers work inside metal-enclosed switchgear cubicles. Because of this, their enclosures have to be able to keep out dust, condensation, and partial discharge, but they don't need to be weatherproof like outdoor units do. This is beautifully done with an epoxy resin cast, fully enclosed construction. With vacuum-cast resin, there are no more internal air pockets that could cause partial discharge events. The resulting solid body is rigid enough to resist vibration in industrial settings. The small footprint also meets the exacting size requirements of 24kV switchgear panels, where each millimeter is important.

Key benefits that procurement engineers consistently cite include:

• Measurement precision at scale: Accuracy class 0.2 allows billing for income, while classes 0.5 and 3P cover safety circuits. All of these are in the same product family.
• Insulation integrity over time: Over time, epoxy resin coating keeps moisture out and slows the dielectric aging process that leads to precision drift in older oil-filled designs.
• Space-optimized installation: Installation that makes the best use of space: the fully sealed body fits directly into standard switchgear bays, eliminating the need for extra oil containment or air lines.
• Ferromagnetic resonance mitigation: Stopping ferromagnetic resonance: When used with a special resonance suppressor, the electromagnetic design lowers the overvoltage situations that can hurt instruments that are connected.

Because of these qualities, the indoor voltage transformer is a solid long-term investment rather than a throwaway part. This is an important thing to think about when your switchgear is expected to last 20 years.

Comparison and Selection Criteria for Indoor Voltage Transformers

It takes more than meeting a voltage ratio to choose a potential generator. In order for the application and the switchgear platform to work together, the accuracy class, burden rate, insulation level, and physical measurements must all be matched.

Accuracy Class and Burden Rating: The Two Non-Negotiables

In IEC 61869-3, there are classes of accuracy for measuring voltage transformers (0.1, 0.2, 0.5, 1, 3) and safe voltage transformers (3P, 6P). The rated burden, which is given in VA, tells us how much weight the secondary winding can carry without losing its accuracy. Ratio mistake goes up when the load is exceeded. Matching the load to the linked relay and meter load is a must for a 24kV indoor voltage transformer with rated secondary outputs of 30 VA, 80 VA, and 200 VA. It shouldn't be an afterthought.

Insulation Level and Standard Compliance

The insulation level of 17.5 kV (Um), 55 kV (power-frequency resist), and 105 kV (lightning impulse) is in line with the IEC 60071-1 insulation coordination standards for 24kV systems. The rules for type tests and routine tests are set by GB 20840.2-2014 and IEC 61869-1 and 61869-2. It's easier to test for compliance with both standards when exporting projects, especially to South and Southeast Asian markets where IEC is the norm. However, local grid operators may also ask for GB paperwork.

Today, dry-type cast resin units are most often used in indoor switchgear. Some older sites still use oil-immersed designs, but they are harder to maintain and pose environmental risks that most new facilities don't have. Cast resin indoor voltage transformers get rid of both of these problems while still providing the same level of electrical performance.

Installation, Maintenance, and Safety Best Practices

A well-designed indoor voltage transformer will only work as accurately as it is supposed to when it is put and kept up properly. Installation mistakes and not following maintenance plans are the main reasons why performance drops too quickly in the field.

Installation Essentials That Engineers Often Overlook

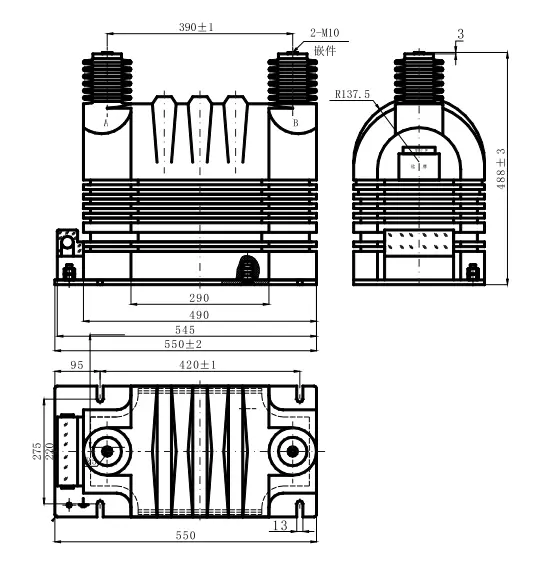

Before you mount an indoor voltage transformer, make sure that the cubicle's dimensions match the footprint drawing of the transformer. Check the secondary wire polarity against the protection relay plan. Directional relays won't work right if the polarity is backward. Tighten the secondary terminals to the manufacturer's instructions; connections that are too loose can cause measurement errors and higher contact resistance. As per IEC 61869-1 rule 7.2.2, only ground the secondary circuit at one point to stop flowing currents.

Routine Maintenance Checklist

Planned checks make sure that the accuracy class is met throughout the service life. A useful yearly list includes the following:

• Checking the plastic body with a flashlight to see if the surface is tracking, crazing, or carbonizing.
• Using a 5 kV megohmmeter to measure insulation resistance; results below 1 G should be looked into further.
• Measurement of partial discharge at the rated voltage to find internal voids before they spread.
• Secondary burden audit: Make sure that no extra loads on the relays or meters have been put on top of the rated VA.
• If this is a new installation, check the terminal torque again after the first heat cycle.

Addressing these items annually sustains measurement reliability and supports the safety of personnel who depend on correct relay operation for arc-flash protection.

Procurement Guide: Purchasing Indoor Voltage Transformers for B2B Clients

When it comes to OEM switchgear manufacturers who use annual framework contracts and monthly purchase orders, supplier consistency is just as important as unit price. Late supplies or differences in size from batch to batch mess up production plans and cost a lot more to fix than the savings per unit.

What to Evaluate Beyond the Datasheet

Not only factory test reports, but also type test certificates that can be tracked back to a recognized laboratory should be given by a trustworthy indoor voltage transformer supplier. As part of every delivery batch, there should be routine test data for partial discharge below 10 pC, power-frequency withstand at 55 kV for 1 minute, and impulse voltage at 105 kV. Switchgear CAD integration is sped up by dimensioned plans in DXF or STEP format. It should be possible to get custom secondary voltage outputs in four to eight weeks, with values of 110 V, 220 V, 380 V, or other values chosen by the end user.

Pricing for indoor voltage transformers is based on the grade of the core material, the accuracy class, and the secondary VA rate. The price difference is real and makes sense because higher accuracy classes and higher load grades need more copper and better-grade steel. Plan for a small price increase when buying 0.2-class units instead of 0.5-class equivalents. The better accuracy of revenue metering usually covers that cost in the first billing cycle at scale.

Conclusion

An indoor voltage transformer is a precise machine that makes sure that all of the metering and protection functions in a medium-voltage switchgear panel work correctly. It's not a small thing to pick a unit with the right accuracy class, load grade, insulation level, and enclosure type; it's what makes the grid reliable. This guide talks about a 24kV epoxy resin cast potential transformer that meets the technical needs of OEM switchgear makers who want to sell their products in both local and international markets. It is in line with IEC 61869-1/2 and GB 20840.2-2014. When you buy it from a reputable company that offers regular quality, test data that can be tracked, and helpful technical support, your panel production line has a solid base.

FAQ

1. What is the typical service life of an indoor voltage transformer?

Cast resin indoor voltage transformers usually last between 25 and 30 years if they are installed properly and are checked every year. Insulation age is the main thing that ends a life. When compared to older designs that were coated with varnish, epoxy resin encapsulation greatly slows down the absorption of wetness. This keeps the dielectric strength intact throughout the entire service period.

2. Can secondary voltage output be customized for specific switchgear platforms?

Yes. In IEC markets, the most common secondary voltages are 100 V and 110 V. However, outputs of 220 V, 380 V, or other numbers can be reached by changing the winding ratio. For non-standard ratios, the sampling lead time is usually four to eight weeks, which fits into normal OEM qualification processes for new specifications.

3. How does ferroresonance affect indoor voltage transformers, and how is it managed?

When the transformer's nonlinear magnetizing reactance resonates with the system capacitance, ferroresonance happens in networks that are not grounded or have a high impedance grounded network. It can cause overvoltages that last for a long time and hurt secondary instruments. A specialized resonance suppressor, also known as a damping resistor or active suppressor, is usually linked to the open-delta secondary winding of the transformer to reduce the noise.

Partner with Xi'an Xikai for Precision Indoor Voltage Transformer Solutions

Around 30+ countries have bought medium-voltage instrument transformers from Xi'an Xikai for more than 25 years. These transformers are used by grid managers and OEM switchgear makers. Our indoor voltage transformers come in three different accuracy classes: 0.2, 0.5, and 3P. The secondary outputs are rated at 30 VA, 80 VA, and 200 VA, and they are backed by ISO 9001 certification and full IEC/GB dual compliance. Get in touch with our expert team right away to talk about your 24kV indoor voltage transformer supplier needs, get dimensional models, or start a sample order. Send us an email at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, and visit xaxd-electric.com for the full product list.

References

1. IEC 61869-1: General Requirements for Instrument Transformers. International Electrotechnical Commission, 2007.

2. IEC 61869-3: Additional Requirements for Inductive Voltage Transformers. International Electrotechnical Commission, 2011.

3. GB 20840.2-2014: Instrument Transformers — Part 2: Additional Requirements for Current Transformers. Standardization Administration of China, 2014.

4. Arrilaga, J. & Watson, N.R. Power Systems Electromagnetic Transients Simulation. IET Press, 2003.

5. Harlow, J.H. (Ed.). Electric Power Transformer Engineering, 3rd ed. CRC Press, 2012.

6. Kulkarni, S.V. & Khaparde, S.A. Transformer Engineering: Design, Technology, and Diagnostics, 2nd ed. CRC Press, 2012.
