How to Choose the Right Main Electrical Switchgear for Your Business Needs

Operating uptime, safety, and profitability depend on your primary electrical switchgear choice. Armored Metal-Enclosed Switchgear is a safe and sturdy alternative for medium- and high-voltage applications in industrial facilities, data centers, utility substations, and commercial complexes. This equipment reduces hazards and maintains power quality with thorough compartmentalization, dependable circuit protection, and standardized safety features. An intelligent procurement choice that meets your company goals and safeguards critical infrastructure investments starts with understanding your voltage needs, environmental conditions, and compliance duties.

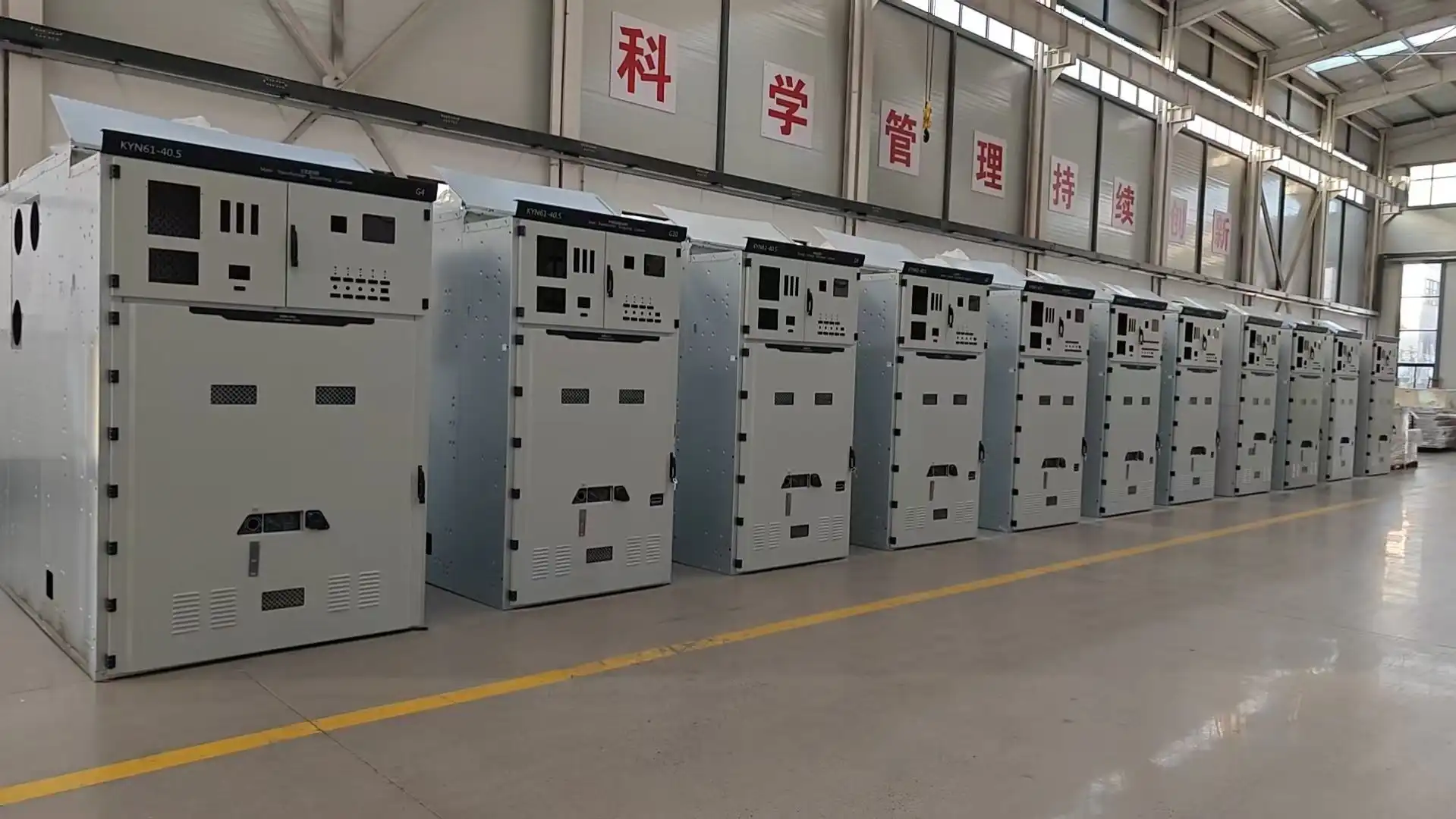

Understanding Armored Metal-Enclosed Switchgear: Core Concepts and Benefits

Armored Metal-Enclosed Switchgear underpins dependable electrical distribution in harsh locations where equipment failure has serious effects. This method isolates circuit breakers, busbars, protection relays, and disconnect switches in grounded metal enclosures to limit fault propagation and improve operator safety.

What Distinguishes Armored Metal-Enclosed Switchgear from Other Types?

Its fragmented development recognizes Armored Metal-Enclosed Switchgear from AIS, GIS, and conventional metal-clad variations. Each useful zone—busbar chamber, circuit breaker compartment, cable end zone, and low-voltage instrument section—has its claim metal boundary. Inside bend deficiencies are contained in one compartment, defending adjacent hardware and laborers. Gas-insulated plans utilize SF6 gas, which requires particular dealing with and natural contemplations. Air-insulated plans need such thorough segregation. Metal-clad switchgear has separable circuit breakers on wheeled trolleys for repair without deenergizing the system.

Key Components and Technical Specifications

Armored Metal-Enclosed Switchgear's circuit breakers hinder blame streams utilizing vacuum or SF6 arc-quenching medium. Busbars exchange control to loads based on persistent current capacity and short-circuit stand up to quality. Assurance transfers screen voltage, current, and recurrence to enact breakers beneath irregular circumstances. Medium-voltage evaluations shift from 12kV to 40.5kV, with hindering capacity of 50kA or more noteworthy for extreme deficiencies. The KYN61-40.5 Detachable Metal-Clad Switchgear underpins 40.5kV frameworks with current choices from 630A to 2500A, heights up to 2000 meters, and working temperatures between -10°C and +40°C.

Primary Benefits for Industrial and Commercial Applications

The main benefit of Armored Metal-Enclosed Switchgear is safety. Metal walls protect live components, and mechanical interlocking mechanisms ensure accurate operating sequences, avoiding human mistake. Corrosion-resistant steel enclosures and epoxy-coated internal components meet IP4X specifications for industrial environments, moisture, and dust. Low-resistance busbar connections and precision-manufactured contact surfaces reduce electrical losses and thermal stress, improving energy efficiency. These traits increase equipment lifespan, reduce maintenance, and ensure power quality, which is crucial for manufacturing plants with continuous production lines, data centers with server uptime, and hospitals where power reliability affects patient care.

Key Criteria for Selecting the Right Switchgear for Your Business

Effective switchgear selection requires consideration of operating needs, regulatory compliance, and lifespan economics. Understanding your load profiles, growth plans, and environmental restrictions helps you choose equipment with the best performance and ROI.

Assessing Operational Requirements and Load Characteristics

Power dispersion requests in mechanical buildings vary incredibly from commercial structures. Tall inrush streams and visit exchanging cycles require switchgear with solid hindering capability and mechanical perseverance in fabricating plants with noteworthy engine loads, bend heaters, or CNC machines. Information centers require plans that permit consistent exchange between utility and reinforcement creating sources for control quality and repetition. Utility substations controlling network interconnects require preparing to handle renewable vitality bidirectional control streams whereas protecting voltage steadiness. Select switchgear with 20-30% capacity headroom to dodge untimely hardware substitution as your exercises create. Calculate top stack needs and future development plans. Survey if your application needs single-busbar or double-busbar plans, which progress unwavering quality by giving substitute control pathways amid support or faults.

Compliance with International Safety Standards

Standards guarantee operational integrity and legal protection. Armored Metal-Enclosed Switchgear must meet IEC 62271-200's insulation coordination, mechanical operation, and internal arc fault containment criteria. For North American applications, IEEE C37 series standards provide ratings, testing, and protective device coordination. Construction quality and danger mitigation are verified by UL 1558 certification for U.S. product safety. Procurement teams should check switchgear certifications for your operating jurisdiction and industry sector. The KYN61-40.5 meets IEC 62271-200, GB/T 11022, and DL/T 404-1997 standards for international and domestic utility installations.

Lifecycle Considerations and Maintenance Accessibility

Total cost of ownership includes purchase price, maintenance, replacement parts, and estimated service life. Technicians can remove the breaker trolley for inspection, testing, or repair without shutting down the main busbar in Armored Metal-Enclosed Switchgear, avoiding revenue losses from production disruptions. Inspection doors and component labeling affect maintenance efficiency. Make sure your supplier has regional service centers and replacement parts for emergency response. Vacuum circuit breakers are inspected every three to five years for contact resistance, operational mechanism lubrication, and protective relay calibration. These preventative approaches uncover faults before catastrophic breakdowns, increasing equipment lifespan beyond 25 years in well maintained installations.

Comparing Armored Metal-Enclosed Switchgear to Other Types

Understanding the pros and drawbacks of different switchgear technology helps procurement experts match equipment to operational settings and financial restrictions.

Structural Design and Application Suitability

For optimal personnel safety and fault containment, Armored Metal-Enclosed Switchgear shines. Busbar zones, breaker chambers, and cable termination locations are isolated by grounded metal barriers to limit arc flash propagation and lower incident energy. This design is ideal for petrochemical, steel, and underground mining industries where explosive atmospheres or confined spaces increase electrical dangers. Air-insulated switchgear is cheaper for outdoor installations or large spaces but lacks metal-enclosed compartmentalization. SF6 insulation makes gas-insulated switchgear small, perfect for urban substations with limited space, but also complicates gas handling, leak monitoring, and fluorinated greenhouse gas restrictions.

Performance Metrics and Cost Implications

Footprint requirements vary widely for switchgear. Due to air insulation distances and compartmentalized design, armored metal-enclosed setups require more floor space than gas-insulated ones, but they use less space than outside air-insulated installations with minimal phase-to-phase clearances. Armored Metal-Enclosed Switchgear is priced between air-insulated and gas-insulated systems based on initial capital expenses. Armored Metal-Enclosed Switchgear avoids SF6 emissions from gas-insulated equipment, meeting corporate sustainability goals and emerging regulatory restrictions on high-GWP substances. Armored Metal-Enclosed designs facilitate site integration with factory-assembled construction and uniform footprints, unlike field-assembled air-insulated switchgear that requires considerable on-site assembly and testing.

Procurement Considerations: How to Buy Armored Metal-Enclosed Switchgear?

To find quality equipment and satisfy project deadlines in the worldwide switchgear industry, supplier capabilities, product specifications, and contractual terms must be evaluated.

Evaluating Supplier Credentials and Manufacturing Quality

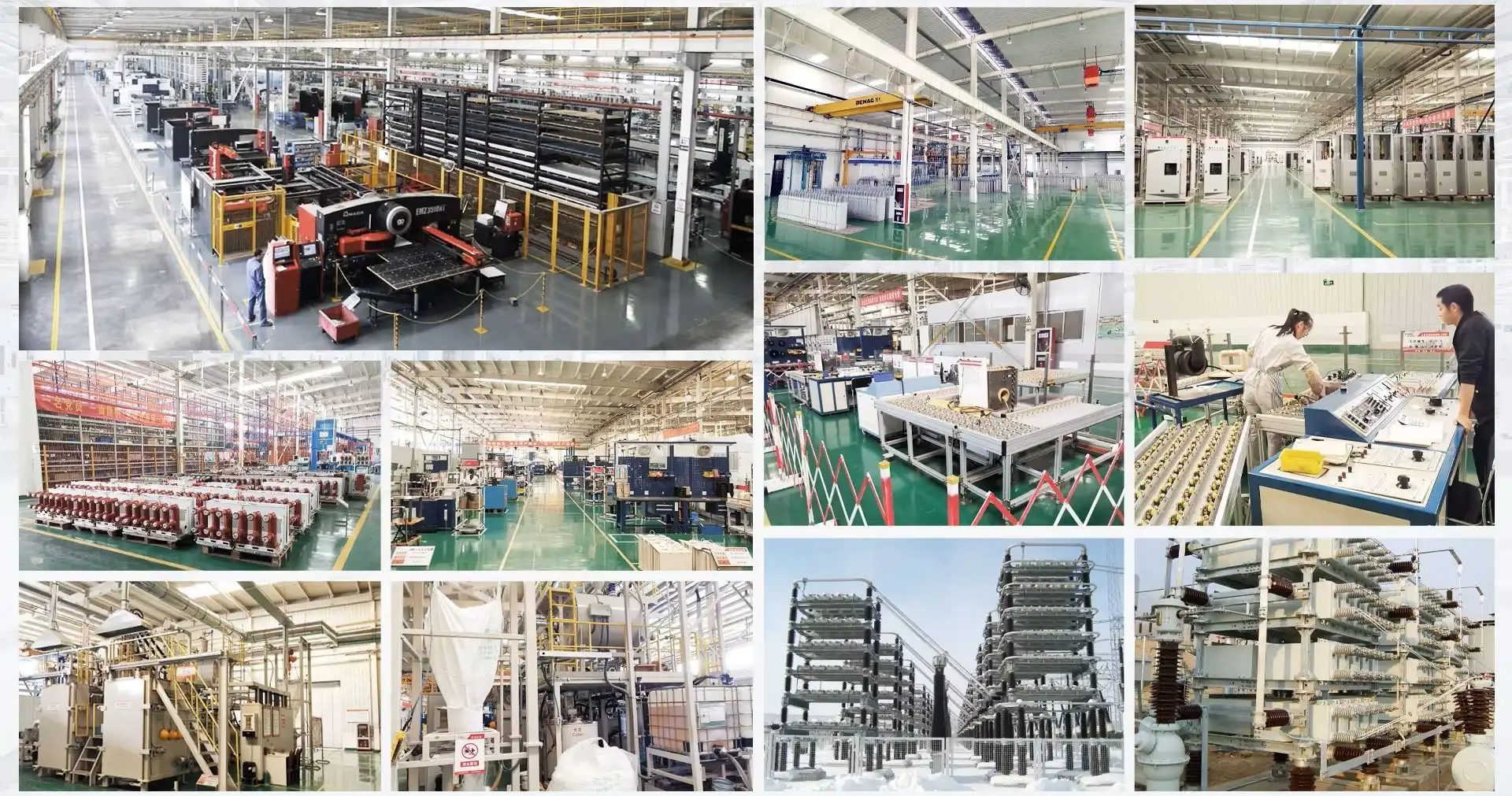

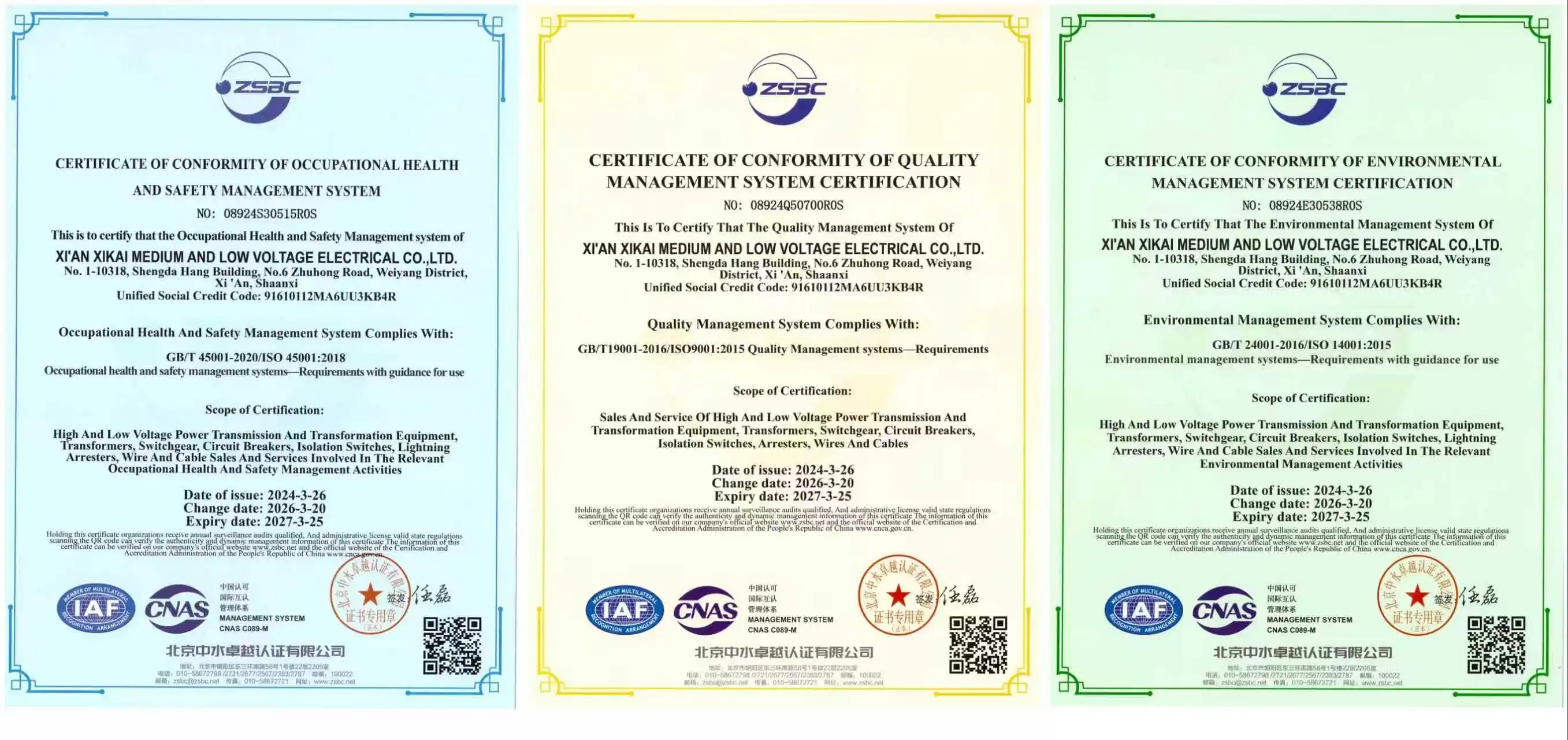

Manufacturers with certificates, testing, and project references are trustworthy. Suppliers with ISO 9001 and ISO 14001 certifications demonstrate systematic manufacturing control and continual improvement. Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. is a leading Chinese manufacturer of electrical distribution equipment, including switchgear, transformers, circuit breakers, and prefabricated substations. At 4,000 meters, our plateau-type equipment works reliably and meets national and industry requirements. Request factory acceptance test (FAT) protocols for your switchgear units' power-frequency withstand voltage, lightning impulse, partial discharge measurement, mechanical operation cycling, and temperature rise assessment. Before shipment, units undergo 50+ testing to verify insulation integrity, contact performance, and interlock dependability.

Key Purchasing Factors and Customization Options

Armored Metal-Enclosed Switchgear purchase considerations include evaluating lead times; standard setups take eight weeks, whereas bespoke designs with busbar arrangements, seismic certifications, or integrated monitoring systems take sixteen weeks. Determine if your application needs flood-resistant enclosures for low-lying installations, coastal corrosion protection, or IEC 61850 smart grid communication protocols. Bulk order agreements offer economic benefits and committed manufacturing slots, especially for multi-site rollouts or phased construction projects that require equipment delivery synchronization. Negotiate minimum three- to five-year warranties for manufacturing flaws and premature component breakdowns. After sales support from Xi'an Xikai includes 24/7 technical help, installation instructions, and service-level agreements that guarantee 72-hour response, assuring operational continuity even amid equipment failures.

Practical Guide to Installation, Operation, and Maintenance

Preparation, operating norms, and preventative maintenance are essential for switchgear performance throughout its lifespan.

Installation Best Practices and System Integration

Site preparation begins with foundation design that accommodates switchgear weight and cable entrance paths. Check that ambient temperatures meet equipment specifications—the KYN61-40.5 works between -10°C and +40°C at elevations below 2000 meters, but installations above these parameters require derating or environmental conditioning. Ensure busbar compatibility, protection coordination with upstream and downstream devices, and grounding continuity across all metal enclosures during integration with existing electrical infrastructure. Functionally test the installation to ensure mechanical interlocks prohibit harmful activities like shutting ground switches on powered circuits or pulling circuit breakers under load. Safety barriers called "five-prevention" systems protect personnel against misoperation dangers.

Operational Guidelines and Monitoring Strategies

Safety requires only qualified, authorized workers to handle switchgear controls using documented switching procedures that sequence activities appropriately. Temperature sensors, partial discharge detectors, and current transformers supplying data to supervisory control systems allow early warning of abnormal circumstances to prevent disruptions. Modern installations use IoT-enabled sensors to monitor equipment health in real time, enabling predictive maintenance tactics that optimize intervention timing and resource allocation. These smart capabilities support utility grid modernization and industrial digitization, which are changing electrical infrastructure management.

Maintenance Advice and Common Issue Resolution

Perform yearly visual checks of busbar connections, cable terminations, enclosure integrity, signaling devices, and interlock mechanisms. Every three to five years, detailed maintenance includes measuring contact resistance to detect degradation, lubricating circuit breaker operating mechanisms and trolley rails to prevent binding, testing protective relay response times and pickup values, and cleaning dust or contamination that could compromise insulation. Excessive contact resistance indicates pitting or oxidation, needing contact refurbishment, and partial discharge activity indicates insulation deterioration requiring quick inquiry. These proactive interventions identify issues early on, preventing catastrophic failures that need lengthy outages and costly emergency repairs. Armored Metal-Enclosed Switchgear that is well-maintained protects and distributes electricity to industrial and commercial establishments for decades.

Conclusion

The right primary electrical switchgear can effect your facility's safety, dependability, and operating costs for decades. Armored Metal-Enclosed Switchgear performs well in demanding industrial and commercial applications due to segmented structure, complete protective measures, and robust mechanical designs. Proper supplier evaluation, operational needs assessment, and lifecycle maintenance are needed for successful procurement. The KYN61-40.5 Removable Metal-Clad Switchgear shows how contemporary equipment supports utility substations and manufacturing operations with safety and serviceability. Applying the criteria and insights in this guide positions your company to secure switchgear solutions that safeguard key infrastructure investments and enable business development.

FAQ

1. What factors most significantly influence switchgear lifespan?

Environment and maintenance quality most affect switchgear service life. Indoor installations with stable temperatures and limited contamination normally last 30 years, however extreme outdoor or corrosive atmospheres may lower this to 20 years without further protection. Regular maintenance, including contact resistance measurements, relay testing, and mechanism lubrication, detects deterioration early and prevents breakdowns. Operating duty matters—frequent switching cycles or fault interruptions damage switchgear quicker than lightly loaded systems.

2. How do I match switchgear to my specific industrial application?

With insulation margins, match switchgear voltage ratings to distribution system nominal voltage—12kV for 11kV systems, 40.5kV for 35kV networks. Peak load forecasts determine continuous current needs; choose switchgear ratings with 20-30% increase margin. Short-circuit analysis should show that interrupting capacity exceeds maximum fault current at the installation location. Altitude, ambient temperature range, humidity, and pollution levels determine whether conventional equipment or unique designs are needed.

3. What should I prioritize when evaluating supplier quotations?

Add installation support, replacement parts, warranty coverage, and technical service response to unit pricing to calculate total cost of ownership. Verify compliance certifications with your jurisdiction and production quality using FAT guidelines and rigorous testing. Assess supplier stability via years in operation, project references, and financial standing—switchgear need manufacturer assistance throughout the equipment lifespan for 25 years.

Partner with Xi'an Xikai for Reliable Armored Metal-Enclosed Switchgear Solutions

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. offers switchgear solutions for your electrical infrastructure needs with over 25 years of manufacturing experience. We develop Armored Metal-Enclosed Switchgear for industrial plants, utility systems, and commercial buildings in demanding applications with 7 primary categories and 100+ variations.

The KYN61-40.5 Removable Metal-Clad Switchgear has proven performance at 40.5kV with current choices from 630A to 2500A and an arc-resistant design and sophisticated monitoring for modern grid requirements. Our products comply with IEC, GB, and industry requirements and perform reliably at 4,000 meters. Talk to our technical staff at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com about how our bespoke switchgear designs may improve operational dependability and safeguard key infrastructure investments.

References

1. Institute of Electrical and Electronics Engineers. (2020). IEEE Standard for Metal-Enclosed Switchgear Rated Above 1 kV up to and Including 38 kV. IEEE C37.20.3-2020.

2. International Electrotechnical Commission. (2021). High-Voltage Switchgear and Controlgear - Part 200: AC Metal-Enclosed Switchgear and Controlgear for Rated Voltages Above 1 kV and up to and including 52 kV. IEC 62271-200:2021.

3. National Electrical Manufacturers Association. (2019). Metal-Enclosed Low-Voltage Power Circuit Breaker Switchgear. NEMA Standard SG 5-2019.

4. Zhang, L., & Williams, R. (2022). Modern Switchgear Technologies: Design, Operation, and Maintenance Strategies for Industrial Applications. Industrial Power Systems Journal, 48(3), 156-174.

5. Peterson, M. J. (2021). Electrical Distribution System Protection and Coordination: A Comprehensive Guide for Engineers and Technicians. Technical Publishing International.

6. American National Standards Institute. (2018). Metal-Enclosed Bus and Calculating Losses in Isolated-Phase Bus. ANSI C37.23-2018.
