Key Applications of the Hybrid Dynamic Compensation Device

When facility engineers and switchgear manufacturers look for a smarter way to manage reactive power in low-voltage distribution systems, the hybrid dynamic compensation device consistently rises to the top of the shortlist. This technology merges passive capacitor banks with an active SVG or APF module, giving it the ability to correct power factor continuously, suppress harmonics, and respond to load changes in under 10 ms—capabilities that a conventional contactor-switched capacitor bank simply cannot match. For panel builders and system integrators supplying intelligent distribution cabinets to commercial buildings, industrial parks, or infrastructure projects in China, the Middle East, and Southeast Asia, understanding exactly where and how this device performs best is the foundation of every sound procurement decision.

What Is a Hybrid Dynamic Compensation Device?

Architecture and Operating Principle

A hybrid dynamic compensation device is a box that holds two technologies that work well together. Most of the steady-state reactive load is taken care of by the passive section, which is usually made up of thyristor-switched capacitors (TSC). The active section, which is made up of an SVG or APF module with IGBT power electronics, does the harmonic filtering and fast, stepless fine-tuning that passive banks cannot do on their own. At the IGBT level, the active part reacts in under 50 µs, and the whole system responds in under 10 ms. The capital cost of this dual-modality architecture is 30–50% less than a fully active SVG solution with the same kVAR rating, while still providing SVG-class power quality.

How It Differs from Conventional Compensation

The power factor of traditional contactor-switched or even thyristor-switched capacitor banks is fixed in discrete steps. The steps cause over-compensation and under-compensation cycles when the load changes quickly, like in spot-welding robots or elevator drives. This gap is filled by the hybrid dynamic compensation device, which lets the active module give a stepless output between each capacitor step, with the goal of a power factor of 0.99 in both directions. It also has an active-damping system that looks for resonance frequencies and sends a counter-current to protect its own capacitors and equipment further down the line. This is the main reason why companies that work with building electricity are switching from old contactor banks to hybrid solutions.

Key Industrial and Commercial Applications

Real-World Performance Across Diverse Load Profiles

It's one thing to understand the theoretical benefit; what builds procurement confidence is seeing it used in real load profiles. It is amazing how well the hybrid dynamic compensation device works across so many sectors.

Here are the core application scenarios where this technology delivers measurable value:

• Automotive and Metal Fabrication (Welding/Stamping): Spot-welding lines and automatic stamping tools make powerful reactive shocks that last only milliseconds. These spikes are absorbed by the active SVG module in the hybrid dynamic compensation device before they cause the voltage to flicker, and the constant base reactive load is carried by the passive banks. The voltage stability on the busbar improves noticeably, protecting nearby motor drives and vision systems.
• Data Centers and IDC Rooms: Server UPS systems and switched-mode power sources make capacitive reactive power—a leading power factor that cannot be fixed by a normal capacitor bank. The active part of a hybrid dynamic compensation device can generate inductive VARs to cancel out capacitive loads and remove 5th, 7th, and 11th-order harmonics to keep THDi below 5%, as required by IEEE 519-2014. This keeps the Power Usage Effectiveness (PUE) ratio optimized and stops backup engines from having reverse-power problems.
• Chemical Plants and Water Treatment Facilities: Large variable-frequency drives (VFDs) that power pumps and compressors introduce significant harmonic distortion in chemical plants and water treatment facilities. Harmonic filtering in the hybrid dynamic compensation device keeps the motor insulation safe and stops safety switches from tripping for no reason, so the process can keep running smoothly.
• Commercial Buildings—Hospitals, Hotels, and Malls: These facilities mix lighting, HVAC, elevators, and medical imaging equipment on the same LV bus. The hybrid dynamic compensation device works quietly (below 45 dB), has flame-resistant capacitors that meet NFPA 70 standards, and can communicate via RS485 and Modbus RTU. These features make it a natural choice for integration with BAS (Building Automation Systems).

All of these use cases have one thing in common: load levels that are non-linear, changeable, or sensitive enough that a purely passive answer creates more problems than it solves. All of these challenges are solved by integrating a hybrid dynamic compensation device into the distribution cabinet design from the outset.

The GGJ Device: A Practical Implementation

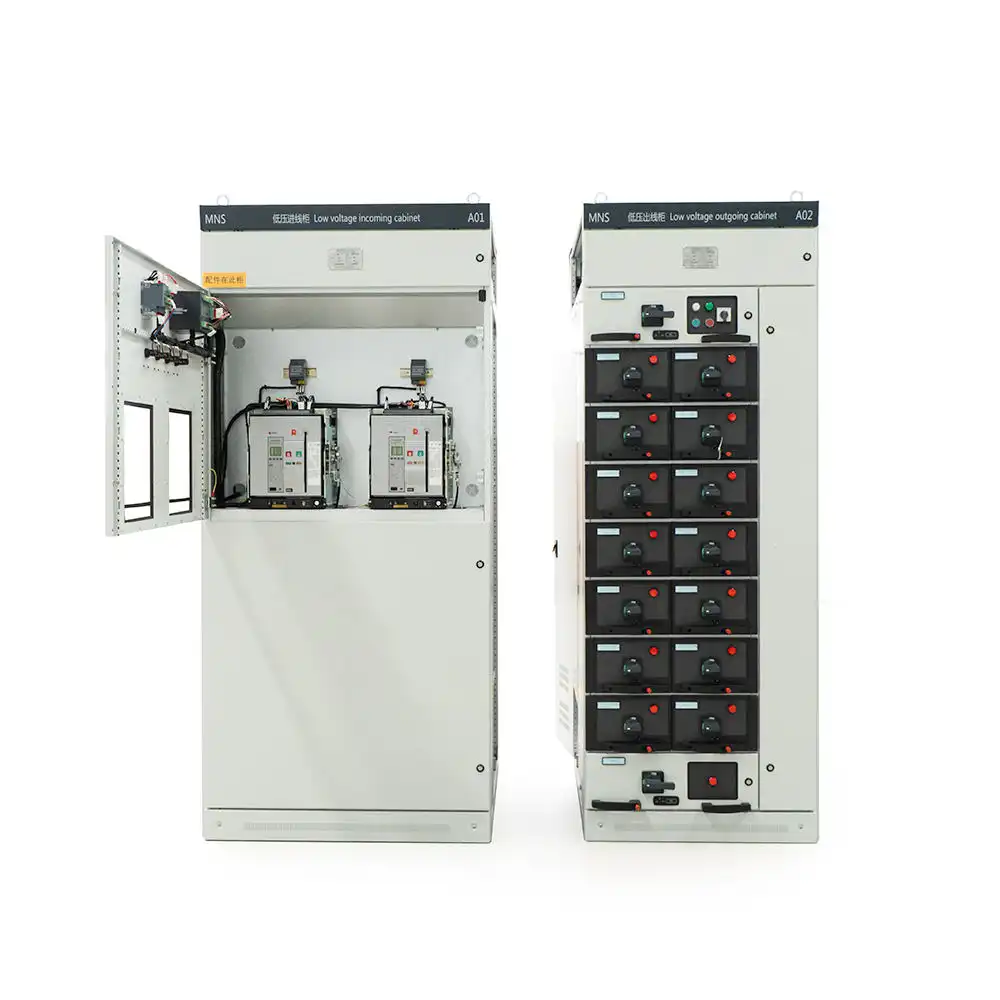

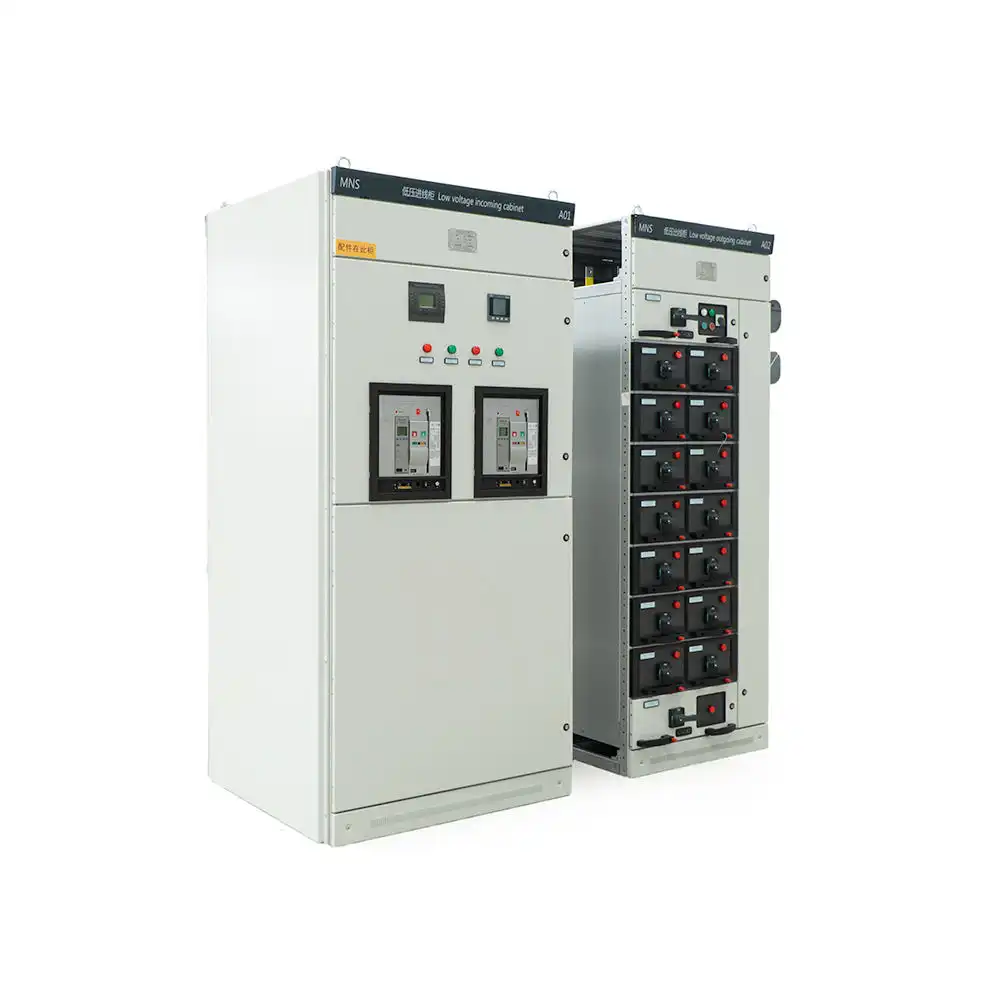

The GGJ Low Voltage Reactive Power Intelligent Compensation Device from Xi'an Xikai is an example of how hybrid dynamic compensation ideas can be turned into a product that can be used in the field. The GGJ can handle system voltages below AC 450 V and changes reactive power automatically with the help of IoT sensors and an AI-driven control program. For panel builders, it works with the global switchgear platforms they already use because it integrates directly with MNS, GCK, and GGD cabinet systems. Harmonics are lowered by integrated reactors, and voltage surges are stopped by zinc oxide arresters. Before leaving the plant, each unit goes through 72-hour load modeling and harmonic stress testing and is certified by ISO 9001, ISO 14001, ISO 45001, and CCC.

Performance Comparison: Hybrid Dynamic vs. Traditional Compensation

Speed, Harmonic Control, and Lifecycle Economics

In order to compare a hybrid dynamic compensation device to a regular TSC or contactor-switched bank, engineers usually look at four factors: response speed, harmonic performance, component lifespan, and total cost of ownership.

Response speed is the most dramatic difference. Thyristor-switched banks work faster, to about 20 ms, than contactor-switched banks, which work in the 80–200 ms range. When an active module is used in a hybrid dynamic compensation device, the system reaction time drops below 10 ms. This is the minimum time needed to keep sensitive loads from flickering.

On harmonic performance, passive banks not only fail to filter harmonics—they can boost certain orders through resonance. A hybrid dynamic compensation device actively stops resonance and can lower THDi from more than 20% to less than 5%, meeting IEEE 519 and IEC 61000-4 requirements.

Purchasing teams are often surprised by how long parts last. The active module's capacitor banks use zero-crossing switching logic, which means that there is very little inrush current at every switching event. This one feature greatly increases the service life of capacitors and lowers the frequency of replacement cycles, which directly lowers working costs over the course of a 10–15 year installation lifetime.

Total cost of ownership favors the hybrid solution over a full SVG when the reactive demand exceeds roughly 200 kVAR. Passive banks handle most of the load at the cost of simple capacitors, while the expensive IGBT capacity is reserved for dynamic adjustment only.

How to Procure a Hybrid Dynamic Compensation Device

Technical Compatibility, Certification, and Support Framework

When looking for a hybrid dynamic compensation device source, panel makers and system integrators should think about these five useful factors:

• Communication compatibility: Make sure the device naturally supports RS485/Modbus RTU and can connect power quality parameters to the BAS protocol the project needs.
• Harmonic filtering order: Check the adjustment up to at least the 25th harmonic order. For projects with a lot of data centers or VFDs, you can go up to the 50th harmonic order if needed.
• Voltage rating and cabinet fit: Make sure the hybrid dynamic compensation device is rated for the project's LV bus voltage (usually 400 V or 480 V) and can fit in the target cabinet series.
• Certification scope: Projects in China must have ISO 9001 quality management and CCC certifications as a minimum. IEC certifications help bids from the Middle East and Southeast Asia.
• After-sales support: A 5-year warranty, technical help 24/7, and local commissioning support lower the risk of long periods of downtime on complicated multi-cabinet projects.

For orders of 5 to 30 units per project, which is what most intelligent distribution cabinet manufacturers buy, both OEM configuration and custom kVAR sizing can work.

Maintenance and Troubleshooting

Capacitor Aging, Fault Diagnostics, and Preventive Measures

A hybrid dynamic compensation device's active module is mostly solid-state and does not need much regular maintenance. On the other hand, passive capacitors break down over time. Annual capacitance checks allow early detection of capacity loss before it causes detuning. With normal use, replacing the capacitors every 5–7 years is a reasonable upkeep rule of thumb.

Common fault indicators include power factor values that stay below the goal setpoint while the device is active, buzzing sounds from the reactor coils (indicating harmonic overload), or alarm outputs on the RS485 bus. Most problems trace back to either a bank of capacitors that no longer has any capacitance or communication parameters that do not match up with the BAS controller. Both can be fixed through the device's built-in diagnostic interface without requiring the whole system to be turned off.

Conclusion

The hybrid dynamic compensation device has grown up to become the best way for intelligent distribution cabinets serving commercial buildings, industrial facilities, and infrastructure projects to handle reactive power. Its millisecond response, harmonic suppression, and cost-effective design solve the exact problems that system developers encounter most often, like BAS compatibility, capacitor life, and commissioning complexity. The GGJ device from Xi'an Xikai shows that these features can be built into a certified, field-tested product that works with existing cabinet platforms around the world.

FAQ

1. Does a hybrid dynamic compensation device work with existing BAS systems?

Yes. Devices that support RS485/Modbus RTU can send data directly to most BAS gateways about reactive power, voltage, current, and power factor. Before putting the device on a job, check with the seller to make sure that the register map is correct.

2. How often do the capacitors need replacing?

If everything works normally and the zero-crossing switching logic is turned on, replacing the capacitors every 5–7 years is a reasonable rule of thumb. Measurements of capacitance done once a year help find damage early.

3. Can the active module handle capacitive (leading) power factor loads?

Yes. While passive capacitor banks can only correct inductive loads, the active SVG module within the hybrid dynamic compensation device generates inductive reactive power to cancel capacitive loads—relevant for LED lighting systems, server rooms, and current HVAC drives.

Partner with Xi'an Xikai for Your Next Reactive Power Project

A collection of hybrid dynamic compensation devices made by Xi'an Xikai has been tested and proven over 15 years of power electronics research and development. The company is approved to ISO 9001, ISO 14001, and CCC standards. For your next smart distribution project, our GGJ device is ready with full RS485/Modbus integration, custom kVAR configurations, and global cabinet compatibility. Reach our technical team directly at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or visit xaxd-electric.com to request specifications and project pricing.
