Lightning Arrester: Working Principle, Types, and Installation

Lightning arresters protect electrical distribution systems from destructive voltage surges caused by lightning strikes and switching operations. These devices clamp excessive voltage and redirect dangerous currents safely to ground, preventing equipment damage and maintaining system reliability. Understanding how surge arresters function, selecting appropriate types, and implementing correct installation practices are essential for procurement managers sourcing protective equipment for substations, renewable energy installations, and industrial facilities across diverse geographical markets.

​​​​​​​

Understanding Lightning Arrester – Working Principle and Core Functions

What Makes Lightning Arresters Different from Surge Protectors

A lot of pros get surge arresters and normal surge protectors mixed up. Lightning Arresters handle much higher levels of energy—usually currents between 5kA and 100kA—while both offer protection. Surge protectors keep critical electronics and secondary circuits safe, while these devices protect main distribution equipment like transformers and circuit breakers.

The Science Behind Voltage Clamping

Metal oxide varistor (MOV) technology is what makes the Lightning Arrester work. When the voltage is average, the zinc oxide elements inside the arrester have a very high resistance, which makes the circuit open. When lightning hits or switching spikes cause overvoltage, these elements' resistance drops very quickly, in nanoseconds. This quick change lets the arrester send the surge current to ground while limiting the voltage to a safe level, which is usually 1.5 to 2.0 times the normal system voltage. Once the short-term event is over, the device goes back to its high-resistance state naturally, so it can work normally again without having to be replaced or restarted by hand.

Key Benefits for Industrial and Commercial Applications

Putting in place good surge protection has measurable operational benefits. The reliability of the system goes up a lot because the equipment is safe from both direct lightning strikes and switching transients that happen indirectly. Downtime goes down a lot, which is very important since each hour of downtime costs thousands of dollars in lost output. This technology is especially useful in unmanned substations, where the ability to watch from afar makes condition-based maintenance possible instead of reactive fixes.

New data from renewable energy sites in the field shows that arresters that are properly installed cut transformer failures by more than 70% in areas with a lot of lightning. Specialized designs help steel mills and petrochemical plants tell the difference between real surge events and harmonic interference caused by electric arc furnaces or variable frequency drives.

Types of Lightning Arresters and Their Suitability

Metal Oxide Varistor (MOV) Technology

Metal oxide arresters are most common in modern installations because they work better. Stacks of zinc oxide disks inside these devices give them great energy absorption and constant levels of protection over their whole service life. MOV arresters don't need series gaps like older silicon carbide designs did. This cuts down on failure modes and makes the product more reliable. The polymer housing option has big benefits for outdoor use—its light weight makes it easier to handle, and the hydrophobic silicone rubber keeps the electrical performance even when there is a lot of dirt on it.

Silicon Carbide Arresters – Legacy Technology

Silicon carbide arresters are an older type of technology that is still used in some installations. To stop power frequency follow current, these units need series spark gaps, which add extra parts that can break down over time. Even though the original costs may seem lower, the total costs over the lifetime of a MOV usually end up being higher than MOV alternatives because they need more upkeep and are less reliable. It makes financial sense to replace old metal oxide units with newer ones when the system is being upgraded.

Gapped versus Gapless Designs

Gapped arresters for a Lightning Arrester have an air gap that adds extra separation when things are normal, but it can also cause reaction delays and uneven levels of protection. Metal oxide designs without gaps respond more quickly and perform more reliably. The choice is based on the need for teamwork within the overall security plan and the desires for usefulness in different regional markets.

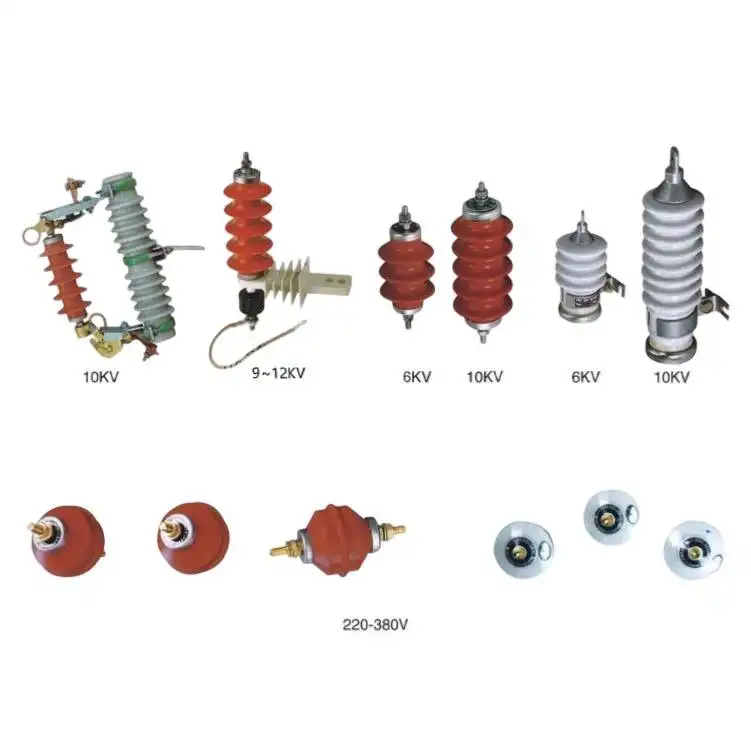

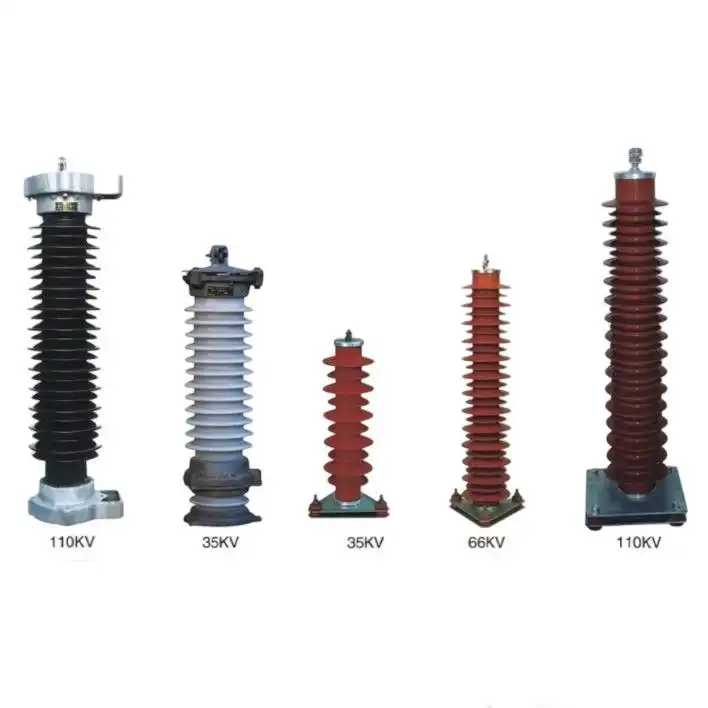

Station Class versus Distribution Class Arresters

Station class units protect important substation equipment that handles transfer levels from 72kV to 800kV. They are built to last and can absorb a lot of energy. Distribution class arresters work with lower voltage systems (usually 3kV to 36kV) on poles and equipment that is mounted on pads. They focus on being small and cheap. For specific uses, intermediate class arresters are in between these two groups.

When choosing surge arresters, procurement teams should think about a number of important factors. The needed Maximum Continuous Operating Voltage (MCOV) rating is based on the system voltage levels. Usually, 80 to 85% of the maximum system voltage is enough. The environment has a big effect on selection, especially in places with a lot of pollution or very high elevations. For sites near the coast or in heavy industrial areas where dirt and grime build up on insulator surfaces, a longer creepage distance is necessary. When you go above 1,000 meters, you need to make adjustments to your elevation because the lower air density affects how well your outdoor insulation works. If you are at an elevation of 4,000 meters, the creepage distance might need to be 25% longer than when you are at sea level.

Compliance licenses help with customs clearance in foreign markets and guaranty quality. IEC 60099-4 approval makes sure that the product is accepted all over the world, but some areas may need higher standards, like IEEE C62.11 for North American markets or GB 11032 for placements in Asian areas. OEM customization lets makers change standard designs to fit specific project needs, like changing the way they are mounted, adding monitoring systems, or making special wire terminations for switchgear uses.

Installation and Maintenance Best Practices for Lightning Arresters

Critical Installation Steps

Choosing the right location is the first step in providing good protection. Place the arresters as close to the protected equipment as possible—ideally within 10 meters—so that the voltage drops in the connected leads are kept to a minimum. Place units on safe buildings that keep them from being stressed by wind or earthquakes. Check that there are enough space between the equipment and structures next to it, taking into account both power frequency voltage and temporary overvoltage conditions.

Extra care should be taken with grounding links because they let peak currents escape. Use copper or aluminum conductors that are the right size for the fault currents. For distribution uses, the cross-section should be at least 25 mm³, and for transmission installations, it should be 50 mm³ or bigger. If you can help it, keep the length of the ground lead below 2 meters. Every extra meter of wire adds to the inductive voltage drop during surge currents that rise quickly. Use exothermic welds or bolted compression connections that keep the resistance low when there is a fault to connect straight to the substation ground grid. Station class arresters that deal with high discharge currents benefit from having more than one ground connection.

Establishing Effective Testing Protocols

Installing something correctly is checked with commissioning tests before it is turned on. Use a 2500V megohmmeter to check the insulation resistance. For polymer-housed units, the reading should be higher than 1000 megohms. Make sure that all of the connections are still working, and make sure that the mechanical fasteners are tight enough. Check that the safety devices are working together properly by comparing the arrester discharge voltage features with the equipment's ability to withstand damage.

Regular care extends the life of a Lightning Arrester and lets you know when it's starting to break down. Visual checks done once a year find clear problems like cracked housings, broken fittings, or contamination buildup. Using infrared thermography, you can find internal heating that means zinc oxide is breaking down while the machine is running. Online tracking systems keep track of the number of leakage currents and surge events all the time. This lets repair plans be planned ahead of time, which stops unexpected failures.

The most useful troubleshooting information comes from measuring leakage current. The total loss current has both capacitive and resistive parts. The resistive part shows that the zinc oxide state is present. Resistance leakage currents below 500 microamperes are usually a sign of a healthy arrester. Slow rises over time show normal aging, while sudden spikes above 1000 microamperes show fast degradation that needs replacement. Modern monitoring tools, like the JCQ-3 communication-type arrester monitor, keep these parts separate and send data to SCADA systems so that it can be analyzed centrally.

Common Installation Mistakes to Avoid

Several mistakes that keep happening hurt the performance of the arrester. When there is too much lead length between the arrester and ground, the inductive voltage drops, which lowers the safety margins. When you share ground links with other pieces of equipment, they can couple with each other, which can lead to false safe relay operations. When wire terminations aren't sealed properly, water can get in and cause tracking problems. If you mount arresters too far away from protected equipment, voltage echoes on the wires in between can be higher than what the equipment can handle, even if the arresters are working properly.

Buying Guide and Procurement Considerations for Lightning Arresters

Understanding Market Options

There are both large multinational companies and small, specialized manufacturers in the surge arrester industry. Global names like Siemens, ABB, Schneider Electric, and Hubbell offer a wide range of products and services available all over the world. Their products are usually more expensive, but they come with full technical support and have been tested in a wide range of operating conditions to show that they work well. Manufacturers in the area, like Xi'an Xikai Medium & Low Voltage Electric Co., Ltd., often offer great deals by combining modern production methods with low prices that are good for export markets that care about costs.

Over the past ten years, Chinese makers have made big improvements to the quality of their goods. Leading facilities now use strict quality control methods, such as testing of traceable raw materials, triple-sealing processes to keep moisture out, and high-voltage testing that mimics lightning strikes up to 650kV. Getting ISO 9001, ISO 14001, or ISO 45001 badges shows that you care about quality management, being good to the environment, and following safety rules at work. These companies make goods for markets that are growing in South America, Southeast Asia, and Africa. These are places where people are still very price conscious, but licensing rules are getting stricter all the time.

Price Dynamics and Negotiation Strategies

Arrester's prices change a lot depending on the details and the number of items ordered. For 12kV systems, distribution class polymer-housed units usually cost between $50 and $150 per piece when bought in bulk. For 132kV systems, station class arresters can cost anywhere from $800 to $2500 per piece. When buyers buy more than 100 pieces, they can get big discounts—15 to 25 percent off for container-load orders compared to small sample sales.

When buying a Lightning Arrester, you should think about more than just the base price. Most warranties last between 18 and 24 months, but some premium goods may last up to 36 months. Longer coverage lowers the risk of replacement during the important early service time. Delivery lead times affect project schedules, especially when configurations are being made to order. Standard store items usually ship within two to three weeks, but specialized solutions can take up to eight weeks to make. Terms of payment affect cash flow. For example, producers may offer better net-60 or net-90 terms to long-term customers with good credit than to new buyers who need lines of credit.

Essential Supplier Evaluation Criteria

Technical skill is what sets good providers apart from great partners. Check to see if possible providers have their own testing labs that are set up to do type tests according to IEC 60099-4 or other relevant national standards. Manufacturers whose facilities are accredited give more confidence than those who only rely on testing by a third party. Look over the technical documents that are available. Full installation guides, upkeep instructions, and coordination studies show that the engineering is deep.

Capacity for manufacturing and quality systems have a direct effect on how reliable deliveries are. When suppliers have more than one production line, they can handle pressing orders or quickly ramp up for big projects without lowering the quality. Ask for tours of the plant or videos that show how the products are made, especially the important steps that are taken to seal the products so that moisture doesn't get in. As for how the units are inspected, reputable manufacturers test each one using production lightning impulse and AC voltage instead of sampling methods.

When shopping abroad, being able to communicate quickly and clearly is very important. Effective suppliers have technical sales teams that can talk about application needs in detail, do sizing calculations, and do coordination studies. They answer questions within 24 to 48 hours and let customers know when their orders are being processed. Language skills are important for working together smoothly. Suppliers that serve global markets usually give support in English, Spanish, French, or Arabic, based on the region they are trying to reach.

Conclusion

Surge safety technology keeps getting better thanks to better materials, built-in tracking features, and better ways of making the products. Modern Lightning Arresters are very reliable if they are chosen, fixed, and taken care of correctly. A wide range of suppliers will be able to help procurement workers find good solutions that meet both technical needs and price constraints. The key is to fully understand what the application needs, make sure that specifications are understood, and work with manufacturers who can show both technical competence and commercial dependability. Investing in good surge protection pays off by lowering the number of machine breakdowns, increasing the life of the transformer, and lowering the number of service interruptions.

FAQ

1. What is the typical service life of modern lightning arresters?

If you use a good metal oxide arrester as directed, it should last between 25 and 30 years without any problems. Overvoltage, power frequency events, and external stressors like poisoning and UV exposure can all add up to shorten the service life of an item. Polymer-housed units in clean areas usually last as long as they're supposed to, but installations in heavy industrial areas may need to be replaced after 15 to 20 years because the surface wears down faster there.

2. How often should arresters undergo inspection or replacement?

Visual checks should be done once a year to find clear problems, and important installations should have thorough electrical testing every three to five years. Online monitoring systems let you check on the condition of things all the time, so you can switch from time-based to condition-based maintenance plans. If the leaking current goes over the manufacturer's limits, the case gets damaged, or the discharge counter shows too many surge events that point to zinc oxide degradation, the arresters need to be replaced right away.

3. Can the same arrester model work for both indoor and outdoor applications?

Indoor and outdoor arresters are usually different in how they are made. Outdoor units have housings that are resistant to weather and have a longer creepage distance so they can keep working in dirty or wet conditions. Indoor arresters have easier housings made of porcelain or plastics because they don't have to deal with the outside world as much. Some manufacturers make designs that are dual-rated and can be used in either environment. However, solutions that are optimized for certain conditions usually work better. Always make sure that the environmental rating fits the placement site to make sure that the equipment is protected well and lasts a long time.

Partner with Xi'an Xikai for Certified Lightning Arrester Solutions

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. offers complete surge protection options and has more than 20 patents for metal oxide arrester technology to back them up. Our Lightning Arresters with polymer housing offer excellent protection, effective seals, and a long service life of more than 25 years. We are experts at making IEC 60099-4-certified products for export to Africa, Southeast Asia, and South America. These products have better creepage distance designs that can handle harsh conditions at heights of up to 4,000 meters. As a well-known company that makes Lightning Arresters, we offer competitive prices, delivery times of 6 to 8 weeks for large orders, and dedicated technical support for system coordination studies. For full product lists, price quotes, and help with your application, please email serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com. You can look at all of our power delivery tools at xaxd-electric.com.
