Reliable Outdoor Disconnect Switch Supplier Selection Tips

Procurement professionals must make a crucial choice that affects operational safety, system reliability, and long-term cost effectiveness when sourcing an Outdoor disconnect switch. It's not enough to just compare price lists to find a reliable provider. You also need to look at their manufacturing skills, compliance with certifications, technical support infrastructure, and track records in a wide range of industrial uses. When you work with well-known makers, you can be sure that your electrical isolation equipment will meet strict international standards and keep working well in harsh outdoor conditions. In this detailed guide, building owners, utility managers, and EPC firms will learn how to find suppliers who can meet practical goals and legal requirements.

​​​​​​​

Understanding Outdoor Disconnect Switches and Their Importance

Outdoor disconnect switches are important safety features in high-voltage electrical systems because they physically separate circuits while maintenance is being done or when an emergency needs to be shut down. These devices make a clear space between grounded equipment and live wires, keeping people safe and avoiding accidental energisation while repairs are being done.

Core Functions and Operational Principles

The main job of these switches is to open circuits when there is no load on them. This is different from circuit breakers, which stop fault currents. In modern systems, pantographs are used to move conductive blades forward and backward through shielded support structures. The mechanical action makes it clear to see when the circuit is disconnected, which is an important safety feature required by OSHA rules and NFPA 70E standards. In more advanced models, the sealed gearbox systems keep dust, wetness, and airborne particles from getting into the system and affecting its functionality. This is especially helpful in industrial areas with rough weather.

Types and Technical Specifications

When buying things, procurement teams come across a number of different configurations that are made to fit specific voltage classes and installation needs:

1. Three-Column Horizontal Rotary Models: These units use spinning insulator sections to separate the two sides physically, and their small footprints make them ideal for substations that don't have a lot of room. This way of thinking is shown by the GW7B-363 series, which has center-line limits within 550mm±1mm to make sure that the blades are lined up correctly during switching operations.

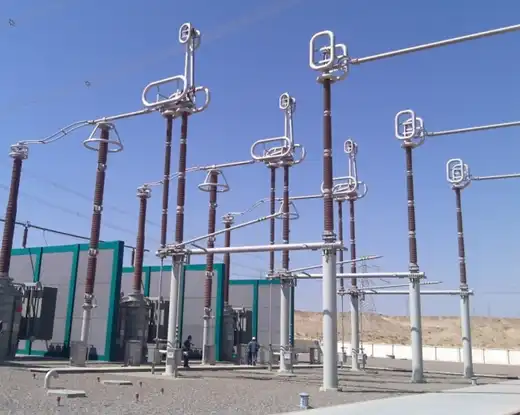

2. Double-Column Pantograph Designs: The GW11 series of equipment uses articulated linkages to move the blades vertically. This allows them to handle surge currents up to 100 times their rated capacity, which makes them perfect for industrial plants where motors start up or weld a lot.

3. Weatherproof Ratings: IP65 enclosures keep water out of internal mechanisms during pressure washing or storms, and UV-resistant coatings keep materials from breaking down in tropical or desert climates. When paired with the right maintenance procedures, these features make the service life longer than 25 years.

Applications Across Industrial Sectors

Disconnect switches make sure that CNC machines and automated production lines don't work when preventative repair windows are in effect. These devices are used in redundant power distribution lines in data centers so that techs can quickly fix broken equipment without affecting the loads on live servers. At the ends of transmission lines, utility substations put outdoor-rated switches that can handle transients caused by lightning and allow line sectioning during fault conditions. Flame-retardant insulation materials that meet NFPA 70 fire codes are good for hospitals and business buildings because they lower the risk of fires starting in areas with lots of oxygen or combustible storage areas.

How to Evaluate and Select a Reliable Outdoor Disconnect Switch Supplier?

Structured supplier review lowers the risks of buying while improving the performance of an Outdoor disconnect switch over its entire useful life. This process starts with making sure that technology needs are clear and ends with managing the partnership on an ongoing basis.

Defining Procurement Requirements

To start sourcing successfully, you need to write down the voltage levels, current capacities, and environmental conditions at installation places. When thinking about altitude, it's especially important to remember that equipment going to places above 3,000 meters needs to be derated to account for the fact that the air insulation strength is lower there. Our factories make plateau-type equipment that can work at heights of up to 4,000 meters. This equipment keeps working at full capacity thanks to better insulation spacing and better conductor sizing. Extreme temperatures also affect the choice of material. For example, in places where winters are -40°C and summers are +50°C, aluminium alloy conductors are better at resisting thermal expansion cycling than copper alternatives.

Assessing Manufacturing Capabilities

Reliable suppliers show that their products are of high quality in a number of ways. ISO 9001 certification proves that production processes are standardised, and ISO 14001 compliance proves that companies are environmentally responsible when they source materials and deal with trash. We test every output batch continuously for 72 hours, which is longer than the minimum of 24 hours required by IEC 62271 guidelines. Systems that keep track of raw materials make sure that aluminium alloys meet the conductivity and hardness requirements set by ASTM B209. Automated precision machining keeps the flatness of the blade contact surface within 0.05 mm, which lowers contact resistance and keeps localised heating to a minimum during load transfer.

Certification and Compliance Verification

Approvals from other countries are concrete proof that a product is safe and works well. The IEC 62271-102 certification means that the equipment has passed short-circuit withstand tests, mechanical endurance cycling, and dielectric strength tests at approved labs. Compliance with IEEE C37.32 shows that outdoor equipment is compatible with North American utility standards. We keep our ISO 9001, ISO 14001, CE marking, and RoHS certifications up to date, and test results are available for customers to look over during the evaluation part of a purchase. Third-party approval takes away any doubts about the authenticity of a product and limits end users' legal risks.

Evaluating Technical Support Infrastructure

Quick help after the sale is very helpful for fixing problems during installation or making the best use of upkeep plans. The best suppliers have technical hotlines that are staffed 24 hours a day, seven days a week by application experts who know the local grid codes and the unique working conditions at each site. Our support team gives detailed installation instructions that are based on the customer's foundation structures. These instructions include how to adjust for mounting on uneven ground and how much torque to use on important fasteners. Optional IoT monitors that can do remote troubleshooting make predictive maintenance possible by letting workers know about problems before they cause unplanned power outages.

Xi'an Xikai: A Trusted Partner for High-Voltage Disconnect Solutions

When it comes to manufacturers that serve global B2B markets, Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. stands out thanks to its cutting-edge technology and wide range of products for the Outdoor disconnect switch. As one of the biggest places in China to make electricity distribution equipment, our business covers seven main areas with 34 lines and more than 100 different product options.

Product Excellence and Innovation

The GW11 High Voltage Disconnect Switch shows that we are dedicated to improving engineering and making sure that operations run smoothly. This Outdoor disconnect switch has a number of technologies built in that make it work better and address common procurement issues. Compared to standard copper designs, aluminium alloy conductors make the whole system 40% lighter. This makes installation easier and reduces the need for structural support. Live-line repair can be done safely with horizontal insulation breaks, which let utilities do checks without shutting down the whole system. During opening processes, the pantograph mechanism makes an air gap that can be seen clearly. This meets safety standards that require visual proof of circuit isolation.

Modern break switches are different from older tools because they can work with smart grids. Our GW11 units come with optional IoT sensors that keep an eye on the temperature of the contacts, the accuracy of the blade positions, and signs of mechanical wear. Predictive maintenance platforms use this real-time data to help building managers plan maintenance work for planned outages instead of having to react to emergencies. The enclosed gearbox system keeps dust and water from getting into the internal mechanisms. This means that maintenance cycles can be extended from once a year to five years in most operating environments.

Application Versatility

Our disconnect switches provide measured value in a wide range of construction situations. By adding our equipment to industrial plants with capacitor banks and harmonic filters, we can get rid of power factor fees. Our surge current handling capacity also saves sensitive CNC control systems from sudden voltage spikes. Voltage stabilisation features in substations help make up for intermittent renewable energy generation. This is especially important as solar and wind power become more common in utility portfolios. Commercial buildings replace old distribution systems with units that operate quietly and make less than 45dB of noise, which meets the comfort standards of people who work in hospitals and shopping centers.

Manufacturing Excellence and Customization

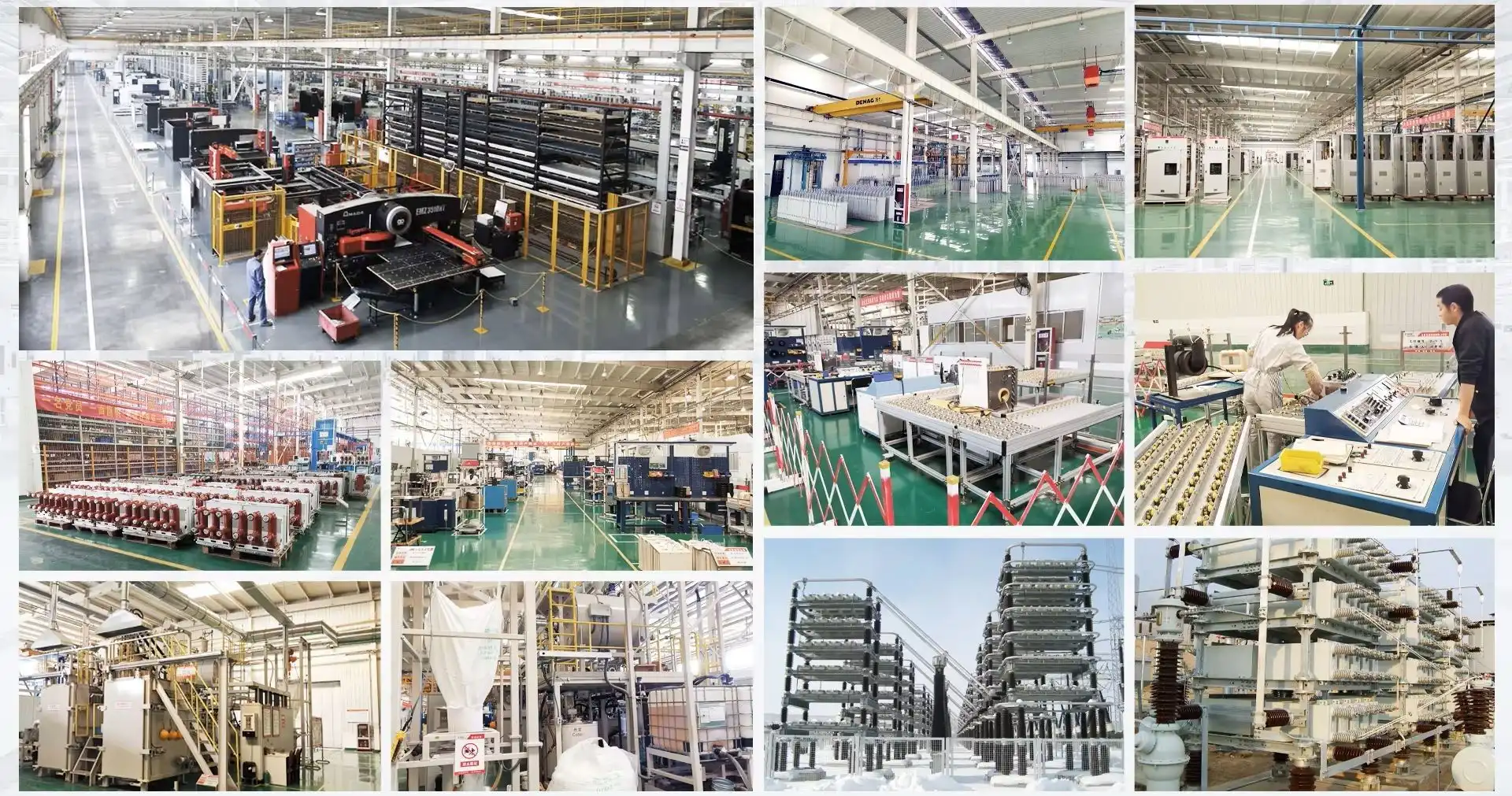

Quality control spans incoming material inspection to final testing. Automated optical screening detects surface flaws on insulators; cracked parts are rejected. Precision machining ensures uniform blade shape and even contact pressure. Eco-friendly manufacturing avoids lead-based solders, using induction heating for conductor joining. Customization includes blade shapes for non-standard busbars, earthing switches for European protocols, and adjusted insulator heights. Over 1,200 GW11 installations operate at 72.5kV-550kV across six continents.

Certifications and Global Reach

CE marking, RoHS compliance, and UL listings demonstrate international standards adherence. Proven performance across State Grid projects, petrochemical sites, rail transport, and renewable farms validates design robustness. Technical specifications meet or exceed national and industry standards. Multiple patents protect innovations in contact design and mechanism optimisation, ensuring competitive advantages in global markets.

Key Installation, Maintenance, and Safety Considerations

Following the right steps for installation and routine repair will make sure that the Outdoor disconnect switch works well and keep people safe. These methods are in line with electrical codes and suggestions from manufacturers to make sure they are followed and that warranties are honoured.

Installation Best Practices

Level support bases within 1mm horizontal error to prevent insulator shifting and uneven stress. Reinforced concrete pads with anchor bolts per ASCE 7 handle seismic loads. Inspect post insulators for shipping damage before mounting. Use marked lifting points for hoist assembly to avoid structural overloading. Clean conductor mating surfaces with solvents, apply conductive grease, and torque to 150-200 N⋅m for 363kV aluminum terminals. Verify blade movement without binding.

Maintenance Protocols and Inspection Intervals

Every five years, routine checks keep things running at their best between big overhauls. Technicians use low-pressure air or soft brushes to remove built-up dirt from insulator surfaces during these tests. They avoid using rough materials that scratch ceramic glazes. Check the connection terminals for discolouration that could mean localised heating. If necessary, retorque the screws to return the correct contact pressure. Lubricate the drive mechanisms with greases that are made to work in a range of outdoor temperatures. Make sure that the manual operating handles can turn freely through all of their full travel arcs.

After major short-circuits, you should do thorough checks on the equipment, even if it looks fine on the outside. Fault currents create huge mechanical forces that can loosen internal parts or crack insulator cores without showing any signs on the outside. Using micro-ohmmeters, check the contact resistance across blade interfaces. If the readings are higher than the manufacturer's standards by 20%, the blades should be replaced to stop them from wearing out faster.

Safety Features and Lockout Procedures

Modern Outdoor disconnect switches have a number of safety features that are in line with OSHA 1910.269 standards. With visible break technology, workers can check that the circuit is disconnected from the ground up, without having to climb up structures or use test tools. Mechanical interlocks keep switches from closing when the circuit breakers that go with them are still on. This keeps catastrophic load switching from happening. Lockout/tagout hasps can hold more than one padlock, so teams from different boats can check that the power is off before starting maintenance work.

If you're having practical problems, talk to the supplier's technical help before you try to fix them in the field. Problems like slow motion or broken secondary switches are often caused by environmental factors that are hard to figure out without special tools. Our engineering team helps with simple adjustments over the phone and sends out field service technicians for more complicated jobs. This way, we can make sure that repairs keep the original performance specs and warranty coverage.

Procurement Strategies and Cost Optimization for Bulk Orders

Strategic sourcing practices lower the cost of acquisition while making sure that the supply chain is reliable and that the quality of the Outdoor disconnect switch stays the same. To get the best total cost of ownership, effective buying combines a lot of different factors that are at odds with each other.

Sourcing Channels and Supplier Types

When working with a direct maker, it can be helpful for big projects that need to be customised or have longer delivery times. By involving engineering teams in the early stages of planning, procurement professionals can get equipment that fits the installation requirements and lock in prices for rollouts that will last for years. Authorised distributors give you access to regional inventory and faster shipping, which is helpful when you need to finish a job quickly or get new parts for an emergency fix. Online business-to-business (B2B) sites let you compare prices from different sellers, but it takes more work to make sure that the products are real and that the sellers are legitimate.

Pricing Factors and Volume Discounts

The cost of equipment depends on how complicated the production process is, what materials are used, and what certifications are needed. For higher voltage levels, insulation gaps need to be bigger and mechanical structures need to be stronger, which makes the base price go up by the same amount. When you make a volume commitment, you can get tiered pricing. Usually, orders over 50 units get 12–18% off compared to single-unit purchases. But buying teams have to weigh the benefits of discounts against the costs of keeping supplies and the need to plan the timing of projects. We help our customers set up flexible delivery schedules that work with building goals. This way, customers don't have to worry about getting equipment before it's needed, which can take up warehouse room and cut into their working capital.

Logistics of shipping have a big effect on landing costs, especially for big items that need special shippers. When orders are combined, the cost of goods per unit goes down, but longer wait times may cause problems with tight project deadlines. We keep our inventory in strategic locations near major ports so that we can send out partial shipments to meet immediate needs while bulk orders are sent via cheap ocean freight.

Total Cost of Ownership Analysis

Lifecycle costs include more than just the purchase price. Different types of equipment need very different amounts of maintenance work. For example, our low-maintenance GW11 line extends inspection rounds to five years instead of the usual yearly servicing, which cuts lifetime labour costs by about 60%. Differences in energy efficiency also add up; small changes in contact resistance of 10 microohms cause I²R losses that add up to thousands of dollars a year on high-current feeders. The warranty protects against early fails, and our five-year coverage includes parts, labour, and fast shipping for new parts.

Reliability effects include more than just direct repair costs. They also include lost production during unplanned downtime. Companies that make things that lose $10,000 an hour during downtime quickly get their money back by not having to deal with interruptions. We give our customers detailed information about how reliable our products are—the average time between failures is more than 250,000 operating cycles—so they can figure out how available their products will be and compare them to other products based on objective performance criteria.

Conclusion

To find a reliable Outdoor disconnect switch provider, you need to look at their technical skills, quality control methods, support infrastructure, and lifetime cost analysis. Professionals in procurement have to check licenses, look at manufacturing standards, and make sure that product specs and installation requirements match up. With 30 years of experience in the field, a wide range of products, and a dedication to new ideas, Xi'an Xikai is the perfect partner for businesses that value safety, dependability, and operating efficiency. Our GW11 disconnect switch line shows the kind of technical quality and customer attention that sets market leaders apart from commodity providers. It also provides measurable value over the life of the equipment.

FAQ

1. What electrical codes govern outdoor disconnect switch installations?

The National Electrical Code (NFPA 70) says that installations must meet certain standards for equipment usability, working spaces, and grounding for the Outdoor disconnect switch. IEC 62271 standards list performance requirements for high-voltage switchgear, such as ratings for mechanical endurance, dielectric withstand, and short-circuit protection. Local governments may add extra rules about protecting the environment or making buildings stronger in case of earthquakes.

2. How do I select appropriate voltage and current ratings?

Match the grades of the tools to the features of the system, leaving enough room for error. Ratings for voltage should be at least 10% higher than the highest working voltage, and ratings for current must be able to handle peak loads plus room for growth in the future. Above 1,000 meters, altitude derating factors come into play; for adjustment calculations, check the manufacturer's specs.

3. What maintenance schedule should I implement?

Visual checks are done once a year to make sure the insulator is still in good shape and to look for any loose hardware. Every five years, a full mechanical and electrical inspection is done. This includes checking the contact resistance, lubricating the operating gear, and trying the auxiliary switch. Plan for big repairs every 25 years or after major faults happen.

Partner with Xi'an Xikai for Superior Outdoor Disconnect Switch Solutions

If purchasing teams are looking for a trustworthy Outdoor disconnect switch source, Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. can help them in every way. Over 1,200 installations around the world have shown that our GW11 line works well. It is backed by ISO-certified manufacturing excellence and expert help 24 hours a day, 7 days a week. We change setups to fit the needs of each region's grid while keeping prices low for large orders. Send an email to serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your unique application needs and get full technical specs. Partnering with a well-known company that cares about innovation, quality, and customer success can be very helpful.

References

1. Institute of Electrical and Electronics Engineers. "IEEE Standard for High-Voltage Switchgear and Controlgear—Part 102: Alternating Current Disconnect Switches." IEEE C37.32-2017.

2. National Fire Protection Association. "Standard for Electrical Safety in the Workplace." NFPA 70E-2021 Edition.

3. International Electrotechnical Commission. "High-Voltage Switchgear and Controlgear—Part 102: Alternating Current Disconnectors and Earthing Switches." IEC 62271-102:2018.

4. American Society for Testing and Materials. "Standard Specification for Aluminum-Alloy Sheet and Plate for General Purpose." ASTM B209-14.

5. Occupational Safety and Health Administration. "Electric Power Generation, Transmission, and Distribution." 29 CFR 1910.269.

6. American Society of Civil Engineers. "Minimum Design Loads and Associated Criteria for Buildings and Other Structures." ASCE 7-22.
