Routine Inspection of Low-Voltage Shunt Capacitors

Routine inspection of Low Voltage shunt Capacitor systems safeguards industrial power networks by detecting dielectric degradation, thermal anomalies, and capacitance drift before catastrophic failures occur. Systematic checks preserve reactive power compensation accuracy, prevent costly downtime, and ensure compliance with IEC 60831 standards—critical for procurement managers sourcing bulk capacitor volumes where batch consistency directly impacts installation efficiency and long-term system reliability.

​​​​​​​

Understanding Low-Voltage Shunt Capacitors

Low Voltage shunt Capacitor units are the most important part of power factor adjustment in business and industry electrical systems. When these devices are connected in parallel to the supply network, they add reactive power to balance out the inductive loads from things like motors, transformers, and machinery. By canceling out reactive demand, they lower the amount of power that seems to be used, lower the fees that utilities charge, and keep transfer losses in the building's wires to a minimum.

What Sets Low-Voltage Units Apart

Low Voltage shunt Capacitor equipment works in the 250V to 690V range, which is different from high-voltage equipment that is rated above 1kV. The voltage rating decides the thickness of the insulation, the form of the terminals, and the safety rules. Low-voltage versions work well with distribution panels and motor control centers, which is why they are the best choice for factories, substations, and business complexes that need to save space and be easy to get to.

Core Operating Principles

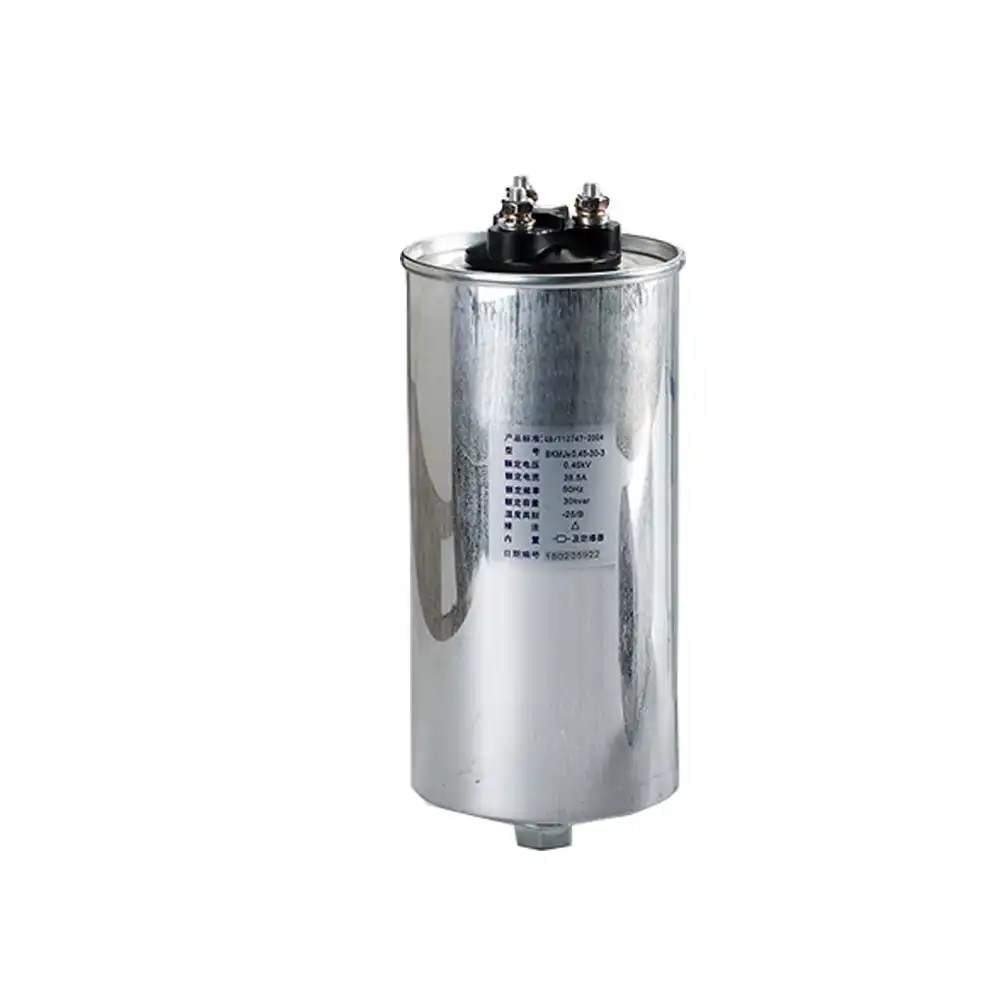

When the capacitor is turned on, metalized polypropylene film layers store electricity. During load cycles, they let go of the electricity to give reactive current. The 400V Self-healing Capacitor-cylindrical BKMJ0.46-30-3 is an example of this technology. Its 30kvar capacity at 400V automatically fixes tiny dielectric punctures by vaporizing a metalized film in the affected area, keeping the device's usefulness without any help from a person. This self-healing feature increases the operating life beyond 100,000 hours, which lowers the number of times that parts need to be replaced in settings with a lot of cycling.

Technical Parameters Driving Selection

To account for short-term overvoltage, voltage ratings must be 10-15% higher than the system's normal voltage. Capacitance values, which are given in kilovars (kvar), match the reactive load profile. If the capacitors are too small, they won't correct the problem completely, and if they are too big, the voltage could rise. The BKMJ0.46-30-3 standard covers 400V networks that are popular in China and Southeast Asia. It works with most capacitor banks and can be easily installed. Its 242mm height and PU resin potting make it more durable in humid tropical areas and dusty factories.

Why Routine Inspection Is Crucial for Low-Voltage Shunt Capacitors

Operations are at risk of quiet degradation if they don't get evaluated on a regular basis. Overvoltage that lasts for a long time speeds up dielectric breakdown, and irregular currents cause heat stress that weakens the film. When cases get swollen, it means that breakdown gasses are building up inside them, which can lead to a burst that can damage nearby equipment or cause an arc flash.

Typical Failure Modes and Their Consequences

Utility surcharges are brought back when capacitance drifts below rated values, which makes power factor correction less effective. Leakage currents show that insulation is breaking down, which makes fires more likely. The last line of defense, the overpressure disconnector, can fail, which can turn internal faults into explosive venting. A 2019 study of factories in Southeast Asia found that 40% of unplanned outages were caused by capacitors that weren't being watched. Each event caused factories to lose an average of 18 hours of production time.

Root Causes Demanding Proactive Checks

Environmental stressors make getting older faster for Low Voltage shunt Capacitor units. Temperatures above 40°C cut the usefulness by half, and air getting in through broken seals ruins the terminals. Harmonic pollution from variable frequency drives causes current overload, which raises temperatures inside the device beyond what is safe. Installation mistakes, like loose connections that cause resistive heating or wrong phase wiring that causes voltage imbalance, set off early failure cascades that can only be found by organized inspection.

Inspection Principles That Extend Asset Life

Thermal imaging finds areas that show internal problems or link resistance. Capacitance measurement checks that the output is consistent; variations of more than ±5% of quoted values mean that the film is degrading and needs to be replaced. Tangent delta testing measures dielectric loss; values higher than 0.0005 mean that thermal runaway is about to happen. These concepts are the basis for care that meets standards, and they are in line with the rules set by IEC 60831 for buying capacitors around the world.

Step-by-Step Routine Inspection Guide for Low-Voltage Shunt Capacitors

Structured planning is the first step to good upkeep. The frequency of inspections depends on the working conditions. Every three months is enough for climate-controlled areas, while every month is best for harsh industrial settings with lots of dust or temperature changes above 35°C. Manufacturers' instructions give basic plans that are changed to account for things like harmonic levels and switching frequency that are unique to each place.

Pre-Inspection Preparation

Turn off the power to the capacitor bank and use calibrated multimeters to make sure there is no voltage across the terminals. Within 3 to 5 minutes, the residual charge is cleared through internal discharge resistors; make sure it is neutral before handling. Look at old inspection logs to see if there are any degrading patterns, like slowly losing capacitance or seeing loss angles rise. This will help you make decisions about what preventative maintenance to do.

Visual Inspection Checklist

Check the casings for signs of internal stress, such as bulging, discoloration, or oil seepage. Check the torque on the grounding pin. The BKMJ0.46-30-3 has a grounding lead already attached, which makes this step easier. The torque needs to be between 5 and 7 Nm, as specified. Check the terminal connections for corrosion or burn marks that could mean the fittings aren't tight. Check the continuity of the discharge resistor. Open circuits stop safe charge disposal and pose a risk of shock during repair.

Electrical Testing Protocols

Use bridges or LCR meters to measure capacitance at the rated frequency (50/60Hz). Compare the results to the nameplate values; if there is constant variation beyond the tolerance limits, the unit needs to be replaced. Insulation resistance tests should be done between the leads and the case at 500V DC. Readings below 1000 megohms show that moisture has gotten in. Precision analyzers used for tangent delta measurement can find dielectric aging that regular meters can't, finding problems months before they break.

Comparing Inspection Approaches and Best Practices in the Industry

Visual observations and simple multimeter tests are used in traditional manual checks. They are cheap, but they miss problems that are below the surface. Infrared thermography improves the accuracy of diagnostics by showing temperature differences that can't be felt. For example, a 10°C difference in temperature between stages can mean that the loading is uneven or that an internal hotspot is forming. IoT-enabled sensors allow for constant tracking and real-time alerts to teams when parameters change, but they require 300% more original investment than manual methods.

Criteria for Selecting Inspection Techniques

Fault detection rates for Low Voltage shunt Capacitor units depend on how accurate they are; advanced methods catch 90% of potential failures, while basic checks only catch 60%. Reliability is important for remote installations, and automated systems make them less reliant on the skills of different technicians. Cost-efficiency weighs up-front costs against the value of avoiding downtime; a single avoided loss can often cover the costs of thermography tools. For safety reasons, non-contact methods are better in electrically charged areas because they reduce the risk of arc flash exposure.

Aligning Methods With Facility Needs

For small businesses with less than 50 capacitors, manual checks every three months and yearly thermography sweeps are helpful. IoT tracking makes sense for large plants with 500 or more units; subscription-based services like those coming out of Europe allow for growth without spending money on new equipment. Following IEC 60831 and national standards makes sure that the level of inspection meets the requirements of insurance companies and government agencies. This protects against being held responsible in cases of failure.

How to Choose and Source Reliable Low-Voltage Shunt Capacitors

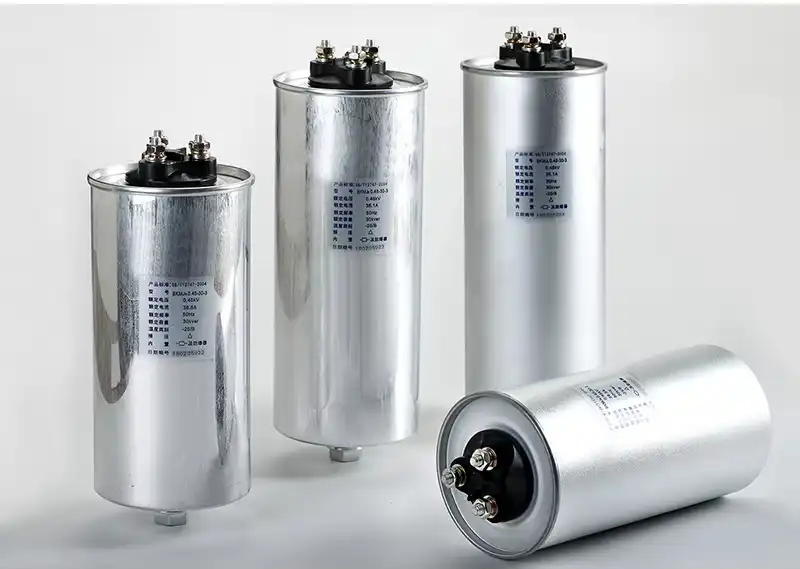

Decisions about procurement are based on performance metrics. The 400V Self-healing Capacitor-cylindrical BKMJ0.46-30-3 is an example of a self-healing device that lowers failure rates to less than 0.5% per year. Dissipation factors below 0.2W/kvar cut down on wasted energy, which has a direct effect on operating costs. 525V units in 400V networks are used as voltage tolerance margins to handle short-term voltage jumps without causing damage. This is very important in grids where unstable green energy is being added.

Manufacturer Reliability and Support

Certifications from well-known sources, like IEC and CCC, show that they follow the rules, which proves that the products are always the same. Global companies like Siemens and ABB have large distribution networks but charge high prices. Regional experts offer competitive options. Xi'an Xikai's ISO 9001-certified processes make goods that meet international standards while allowing for faster customization—batch orders for non-standard enclosures ship within 4 weeks, while it takes multinational competitors 8–12 weeks. Support after the sale is important; being able to talk to a tech during installation stops mistakes during testing that void guarantees.

Practical Sourcing Strategies

To find the best balance between price and quality, procurement officers test samples quickly before committing to large orders. If you ask for group consistency data—capacitance variation within ±3% across 200-unit lots—it makes installation easier because tight limits make sure that the bank works the same way every time. For Chinese markets, certifications like CCC and CE make it easier to get goods through customs, which cuts down on wait times. Working with manufacturers that can make solutions that work in high-humidity Southeast Asian climates or dusty Middle Eastern sites will make sure that the products last as long as they should in those places.

Maintenance Tips and Troubleshooting for Prolonged Capacitor Life

Low Voltage shunt Capacitor integrity is kept up by keeping environments clean between scheduled inspections. Having dust on the casings makes it harder for heat to escape; cleaning them every three months with dry compressed air stops heat from building up. Retightening terminal connections every six months stops vibrations from causing them to open in motor-heavy buildings. This keeps contacts from heating up too much, which wears them out.

Overcoming Performance Bottlenecks

Too high of an atmospheric temperature drastically reduces the dielectric's useful life for a Low Voltage shunt Capacitor. The best conditions for operation are kept below 40°C by installing forced air or moving banks away from heat sources. Power electronics cause harmonic distortion, which sends high-frequency currents that are higher than what the capacitor can handle. Adding detuned reactors (with 7% or 14% impedance) filters out damaging frequencies and lowers internal stress by 40%. A Philippine electronics company got rid of the need to replace capacitors every other year by adding new reactors after thermal imaging showed 65°C hotspots during peak production. After the changes were made, the temperatures stayed steady at 45°C.

Systematic Fault Resolution

When output kvar goes down without any obvious damage, it means that the film inside is breaking down; replacing it becomes more cost-effective than continuing to compensate, which isn't working well. Overvoltage exposure is shown by intermittent tripping. Root causes can be fixed by checking the stability of the grid voltage and changing the tap settings. Modern monitoring systems make sure that corrective actions are working by tracking parameters in real time. This confirms that performance metrics have returned to normal and allows for proactive action before the problem happens again.

Conclusion

When Low Voltage shunt Capacitor setups are inspected on a regular basis, it changes reactive maintenance into strategic asset management. By finding dielectric aging, thermal anomalies, and capacitance drift early, facilities can avoid unexpected power outages, keep equipment working longer, and keep the power factor adjustment working well. By choosing self-healing technologies like the BKMJ0.46-30-3 from certified makers and using tried-and-true inspection methods, you can see a clear return on your investment in the form of lower energy costs and higher system uptime.

FAQ

1. How often should Low Voltage shunt Capacitor units undergo inspection?

How often you inspect depends on how the machine is working. Facilities that are climate-controlled and don't have many harmonics need to be checked every three months. On the other hand, facilities that are subject to temperatures above 35°C, high dust levels, or a lot of switching cycles should be checked every month. Manufacturer standards give starting points that are raised for rough situations. No matter the environment, routine checks are backed up by yearly comprehensive tests that include measuring tangent delta and thermal imaging.

2. What warning signs indicate imminent capacitor failure?

If the casings get swollen or discolored, it means that dielectric decomposition is building up pressure inside. Hearing noise could mean that there are loose layers or that harmonic currents are causing reverberation. Capacitance loss is shown by a lower reactive power output even though the voltage is normal. Thermal imaging shows that internal areas are the cause of rising working temperatures. If any of these signs show up together, the equipment needs to be turned off and replaced right away to stop fails from spreading.

3. How do inspections improve overall energy efficiency?

Capacitance stays within the rated range with regular checks, which ensures accurate reactive power compensation. When capacitors get old, they don't fix the power factor correctly, which causes energy fees to happen again and transmission losses to rise. Finding and removing units that aren't working right keeps the correction levels at their best, which cuts power use by 15 to 25 percent in most commercial settings. Thermal inspections find connections that aren't working well and are causing resistive losses. Harmonic assessments allow filtering upgrades that stop energy loss due to distortion.

Partner With Xi'an Xikai for Dependable Low Voltage shunt Capacitor Solutions

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. has been making things for more than twenty years and can help you with your buying needs. Our 400V Self-healing Capacitor-cylindrical BKMJ0.46-30-3 works without any maintenance and comes with a 10-year warranty. It meets IEC standards and is made in a factory that is ISO 9001-certified. Our team creates unique solutions for high humidity in tropical areas and extreme heights up to 4,000 meters, whether they are getting 200 units to start with or setting up monthly supply chains for 2,000 units. Get in touch with our experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to find out about our bulk pricing as a reliable Low Voltage shunt Capacitor supplier. You can look at technical datasheets and order samples right now at xaxd-electric.com.
