What is difference between Static VAR Generator and Hybrid compensation?

The SVG Compensator (Static VAR Generator) and Hybrid Compensation systems are two well-known ways to improve power quality in data centers, industrial facilities, and distribution networks. To provide real-time, fully dynamic reactive power control, Static VAR Generators depend on advanced power electronics—more specifically, IGBT-based voltage source converters. Hybrid Compensation, on the other hand, works by mixing passive parts like capacitor banks with active power electronics to make the system work better while also being cheaper. The main differences are in response time, accuracy, and investment levels, which means that each is best for different operational situations and budgets.

​​​​​​​

Introduction

Receptive control remuneration is exceptionally imperative for keeping the quality of the control and making beyond any doubt that mechanical and dissemination systems work proficiently. Choosing the right innovation has an impact on how much vitality costs, how steady the framework is, and how long the hardware keeps going. This direct clarifies the fundamental contrasts between Inactive VAR Generators and Cross breed Remuneration frameworks, centering on how they work, what they can be utilized for, and how they are made. This outline makes it less demanding for obtainment experts and engineers to make choices that meet the complex control administration needs of a wide run of businesses around the world. We'll conversation around how each innovation bargains with issues like voltage precariousness, consonant mutilation, and control figure, and we'll offer assistance you discover the best arrangement for your facility's needs and budget.

Understanding Static VAR Generators (SVG)

Dynamic receptive control stipend is done by Inactive VAR Generators, which rapidly alter the infused responsive control to keep the voltage steady and raise the control calculate. Utilizing control electronic parts like IGBTs, these frameworks give exact consonant lessening and a extend of control options.

How SVG Technology Operates?

At its core, an SVG Compensator adjusts the voltage source and injects precise reactive currents into the grid. Within milliseconds, it absorbs or generates reactive power by changing the phase and amplitude of its output voltage. This fast dynamic response reduces flicker and voltage sags, outperforming traditional SVCs and capacitor banks in protecting data centers and manufacturing processes.

Key Components and Architecture

Modern SVG frameworks incorporate progressed control units that persistently screen framework parameters and react in genuine time. These calculations handle stack changes speedier than human administrators, guaranteeing smooth voltage direction. The result is decreased wear on costly apparatus and minimized expensive generation interferences, moving forward unwavering quality and operational efficiency.

Application Scenarios for SVG Systems

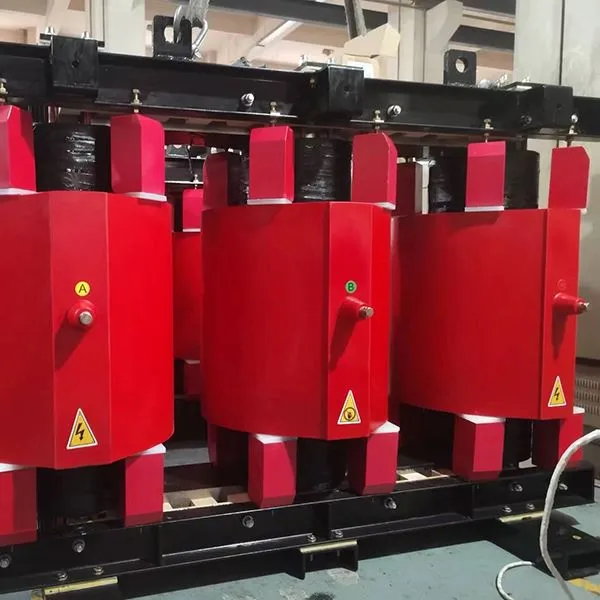

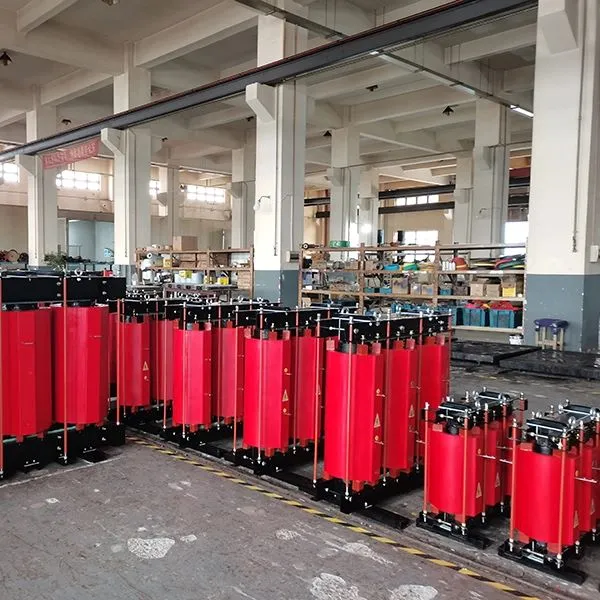

Key components include high-frequency IGBT modules (2–10 kHz) and the SVG Reactor, which acts as a low-pass filter to minimize harmonic distortion. The SVG Line Reactor works with an LCL filter to buffer the grid, reduce resonance, and handle surge currents up to 100× rated capacity. Together, these elements ensure stable power for industrial plants, renewable energy sites, and traction substations, supporting precise loads and low-voltage ride-through.

Overview of Hybrid Compensation Systems

When you combine passive and active parts in a hybrid compensation system, you get reactive power support and harmonic filtering with balanced efficiency. To deal with changing load demands, these systems combine the low cost of passive filters with the flexibility of active compensation technologies.

Architecture and Operating Principle

Hybrid reactive power compensation combines fast-acting power electronics with fixed capacitors and reactors. The passive components handle steady-state reactive power efficiently, while the active section responds to dynamic load changes and harmonic distortion. This dual approach keeps voltage stable, minimizes energy loss, and meets power factor requirements under varying load conditions.

Cost-Efficiency and Scalability

Cost-effective and scalable, hybrid systems suit commercial buildings, factories, and distribution networks. They require less space and lower operational costs than fully active SVG systems. Modular passive sections allow capacity upgrades as loads increase, while smaller active units reduce thermal stress and maintenance requirements, making hybrids a budget-friendly yet flexible solution.

Suitable Deployment Environments

Hybrid solutions fit environments like hospitals, malls, and retrofitted facilities where power quality is important but less critical than in data centers. Utilities also use hybrids at substations to regulate voltage moderately, manage harmonics, and handle daily load fluctuations without investing in full-capacity SVG units, balancing performance and cost.

Core Differences Between SVG and Hybrid Compensation

SVG and Hybrid Compensation are very different in how they work, how they reduce harmonics, and how hard they are to control. When procurement teams know these differences, they can choose equipment that fits the technical needs and budgets of their facility.

Operational Mechanisms and Response Speed

Fully active SVG Compensator systems use high-speed power electronics to deliver precise reactive power and harmonic control, with response times often in milliseconds and some units responding in as little as 5 ms. This rapid action is critical for environments with sudden voltage fluctuations, such as steel mills using arc furnaces or solar plants affected by cloud transients.

Harmonic Mitigation Capabilities

Hybrid reactive power systems respond more slowly because passive capacitors and reactors have inherent delays. Their fixed compensation is supplemented by the active section, resulting in overall response times of 20–50 ms. This is sufficient for applications with predictable load changes, though it’s slower than fully active SVGs for rapid transient mitigation.

Control Complexity and Flexibility

SVG technology excels at mitigating low-order harmonics up to the 13th order, addressing distortion from non-linear loads like welding equipment, LEDs, and VFDs. Hybrid systems filter harmonics using tuned passive parts combined with active filtering, which works well for consistent harmonic sources but is less effective when harmonic profiles vary frequently.

Investment and Operational Costs

SVG systems have flexible control modes—constant reactive current, reactive power, bus voltage, or power factor. High initial investment covers IGBT modules, high-frequency capacitors, and advanced controls. Operational costs include converter losses (1–3%) and maintenance of cooling systems. Energy savings from improved power factor and reduced demand charges typically justify the investment within 18–36 months.

Procurement and Selection Guide for B2B Clients

To choose between SVG and Hybrid Compensation, you need to look at their technical specs, their ability to grow, and their total cost of ownership. Clients should think about the type of load, the needs for system integration, and the level of flexibility they want.

Assessing Your Facility's Requirements

Start by auditing your facility’s power quality. Measure voltage stability during normal operation and disturbances, record harmonic distortion at varying loads, and track power factor changes across shifts and seasons. This assessment helps determine whether the fast, precise action of an SVG system is needed or if a hybrid solution can meet your facility’s performance requirements.

Technical Specifications to Consider

Consider the nature of your loads when selecting compensation technology. SVG systems are ideal for rapidly changing or sensitive loads, like cranes, presses, or arc furnaces, as well as for data centers and hospitals requiring highly stable voltage within tight limits. Hybrid systems may suffice for facilities with predictable load fluctuations.

Integration and Scalability Planning

Evaluate compensation capacity and voltage ratings. Xi’an Xidian’s SVG Dynamic Reactive Power Compensator covers 0.3–50 Mvar and 6–35 kV, suitable for a wide range of applications. Check for flexible operating modes—constant reactive current, reactive power, bus voltage, or power factor—and SCADA integration for centralized, remote control.

Plan installation based on load flow studies and harmonic analysis to prevent resonance and ensure compatibility with existing transformers, breakers, and relays. Modular, plug-and-play designs allow staged expansion, making upgrades easier for growing factories or data centers.

Selecting Reputable Manufacturers and Distributors

Work with reputable manufacturers and distributors offering engineering support, 24/7 technical assistance, and certifications like ISO 9001, ISO 14001, NFPA 70, and UL compliance. Request detailed quotes covering equipment, installation, commissioning, and warranty terms. Volume agreements and long-term relationships can lower costs, while warranty coverage on key components like IGBT modules ensures long-term protection.

Future Trends and Innovations in Power Compensation Technologies

Power compensation technologies will continue to change and grow in the future. Integration with smart grid infrastructures and IoT-enabled real-time monitoring for predictive maintenance and better operational efficiency are new trends in SVG and Hybrid systems. Businesses can protect their investments for the future by learning about these new technologies.

Smart Grid Integration and Communication

New developments aim to make power conversion more efficient, communication better, and adaptive control algorithms more flexible. This will lead to smarter, more connected power management solutions. Modern SVG Compensator units can connect to Ethernet networks, which makes it easy to connect them to utility demand response programs and building management systems.

This connectivity enables dynamic pricing response, where compensation systems adjust reactive power output based on real-time electricity costs. During times when prices are highest, facilities can reduce the amount of reactive power they use from utilities by switching to on-site compensation to lower demand charges. Some more advanced implementations take part in frequency regulation markets, which are businesses that help the power grid and make money while keeping the quality of the power inside the system.

Communication protocols are still changing in order to become more standardized. IEC 61850 was first created for automating substations, but it is now widely used in industrial facilities because it has a strong architecture and lets different vendors work together. It is easier for devices that support this protocol to work with existing infrastructure. This lowers the cost of engineering during installation and makes it easier to add on in the future.

Predictive Maintenance and Condition Monitoring

IoT sensors built into compensation systems constantly check important parameters. Temperature sensors keep an eye on the temperatures in IGBT modules and reactors. This lets you know right away if the cooling system stops working or if there is too much harmonic loading. Current and voltage sensors can tell when capacitors and other parts are breaking down before they completely fail.

Machine learning algorithms look at this stream of data to find patterns that show up before a part fails. Maintenance teams get alerts days or weeks before problems get really bad. This lets them plan to fix things during planned downtime instead of having to do emergency repairs during production hours. This predictive approach greatly lowers unplanned outages and increases the life of equipment by repairing it at the right time.

Efficiency Improvements and Renewable Integration

As semiconductor technology keeps getting better, power conversion efficiency keeps going up. It is better for the system as a whole if silicon carbide IGBTs are used instead of traditional silicon devices because they have lower switching losses. These parts cost more at first, but they save money in the long run because they use less energy and make cooling systems smaller and simpler.

The market is growing because more and more industries are going digital and using renewable energy. This means that compensation technologies need to be more flexible and strong. Voltage changes happen because of solar and wind installations, and older passive compensation systems can't handle them well. These problems can be solved by modern SVG technology, which also offers extra benefits such as harmonic filtering and voltage support during Low Voltage Ride Through events.

Hybrid System Evolution

The technology behind hybrid compensation keeps getting better at making the active parts smarter and better at filtering out harmonics. Some manufacturers now make hybrid units. The active part does all the SVG work at a lower capacity, and the passive parts take care of the steady-state needs. This architecture gives almost SVG performance at a hybrid price, which means that hybrid solutions work best in more situations.

Another area of innovation is tunable passive filter technology. These devices change their resonant frequency electrically, which lets a single passive section target various harmonic orders as the loads in a building change. When these systems are combined with active compensation, they can adapt to changing power quality problems without having to replace any hardware.

Conclusion

For managing reactive power, both Static VAR Generators and Hybrid Compensation systems have their own benefits, with the SVG Compensator offering faster, more accurate, and more adaptable performance than other technologies, which makes it perfect for harsh industrial settings with changing loads and strict power quality needs. For buildings with moderate load changes and less important voltage regulation needs, hybrid systems are a cost-effective option. When choosing between these technologies, you should think about how much traffic you have, how much money you have, and your long-term operational goals. Xi'an Xidian's extensive experience in power quality solutions, combined with customizable equipment configurations and comprehensive support services, positions us to guide your decision and deliver systems that enhance grid performance while reducing energy costs.

FAQ

1. What advantages does SVG offer over traditional capacitor banks?

Conventional capacitor banks offer settled responsive control stipend, which implies they respond gradually to changes in stack and may cause network impedance reverberation issues. With SVG Compensator innovation, responsive control can be changed ceaselessly and steplessly inside milliseconds. This gets freed of the exchanging drifters that come with capacitor bank organizing. Sounds and lopsided loads can both be settled at the same time by SVG frameworks. They make strides control quality in a single gadget instep of requiring partitioned channels and stage adjusting equipment.

2. How do I choose between SVG and Hybrid Compensation for my facility?

Your choice ought to be based on the characteristics of the stack and the quality of the control you require. SVG innovation is quick and precise, which makes it valuable for places where loads alter rapidly, like steel plants with circular segment heaters, information centers with changing server loads, and manufacturing plants that utilize overwhelming presses. Commercial buildings, light mechanical offices, and dispersion substations with unfaltering stack designs can as a rule get great comes about with crossover frameworks that taken a toll less. Do a intensive control quality review to type in down your particular issues. At that point, conversation to producers who can appear you how each innovation can meet your needs.

3. Can these systems integrate with existing electrical infrastructure?

Hybrid and SVG emolument frameworks can both work with existing framework, but they are not as simple to set up. Standard communication conventions like Modbus and IEC 61850 are bolstered by cutting edge units. This makes it simpler to interface to SCADA frameworks and building administration stages. To make beyond any doubt the right blame reaction, physical integration needs to be facilitated with existing security transfers and circuit breakers. Xi'an Xidian gives nitty gritty designing thinks about amid the proposition stage, recognizing potential integration issues and prescribing arrangements that minimize establishment disturbance and commissioning time.

Partner with Xi'an Xidian for Superior Power Quality Solutions

Xi'an Xidian is ready to improve the power quality in your building by using advanced reactive compensation technology that is tailored to your needs. We are a top SVG Compensator manufacturer and offer design, manufacturing, and support services. We offer solutions that save money on energy costs and keep important equipment safe. Our engineering team does thorough checks on the power quality, creates custom system configurations, and makes sure they work well with your current infrastructure. Xi'an Xidian has the skills and dependability your project needs with ISO certifications, patented technologies, and track records of success in the commercial, utility, and industrial sectors. Get in touch with our experts right away at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your power compensation needs and get a full technical proposal.
