capacitors parallel
2.Rated Capacity:1-100Mvar(per bank).

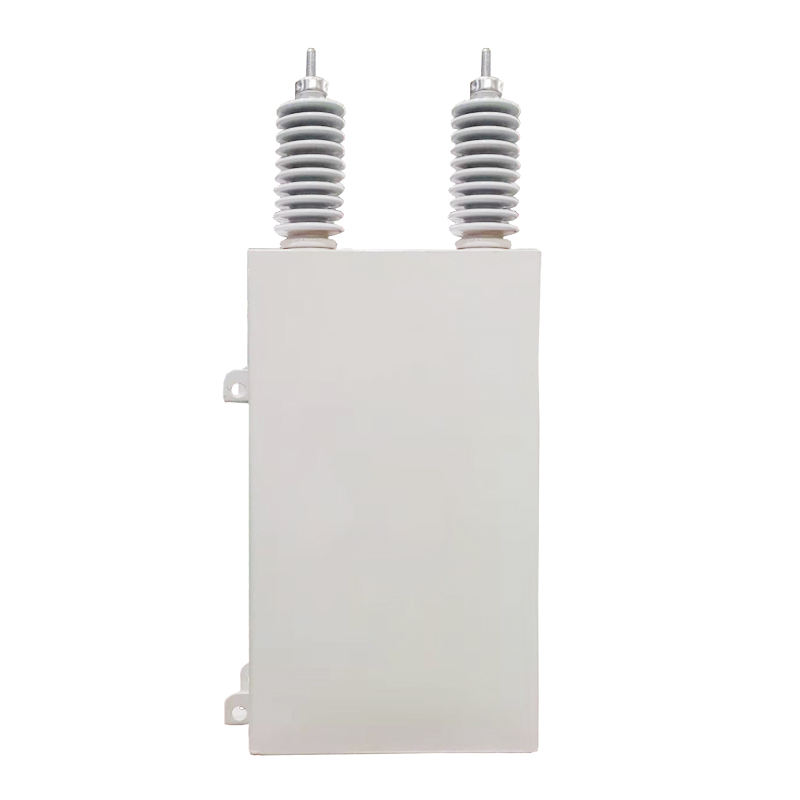

3.The capacitor is mainly consisted of container and device body.
4.The core is consisted of severalelements and insulation parts. The element is rolled, pressed andmade of two aluminum foilsand somepiece of thin dielectric polypropylene films sandwiched betweenthe two aluminum foils. In order to reach the differentdemand of voltage and capacity, the elements in core is connected by someseriesand parallelmethod. The technology of aluminum foiledge folding and protruding weldingare used to reduce the loss and increase the performance of partial discharging.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
High-Performance Capacitors Parallel Solutions for Industrial Power Systems
When your power system demands superior capacitance and enhanced reliability, capacitors parallel configurations deliver the performance you need. At Xian Xikai Medium And Low Voltage Electric Co., Ltd., we specialize in manufacturing advanced parallel capacitor banks that solve critical power distribution challenges. Our capacitors parallel systems provide increased total capacitance, reduced ESR, and improved thermal management for your most demanding applications.
Product Introduction
Our parallel capacitor systems are engineered for professional power distribution applications. These units feature multiple capacitor elements connected to shared voltage nodes, creating enhanced capacitance values that single units cannot achieve.
Each system consists of precision-manufactured containers housing multiple device bodies. The core utilizes several elements with advanced insulation components. Each element features rolled and pressed aluminum foils with thin dielectric polypropylene films. Our proprietary aluminum foil edge folding and protruding welding technology reduces losses while improving partial discharge performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 6kV, 10kV, 35kV |
| Rated Capacity | 1-100 Mvar (per bank) |
| Operating Temperature | -40°C to +85°C |
| Rated Current | 630A-4000A |
| Altitude Performance | Up to 4000m above sea level |
| Dielectric Material | Polypropylene Films |
| Container Material | Aluminum with Advanced Coating |
| Connection Type | Series and Parallel Configuration |
| Standards Compliance | National and Industry Standards |
Main Features and Advantages
Enhanced Capacitance Performance
Our parallel configuration increases total system capacitance while maintaining consistent voltage across all units. This design provides the bulk capacitance your system requires.
Reduced System Impedance
The parallel topology significantly lowers Equivalent Series Resistance (ESR) and Equivalent Series Inductance (ESL). This reduction minimizes power losses and improves high-frequency response.
Superior Thermal Management
Multiple units distribute thermal load effectively, preventing hotspots and extending operational life. This design handles higher ripple currents without thermal degradation.
Flexible Capacity Options
Achieve precise capacitance values unavailable in single units. Our modular approach allows custom configurations for specific application requirements.
Practical Applications
Power Factor Correction Systems
Industrial facilities use our capacitors parallel banks to improve power factor and reduce reactive power penalties from utilities.
Motor Starting Applications
Heavy industrial motor drives benefit from the high surge current capability and rapid energy discharge of parallel configurations.
Renewable Energy Integration
Solar and wind power systems utilize our parallel banks for DC-link stabilization and grid synchronization applications.
Distribution Substations
Utility companies deploy these systems for voltage regulation and power quality improvement across distribution networks.
How It Works
The parallel connection creates a cumulative capacitance equal to the sum of individual unit values. When connected to the same voltage nodes, each capacitor shares the electrical load while contributing its full capacitance to the total system value.
This configuration allows rapid charging and discharging cycles essential for reactive power compensation. The reduced internal impedance enables faster transient response and better voltage regulation under varying load conditions.
Manufacturing Excellence
Our ISO9001-certified manufacturing processes ensure consistent quality across all production batches. Each unit undergoes rigorous testing including dielectric strength verification, capacitance accuracy measurement, and thermal cycling validation.
We utilize advanced polypropylene film technology and precision aluminum foil processing to achieve superior electrical characteristics. Our proprietary welding techniques minimize internal resistance while maximizing reliability.
Quality control extends through every production stage, from raw material inspection to final system testing. This comprehensive approach ensures your capacitors parallel systems meet demanding industrial specifications.
Why Choose Us
Proven Industry Experience
With extensive experience in medium and low voltage equipment, we understand the critical requirements of industrial power systems.
Comprehensive Product Range
Our 9 categories and 34 series encompass over 100 varieties of power distribution equipment, providing complete system solutions.
Technical Innovation
Continuous investment in research and development keeps our products at the forefront of industry advancement.
System Integration Expertise
We provide complete power distribution solutions, not just individual components, ensuring optimal system performance.
FAQ
Q: What capacity ranges are available for parallel configurations?
A: Our systems range from 1 to 100 Mvar per bank, with custom configurations available for specific requirements.
Q: How do parallel capacitors improve power factor?
A: Parallel banks provide reactive power compensation, reducing the phase difference between voltage and current for improved power factor.
Q: What maintenance is required for these systems?
A: Regular visual inspection, capacitance testing, and thermal monitoring ensure optimal performance and longevity.
Q: Can these units operate at high altitudes?
A: Yes, our high-prototype products meet requirements for operation up to 4000m above sea level.
Q: What quality certifications do you maintain?
A: We maintain ISO9001, ISO14001, and OHSAS18001 certifications for quality, environmental, and safety management.
Contact Us
Ready to enhance your power system with professional capacitors parallel solutions? Our technical team is ready to discuss your specific requirements and provide customized recommendations.
Contact our experts today: serina@xaxd-electric.com
Let us help you achieve superior power quality and system reliability with our advanced parallel capacitor technology.
