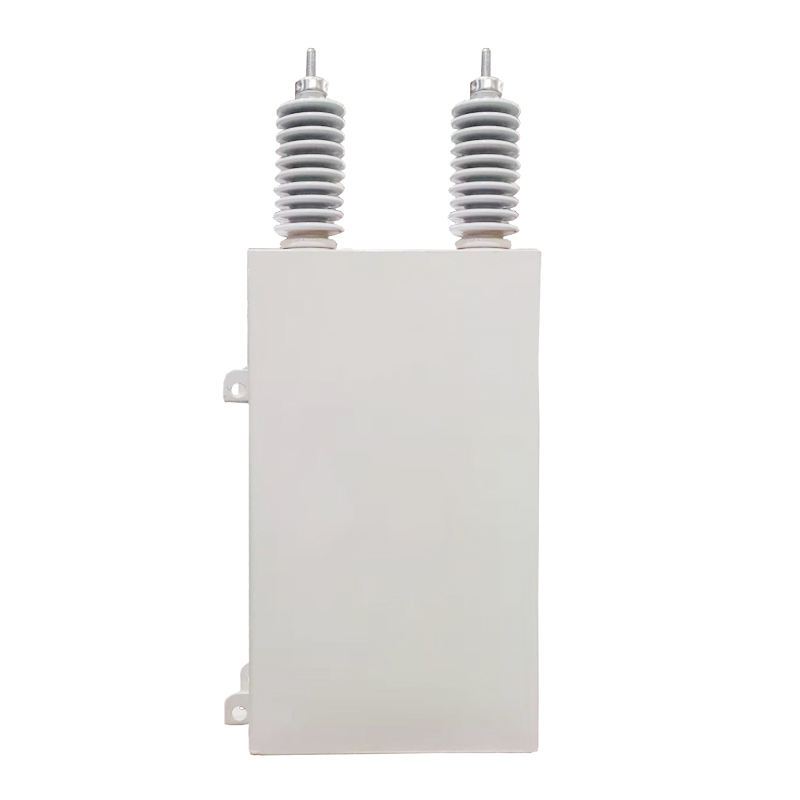

capacitors connected in parallel
2.Rated Capacity:1-100Mvar(per bank).
3.The capacitor is mainly consisted of container and device body.
4.The core is consisted of severalelements and insulation parts. The element is rolled, pressed andmade of two aluminum foilsand somepiece of thin dielectric polypropylene films sandwiched betweenthe two aluminum foils. In order to reach the differentdemand of voltage and capacity, the elements in core is connected by someseriesand parallelmethod. The technology of aluminum foiledge folding and protruding weldingare used to reduce the loss and increase the performance of partial discharging.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Capacitors Connected in Parallel - High-Performance Power Distribution Solutions
Product Introduction
When you need reliable power distribution for your electrical systems, capacitors connected in parallel offer the perfect solution for enhanced performance and stability. Our specialized parallel capacitor configurations are designed to meet the demanding requirements of modern electrical applications, from industrial power systems to advanced electronic equipment.
Capacitors connected in parallel work by connecting all positive plates to a common positive terminal and all negative plates to a common negative terminal. This arrangement increases total capacitance while maintaining the same voltage rating, making it ideal for applications requiring high energy storage and low impedance characteristics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 6kV, 10kV, 35kV |
| Rated Capacity | 1-100 Mvar (per bank) |
| Operating Temperature | -40°C to +85°C |
| Frequency Range | 50/60 Hz |
| Dielectric Material | Polypropylene Film |
| Conductor Material | High-purity Aluminum Foil |
| Insulation Class | Class F (155°C) |
| Protection Level | IP54 |
| Altitude Rating | Up to 4000m above sea level |
Main Features and Advantages
Our parallel capacitor systems deliver exceptional performance through advanced engineering:
Enhanced Capacitance: The total capacitance equals the sum of individual capacitors, giving you precise control over your power factor correction needs.
Reduced ESR and ESL: Lower equivalent series resistance and inductance improve your system's transient response and reduce power losses.
Superior Current Handling: Multiple parallel paths distribute ripple current effectively, reducing thermal stress on individual components.
Built-in Redundancy: If one capacitor fails open, your system continues operating with reduced capacity, ensuring minimal downtime.
Custom Configurations: We design parallel banks to match your specific voltage and capacity requirements.
Practical Applications
Your electrical systems can benefit from our parallel capacitor solutions in various scenarios:
Power Factor Correction: Industrial facilities use our capacitors connected in parallel to improve power factor and reduce electricity costs.
Motor Starting: Large motor applications require high starting currents that our parallel configurations handle efficiently.
Harmonic Filtering: Combined with reactors, our capacitor banks filter harmful harmonics in electrical distribution systems.
Voltage Regulation: Utility companies rely on our solutions for maintaining stable voltage levels across distribution networks.
Renewable Energy: Wind and solar installations use our capacitor banks for grid integration and power quality improvement.
How It Works
The operation principle behind capacitors connected in parallel is straightforward yet powerful. When you connect multiple capacitors in parallel, each capacitor charges to the same voltage while contributing to the total stored energy.
The aluminum foil elements are carefully rolled and pressed with polypropylene film dielectric. Our advanced edge-folding and welding techniques minimize losses and enhance partial discharge performance. The series and parallel combinations within each unit allow us to achieve your exact voltage and capacity specifications.
Manufacturing Excellence
At Xi'an Xikai Medium and Low Voltage Electric Co., Ltd., we maintain the highest manufacturing standards. Our production facility incorporates advanced quality control measures throughout the manufacturing process.
We use premium-grade polypropylene film and high-purity aluminum foil in all our capacitors connected in parallel. Our automated winding equipment ensures consistent tension and precise layer alignment. Each unit undergoes rigorous testing including partial discharge measurement, capacitance verification, and dielectric strength testing.
Our ISO9001 quality management system guarantees consistent product quality, while our ISO14001 environmental management system ensures responsible manufacturing practices.
Why Choose Us
Your success depends on reliable power distribution equipment. We offer several compelling advantages:
Proven Track Record: Over decades of experience in medium and low voltage equipment manufacturing.
Comprehensive Product Range: From 0.4kV to 40.5kV rated voltage with currents up to 4000A.
Technical Expertise: Our engineering team provides customized solutions for your specific applications.
Quality Certifications: ISO9001, ISO14001, and OHSAS18001 certified manufacturing processes.
National Recognition: Our products meet national and industry standards with famous brand recognition in China.
FAQ
Q: Can I increase voltage rating by connecting capacitors in parallel?
A: No, the voltage rating remains limited to the lowest-rated capacitor in the parallel group. Parallel connection increases capacitance, not voltage capability.
Q: What happens if capacitors have different ESR values?
A: Mismatched ESR can cause current imbalance, leading to uneven heating and premature failure. We carefully match components to prevent this issue.
Q: How do you prevent cascading failures in parallel banks?
A: We incorporate protective devices and use high-quality components with matched characteristics to minimize failure risks.
Q: What maintenance is required for parallel capacitor banks?
A: Regular visual inspection, capacitance measurement, and thermal monitoring ensure optimal performance and early fault detection.
Q: Can you customize parallel configurations for specific applications?
A: Absolutely. We design custom parallel arrangements based on your voltage, capacity, and environmental requirements.
Contact Us
Ready to optimize your power distribution system with our professional capacitors connected in parallel solutions? Our technical team is here to help you select the right configuration for your application.
Contact us today at serina@xaxd-electric.com for technical consultation, custom quotations, or additional product information. Let us help you achieve superior power quality and system reliability with our advanced capacitor technology.
