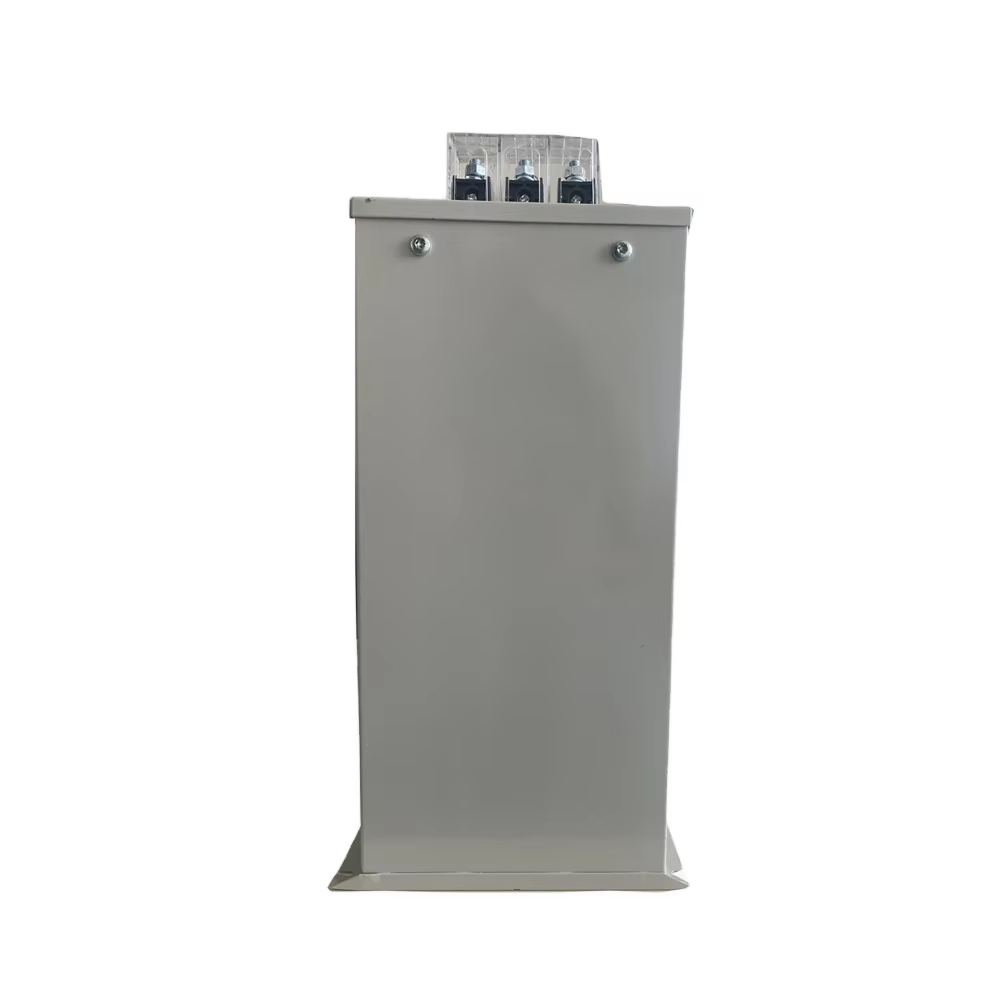

Dry Type Reactive Compensation Capacitor

Dry Type Reactive Compensation Capacitor

Product Introduction

Looking for reliable power factor correction in your electrical system? Our Dry Type Reactive Compensation Capacitor offers you the perfect solution for enhancing power quality without the risks associated with oil-filled alternatives. This advanced power electronics device improves power factor and stabilizes voltage in electrical networks using solid dielectrics instead of liquid oil impregnants. You'll benefit from eliminated fluid leakage risks, reduced fire hazards, and zero environmental contamination concerns. These units utilize metallized polypropylene film encapsulated in flame-retardant epoxy resin, specifically engineered for your low-voltage and medium-voltage power distribution systems to compensate for inductive loads like motors and transformers.

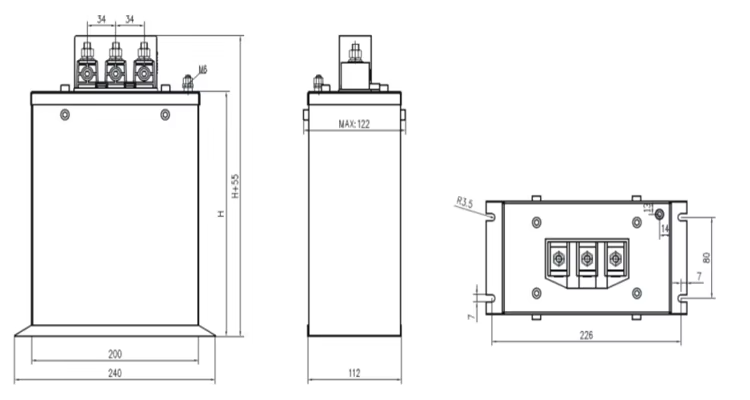

Technical Specifications

Main Features and Advantages

Self-Healing Technology: Your system stays protected with our metallized film that instantly restores insulation when localized breakdowns occur.

Compact & Lightweight Design: You get maximum performance in minimal space with our optimized form factor and integrated grounding bolt.

Enhanced Safety: The overpressure disconnector physically breaks the circuit before case rupture, ensuring your facility's protection.

Maintenance-Free Operation: You save time and costs with our sealed design that requires no routine internal maintenance.

Environmental Friendly: No oil containment needed, making installation flexible and environmentally compliant.

Easy Installation: Simple wiring and mounting process reduces your installation time and labor costs.

Practical Applications

Commercial & Sensitive Infrastructure: Perfect for your APFC panels in hospitals, data centers, and shopping malls where fire safety is paramount.

Industrial Manufacturing: Ideal for steel plants and automotive factories when paired with detuned reactors to handle harmonic loads effectively.

Renewable Energy Systems: Excellent for wind turbine nacelles and solar inverter stations with flexible orientation capabilities.

Power Distribution Networks: Essential for your electrical systems requiring reliable power factor correction and voltage stabilization.

How It Works

Your Dry Type Reactive Compensation Capacitor operates by storing and releasing electrical energy to counteract inductive loads in your system. The metallized polypropylene film creates a capacitive effect that leads the current, offsetting the lagging current caused by motors and transformers. When voltage is applied, the solid dielectric stores energy and releases it precisely when needed, improving your overall power factor and reducing kVA demand from the utility.

Manufacturing Excellence

At Xi'an Xidian Medium and Low Voltage Electric Co., Ltd., we bring you over years of expertise in power distribution equipment. Our manufacturing process follows strict quality control protocols including dielectric integrity testing, voltage withstand tests, and thermal stability verification. We maintain ISO9001 quality management system certification, ensuring every unit meets national and international standards. Our products undergo rigorous sealing tests and overpressure disconnector verification to guarantee your safety and reliability.

Why Choose Us

Proven Track Record: We're a trusted system integration service provider with 9 product categories and over 100 varieties.

Comprehensive Solutions: Beyond capacitors, we offer complete power distribution solutions from 0.4kV to 40.5kV.

Quality Assurance: All our products meet national standards and carry famous brand recognition in China.

Technical Support: Our experienced team provides you with professional consultation and customized solutions.

Reliable Service: We stand behind our products with comprehensive technical support and warranty coverage.

FAQ

Q: What makes dry type capacitors safer than oil-filled ones?

A: Our units eliminate leakage risks and fire hazards through flame-retardant resin encapsulation, making them perfect for indoor installations.

Q: How do I know when replacement is needed?

A: Monitor for bulging cases or capacitance degradation over 10%. Annual current measurements help track performance.

Q: Can these handle harmonic-rich environments?

A: Yes, when properly rated and installed with detuned reactors for non-linear load applications like VFDs and UPS systems.

Q: What maintenance do they require?

A: Minimal external checks including terminal tightness verification and current measurements. No internal maintenance needed.

Q: How quickly do they discharge after power-off?

A: Built-in discharge resistors reduce voltage to below 75V within 3 minutes for safe maintenance access.

Contact Us

Ready to improve your power factor with reliable Dry Type Reactive Compensation Capacitor solutions? Our technical team is here to help you select the perfect units for your specific application requirements.

Contact Email: serina@xaxd-electric.com

Reach out today for technical specifications, custom configurations, or pricing information. We're committed to providing you with the highest quality power factor correction solutions backed by our extensive industry experience and proven manufacturing excellence.
