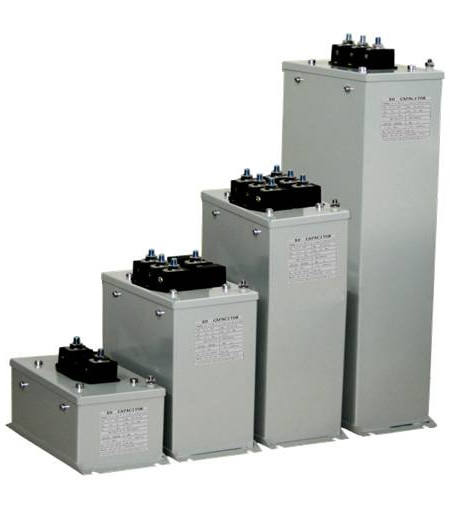

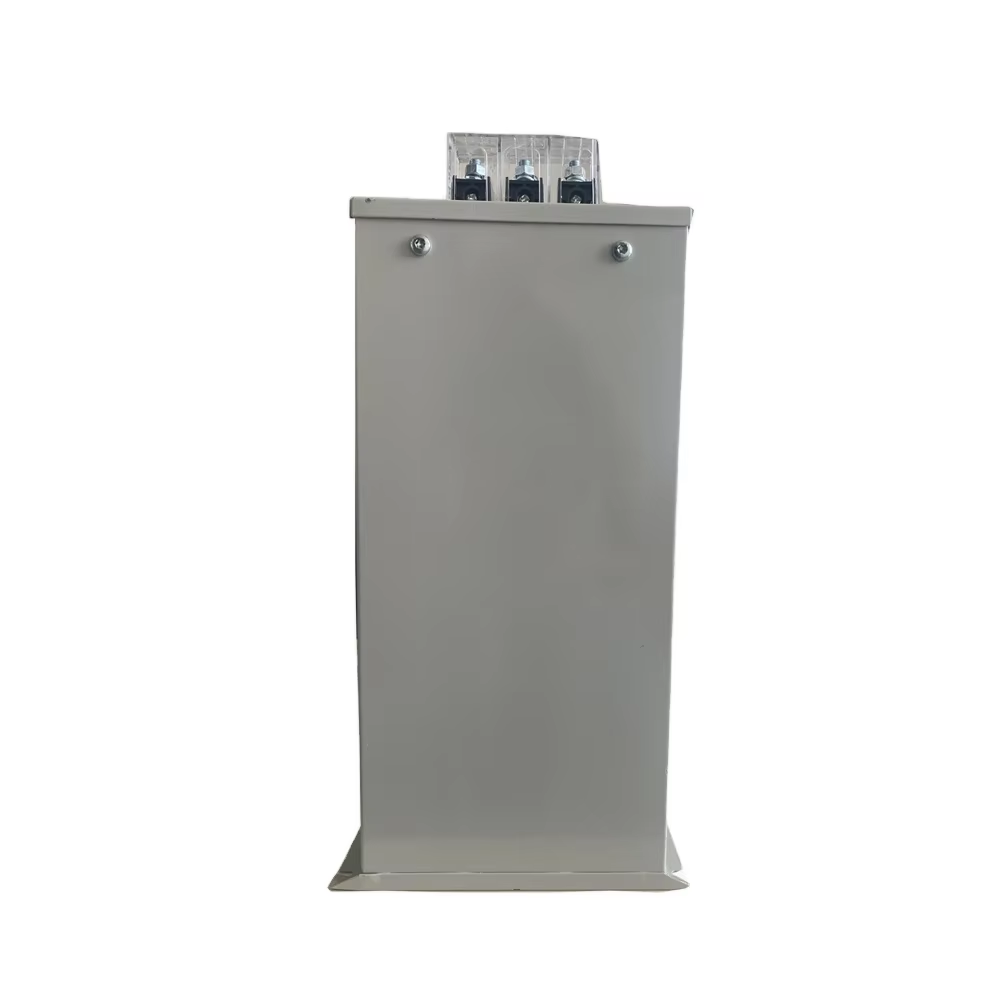

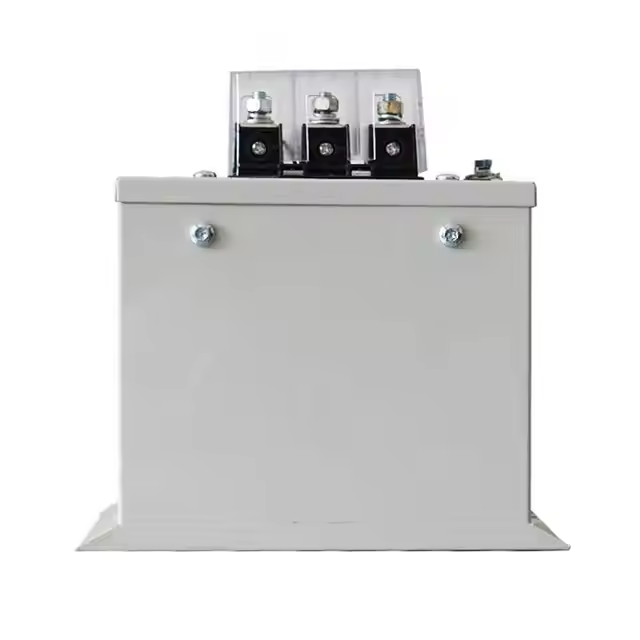

Square Capacitor for Reactive Power Compensation
2.Installation Indoor.
3.Case material Galvanized steel sheet.
4.Output Range 10~100kvar.
5.Frequency 50/60Hz.
6.Connection configuration D, Y, YN, III.
7.Terminal Block ：M6, M8, M10 (According to capacitor power).
8.Lose tanδ<0.001 (20°C 50Hz).
9.Temprature -25°C~50°C.
10.Highest Altitude 2000m.
11.Capacitor (to wall) pitch ≥50mm.
12.Capacitance Deviation -5%~+10%.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Square Capacitor for Reactive Power Compensation
Product Introduction
Looking for efficient power factor correction solutions? Our Square Capacitor for Reactive Power Compensation delivers optimal reactive power management in a space-saving rectangular design. These specialized low-voltage capacitors feature advanced metallized polypropylene film technology housed in flame-retardant square casings. Unlike traditional cylindrical units, our square design maximizes cabinet space utilization while providing superior thermal management. You'll find these capacitors essential for correcting power factor lag in industrial and commercial electrical systems, reducing energy costs and improving overall system efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage (Ue) | 100V - 1000V |
| Output Range | 10 - 100 kVAR |
| Frequency | 50/60 Hz |
| Operating Temperature | -25°C to +50°C |
| Installation Type | Indoor |
| Case Material | Galvanized Steel Sheet |
| Connection Configuration | D, Y, YN, III |
| Terminal Block | M6, M8, M10 (power dependent) |
| Loss Factor (tan δ) | <0.001 (20°C, 50Hz) |
| Maximum Altitude | 2000m |
| Spacing Requirement | ≥50mm from wall |
| Capacitance Deviation | -5% to +10% |
Main Features and Advantages
Self-Healing Technology: Our capacitors use advanced metallized polypropylene film with self-healing capabilities. When voltage surges occur, the metallization around breakdown points evaporates instantly, restoring insulation automatically.
Space-Efficient Design: The rectangular form factor allows modular stacking in switchgear cabinets. You can achieve higher energy density compared to cylindrical alternatives.
Enhanced Safety: Built-in overpressure disconnectors physically separate terminal leads if internal pressure rises. This prevents case rupture and ensures operator safety.
Superior Thermal Management: The modular square arrangement improves airflow channels and heat dissipation in high-density capacitor banks.
Flame-Retardant Construction: Non-flammable dry resin filling eliminates leakage risks and fire hazards associated with oil-filled units.
Low Loss Operation: Extremely low dissipation factor (≤0.2W/kVAR) ensures minimal internal heating and maximum efficiency.
Practical Applications
Heavy Industrial Plants: Steel mills, automotive manufacturing, and chemical processing facilities benefit from our compact capacitor banks. The Square Capacitor for Reactive Power Compensation compensates for large motor and transformer loads while minimizing electrical room footprint.
Renewable Energy Systems: Wind and solar installations require robust power quality solutions. Our square capacitors provide mechanical stability against vibrations in turbine nacelles and containerized substations.
Motor Control Centers: Direct mounting capabilities make these units ideal for local compensation at heavy-duty motors, pumps, and crushers. They withstand harsh start-up currents and thermal cycling.
Commercial Buildings: Shopping centers, hospitals, and office complexes use our capacitors in automatic power factor correction panels to reduce demand charges and improve power quality.
How It Works
Power factor correction addresses the phase difference between voltage and current in inductive loads. When motors and transformers operate, they create reactive power that doesn't perform useful work but increases total current demand.
Our capacitors supply leading reactive power to counteract lagging reactive power from inductive loads. This brings the power factor closer to unity (1.0), reducing:
- kVA demand charges
- Line losses
- Voltage drops
- Equipment heating
The metallized polypropylene film stores electrical energy in the electric field between its plates. The square housing design allows multiple units to work together efficiently in banks, providing precise reactive power compensation.
Manufacturing Excellence
At Xi'an Xidian Medium and Low Voltage Electric Co., Ltd., we maintain strict quality control throughout production. Our Square Capacitor for Reactive Power Compensation undergoes rigorous testing including:
Voltage Withstand Testing: Each unit withstands 2.15 times rated voltage terminal-to-terminal and 3000V AC terminal-to-case for safety verification.
Sealing Integrity Tests: Extended temperature testing at 75°C ensures casing integrity and prevents resin expansion.
Capacitance Tolerance Verification: Strict adherence to -5% to +10% tolerance ensures accurate compensation calculations.
We've achieved ISO9001 quality management certification, ISO14001 environmental management certification, and OHSAS18001 occupational health and safety certification. Our products meet national standards and international requirements up to 4000m altitude.
Why Choose Us
Comprehensive Product Range: We offer over 100 varieties across 34 series, covering rated voltages from 0.4kV to 40.5kV and currents from 630A to 4000A.
Technical Innovation: As participants in national 863 projects, we continuously introduce new technologies, processes, and materials. Our research team holds multiple patents in medium and low voltage switching technology.
Proven Track Record: Our products have earned recognition as famous brand products in China, demonstrating consistent quality and performance.
Complete System Solutions: Beyond individual components, we provide integrated power distribution equipment solutions including switchgear, transformers, and circuit breakers.
Professional Support: Our technical team offers customized solutions based on your specific power factor correction requirements.
FAQ
Q: What maintenance is required for square capacitors?
A: Check terminal torque specifications every 12 months to prevent hot spots. Ensure cooling fans operate properly and inspect for casing bulging that indicates potential failure.
Q: Can these capacitors handle harmonic distortion?
A: Standard units work with linear loads. For environments with THD exceeding 15-20%, use detuning reactors and select higher voltage ratings.
Q: How long do these capacitors last?
A: Rated for over 100,000 operating hours under standard conditions. End-of-life occurs when capacitance drops below 90-95% of initial value.
Q: Are square capacitors safer than oil-filled units?
A: Yes. Our dry-type construction with flame-retardant materials (UL94-V0) eliminates leakage and fire risks associated with liquid dielectrics.
Q: What determines the required capacitor rating?
A: Calculate based on your system's reactive power requirements, typically determined by power factor measurements and load analysis.
Contact Us
Ready to improve your power factor and reduce energy costs? Our technical experts are available to help you select the right Square Capacitor for Reactive Power Compensation for your application.
