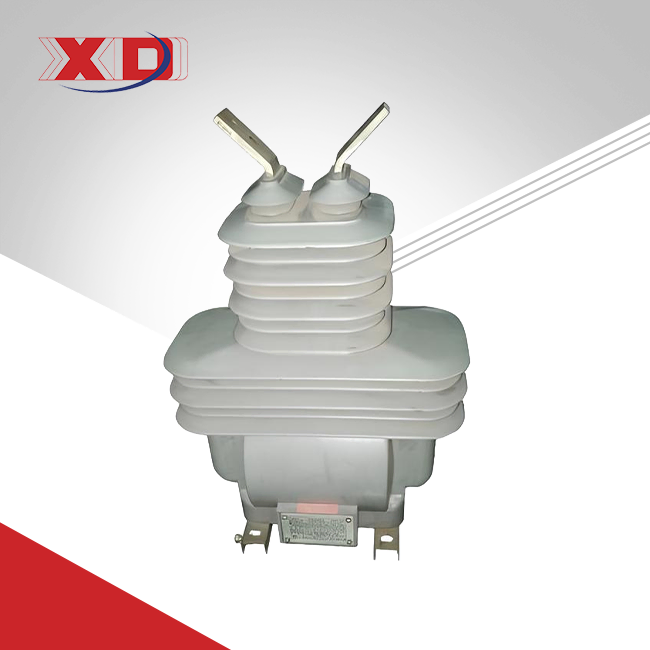

35kV Outdoor Voltage Transformer(Potential transformer)
2.Frequency:50/60Hz
3.Rated primary current:600/800A
4.Limited output(VA):5 or 1A
5.Standard:GB 20840.2-2014/IEC 61869-1 & 61869-2
6.The transformer is epoxy resin cast fully-enclosed electromagnetic.It features high accuracy, large capacity, and stable performance.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1.35kV Outdoor Voltage Transformer(Potential Transformer): Precision & Durability for High-Voltage Networks
When you need reliable voltage measurement and protection in demanding outdoor environments, the 35kV Outdoor Voltage Transformer(Potential Transformer) stands as a critical component. Designed for substations, renewable energy farms, and industrial grids, our epoxy resin-cast transformers deliver high accuracy (±0.5%), robust weather resistance (IP65+), and compliance with IEC 61869 standards. Whether you’re upgrading legacy systems or integrating smart grid solutions, this transformer ensures stable performance across extreme temperatures (-40°C to +55°C) and corrosive conditions.
2.Technical Specifications
- Input Voltage: 35kV
- Output Voltage: 10kV
- Frequency: 50/60Hz
- Rated Primary Current: 600/800A
- Accuracy Class: 0.2, 0.5
- Insulation: Epoxy resin fully enclosed
- Standards: GB 20840.2-2014, IEC 61869-1 & 61869-2
-
Type Rated voltage ratio(V) Class combination Rated secondary output (VA) Limited output(VA) Rated insulation level ( kV) JDZ9-35W 35000/100 0.2/0.5 75 800 40.5/95/185 150 35000/100/100 0.2/0.5 30/50 JDZX9-35W 35000/√3, 100/√3, 100/√3 0.2/6P 50/100 0.5/6P 80/100 35000/√3, 100/√3, 100/√3, 100/√3 0.2/0.5/6P 25/25/100 600 Type Rated voltage ratio(V) Class combination Rated secondary output (VA) Limited output(VA) Rated insulation level ( kV) （LZZW-35） 20-100 5 or 1A 0.2/0.5/10P10 15/15/50 150I1n 375I1n 150 0.2S/0.5/10P15 15/15/30 22.5 57 200 0.2/0.5/10P10/10P10 15/15/25/25 31.5 63 300 0.2S/0.5/10P15/10P15 15/15/15/15 35 70 400 40 80 500 45 90 600 50 100 800 0.2/0.5/10P10 30/30/50 63 110 1000 0.2S/0.5/10P15 30/30/30 1200 0.2/0.5/10P10/10P10 30/30/30/30 1250 0.2S/0.5/10P15/10P15 30/30/20/20 1500 2000 80 130
3.Key Features & Benefits
1. Built for Extreme Environments
- IP65+ Enclosure: Resists dust, rain, and snow.
- UV-Resistant Housing: Ideal for solar farms and desert installations.
- Anti-Corrosion Design: Stainless steel components for coastal/industrial areas.
2. High Accuracy & Low Loss
- ±0.5% voltage error ensures precise billing and grid stability.
- Reduced energy loss (<0.1W/kg) lowers operational costs.
3. Smart Grid Ready
- Embedded sensors enable real-time voltage monitoring for predictive maintenance.
- Compatible with IoT platforms like SCADA and EMS.
4. Low Maintenance, Long Lifespan
- Epoxy resin casting eliminates internal moisture, requiring no oil checks.
- 20+ year operational life with minimal degradation.
4.Real-World Applications
Be used in a wide range of industries.
Industrial Plants
Eliminate power factor penalties in CNC machines and assembly lines while handling surge currents up to 100x rated capacity.
Substation
Stabilizes substation voltage against harmonics and intermittent generation from renewable inverters.
Commercial Buildings
Retrofit aging systems in hospitals or malls with silent (<45dB), flame-retardant capacitors that meet NFPA 70 fire codes.
5.How It Works？
The 35kV Outdoor Voltage Transformer(Potential transformer) steps down high-voltage signals to safer 10kV levels for meters and relays. Its fully enclosed epoxy structure prevents partial discharges, while graded insulation handles transient surges up to 170kV.
6.Manufacturing Excellence
- ISO 9001-Certified Production: From raw material sourcing (Bayer epoxy, Hitachi steel) to final testing.
- Robotic Casting: Ensures void-free insulation for 100% dielectric integrity.
- 3-Stage Quality Checks: Impulse testing, partial discharge analysis (<5pC), and thermal cycling.
7.Why Choose Us?
- 30+ Years in High-Voltage Solutions: Trusted by Fortune 500 energy providers.
- Custom Designs: Modify ratios, enclosures, or connectors to match your grid.
- Global Certifications: CE, ANSI C57.13, ATEX (hazardous areas).
- 24/7 Support: On-site installation guidance and 10-year warranty.
8.FAQ
Q: Can this transformer handle lightning surges?
A: Yes. Our design includes silicone rubber surge arrestors rated for 10kA impulses.
Q: What maintenance is required?
A: Annual visual inspections and thermal imaging checks are sufficient.
Q: Is it compatible with 60Hz grids?
A: Absolutely. The core is optimized for both 50Hz and 60Hz operation.
9.Contact Us
Need a 35kV Outdoor Voltage Transformer(Potential Transformer) tailored to your project? Email our engineers at xaxd_electric@163.com with your specs.
