Best Circuit Breakers for Industrial Protection

When there are electricity problems in a factory, the right circuit breaker can keep things running smoothly and prevent a major failure. Industrial circuit breakers are very important safety devices that keep expensive gear, sensitive equipment, and people safe from electrical faults and overcurrent situations. Within milliseconds, these important safety devices stop harmful electrical flows. This helps keep equipment from breaking and keeps factories, data centers, hospitals, and other business buildings safe.

​​​​​​​

Understanding Industrial Circuit Breaker Requirements

Industrial facilities need more electrical safety than residences. Factory equipment uses a lot of current, while data centers house private servers that require reliable power. Circuit breakers must operate effectively in hospitals to power life-saving equipment. Modern industrial systems need safety devices that can bear several loads due to their complexity. Problems arise when motors output inductive loads. Capacitive loads from power factor correction devices cause various faults. A good industrial circuit breaker should always operate and maintain the electrical distribution system selective.

Key Performance Indicators for Industrial Applications

Industrial circuit breakers must securely manage large fault currents. Industrial short-circuit currents may reach 50,000 amps, thus breakers must halt energy. Thermal and magnetic trip characteristics should cooperate with upstream and downstream safety devices for selective operation. Durability is crucial in industrial settings where breakers function thousands of times a year. High-quality circuit breakers can be repeatedly turned on and off without affecting trip. Breakers must be well-built and dependable to withstand extreme temperatures, humidity, and vibrations.

Selection Criteria for Industrial Circuit Breakers

Many technical and operational issues must be considered when choosing industrial security circuit breakers. Performance specs should meet application demands and allow for long-term reliability and maintenance. Interrupting Capacity: The breaker must safely cut the greatest fault current upon installation. This standard affects short-circuit safety and system dependability. Current Rating: The correct size breaker can withstand typical load current without tripping and safeguard connected equipment from overload.Trip Characteristics: Thermal, magnetic, or electronic trip devices should match protected equipment. Motors require different protection curves than resistive loads or electronics. Selectivity: Working with other safety devices ensures that only the nearest upstream breaker trips during faults, limiting harm to unaffected circuits.Environmental Compatibility: Industrial temperatures, corrosive atmospheres, and mechanical vibrations may make breaker selection difficult.Maintenance: Making the breaker's protection simple to test and repair will extend its life and save downtime.

Top Circuit Breakers for Industrial Applications

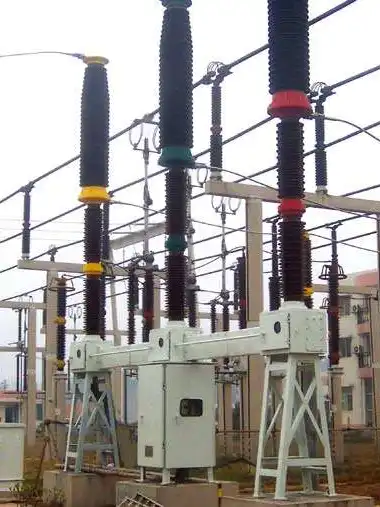

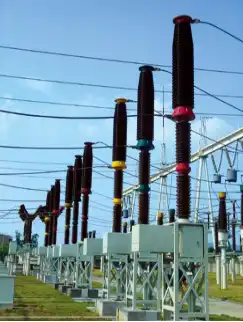

LW25-/Y4000-50 High Voltage SF6 Circuit Breaker

For harsh industrial applications, the LW25-/Y4000-50 has strong circuit breaker technology. This three-phase AC high voltage breaker is ideal for outdoor power systems that require management and protection. It interrupts faults reliably due to its self-blast thermal expansion arc interruption method, configurable clearance, and double blast construction. This allows for interrupting short-circuit faults, out-of-phase faults, circuit breaker, and capacitor bank switching currents. In industrial facilities with complex electrical systems, this is crucial. This circuit breaker is durable enough to function at 4,000 meters. Operation is silent because the CYA3-I hydraulic spring working mechanism dampens gradually. It can withstand wind speeds up to 34 m/s and temperatures ranging from -25℃ to +40℃, making it suitable for many industrial applications. This function aids manufacturers in cities with noise restrictions or worker comfort. Maintenance: The breaker and working mechanism are directly linked, simplifying installation and maintenance. Classic designs are harder to replace, whereas modular designs save downtime by 40%. SF6 gas technology meets environmental norms and enables dependable arc extinction. Hybrid petrol versions avoid SF6 phaseouts in stricter environmental zones.

ERW1-2000 Universal Circuit Breaker

The ERW1-2000 universal circuit breaker is durable and versatile for industrial security. This universal circuit breaker may be utilised for motor protection, feeder circuits, and main distribution panels due to its adaptable trip characteristics. It works flawlessly in a broad variety of voltage and current ratings. Electronic trip devices provide exact load adjustments. Improved safety: Arc chutes near contacts extinguish electrical arcs, protecting the machine. The moulded frame insulates and shields internal components from weathering. Reliable Trip Mechanism: Advance trip device detects electrical problems and instructs operating mechanism to terminate circuit immediately. Main, auxiliary, and arcing contacts provide steady current flow and safe circuit interruption. The three-way switching function allows complex control schemes while safeguarding the circuit. Industrial situations with complicated electrical control systems benefit from this versatility. Quality Construction: ISO-certified manufacturing procedures maintain quality from raw materials to completed products. We rigorously verify performance to international standards like IEC and ANSI.

Small Leakage Circuit Breakers

For delicate electronics or worker safety, small leakage circuit breakers are used in industrial settings. These sensors detect ground defects and residual currents that breakers overlook. Ground Fault Protection: Advanced sensor technology can detect leakage currents as low as 30mA, preventing electric shock. This competence is crucial in factories and other electrical tool-using environments. Electronic Equipment Protection: These circuit breakers rapidly discover problems, which is useful for sensitive manufacturing equipment, computer systems, and control panels. Keeping equipment from ground faults extends its life and reduces repair costs. Adjusting Sensitivity: Trip levels may be adjusted to fit application demands while eliminating needless travels. In industrial settings, sensitivity levels vary by equipment type and installation. Small Design: Space-efficient design enables them be fitted in electrical panels with many devices without compromising security. Retrofitting and areas with limited electrical equipment space benefit from this capability. Industrial control networks and building management systems may be integrated via communication interfaces. Remotely monitoring and controlling activities improves efficiency and provides diagnostic data.

Regional Market Characteristics and Regulations

Southeast Asia Industrial Requirements

Southeast Asian markets value safety and affordability. In the tropical environment, circuit breakers must work dependably in high humidity and temperature. Frequent thunderstorms necessitate surge protection. Industrial expansion in Vietnam, Thailand, and Indonesia requires scalable electrical infrastructure. Circuit breakers should allow manufacturing facility expansion and future changes. IEC standards with regional environmental adjustments are used in local electrical codes. Manufacturing-focused economies need industrial automation and motor control circuit breaker protection devices. Textile, electronics, and automobile sectors need specialised circuit breaker arrangements.

Central Asia Infrastructure Development

Central Asian markets value durable equipment that can endure harsh temperatures and earthquakes. Circuit breakers must work well in deserts and high elevations with frequent temperature cycling. Many Central Asian countries depend on mining and energy extraction, which need heavy-duty circuit breakers that can handle enormous motor loads and severe environments. Due to distant installation, equipment should be reliable and low-maintenance. Advanced circuit breaker technology benefits from regional power grid modernisation. Utility firms want technology that improves grid stability, operates efficiently, and reduces maintenance costs.

Middle Eastern Energy Sector Focus

Middle Eastern markets value dependability and heat performance. In ambient temperatures over 50℃, circuit breakers must retain full interrupting capability. Sand and dust infiltration prevention is crucial for outdoor installations. Diversifying energy sources in the area drives demand for renewable energy circuit breakers. Solar panels need protection for DC faults and power fluctuations. Petrochemical and refinery sectors need explosion-proof, hazardous site circuit breakers with rigorous safety criteria. These applications need specialised enclosures and safety measures beyond industrial standards.

African Infrastructure Expansion

African markets need affordable circuit breakers that safeguard against harsh environments. Equipment must tolerate harsh temperatures, humidity, and voltage changes in emerging electrical grids. The continent's mining and mineral processing sectors need heavy-duty circuit breakers to safeguard enormous motor loads and handle frequent starting currents. Remote installations demand low-maintenance equipment with extensive service intervals. Circuit breakers are needed for power grid expansion to improve reliability and accommodate load increase. Utility businesses value equipment with high performance-to-cost ratios and worldwide safety requirements.

Advanced Technologies in Modern Circuit Breakers

Electronic Trip Units

Modern industrial circuit breakers increasingly incorporate electronic trip units providing improved protection capabilities and diagnostic features. These systems offer precise current measurement, adjustable trip characteristics, and communication interfaces for integration with facility management systems. Electronic protection enables complex protection schemes, including ground fault, arc fault, and motor protection functions within a single circuit breaker. Advanced algorithms provide selective protection while minimizing nuisance trips that could disrupt production operations.

Arc Flash Mitigation

Industrial circuit breakers now incorporate technologies specifically designed to reduce arc flash incident energy. Rapid fault clearing reduces the duration of arcing faults, lowering the potential for personnel injury and equipment damage. Zone selective interlocking between circuit breakers ensures the fastest possible fault clearing while maintaining circuit breaker  selectivity. This technology is valuable in industrial applications where arc flash hazards pose significant safety risks.

Predictive Maintenance Capabilities

Smart circuit breakers provide continuous monitoring of operating conditions and performance parameters. Temperature monitoring, contact wear indication, and operation counting enable predictive maintenance strategies that help prevent unexpected failures. Diagnostic capabilities help maintenance teams optimize replacement schedules while ensuring continued protection and reliability. This approach reduces both planned and unplanned downtime while extending overall equipment life.

Installation and Maintenance Considerations

Proper Sizing and Coordination

Circuit breaker selection must consider not only the normal operating current but also the fault current available at the installation point. Proper coordination with upstream and downstream protective devices ensures selective operation during fault conditions. Load analysis should account for motor starting currents, capacitor inrush, and other transient conditions that might cause nuisance tripping. Circuit breaker trip characteristics must accommodate these normal operating conditions while providing protection against genuine fault conditions.

Environmental Protection

Industrial circuit breakers require appropriate enclosures protecting against environmental contaminants while allowing adequate cooling airflow. NEMA and IP ratings indicate the level of protection against dust, moisture, and corrosive atmospheres. Proper installation practices include adequate clearances for operation and maintenance while ensuring compliance with electrical codes and safety standards. Grounding and bonding requirements vary by application and local regulations.

Testing and Commissioning

New circuit breaker installations require comprehensive testing to verify proper operation and coordination. Primary injection testing validates trip unit calibration while insulation testing ensures adequate dielectric strength. Regular maintenance testing ensures continued reliability throughout the circuit breaker's service life. Test schedules should consider the criticality of protected loads and operating environment conditions.

Purchasing Recommendations and Considerations

Technical Specifications

Verify that selected circuit breakers meet or exceed the technical requirements for interrupting capacity, continuous current rating, and environmental conditions. Documentation should include test certificates and compliance statements for applicable standards. Consider future expansion plans when selecting circuit breaker ratings and panel configurations. Oversizing within reasonable limits provides flexibility for load growth while avoiding the need for costly electrical modifications.

Supplier Qualifications

Choose suppliers with proven experience in industrial circuit breaker  applications and strong technical support capabilities. Local representation ensures responsive support while reducing spare parts lead times and shipping costs. Quality certifications, including ISO 9001 and product approvals from recognized testing laboratories, indicate manufacturing capability and product reliability. Reference installations in similar applications provide valuable performance validation.

Total Cost of Ownership

Consider not only the initial purchase price but also installation costs, maintenance requirements, and expected service life. Higher-quality circuit breakers often provide better long-term value despite higher initial costs. Availability and cost of spare parts significantly impact total ownership costs, particularly for critical applications requiring quick restoration following failures. Standardization on fewer circuit breaker types reduces spare parts inventory requirements.

Conclusion

Industrial situations need the correct Circuit Breaker to provide electrical safety, equipment protection, and continuous operations. Businesses may choose dependable protection systems for their applications by considering interrupting capacity, trip characteristics, environmental compatibility, and maintenance demands. Modern technology like electronic trip units and predictive maintenance boost dependability and efficiency. In the end, high-quality industrial circuit breakers decrease downtime, safeguard key infrastructure, and provide operational stability.

FAQ

1. What factors determine circuit breaker selection for industrial applications?

Circuit breaker selection depends on system voltage, load current, available fault current, environmental conditions, and specific protection requirements. Motor loads require different protection characteristics than electronic equipment or lighting circuits.

2. How often should industrial circuit breakers be tested?

Testing frequency depends on the criticality of protected loads and the operating environment. Critical applications may require annual testing, while less critical circuits can extend to longer intervals. Manufacturer recommendations and local codes provide specific guidance.

3. What maintenance is required for industrial circuit breakers?

Regular maintenance includes visual inspection, connection tightness verification, and functional testing. Electronic circuit breakers may require software updates and calibration verification. Detailed maintenance schedules depend on the specific breaker type and application.

Contact Xi'an Xidian for Your Circuit Breaker Solutions

Xi'an Xidian Medium & Low Voltage Electric Co., Ltd. offers comprehensive circuit breaker solutions tailored for industrial protection requirements. Our extensive product portfolio spans 7 major categories with over 100 variants, ensuring optimal solutions for your specific applications. As a leading circuit breaker manufacturer in China, we provide certified products meeting international standards while offering competitive pricing and reliable technical support. Connect with our experienced engineering team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to discuss your industrial protection needs.
