Capacitive Voltage Transformer Maintenance Tips for Long Life

Extending the operational lifespan of a capacitive voltage transformer requires a systematic maintenance approach that addresses insulation integrity, capacitor health, and environmental protection. Regular inspections, dielectric testing, and timely component replacement prevent catastrophic failures while maintaining measurement accuracy. Proper maintenance protocols reduce unplanned downtime by up to 60%, protect sensitive electrical equipment, and ensure compliance with IEC 61869 standards critical for utilities, industrial facilities, and system integrators managing high-voltage networks.

​​​​​​​

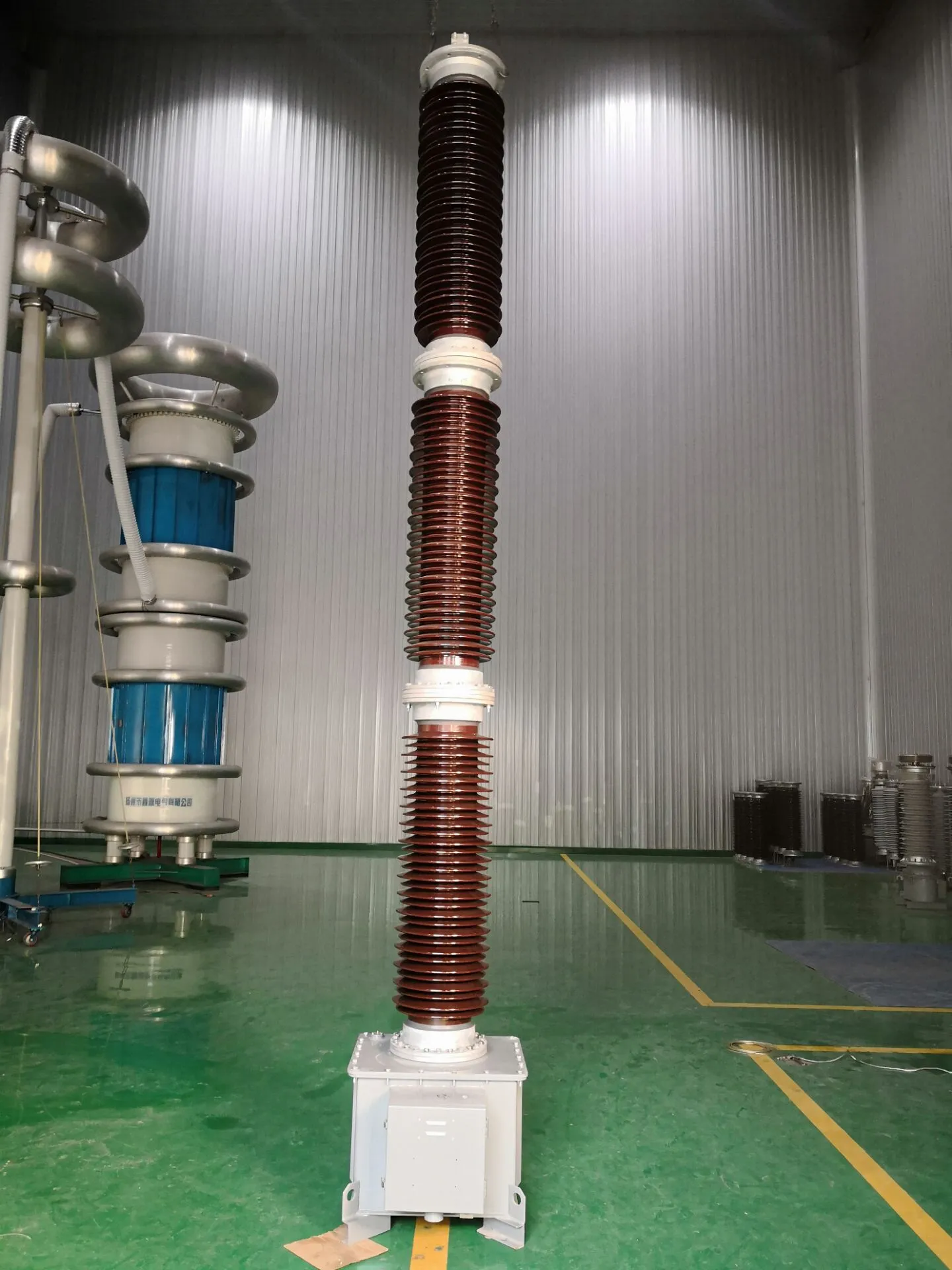

Understanding Capacitive Voltage Transformer Maintenance

Many technical details must be carefully considered when maintaining capacitive voltage transformers in high-voltage systems. CVT upkeep includes taking care of the protection housings, electromagnetic units, and capacitor stacks in a planned way to keep the accuracy and dependability of the system's operation.

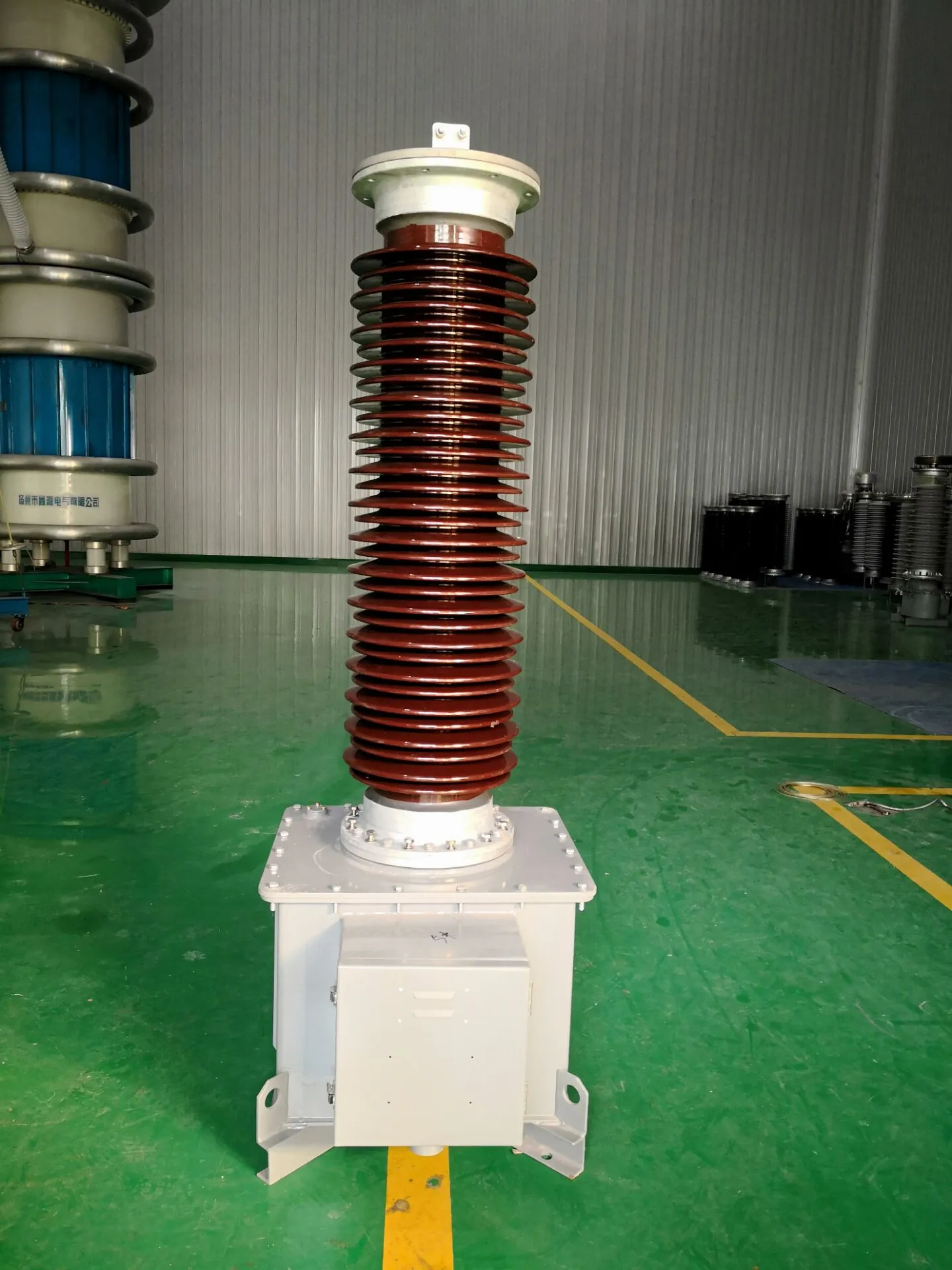

What CVT Maintenance Involves

Continuous electrical stress wears down dielectric materials in capacitor voltage dividers over time. The main goal of maintenance work is to keep voltage measurements accurate and stop shielding from breaking down. Our 69 72.5kV units have improved insulation margins that are 25% higher than industry standards. However, even the best designs need to be checked every so often to make sure they keep working well. Regular inspections make sure that the capacitance stays stable, look for signs of partial discharge, and make sure that the safety relay links keep the signal's integrity.

Why Proactive Maintenance Matters

When capacitive voltage transformers aren't taken care of, they can cause the grid to become unstable and cause measurement errors that spread through protective systems. When power changes in data centers, servers can crash, and when it happens in factories, production lines can stop, which can cost thousands of dollars per hour. An accident almost happened at a hospital system in the Midwest of the United States because old voltage sensing equipment didn't set off protective relays when lightning struck. Such situations can be avoided with proactive maintenance plans that find wear and tear before they become functionally obsolete. This protects both the safety of employees and the value of the asset.

Impact on Operational Uptime

Utility companies that run transmission networks know that the reliability of CVTs has a direct effect on grid stability metrics. Unexpected transformer breakdowns require emergency repair, which puts a strain on finances and staff. Scheduled repair times let controlled changes happen with as little downtime as possible, which makes it possible to work with systems that handle load. Predictive maintenance strategies that schedule service breaks with planned shutdowns instead of causing emergency outages are especially helpful for plants that run ongoing processes, like petrochemical plants or steel mills.

Common Issues in Capacitive Voltage Transformers and Their Causes

Maintenance teams can stop minor problems before they become costly failures by noticing early warning signs. The environment, electrical stress, and the quality of the installation all affect how long a capacitive voltage transformer lasts.

Insulation Deterioration Patterns

Moisture getting into outdoor capacitive voltage transformers is one of the most destructive ways they can fail. When exposed to UV light and changing temperatures, seals break down, letting air into housing areas. As moisture comes into contact with capacitor elements, the dielectric strength gradually decreases. Our designs are immune to pollution and have long silicone rubber edges with a 35mm/kV creepage distance. However, even strong sealing systems need to be checked for integrity from time to time. Infrared thermography finds hot spots that show insulation stress, and dissolved gas analysis finds early signs of failure before they show up on the outside.

Mechanical Stress and Vibration

When substations are close to rail lines or industrial equipment, they are constantly vibrated, which damages the mechanical connections. Over time, terminal nuts become loose, which raises the contact resistance and creates heat that speeds up the ageing process. Capacitor separators have to be able to handle mechanical loads from wind, ice buildup, and earthquakes. These forces can't get through designs with high mechanical strength and optimised structural engineering, but the quality of the installation is still very important. No matter how good the equipment is, connections that are torqued incorrectly fail early.

Electrical Overload Consequences

Lightning strikes or switching surges can cause short-term overvoltages that put extra stress on capacitor elements beyond what they can normally handle. Our 150kV impulse withstand grade gives you a lot of protection, but repeated contact wears down your safety limits over time. Variable frequency drives and renewable energy inverters cause harmonic distortion, which adds extra stress that regular testing might not show. Monitoring systems that keep an eye on voltage quality can help find setups that need better safety or more frequent checks.

Essential Maintenance Tips to Extend Capacitive Voltage Transformer Life

Disciplined maintenance schedules based on best practices in the industry make equipment last longer and work more reliably. These doable rules cover the most important parts of keeping a capacitive voltage transformer.

Inspection and Monitoring Protocols

Visual checks are the basis of maintenance plans that work. Technicians should look for cracks in the ceramic insulators, wear and tear on the housing seals, and make sure that the drainage valves work properly. Bird guards and controlling vegetation stop the pollution that makes flashover paths possible. Advanced monitoring makes basic checks better. For example, partial discharge sensors can find corona activity, which means insulation problems are getting worse, and live capacitance tracking can track slow drift, which means the capacitor is getting old. Our two-output configurations make it easier to connect to SCADA systems and collect diagnostic data in real time.

Every year, thermal imaging studies show link problems and hot spots inside that can't be seen with the naked eye. Temperature differences between phases that are greater than 10°C should be looked into. With ultrasonic testing, mechanical resonances that could cause a structure to fail under long-term shaking are found.

Testing and Verification Procedures

Full electrical testing makes sure that the performance of the capacitive voltage transformer is within the limits set by the specifications. Controlled overvoltages are used in dielectric strength tests to make sure the insulation is still intact, and capacitance readings make sure that voltage division ratios stay within acceptable limits. Comparing CVT output to precision reference standards is part of accuracy class verification. This makes sure that measurement error stays within 0.2% limits, which is important for revenue metering applications. Testing the transient reaction shows that the damping properties meet the 3pT level standards with a residual voltage below 2%. This is necessary for working with high-speed protective switches.

Tan delta testing measures dielectric loss, which lets you know early on when shielding is breaking down. Results that keep going up over multiple test rounds show that ageing is speeding up and needs to be stopped. Testing the power factor at different voltage levels shows non-linear insulation issues that might not show up in normal operation.

Preventive Maintenance Best Practices

Controlling the environment makes things last a lot longer. Putting up nearby surge arresters keeps lightning energy away from CVT parts that are sensitive to it. Maintaining proper grounding integrity keeps fault currents on their intended routes and keeps them from hurting equipment. Pollution can be stopped by applying a silicone covering or washing the area every so often. This helps keep industrial and seaside areas clean. Our IP66-protected, corrosion-resistant aluminium metal housings can handle harsh conditions, but they still need to be cleaned every so often to ensure long-term efficiency.

Schedules for replacing parts based on condition monitoring cut down on the cost of maintenance. If capacitor elements show a 5% capacitance drift, they should be replaced before the accuracy of the measurements is lost. Seals that are stiffening or breaking need to be replaced before water can get in. Keeping thorough records of upkeep allows trend analysis that estimates how much longer something will work, which supports replacement choices based on data rather than arbitrary time frames.

Comparing Maintenance Practices for Different Types of Voltage Transformers

Knowing how to maintain different types of capacitive voltage transformers helps procurement teams choose equipment that fits their operational needs and available resources.

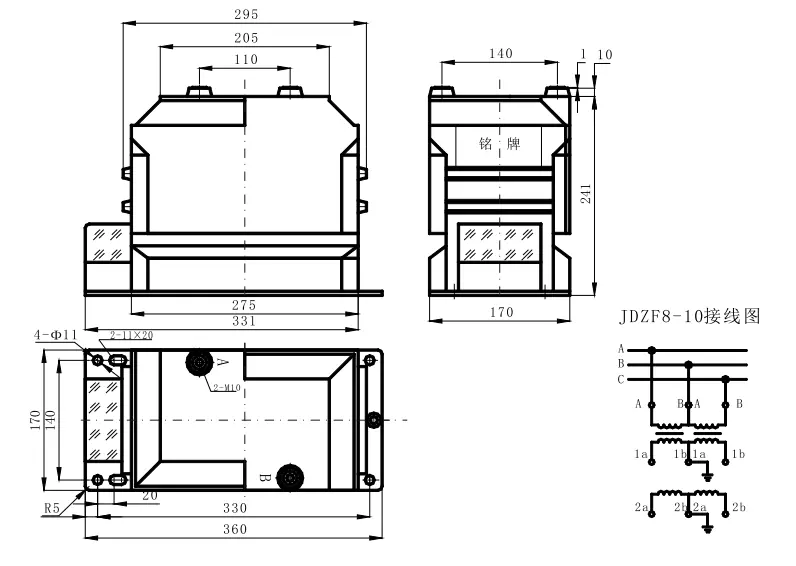

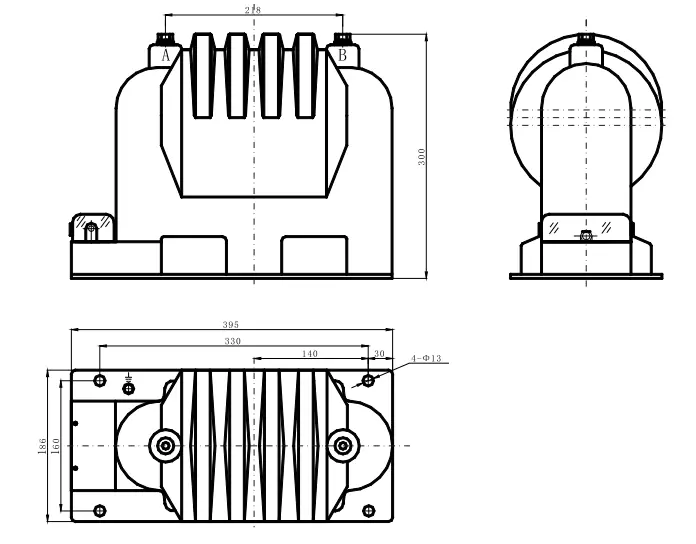

CVT Versus Inductive Voltage Transformers

When it comes to maintenance, electromagnetic voltage transformers that use inductive coupling need different attention than those that use capacitive coupling. Inductive units need to check the quality of the oil, measure the resistance of the windings, and confirm the turns ratio. In many configurations, CVTs get rid of the need for oil-related maintenance, which lowers environmental risks and makes servicing easier. When used for long periods of time, the capacitive divider principle offers accuracy and steadiness that inductive designs find hard to match. Our design with low dielectric loss (less than 0.1% of the original value) reduces the amount of internal heating that wears down insulation. This helps explain why well-maintained CVT installations usually last 25 years.

Maintenance Complexity Considerations

Optical voltage monitors are a new technology that can help lower upkeep costs by getting rid of magnetic cores and capacitor stacks. But optical systems cause problems with calibration drift and need special diagnostic tools that most utility repair teams don't have. CVT maintenance uses well-known test methods and instruments that are easy to find, so servicing can be done quickly by people who already know how to do it. Because of this real benefit, capacitive designs still rule in utility uses, even though newer technologies have theoretical benefits.

Cost-Benefit Analysis

When you figure out the total cost of ownership, you have to include the costs of maintenance labour, spare parts, and unplanned outages. When problems happen, it takes less time to fix CVT systems that have tools built in. When compared to unique designs, equipment with standard replacement parts has lower spare parts costs. Our ability to work with a number of global standards makes it easier for international operators to keep track of their goods in a variety of regulatory settings.

How to Choose a Reliable CVT Supplier for Maintenance Support

Choosing the right supplier has a big effect on how reliable technology is in the long run and how much it costs to own everything. Partners will be successful if they look at each other's expert skills, service infrastructure, and contract terms.

Technical Expertise and Manufacturing Quality

Capacitive voltage transformer suppliers with ISO 9001 certification and full type testing can be sure that the quality of their products will always be high. In Xi'an Xikai's factories, all units are tested for 100% impulse voltage and temperature cycling to make sure they meet strict performance standards before they are shipped. Our laser-welded capacitor elements are vacuum impregnated to ensure zero partial discharge, and full material tracking according to IEC 61869-1 shows where the component came from. Manufacturing knowledge gained over 20 years leads to design improvements that address failure modes seen in real life and different working situations.

After-Sales Support Infrastructure

When urgent technical help is needed, global service networks cut down on the time it takes to get help. Because spare parts are available in the EU, the Americas, and the Asia-Pacific region, parts can be quickly replaced without having to wait for international shipments. Technical support teams that can be reached at serina@xaxd-electric.com, amber@xaxd-electric.com, and luna@xaxd-electric.com 24 hours a day, seven days a week can help with fixing, even if they are in different time zones. Full documentation, such as maintenance instructions, test methods, and troubleshooting guides, lets local teams do regular maintenance without having to rely on a provider.

Contract Considerations

Maintenance service agreements that spell out response times, parts warranty periods, and how to get help when problems arise protect buyers from having to pay more than they expected. When you buy in bulk, you can often get better terms on things like extra warranty coverage or pre-paid upkeep credits. Because they can be customised, voltage ratios, output configurations, and mounting arrangements can be changed to fit existing infrastructure. This keeps expensive substation redesigns from being needed. Our pre-certification for CE, UL, GOST, and AS/NZS standards speeds up the approval process for projects in many countries around the world. Checking the financial stability of a supplier gives you peace of mind about long-term part availability and warranty fulfilment. Established companies that make a wide range of products are better able to handle changes in the market than specialised companies that are more sensitive to economic downturns. References from similar applications back up what the supplier says about support quality and reliability.

Conclusion

The life of a capacitive voltage transformer relies on regular upkeep that checks the integrity of the insulation, protects the environment, and handles electrical stress. Failures that disrupt operations and put people at risk can be avoided with proactive inspection schedules and thorough testing protocols. Choosing equipment with strong design gaps and pollution-resistant construction makes it easier to maintain and more reliable at the same time. Partnering with experienced capacitive voltage transformer makers that offer a global support system makes sure that you can get professional help and spare parts for as long as the equipment is in use. When utility companies, data centers, and industrial facilities use these maintenance strategies, they get better uptime performance while lowering their total ownership costs.

FAQ

1. How often should voltage transformers undergo maintenance inspection?

Most installations only need a full inspection once a year, but harsh environments may need visual checks every three months. Utility gearbox systems usually have automatic tracking that happens once a month, along with thorough testing once a year. Continuous online diagnostics with instant alerts when parameters move outside of acceptable ranges are helpful for data centers and hospitals that need the highest level of dependability.

2. What indicators signal urgent maintenance requirements?

Visible corona discharge, unusual odors suggesting overheating, or measurement errors of more than 1% need to be looked into right away. Misfunctioning protective relays or circuit breakers that trip for no apparent reason could be signs of CVT issues that are affecting the coordination of system security. Temperature rises above 10°C compared to standard readings are a sign of failing insulation or connections that need to be fixed right away.

3. Does proper maintenance affect measurement accuracy?

When capacitors are ignored, their capacitance changes, which has an effect on voltage division rates and measurement accuracy. Testing on a regular basis makes sure that the accuracy class meets the requirements needed for income metering and safe relay coordination. To keep 0.2% accuracy over a 25-year service life, environmental factors and monitoring of component condition must be carefully watched.

Partner With Xi'an Xikai for Superior CVT Maintenance Solutions

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. offers full help to make sure that your equipment for measuring voltage is as reliable and long-lasting as possible. Our 69 72.5kV capacitive voltage transformer supplier uses 12 patented technologies and strict quality control to make sure they only sell high-quality products that have been used in State Grid systems, factories, and green energy projects. Engineers who can support custom configurations, thorough upkeep routines, and quick technical help are available to procurement managers. Get in touch with our experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your needs. Ask for a meeting right now to get the care partner your important infrastructure needs.

References

1. Institute of Electrical and Electronics Engineers. "IEEE Guide for Acceptance and Maintenance of Capacitor Voltage Transformers." IEEE Std C93.1, 2018.

2. International Electrotechnical Commission. "Instrument Transformers - Part 5: Additional Requirements for Capacitor Voltage Transformers." IEC 61869-5, 2020.

3. Electric Power Research Institute. "Condition Assessment of Voltage Transformers in Utility Applications." EPRI Technical Report 3002014517, 2019.

4. National Institute of Standards and Technology. "Calibration Procedures for Voltage Transformers in Revenue Metering Systems." NIST Handbook 150-2E, 2021.

5. Cigré Working Group A3.24. "Reliability Survey of Instrument Transformers in High Voltage Networks." Cigré Technical Brochure 767, 2019.

6. American National Standards Institute. "Requirements for Instrument Transformers." ANSI C57.13-2016, 2016.
