Disconnect Switch Buying Guide for Utilities

Selecting the right disconnect switch for utility operations requires careful consideration of safety standards, operational reliability, and long-term performance. A proper disconnect switch serves as the backbone of electrical isolation in power systems, ensuring worker safety during maintenance while maintaining grid stability. Understanding voltage ratings, current capacity, environmental resistance, and compliance requirements helps utility operators make informed decisions that protect both personnel and equipment investments.

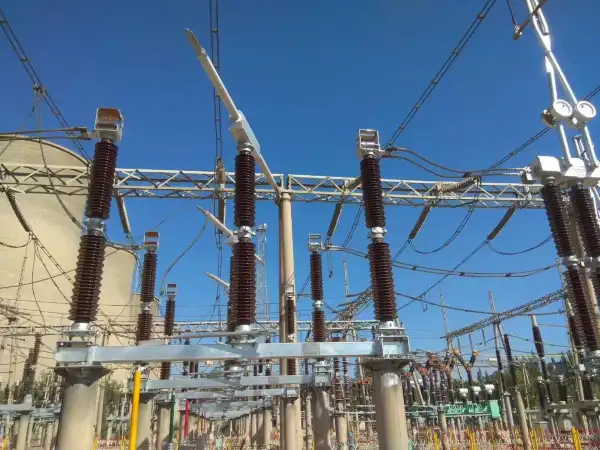

Understanding Disconnect Switch Fundamentals in Utility Applications

Utility companies face unique challenges when selecting electrical isolation equipment. Power distribution networks demand components that withstand harsh environmental conditions while providing reliable service for decades. Modern disconnect switches integrate advanced materials and smart monitoring capabilities to meet these demanding requirements.

The Role of Isolation in Utility Safety

The electrical isolation technique involves the physical separation of circuits to create discernible air gaps. This separation guarantees total de-energization of equipment for maintenance activities. In contrast to circuit breakers that disrupt fault electricity, these switches function under no-load situations to provide secure conditions of work for maintenance personnel.

Environmental Stress and Equipment Adaptation

Environmental considerations substantially influence the efficiency of utility applications. Coastal installations experience deterioration from salt spray, whilst desert areas confront sand infiltration and significant temperature fluctuations. Mountain substations must address the impact of altitude on insulation efficacy. These factors influence the choices of materials and the design of enclosures.

Combining Isolation with Interruption Capability

Load break switches offer enhanced functionality by interrupting small currents safely. This capability proves valuable in distribution systems where frequent switching operations occur. The combination of isolation and limited breaking capacity reduces the need for separate equipment installations.

Critical Technical Specifications Every Utility Should Evaluate

 Voltage and Current as Selection Fundamentals

Voltage ratings form the foundation of disconnect switch selection. High voltage applications above 35kV require specialized insulation systems and extended contact gaps. Distribution voltage equipment handles 15kV and below with different design considerations. Matching voltage ratings to system requirements prevents costly over-specification or dangerous under-rating.

Current capacity determines the switch's ability to carry normal load currents continuously. Utility applications often require ratings from 600A to 4000A depending on circuit requirements. Short-time current ratings indicate the switch's ability to withstand fault conditions until protective devices operate. These ratings typically reach 40kA or higher in transmission applications.

Insulation Systems and Environmental Protection

Insulation coordination ensures reliable operation under various system conditions. Creepage distances account for pollution levels in the installation environment. Impulse withstand voltages protect against lightning strikes and switching surges. Disconnect Switch insulation must meet both impulse and power frequency withstand voltage requirements to verify integrity under normal and transient conditions.

Mechanical Life and Operational Consistency

Mechanical endurance specifications indicate expected operational life. Manual switches typically handle 1000 operations while motorized versions accommodate 10,000 or more cycles. Operating force requirements affect actuator selection and personnel safety. Smooth operation throughout the temperature range ensures reliable switching in all weather conditions.

Safety Standards and Compliance Requirements for Utility Operations

Governing Industry Standards and Compliance Frameworks

IEEE standards regulate the design and testing of disconnect switches in markets in the United States. IEEE C37.32 delineates performance criteria for high voltage switches, while IEEE C37.37 pertains to distribution voltage apparatus. These standards define testing protocols for the verification of the mechanical, electrical, and environmental performance.

IEC standards provide internationally recognized requirements for electrical equipment. IEC 62271-102 covers AC disconnectors and earthing switches for high voltage applications. These standards ensure global interoperability and consistent safety performance across different manufacturers and regions.

 Installation Safety and Operational Protocols

NESC compliance addresses installation and maintenance safety requirements. Proper clearances prevent accidental contact with energized parts. Grounding requirements ensure safe working conditions during maintenance operations. Lockout capabilities prevent unauthorized operation during work activities.

 Arc Flash Risk Mitigation and Personnel Protection

Arc flash considerations affect personnel safety during switching operations. Proper switch selection minimizes arc formation during operation. Remote operation capabilities remove personnel from potential arc flash zones. Personal protective equipment requirements vary based on incident energy calculations for specific installations.

Operational Reliability Factors That Impact Long-Term Performance

Contact Systems and Electrical Reliability

Contact design significantly affects operational reliability and maintenance requirements. Silver-plated contacts resist corrosion while providing low resistance connections. Self-wiping action during operation maintains clean contact surfaces. Spring-loaded designs ensure consistent contact pressure throughout the operational life.

Mechanism Design and Operational Visibility

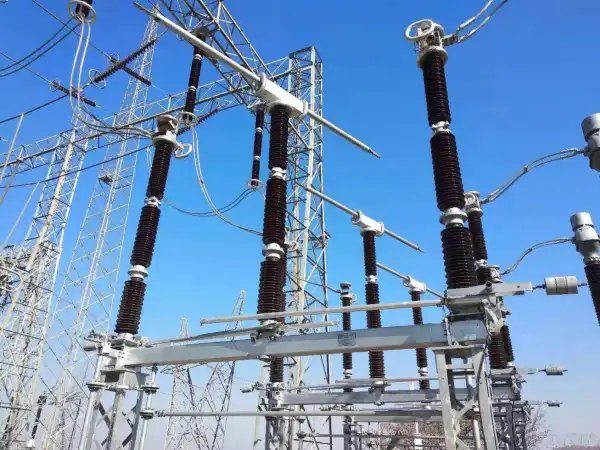

Operating mechanisms determine switching reliability and maintenance intervals. Pantograph designs offer compact installations with reliable operation. Rotating blade mechanisms provide visible isolation with positive contact indication. Disconnect Switch integration with center-break configurations minimizes space requirements while maintaining safety clearances.

Environmental Protection and Corrosion Control

Environmental sealing protects internal components from moisture and contamination. IP65 ratings provide adequate protection for most outdoor installations. Special sealing may be required for coastal or industrial environments with severe pollution levels. Drainage provisions prevent water accumulation in mechanism housings.

Corrosion resistance extends operational life in challenging environments. Aluminum components offer excellent strength-to-weight ratios with natural corrosion resistance. Hot-dip galvanizing provides superior protection for steel components. Stainless steel hardware eliminates corrosion concerns for critical fasteners.

Smart Grid Integration and Monitoring Capabilities

Smart Capabilities and Predictive Maintenance

Contemporary utility operations increasingly depend on remote control and surveillance technology. Intelligent disconnect switches include sensors for position detection, contact temperature measurement, and mechanical condition evaluation. These features enable predictive maintenance techniques that minimize unexpected outages.

SCADA Integration and Cybersecurity

Communication protocols enable the integration of existing SCADA systems. The DNP3 / IEC 61850 protocols give common interfaces for distant management and monitoring. Cybersecurity measures safeguard against illegal access while preserving operational flexibility.Safety in Diagnostics and Distance Switching

Diagnostics and Remote Switching Safety

Condition monitoring systems track performance parameters over time. Vibration sensors detect mechanical wear before failure occurs. Temperature monitoring identifies high resistance connections requiring maintenance attention. Operation counters track mechanical life consumption for maintenance planning.

Remote operational capabilities augment system dependability and promote worker safety. Motor operators facilitate the transition from control centers during emergency situations. Manual override provisions provide local control after communication failures. Position indicator systems provide affirmative input about switch status.

Economic Considerations and Total Cost of Ownership

 Lifecycle Costing Beyond Initial Purchase

Initial equipment costs represent only a fraction of total ownership expenses over typical 30-year utility equipment life cycles. Quality components justify higher initial investments through reduced maintenance requirements and extended service life. Standardization on fewer manufacturers simplifies spare parts inventory and training requirements.

Installation Efficiency and Site Integration

Installation costs vary significantly based on equipment design and site requirements. Compact designs reduce foundation requirements and installation labor. Modular construction facilitates transportation to remote locations. Factory pre-testing reduces field commissioning time and startup costs.

Maintenance expenses accumulate throughout equipment life. Manual switches require periodic lubrication and contact cleaning. Motorized versions add electrical maintenance requirements but reduce manual labor exposure. Predictive maintenance programs identify issues before failures occur, reducing emergency repair costs.

Long-Term Economic Value and Risk Reduction

Reliability improvements translate directly into economic benefits. Reduced outage frequency improves customer satisfaction scores. Shorter restoration times minimize revenue losses during unplanned events. Disconnect Switch installation enables faster isolation of faults, further shortening restoration times. Enhanced safety features reduce liability exposure and insurance costs.

Choosing the Right Disconnect Switch Manufacturer and Support

Manufacturing Integrity and Process Control

Manufacturing quality standards significantly impact long-term performance and reliability. ISO 9001 certification ensures consistent quality management systems. Independent testing laboratory verification confirms published performance specifications. Factory inspection capabilities demonstrate manufacturing process control.

 Post-Sale Support and Service Infrastructure

Technical support availability affects both installation success and ongoing operations. Local service representation provides rapid response for urgent issues. Training programs ensure proper installation and maintenance procedures. Spare parts availability maintains equipment operability throughout its service life.

Warranty coverage protects against manufacturing defects and premature failures. Comprehensive warranties demonstrate manufacturer confidence in product quality. Extended warranty options provide additional protection for critical applications. Clear warranty terms prevent disputes during claim processing.

 Application Flexibility and Protection Terms

Customization capabilities address unique application requirements. Special environmental ratings accommodate extreme operating conditions. Modified mounting arrangements fit existing installation constraints. Custom control interfaces integrate with legacy systems.

Conclusion

Successful disconnect switch selection requires balancing technical performance, safety compliance, and economic considerations. Utility operators must evaluate voltage ratings, current capacity, environmental resistance, and operational reliability to make informed decisions. Smart grid integration capabilities enhance monitoring and control while reducing long-term operational costs.

Quality manufacturers provide comprehensive support including technical consultation, training, and spare parts availability. Proper specification and installation ensure decades of reliable service while maintaining worker safety. The investment in quality disconnect switches pays dividends through reduced maintenance costs and improved system reliability.
