How Porcelain Type SF6 Circuit Breaker Supports Grid Reliability

When substation projects demand unwavering protection for transmission networks, the porcelain type SF6 circuit breaker stands as an essential component for grid stability. Combining the exceptional arc-quenching properties of SF6 gas with the mechanical robustness of porcelain insulation, these breakers effectively interrupt fault currents while maintaining dielectric strength across demanding voltage classes. For EPC contractors managing 126kV or 145kV substations, understanding how this technology safeguards grid reliability becomes central to project success and long-term operational continuity.

​​​​​​​

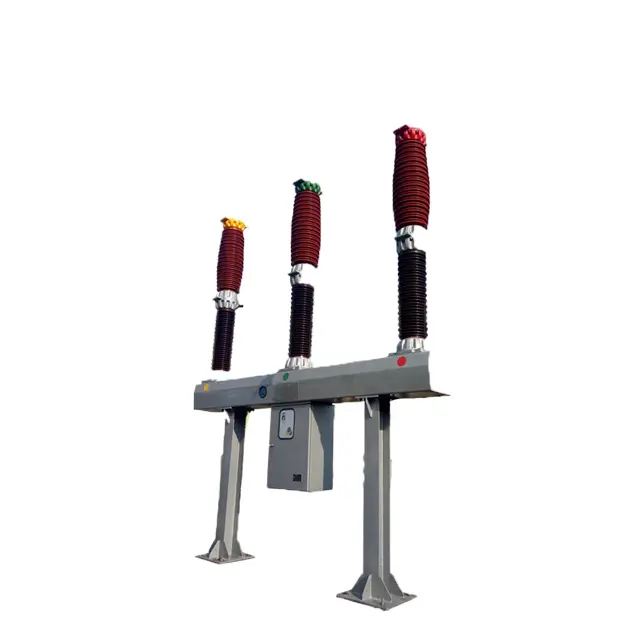

Understanding Porcelain Type SF6 Circuit Breakers and Their Role in Grid Reliability

The Porcelain Type SF6 Circuit Breaker's design combines two tried-and-true technologies into a single safety device. SF6 gas has a dielectric strength that is about 2.5 to 3 times that of air at standard pressure. This means that high-voltage applications can use small interrupter chambers. At the same time, porcelain housings are stronger and more resistant to weather, which protects the inside parts from environmental stressors.

Construction and Operating Principles

The SF6 interrupter chamber is at the center of these breakers. This is where gas molecules quickly take in free electrons when an arc forms. When there is a fault and the contacts split, an arc forms that makes a lot of heat. Because it is highly thermally conducting and negatively charged, SF6 gas cools the arc column very quickly and stops it from starting up again. The porcelain housing surrounds this process and does a great job of keeping the phases and ground potential separate.

There are three main types of mechanisms that make the gadget work. In spring-operated units, the closing spring is charged by an electric motor, while the opening spring charges itself when the unit is closed. Hydraulic mechanisms use disk springs to store energy without using compressed nitrogen. This lets them be operated hydraulically for both opening and closing. Compressed air is used to open pneumatic mechanisms, and springs are used to close them. Each type of mechanism works reliably and is designed to work with a certain power class and set of operating needs.

Key Performance Parameters

The breaker's rated breaking capacity tells you the biggest problem current it can safely stop. For 126kV and 145kV systems, modern porcelain SF6 breakers can usually handle breaking currents of 31.5kA or 40kA, which is enough for most substation setups. Rated normal current runs from 2000A to 4000A, so it can handle a wide range of load types. Since these devices work at a frequency of 50Hz, their performance stays the same during normal grid activities.

Porcelain housings are different from other insulation materials because they can stand up to harsh environmental conditions. Porcelain can handle temperatures ranging from -30°C to 50°C, so it can be used in a wide range of climates, from the humid coastal areas to the hot deserts. The substance doesn't break down when exposed to UV light, keeps its shape when put under mechanical stress, and offers reliable insulation even in dirty environments where salt fog or industrial pollutants could damage other materials.

Comparing Porcelain Type SF6 Circuit Breakers with Alternative Technologies

When buying teams know how porcelain SF6 breakers stack up against other technologies, they can make smart choices that fit the needs of the project and meet performance goals.

Vacuum Circuit Breakers

Vacuum breaks work great in indoor settings with limited room. There isn't much upkeep needed, and there are no worries about gas leaks. However, vacuum technology has trouble with higher voltage classes above 40.5kV because it gets harder to coordinate the insulation. Porcelain SF6 breakers are the best choice for transmission-level substations because they can handle ratings of 126kV and 145kV and have been shown to be reliable. When you look at the total installed system, the difference in cost gets smaller. This is especially true for outdoor systems where vacuum breaks need extra weatherproofing.

Metal-Clad SF6 Circuit Breakers

Metal-clad forms have small areas and better protection against electromagnetic fields. When space is limited, these breakers are the best choice for gas-insulated switchgear applications. For standard air-insulated substations, Porcelain Type SF6 Circuit Breaker units are cheaper while still doing a good job of stopping power. The modular design of porcelain units makes phase-segregated maintenance easier. Technicians can service individual phases without having to shut down the whole system, which is helpful during planned outages.

Polymer-Insulated SF6 Breakers

When compared to china, polymer housings are lighter and cheaper to ship. On the other hand, porcelain has better long-term aging properties. A lot of work in the field over many years has shown that porcelain is strong against tracking, slippery surface degradation, and mechanical impact. As long as the insulation is replaced only every 25 years or so, porcelain insulation is a good choice for projects that want to get good value for their money.

Porcelain SF6 technology has been used by top manufacturers like Siemens, ABB, Schneider Electric, and GE in installations around the world. Their technical knowledge, along with strict testing procedures and certification compliance, gives purchasing teams faith in the quality of their products and the security of their suppliers.

Maintenance and Technical Support: Ensuring Longevity and Operational Safety

To make an asset last as long as possible, it needs to be maintained in a planned way and have manufacturers provide responsive technical support. Porcelain Type SF6 Circuit Breakers have simple checking procedures that make them last longer while still meeting safety standards.

Routine Inspection Guidelines

Patrol checks focus on checking the SF6 gas pressure to make sure the sealed system keeps its ability to insulate and stop arcs. Mechanics are checked once a month to make sure that things like bolts are tight and the operating mechanism is well oiled. Once a year, the driving system's alignment, valve settings, and the state of draining in mechanism housings are checked. These planned activities usually keep major overhauls every 25 years, which lowers lifecycle costs compared to technologies that need to be fixed more often.

The breaker will keep working at its best for as long as it's supposed to for as long as it's supposed to last. Laser imaging and sniffer probe tests are used for quality control during production to find any possible seal problems before they are shipped. Traceability systems keep track of the production data for each part, which lets you quickly find the root cause of problems in the field.

Troubleshooting and Spare Parts Management

When operational problems happen, systematic troubleshooting protocols quickly find the root causes. Some common problems are motor control circuit failures that stop automatic charging, contact resistance increases that show wear, or partial discharge activity that shows insulation degradation. Manufacturers give maintenance teams diagnostic flowcharts and online support to help them figure out what needs to be done to fix problems.

The supply of spare parts has a direct effect on the uptime of the grid during unexpected outages. Lead times for important parts like interrupter kits, operating mechanisms, or control modules can be cut down by working with makers who keep stock in the area. Warranty terms that cover material flaws and poor workmanship for two to three years protect your finances during the first few years of service, and extended service agreements give you a way to plan your maintenance costs for the long run.

Protocols for testing make sure that everything works right after installation and during regular setup. Power frequency withstand voltage tests and lightning impulse voltage tests make sure that the shielding is working well together. Contact resistance readings make sure that the main circuit stays connected without burning up too much. Partially discharge testing finds problems inside that are less than 5 picocoulombs, which stops insulation from breaking down over time, which could cause huge problems.

Procurement Insights for Porcelain Type SF6 Circuit Breakers

When you do strategic sourcing for substation projects, you have to find a balance between technical requirements, budget limits, and the reliability of the supply chain. Clear decision frameworks that cover key selection factors help procurement teams that are in charge of 2 to 15 breaker units per project.

Matching Specifications to Project Requirements

The choice of breaking capacity is based on estimates of fault currents that come from studying the system. In a meshed network, a 126kV substation might have fault currents that need 40kA of breaking power. In a radial design, 31.5kA ratings might be enough. The rated normal current needs to be able to handle peak loads while still leaving enough safety margins. Most distribution substations use 3150A ratings, while 4000A units are used for bulk power transfer.

The choice of operating mechanism for a Porcelain Type SF6 Circuit Breaker affects how to maintain the machine and how much it costs to run. Because spring devices are simple and don't need as many extra parts, they can be used in places with limited repair infrastructure. Fast reclosing is possible with hydraulic devices, which is useful for transmission networks that need to quickly fix problems and get back up and running. Installations that already have compressed air systems can use pneumatic devices, which makes use of shared infrastructure to save time and money.

Procurement Logistics and Supply Chain Considerations

Lead times for engineered-to-order breakers are usually between 4 and 6 months, from the time the contract is signed until the plant accepts the breakers. When ordering in bulk for projects with more than one phase, you may be able to get better prices and keep your inventory levels consistent for maintenance programs. Some of the customization options are climate-specific ratings for harsh environments, seismic qualification for areas that are prone to earthquakes, and specialized control integration for SCADA system compatibility.

To find qualified suppliers, you need to look at their manufacturing certifications, testing capabilities, and project references. ISO 9001 approval shows that a company has a mature quality management system, and ISO 14001 compliance shows that a company cares about the environment when it makes things. It is easier to be sure that a supplier's products will work if they have their own testing facilities that can do full short-circuit current testing and over 2,000 mechanical operation durability tests.

Regional transportation networks affect how deliveries are made and how quickly customers can get help after the sale. Suppliers that are already well-known in project markets can offer faster shipping of spare parts, help with setup on-site, and training programs for maintenance staff. All of these things lower the total cost of ownership, which goes beyond the initial purchase price.

Real-World Applications and Case Studies Demonstrating Grid Stability

By looking at common deployment cases, we can see how Porcelain Type SF6 Circuit Breakers improve grid stability in a range of working conditions.

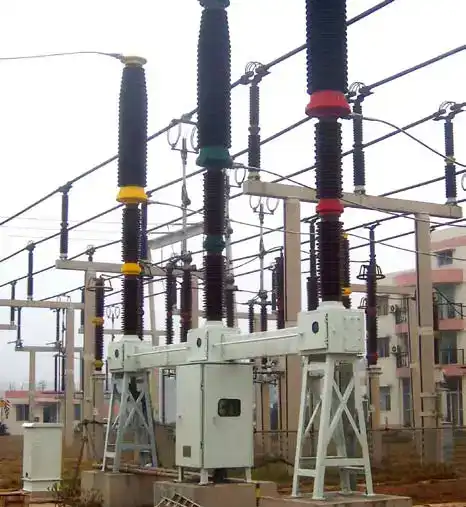

Utility Transmission Substations

A 145kV transmission substation that serves an urban grid replaced old oil circuit breakers with porcelain SF6 units that can handle 40kA of breaking current. The system took care of fault currents from a number of different power sources while still fitting into existing switchyard plans. After five years of use, the breakers showed that they were 99.97% available with no unplanned breakdowns. This proved that they were designed to be reliable for use in important infrastructure applications.

Industrial Power Systems

For its main switch that feeds grinding mills and conveyor systems, a mining company used 126kV ceramic SF6 breakers with a 3150A rating. The harsh environment, which had a lot of dust, humidity, and temperature changes, made it hard for equipment to last. Porcelain housings could handle rough conditions, and sealed SF6 systems kept their insulation integrity even when they were exposed to contaminants. The time between maintenance checks was pushed back to 18 months, which cut down on costs and helped meet goals for continuous production.

Renewable Energy Integration

In order to handle the capacitor bank and reactor during reactive power adjustment, solar farms need special switching capabilities. With fast reaction times of less than two cycles, the LW25 series breaker, which was set up for 4000A capacitor switching duty, could handle back-to-back capacitor bank currents of 1600A and reactor inrush currents. This performance kept voltage changes from random solar output from getting out of hand, which made the grid more stable and improved the quality of power for people who use it later.

Performance data from these sites shows failure rates below 0.5% per year, which is a lot better than the failure rates of older technologies that were removed during retrofit projects. Operators said that maintenance labor costs were 30% lower than with older generations of breakers, and fault clearing times were faster, which made the overall system protection coordination better.

New developments in circuit breaker technology include connecting them to digital tracking systems for planned maintenance, creating alternatives to SF6 to protect the environment, and making them flexible so that older infrastructure can be easily updated. Several places now have laws that require manufacturers to keep an eye on and report SF6 leaks. This forces them to come up with better ways to seal the gas and handle it, which porcelain SF6 breakers can easily adapt to through simple design changes.

Conclusion

Porcelain Type SF6 Circuit Breakers protect transmission networks by blending strong mechanical construction with excellent arc stoppage capability. This is a tried-and-true method. Their performance across breaking capacities of up to 40kA, current rates of up to 4000A, and voltage classes ranging from 126kV to 145kV meets the main needs of EPC companies in charge of substation projects. Choosing the right operating mechanism—spring, hydraulic, or pneumatic—based on the needs of the operation guaranties long-term dependability while making the best use of maintenance resources. When technical specifications, lifecycle costs, and supplier capabilities are all taken into account during the procurement process, porcelain SF6 breakers provide reliable grid protection that can last for decades without stopping.

FAQ

1. What is the typical service lifespan of a porcelain type SF6 circuit breaker?

If you keep up with the maintenance, good porcelain SF6 breakers made to IEC 62271-100 standards can work for 25 to 30 years. Mechanical endurance class M2 devices can handle more than 10,000 operations, and electrical endurance class E2 scores show that they will work reliably even after thousands of fault delays. Inspections every 12 to 18 months and yearly checks of the SF6 pressure make sure that this durability lasts the whole design life.

2. How do porcelain housings improve safety compared to other insulation materials?

Porcelain is a chemically harmless and non-flammable insulation that keeps its dielectric strength even in dirty or high temperatures. The material doesn't let surface waste stick to it and doesn't let interior oxidation happen, which breaks down other materials over time. When combined with sealed SF6 systems that keep leakage rates below 1% per year, porcelain housings provide sealed-for-life security that needs little care and keeps people safe during operation and maintenance.

3. Can porcelain SF6 breakers be customized for specific project requirements?

Manufacturers offer a lot of customization options, such as seismic qualification for areas prone to earthquakes, extended temperature ratings for cold or warm climates, altitude compensation for installations above 1000 meters, and unique control interfaces that can be used with certain SCADA protocols. The operating mechanism, secondary contact configurations, and fastening arrangements can be changed to fit the needs of the project. Including suppliers in the design process makes sure that the specifications are optimized to meet both technical and business goals.

Partner with Xi'an Xikai for Reliable Porcelain Type SF6 Circuit Breaker Solutions

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. is a reliable company that makes Porcelain Type SF6 Circuit Breakers and provides engineered solutions for transmission substations in tough conditions. Our LW25 series outdoor porcelain SF6 breakers can handle voltages up to 145kV and 126kV, and can break loads of 31.5kA and 40kA. They can be operated by springs, hydraulics, or pneumatics, depending on your needs. Our manufacturing methods are backed by ISO 9001 and ISO 14001 certifications, and we have more than 20 patents in high-voltage switchgear technology. EPC companies rely on our technical know-how for important infrastructure projects. You can email our engineering team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about the details of your substation, get detailed information, or set up factory acceptance testing. You can look at our whole line of products at xaxd-electric.com and learn how our solutions improve grid reliability for utilities, factories, and renewable energy installations around the world.
