How to Choose Outdoor Disconnect Switch for Harsh Environments

Voltage rates, enclosure safety standards, and material stability are all important factors to consider when choosing an Outdoor disconnect switch for tough settings. These important safety devices cut power to electrical equipment during repairs and accidents, keeping people and the infrastructure safe. When harsh weather, corrosive atmospheres, or changes in temperature put the security of the grid at risk, buying teams must prioritize switches made with weather-resistant materials, sealed mechanisms, and strong construction that meets IEC and UL standards. Understanding these selection factors is important for making sure that operations run smoothly and that regulations are followed in business, utility, and industry settings.

​​​​​​​

Understanding Outdoor Disconnect Switches and Their Purpose

Role of Outdoor Disconnect Switches in High-Voltage Isolation

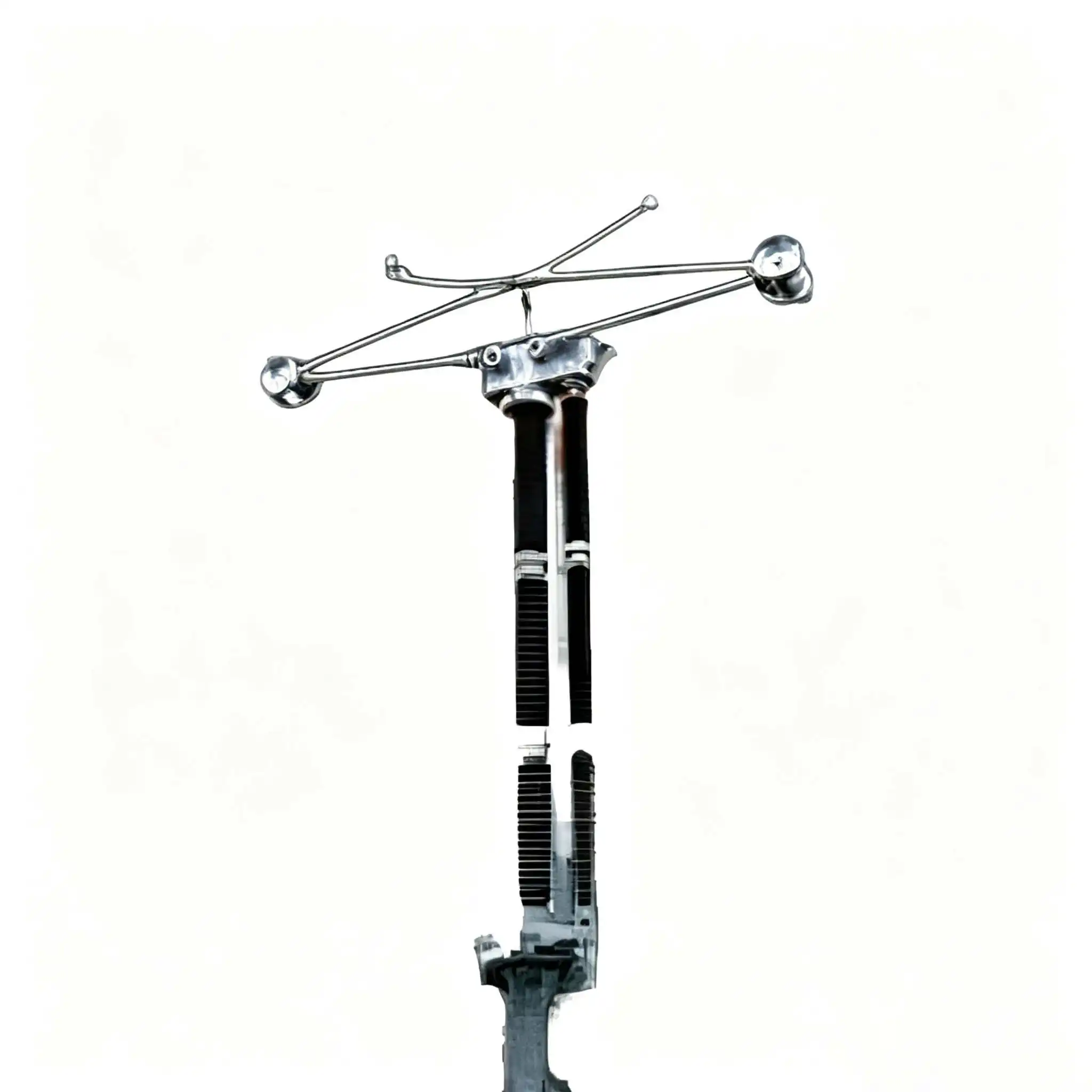

An outdoor break switch is an important safety device that separates electrical lines in high-voltage systems so that repair can be done safely. Models like the GW6 High Voltage Disconnect Switch reliably separate circuits with voltages from 126kV to 550kV in substations and industrial lines. They aren't meant to stop load current like circuit breakers do; instead, they're meant to make sure that there is obvious separation. In situations where operating security is very important, like power transfer networks and projects that use green energy, these are necessary to keep the system safe.

Structural Advantages for Harsh Environment Operation

Disconnect switches that are outside have to be able to handle harsh weather, smog, and motor stress. The GW6 design has hot-dip zinc bases, protected drive systems, and triple-layer bushings to protect against sand, ice, humidity, and rust. These improvements to the structure make sure that it can work safely in places like deserts, along the coast, and at high elevations of up to 4,000 meters. Conductors made of high-strength aluminum metal are lighter and less likely to rust. This makes placement faster and long-term performance more reliable in tough environments.

Application Scenarios in Modern Power Infrastructure

A lot of substations, industrial plants, and transportation power systems use outdoor stop buttons to make sure that grid division is safe. The GW6 line from Xi'an Xikai works especially well in complicated places like steel plants, petroleum plants, and green energy stations that need stable separation even when the loads change. With added smart tracking features, workers can see the state of the contacts in real time, which helps them plan maintenance better and cuts down on downtime. The smart grid of today and its long-term operating efficiency are both helped by this mix of mechanical dependability and system intelligence.

Core Criteria for Selecting Outdoor Disconnect Switches in Harsh Conditions

Methodical review based on factors specific to the application tells the difference between models that are good and ones that aren't. This method based on criteria speeds up the decision-making process and makes sure that technical needs are met within the available budget.

Voltage and Current Ratings Match System Requirements

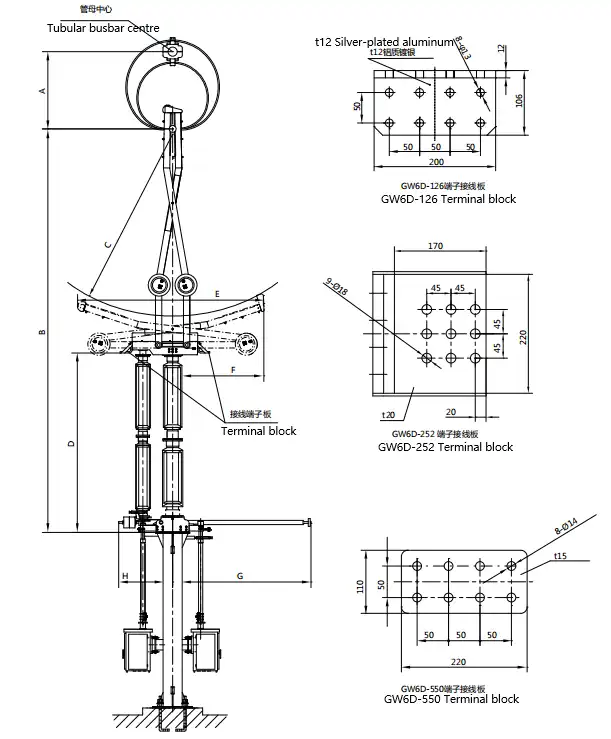

The voltage values must be higher than the highest voltage that the machine can handle, with enough room for error. Transmission substations and other places with high voltages between 126kV and 550kV need special designs like the GW6 High Voltage Disconnect Switch. This vertical flexible model can handle voltages in that whole range and can handle up to 4000A of power. Industrial plants that use mid-voltage systems (15kV–69kV) need different designs that are best for their load rates. Undersizing current ratings causes warming and contact damage, while oversizing them too much raises capital costs for no reason.

Enclosure Protection Levels Address Environmental Threats

The NEMA and IP grade methods measure how well something protects against certain risks. NEMA 4X barriers protect against corrosion and keep dust out of manufacturing sites that deal with a lot of particulate pollution. Coastal systems that are exposed to salt spray rust need more than just galvanized steel. Hardware made of stainless steel and brass resists electrolytic breakdown. Extreme heat and sand in the desert make it necessary for sealed drive systems that keep out small particles and can work in a wide range of temperatures. The GW6 has sealed parts that are rated for resistance to sand and ice, so it can deal with multiple weather risks at the same time.

Material Engineering for Extreme Conditions

The choice of material directly affects how long something will last in harsh conditions. High-strength aluminum alloy wires are very good at conducting electricity while also being resistant to corrosion and light, which is very important for sites that need to be strong against earthquakes. Triple-layer bushings with low-friction and self-lubricating features keep the machine running smoothly for thousands of switching cycles without any maintenance. By making mechanical ties that protect the steel below from water and chemicals, hot-dip galvanized bases make them last longer than 30 years.Grading rings on fixed contacts solve a technical problem that is often overlooked: they cut down on radio interference and improve the distribution of the electric field, which stops corona discharge that wears out insulation faster. In high-voltage situations where field stresses are highest at the ends of conductors, this technical feature is very important.

Balancing Performance with Budget Realities

Choosing the cheapest choice is not the same thing as cost-effective procurement. Total cost of ownership must take into account the work needed for installation, the frequency of upkeep, the expected service life, and the costs of downtime when something breaks. Compared to combined units that need to be replaced completely, modular designs let parts be replaced, which lowers maintenance costs. The 30-year service life of well-designed Outdoor disconnect switches spreads out the initial expense over many years of steady use. When buying in bulk for installations at multiple sites, it makes sense to work directly with makers. For example, Xi'an Xikai can help with engineering and customization for big projects in a way that wholesalers can't.

Comparing Popular Types and Brands of Outdoor Disconnect Switches

The market for Outdoor disconnect switch designs has a wide range of options to meet various operating needs. Knowing about these choices helps buying teams come up with the best answers.

Configuration Types Serve Different Applications

Non-fusible disconnect switches only isolate the circuit; they depend on safety devices further up the line to handle overcurrent situations. These units work well in places where problem interruption is handled by separate circuit breakers or fuses. Fusible designs include overcurrent protection, combining isolation and protection functions in a single box. This is helpful when room is limited or cost is an issue that wants to combine functions. Single-pole configurations work with single-phase circuits, and three-pole units are popular in industry and utility settings where three-phase power needs to be distributed.Horizontal rotary designs, like the GW7-252 series, have blade systems that rotate and leave holes in the air that can be seen. Vertical retractable designs, like the GW6 type, move the contacts up and down, which makes the phase-to-phase space about 30% smaller than in horizontal designs. This small size is useful in substations that don't have a lot of room or in cities where the cost of land makes it worth buying more expensive equipment.

Evaluating Manufacturer Capabilities

Established makers have decades of knowledge in the field, which helps them come up with new products. Square D, Eaton, Siemens, and Schneider Electric all have large distribution networks that make it easy to get parts and expert help quickly. ABB and GE are experts in making large-scale tools that can be monitored in a complex way. Smaller names might be cheaper, but you need to be very careful about the quality of their production and support systems.

Xi'an Xikai is a great choice for high-voltage projects, especially ones that need to be customized or need tools that can handle high altitudes. Our GW6 High Voltage Disconnect Switch has advanced features that make it work better in tough environments. For example, sealed drive units keep sand and ice out, flexible joints at pivot points make installation easier, and grading rings make the electrical field distribution better. Consistency across production runs is ensured by manufacturing under ISO 9001 approval and quality control that is driven by AI. Our engineering team has patents in high-voltage technology, which gives the project needs more scientific depth.

Look closely at the warranty terms when comparing manufacturers—the length of the warranty doesn't matter as much as the details of the coverage and how quickly claims are handled. Find examples of projects that have been done in similar settings and get in touch with the building managers to find out how well they worked in real life. When fixing operational problems or finding new parts years after installation, the quality of the after-sales help becomes very important.

Installation, Maintenance, and Safety Best Practices for Outdoor Disconnect Switches

Installation that is done right sets the stage for years of reliable service, and organized upkeep programs find problems before they become major problems.

Installation Procedures Affecting Long-Term Performance

Leveling is important when preparing a foundation because the alignment of the post insulator relies on fixing areas that are level. Bases that aren't level cause binding when the wheel turns and uneven contact pressure. Specific torque values must be used for mounting hardware. If it is under-tightened, it can move during fault conditions, but if it is over-tightened, it breaks insulators or warps mounting flanges. To keep galvanic rust from happening at metal-to-metal contacts, conductor connections need the right amount of torque and anti-oxidant chemicals.The safety of people during fault situations is directly affected by the stability of the grounding system. Connections to the ground must have low-impedance lines that can carry fault currents without heating up. Check the consistency of the ground after installation and on a regular basis after that. Corrosion at connection places raises resistance over time.

Maintenance Schedules Prevent Costly Failures

Routine inspections every five years are enough for good switches in normal settings, but more frequent checks may be needed in tough settings. Visual checks find cracks in the insulator, rust in the gear, or seal wear before they make the system less useful. Contact surfaces need to be cleaned and conductive greases need to be applied on a regular basis. Oxidation raises contact resistance, which creates heat that speeds up wear and tear. Operating parts need to be oiled at regular times. Maintenance is made a lot easier by sealed systems like the ones in the GW6.Using thermal imaging during powered checks can find hot spots that are growing, which means that the contact pressure is low or the connections are corroded. Fixing these problems during planned downtimes keeps them from happening at crucial times of operation. When check results and maintenance steps are written down, past records are made that can be used to support predictive maintenance strategies.

Safety Protocols Protecting Personnel

Lockout/tagout processes make sure that switches stay open while work is being done on equipment further down the line. Visible break capability is one of the main features of Outdoor disconnect switches that lets people clearly confirm separation. When de-energization is necessary for worker safety, don't just rely on position markers; check the real distance between contacts. Arc flash danger analysis tells you what kind of personal safety equipment you need to work with switches, since high-voltage switches can produce large arc energies when they go wrong.Safety rules for electrical work are set by OSHA rules and NFPA 70E guidelines. Compliance keeps both employees and businesses from getting fined by the government. Training programs must make sure that workers know the right way to switch between tasks, can spot when something is wrong, and know what to do when equipment breaks down.

Procurement and Purchasing Guidance for B2B Clients

Strategic sourcing practices make the buying process better by combining technology needs, price limits, and project deadlines.

Qualifying Suppliers and Manufacturers

Outdoor disconnect switch companies with a good reputation show that their products are of high quality by having certifications like ISO 9001 for quality management and ISO 14001 for environmental systems. For big purchases, ask for audit records from factories or set up site trips. Check out the testing options. Companies with their own high-voltage labs can back up performance claims without having to rely on testing done by a third party.Delivery times depend a lot on how customized the order is and how quickly it needs to be made. things from a standard catalog may ship within weeks, but things made to order specs take months. Include enough wait times in your project plans, taking into account shipping and customs clearance if you're buying from outside of the country. Xi'an Xikai keeps up its production capacity so that it can quickly deliver standard products and make unique products for specific uses. The fact that we get more than 500 orders a year shows that our manufacturing scale is strong enough to keep its delivery promises.

Understanding Pricing Structures

Ratings, features, and approvals all have an effect on price. When compared to simple separation switches, high-voltage models with advanced tracking features cost more. Ordering more than one unit gets you a deal, but sticking to a few types makes it easier to keep track of spare parts and train employees. Ask for quotes that break down the cost of the equipment into separate items, such as the cost of extra tools, installation hardware, and commissioning services.The terms of the warranty have a big effect on the total cost of ownership. Standard guarantees usually cover problems with the way the product was made for one to three years, but you might be able to get them to cover longer. Make it clear what kinds of things usually void the warranty—wrong installation or illegal changes usually do. Learn about the promises made about parts availability; makers should promise that new parts will be available for as long as the equipment lasts.

Leveraging Technical Support Resources

Manufacturers that offer pre-sale tech support help customers get the best specs for their needs. Technical advice is available from Xi'an Xikai to help customers choose the best options for their surroundings and electrical needs. Our engineering team looks at the conditions of the site, looks at single-line models, and suggests solutions that balance efficiency with the available budget. Post-sale help through specialized contacts makes sure that questions are quickly answered by technical experts instead of general customer service reps.

Conclusion

When looking for Outdoor disconnect switches for harsh locations, you need to carefully consider power levels, environmental protection standards, material sturdiness, and the manufacturer's capabilities. The technical factors listed—current capacity, enclosure ratings, materials that don't rust, and safety certifications—make it easy to compare different choices in a fair way. The quality of the installation and the repair programs have a direct effect on how safe and reliable the operations are. Strategic buying practices, such as qualifying suppliers and figuring out the total cost of a project, get the best value while still meeting the needs of the project. Advanced designs like the GW6 High Voltage Disconnect Switch show how engineering innovations can solve multiple environmental problems at the same time by using protected systems, materials that don't rust, and better electrical properties. Procurement experts who take the time to carefully evaluate secure solutions that protect key systems for decades.

FAQ

1.What distinguishes disconnect switches from circuit breakers?

Disconnect switches make clear places of separation for servicing safety, but they can't stop the flow of current when the load is on them. Circuit breakers actively stop fault currents and can open circuits that are already live. Outdoor disconnect switches don't work until upstream breakers turn off the power to the circuits they are connected to. They don't do safe switching, just make sure the circuits are isolated.

2.How do I verify weatherproof integrity over time?

Visual inspections are done once a year to check for damage to container seals, gaskets, and breather drains. Mineral layers or rust are clear signs that water got in. Using megohm meters to measure insulation resistance lets you find out how much moisture is getting in and changing the electrical structure. Values below the manufacturer's recommendations mean that the weatherproofing isn't as good as it should be, and the seals or parts need to be fixed up before they break.

3.Should facilities hire professional installation services?

For high-voltage setups, you must only use trained electricians who know the safety rules and technical requirements. For medium-voltage uses, it's best to have a professional install the equipment to make sure the right torque values, alignment steps, and grounding methods are used. Outdoor disconnect switch installation is complicated and dangerous, so it's best to have a professional do it. If it's not done right, it can void guarantees and create dangerous situations that put people and equipment at risk.

Partner with a Trusted Outdoor Disconnect Switch Manufacturer

Xi'an Xikai provides engineered solutions that deal with the biggest environmental problems that electricity infrastructure has to deal with. Our GW6 High Voltage Disconnect Switch is made of high-tech materials, tried-and-true designs, and strict testing procedures that make sure it works reliably in harsh situations. As one of China's main places to make medium- and high-voltage electrical equipment, we offer full system integration services for seven main types of products. Our plateau-rated equipment works effectively at elevations above 4,000 meters thanks to unique technologies and manufacturing methods that are ISO 9001-certified. No matter if you're in charge of utility transmission systems, industrial buildings, or business complexes, our expert team can help you make the best decisions for safety, dependability, and long-term value. To talk your Outdoor disconnect switch provider needs, contact our experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com.

References

1. Institute of Electrical and Electronics Engineers, "IEEE Guide for Application of Outdoor Disconnect Switches," IEEE Standards Association, 2019.

2. National Electrical Manufacturers Association, "NEMA 250: Enclosures for Electrical Equipment," NEMA Standards Publication, 2020.

3. International Electrotechnical Commission, "IEC 62271-102: High-voltage switchgear and controlgear - Part 102: Alternating current disconnectors and earthing switches," IEC Standards, 2018.

4. Occupational Safety and Health Administration, "OSHA 1910 Subpart S: Electrical Safety Standards," U.S. Department of Labor, 2021.

5. Electric Power Research Institute, "Maintenance Practices for High-Voltage Outdoor Disconnect Switches in Transmission Substations," EPRI Technical Report, 2017.

6. American National Standards Institute, "ANSI C37.30: Requirements for High-Voltage Outdoor Switches," ANSI Standards Committee, 2020.
