Metallized Film Capacitor vs Electrolytic Capacitor: Which Is Better for PFC Systems?

When Metallized Film Capacitors are compared to Electrolytic Capacitors for Power Factor Correction (PFC) systems, they always do better in industrial and utility-scale settings. Their ability to self-heal, longer operating lifespan, and better thermal stability save money and cut down on downtime, which are important factors for site managers who are in charge of sensitive equipment. Film-based solutions have been used for decades in factories, data centers, and grid substations, and they have shown stability that electrolytic designs can't match, even when AC voltage stress is constant and temperatures are high.

​​​​​​​

Introduction

Power Factor Correction (PFC) systems fix reactive power imbalances that cause utility fines and machine stress. They are the backbone of energy saving programs in business and industrial settings. The capacitors used in these systems have a direct effect on how well they work, how safe the power is for sensitive equipment, and how much it costs to own the whole system over many years or decades.This study looks at real-life PFC usage situations to compare Metallized Film Capacitors and Electrolytic Capacitors. Purchasing departments in factories, utility companies that keep the grid stable, and EPC firms that build safe electrical systems all need to know about construction methods, electrical performance measures, and the realities of the supply chain. By knowing how dielectric materials, self-healing mechanisms, and thermal properties affect the stability of a system, design decisions can be made that meet both short-term budget needs and long-term operating goals. There is a lot at stake when unplanned repair interrupts production plans or lowers the quality of power for computer systems.

Understanding Metallized Film Capacitors and Electrolytic Capacitors

Construction and Core Technologies

Metallized film capacitors use thin polypropylene or polyester films coated with vacuum-deposited aluminum or zinc. Wound elements are housed in metal or flame-retardant plastic cases. The metallization forms electrodes, enabling compact size and AC performance. Self-healing: localized dielectric breakdown vaporizes surrounding metal, isolating faults while preserving capacitance. Electrolytic capacitors use an oxidized aluminum anode forming Al2O3 dielectric, with electrolyte as cathode contact. They offer high capacitance density for DC filtering but are less suitable for AC/PFC applications.

Electrical Parameter Distinctions

Capacitance levels are very different between systems. Metallized Film Capacitor designs usually have a range of 1 to 100 microfarads per unit in PFC voltage classes (100V to 1000V), while electrolytic versions can reach thousands of microfarads in small spaces. However, reactive power adjustment is more important in PFC uses than bulk energy storage, so the film capacitor range is perfectly fine.Measurements of Equivalent Series Resistance (ESR) show important performance gaps. Quality polypropylene film capacitors have ESR values below 10 milliohms at 50/60Hz working frequencies. This means that they don't make too much heat inside when reactive current flows continuously. Electrolytic Capacitors have ESR values that are 5 to 20 times higher. They turn reactive current into thermal stress, which speeds up the loss of electrolyte and the breakdown of the oxide layer.

Failure Mode Analysis

Temperature ratings further differentiate capacitor technologies. Metallized film capacitors typically operate from -40°C to +85°C, with some variants reaching +105°C, while electrolytic capacitors are generally limited to -25°C to +85°C and experience sharply reduced lifespan at higher temperatures. The Arrhenius rule indicates service life halves for every 10°C rise above rated conditions, making thermal management critical in hot or poorly ventilated environments.Film capacitors exhibit graceful degradation through self-healing and gradual capacitance decline toward end-of-life open-circuit behavior, supporting predictable maintenance. In contrast, electrolytic capacitors degrade via electrolyte loss, increasing ESR and risking short circuits or rupture despite safety vents. These higher-risk failure modes make non-electrolytic designs increasingly preferred for NFPA 70 and UL-compliant critical installations.

Performance Comparison in PFC Applications

Efficiency and Power Loss Considerations

How well reactive power adjustment works depends a lot on how much internal capacitance is lost when the AC voltage keeps changing. The dissipation factor (tan ε) measures these losses. Good polypropylene Metallized Film Capacitors have tan ε values below 0.0002 at rated conditions, which means they lose less than 0.2W per kVAR of reactive compensation. Electrolytic systems have tan ε values between 0.005 and 0.15, and they give off 5 to 150W per kVAR of waste heat.The total difference is big when we look at a 50 kVAR PFC bank that works 8,760 hours a year. Film-based adjustments could waste 1,750 kWh in internal losses, while electrolytic versions could waste 43,750 kWh to 131,000 kWh. This could cost thousands of dollars in extra energy costs and make electrical rooms need more cooling.The ability to handle ripple current changes the stability of a system when harmonic distortion happens, which often happens in modern industrial facilities. Harmonic currents are added at multiples of the fundamental frequency by variable frequency drives, switching power sources, and LED lights, which are all nonlinear loads. Metallized Film Capacitors can handle ripple currents up to 1.5 times their rated RMS values without overheating, but electrolytic designs need to be heavily downrated, with harmonic currents usually being limited to 0.3 to 0.5 times their rated values to keep them from failing too soon.

Lifespan and Maintenance Intervals

The most important difference between tools for lifetime cost analysis can be seen in their expected service life calculations. When used in PFC service, properly stated Metallized Film Capacitors usually last 100,000 to 150,000 hours before they need to be replaced, which is about 11 to 17 years of constant use. Many systems have been used for more than 25 years with little to no performance loss when they are kept at the recommended voltage and temperature levels.Electrolytic Capacitors have basic science limitations that make their useful lives short. Manufacturers usually say that it will last between 2,000 and 5,000 hours at its highest temperature. If it is used at lower temperatures, it can last up to 10,000 to 20,000 hours longer. Few electrolytic PFC capacitors last longer than 5 to 7 years before they need to be replaced because of capacitance drift and ESR rise. This 3:1 to 5:1 lifespan penalty raises the cost of upkeep work and the chance of system downtime when parts need to be replaced.

Electromagnetic Compatibility Performance

Film capacitor technology enables longer maintenance intervals, making it particularly valuable for data centers and hospitals where uptime is critical. Although initial costs are higher, reduced unexpected failures during sensitive operations justify the investment.For EMC performance, effective suppression of high-frequency noise is essential. Metallized film capacitors achieve low-inductance winding structures that maintain low impedance across harmonic frequencies up to several hundred kilohertz, helping compliance with IEEE 519 and reducing interference with nearby electronics.In contrast, electrolytic capacitors have higher ESL, limiting high-frequency suppression and often requiring additional filters or film capacitors in PFC systems, which increases complexity and cost compared to integrated film-based solutions.

Procurement and Supply Chain Considerations for B2B Clients

Sourcing Landscape and Supplier Capabilities

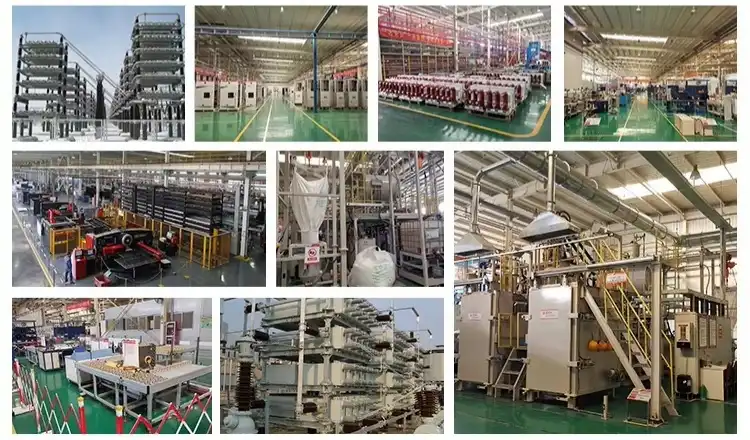

Different types of suppliers can be found in the global market for PFC capacitors. European companies with decades of experience in power electronics are well-known makers of Metallized Film Capacitors. So are Asian companies that offer low prices and ISO 9001/14001/45001-certified production. Xi'an Xikai is an example of a company that offers complete power distribution solutions by combining the production of PFC capacitors with the production of switches and transformers.When comparing suppliers, the quality of their expert paperwork is a key factor that sets them apart. Not only do reputable makers give thorough datasheets with nominal values, but they also include temperature derating curves, expected capacitance drift over lifetime, maximum allowed harmonic distortion levels, and altitude derating factors. Products that can work at elevations of up to 2,000 meters can be used for setups in high places without affecting performance, which is an important feature that is often forgotten until the project is fully deployed.

Customization and Technical Specifications

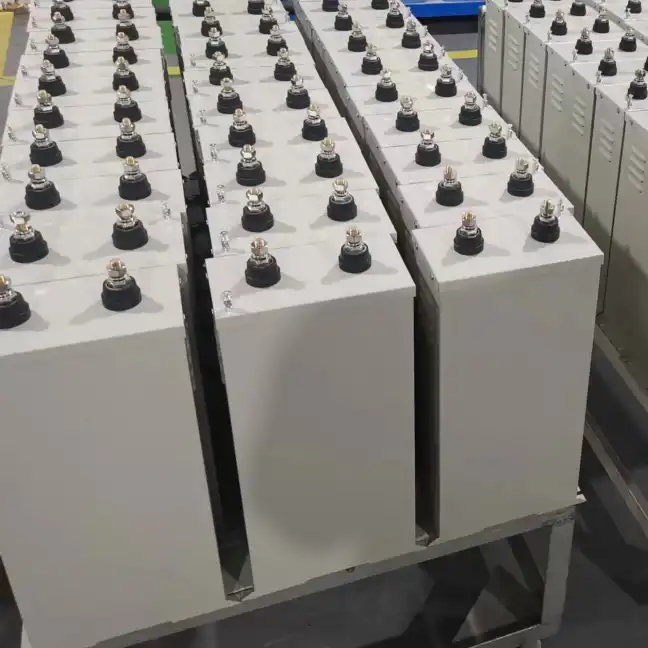

Large-scale PFC systems need electrical and mechanical designs that are flexible. The Square BKMJ series 50kVAR Self-healing Capacitor for PFC shows the customization options that buying teams should look at. Voltage levels from 100V to 1000V are available to work with a wide range of energy supply situations in foreign markets. System builders can find the best way to distribute reactive power across different load levels by using different connection topologies, such as Delta (D), Wye (Y), Wye with neutral (YN), and three-phase (III).Terminal block sizes, which come with M6, M8, and M10 threaded choices, match wire sizes to power levels, making sure that the right torque and contact resistance are met. Installation space standards, like keeping a 50 mm minimum distance from walls, are based on thermal management issues that affect how reliable something will be in the long run. Specifications for capacitance tolerances of -5% to +10% are in line with IEC standards and help manufacturers get higher yields, which helps keep prices low.

Lead Times and Order Quantities

Operating temperature requirements should be carefully evaluated, with standard ranges of -25°C to +50°C suitable for most applications, while harsher environments may require -40°C to +70°C ratings or forced cooling solutions. Supply chain planning must account for varying lead times: standard metallized film capacitors ship in 4–6 weeks, while custom designs take 8–12 weeks, and electrolytic types typically 2–4 weeks. Minimum order quantities can significantly impact smaller projects. Distributor stock can reduce lead times but must be verified for compliance with current specifications. Warranty terms (2–5 years) and engineering support also reduce total lifecycle risk.

Practical Guidelines: How to Choose the Right Capacitor for Your PFC System

Application-Driven Selection Criteria

Characterizing the load is the first step in matching capacitor technology to system needs. Power factor data can be used to predict the reactive power needs of buildings that have a lot of inductive loads, like motor drives, transformers, and induction heating equipment. A factory with a 500kW active load that has a power factor of 0.75 needs about 440kVAR of reactive compensation to get it to a power factor of 0.95, which is the normal goal to avoid overcompensation and minimize energy fines.Power quality testers measure harmonic distortion levels that help with choosing Metallized Film Capacitors and figuring out how to protect them. Total Harmonic Distortion (THD) below 5% lets normal PFC capacitors be used without any extra protection. When THD is between 5% and 15%, film capacitors need to be lowered to 80% to 90% of their normal voltage, or series reactors need to be put in place to make tuned harmonic filters. When THD is more than 15%, active harmonic filtering solutions are usually needed instead of passive PFC alone. This is when Metallized Film Capacitors' better ripple current capability comes in handy, even when passive compensation is still part of the answer.

Voltage and Temperature Margin Requirements

Conservative design methods make things more reliable and make them last longer. If you choose capacitors with voltage values that are 10 to 20 percent higher than the highest voltage you expect for the system, you can account for changes in the power source and short-term overvoltages. A building with 480V standard service might ask for capacitors rated at 525V or 550V instead of exactly matching the system voltage. This extra voltage greatly lowers the dielectric stress and aging rates.Similarly, estimates for atmospheric temperature should match the real installation conditions while still taking into account safety factors. During the summer, electrical rooms that get up to 40°C should use capacitors that can work at 50°C or, better yet, 70°C. This safety buffer keeps temperatures from getting too high, which would speed up aging by a huge amount. This is especially important for sites where cooling system breakdowns could temporarily raise temperatures even more.

Case Study: Data Center PFC Upgrade

A 5MW data center initially using electrolytic PFC capacitors experienced failures every 4–5 years and switching-related power quality issues affecting server stability. Replacing them with 480V metallized film capacitors eliminated frequent trips and extended service life to over 12 years. The reduction in tan δ from 0.08 to 0.0002 lowered PFC losses by 18 kW, with a 3-year ROI from energy savings. Modular 50 kVAR banks with real-time switching, Delta/Wye flexibility, and properly rated terminals improved reliability and reduced thermal and harmonic issues.

Future Trends Impacting Capacitor Selection in PFC Systems

Material Science Advancements

Metallized Film Capacitors may be able to work in temperatures higher than +105°C in the future thanks to ongoing study into high-temperature dielectric films. Polyphenylene sulfide (PPS) and polyetherimide (PEI) films are stable up to +150°C, which lets designers make capacitors that don't need to be cooled down in tough industrial settings. These new materials are also better at withstanding voltage, which means that voltage gradients could go from 400–600 V/µm to 800+ V/µm. This would make the materials smaller while keeping or even improving their stability.Improvements to the self-healing system focus on making the metallization designs and thickness gradients work better. Segmented electrode designs limit the active area that is cleared by each event. This increases the total number of self-healing cycles that can happen before capacitance loss becomes noticeable. Zinc-aluminum alloy metallizations are better at clearing than pure aluminum, especially when there is a lot of moisture in the air and rust protection is needed.

Regulatory Drivers and Sustainability

More and more, global rules on energy economy require business and industrial buildings to fix their power factors. The Ecodesign Directive from the European Union and the Title 24 requirements in California are two examples of rules that push building owners to fully adopt PFC. These rules support technologies with a long life and low loss, which are natural properties of Metallized Film Capacitor designs. However, they make it hard to comply with solutions that need to be replaced often or use a lot of extra power.Sustainability concerns go beyond practical efficiency and include the ability to recycle at the end of its useful life. Metallized Film Capacitors are mostly made of polyethylene film and aluminum, which are both easily recycled materials. They come in steel or plastic housings that can also be recycled. Electrolytic Capacitors have structures made of aluminum oxide and liquid solutions that need special refilling methods. When circular economy ideas are taken into account in buying choices, the environmental impact of a product over its whole lifecycle becomes more important, along with standard measures of performance and cost.

Smart Grid Integration Capabilities

Moving toward smart grid designs opens up chances for smart PFC systems that combine tracking in real time with adaptive control. Modern capacitor banks have sensors that track capacitance drift, internal temperature, and partial discharge activity. This lets predictive maintenance methods work, which means that parts are replaced based on their real state instead of set schedules. Compared to Electrolytic Capacitor technologies, which have more changeable degradation patterns, Metallized Film Capacitors' slow, expected aging features are better suited to these tracking methods.Communication protocols connect PFC controls to utility demand response programs or building management systems. These protocols make reactive power adjustment work better on the fly. When demand is high, exact power factor control keeps energy costs as low as possible. When demand is low, systems may run at slightly lower power factors to protect capacitors from stress and extend their life. Film-based methods are the only ones that can consistently provide the stable, repeatable performance that these complex tactics need.

Conclusion

Electrolytic Capacitors and Metallized Film Capacitors are both used in PFC uses, but film technology clearly performs better in industrial, utility, and business settings. Better temperature stability, a service life of more than 100,000 hours, and self-healing safety features all add up to lower upkeep costs and higher system reliability. Electrolytic designs have a higher capacitance density, but Metallized Film Capacitors are better for reactive power compensation because they can handle steady AC voltage stress, harmonic current tolerance, and service demands for more than ten years. When procurement experts compare starting prices to lifecycle value, they always find that film-based solutions have a lower total cost of ownership. This is especially true for important installations where unplanned downtime can have big operational and financial effects.

FAQ

1.Can I directly replace electrolytic capacitors with metallized film units in existing PFC systems?

Direct replacement relies on the size, shape, and configuration of the terminals, as well as how well they work with the computer system. When the capacitance values are the same, Metallized Film Capacitors usually need bigger housings than electrolytic counterparts. Check that the different form factors can be mounted in the right way and that the automatic switching controllers can handle the different electrical characteristics, especially the inrush current patterns that happen when the power is turned on.

2.How does the self-healing mechanism affect long-term capacitance stability?

Every time self-healing happens, a small area of metallization is taken out of active service. This lowers the capacitance by a small amount. Quality Metallized Film Capacitors can self-heal thousands of times before the total amount of damage they cause goes beyond what is allowed by the manufacturer. After 100,000 hours of operation under rated conditions, typical decline rates stay below 2% to 3%. This keeps reactionary compensation within acceptable limits for the whole service life.

3.What protection equipment do metallized film PFC capacitors require?

As a safety measure, standard setups must include fuses or circuit breakers that can handle capacitive inrush currents and discharge resistors that lower the terminal voltage below 50V within 3 minutes of de-energization. Series reactors that limit resonant amplification may be helpful in places with a lot of harmonics. To make sure selective fault separation, upstream distribution equipment and overcurrent safety should work together.

Optimize Your Power Factor Correction with Xi'an Xikai

Industrial-grade PFC products from Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. are made for tough jobs in the business, utility, and manufacturing sectors. Our 50kVAR Self-healing Metallized Film Capacitor for PFC (Square BKMJ series) uses tried-and-true metallized film technology and ISO-certified production quality. It can be customized for voltage levels from 100V to 1000V and can be connected in a number of different ways. As a direct producer of Metallized Film Capacitors, we offer full expert support, quick delivery times for large orders, and competitive prices that benefit procurement teams. You can email our application engineers at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your specific PFC needs and get full specifications that are made to fit the power quality goals of your building.

References

1. International Electrotechnical Commission. "IEC 60831-1: Shunt power capacitors of the self-healing type for a.c. systems having a rated voltage up to and including 1000 V – Part 1: General – Performance, testing and rating – Safety requirements – Guide for installation and operation." Geneva: IEC, 2014.

2. IEEE Standards Association. "IEEE Std 18-2012: IEEE Standard for Shunt Power Capacitors." New York: Institute of Electrical and Electronics Engineers, 2012.

3. Sarjeant, Walter J., et al. "Capacitive Components for Power Electronics." Proceedings of the IEEE 89.6 (2001): 846-855.

4. Bellucci, Stefano, and Marco Raugi. "Advanced Materials for Film Capacitors in High Temperature and High Voltage Applications." IEEE Transactions on Dielectrics and Electrical Insulation 25.4 (2018): 1221-1230.

5. National Electrical Manufacturers Association. "NEMA CP 1-2020: Shunt Capacitors for AC Power Systems." Rosslyn: NEMA, 2020.

6. Rabih, Ayoub A., et al. "Reliability Assessment and Life Prediction of Metallized Film Capacitors under Temperature and Voltage Stresses." Microelectronics Reliability 54.9-10 (2014): 1962-1970.
