Self-healing Low-voltage Shunt Capacitor Guide

When procurement managers evaluate reactive power compensation solutions, the Low Voltage shunt Capacitor stands out as a critical component for stabilizing electrical systems and improving power factor efficiency. These devices inject reactive power into distribution networks, countering the inductive loads from motors, transformers, and heavy machinery that degrade voltage stability. Self-healing low-voltage shunt capacitors incorporate metallized polypropylene film technology that automatically isolates dielectric faults, extending operational life beyond 100,000 hours while eliminating the cascading failures common in conventional designs. This guide explores technical specifications, procurement strategies, and quality assurance protocols tailored for industrial buyers seeking standardized models like the 400V/30kVAR BKMJ0.46-30-3 configuration.

​​​​​​​

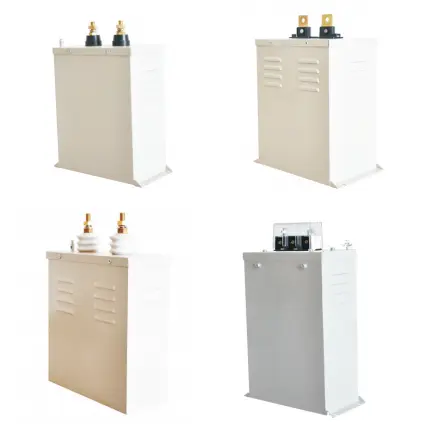

Understanding Self-Healing Technology in Low-Voltage Shunt Capacitors

What Makes Self-Healing Capacitors Different?

When electrical breaks damage the insulating layer, traditional capacitors stop working for good. Ultrathin metal electrodes are used in self-healing units. They vaporize at problem points during voltage jumps, making a shielding gap in milliseconds. This device stops disastrous short circuits and lets the capacitor keep working with little loss of capacity. The 400V Self-healing Capacitor-cylindrical BKMJ0.46-30-3 uses this technology by using carefully wound metalized polypropylene films. The metal layer thickness is controlled to 0.02-0.05 micrometers, which is just the right amount of thin to evaporate under fault currents while still being conductive enough for normal operation. Automatic tension control during winding makes sure that the layers are all the same, which has a direct effect on the uniformity of self-healing across the whole capacitance range.

Core Components and Design Principles

The cylinder-shaped BKMJ0.46-30-3 model has a number of technical features that make it suitable for tough industrial settings. The film windings are surrounded by PU resin potting material, which is better than epoxy options at resisting mechanical stress and letting heat escape. This type of soft resin absorbs expansion stresses when temperatures change, which lowers the risk of internal short circuits in dusty production floors or tropical climates. The short 242mm height and light aluminum body make it easier to retrofit into switchgear cabinets that are already full. Also, the pre-installed grounding bolts make it easier to meet NEC grounding requirements. The dissipation factor stays below 0.2W/kVAR even after 50,000 switching cycles thanks to high-purity aluminum wires that reduce contact resistance. This is an important measurement for Automatic Power Factor Correction panels where capacitors engage and release hundreds of times every day.

Voltage and Frequency Specifications

These capacitors can handle both 50Hz and 60Hz grid frequencies without degrading. They can work with rated voltages from 250V to 525V, and some variants can reach 2000V for certain applications. The voltage tolerance window lets the same unit work consistently in 400V nominal networks that have fluctuations of up to 10%. This makes inventory management easier for wholesalers who serve more than one regional market. As required by IEC 60831, units must be able to withstand 2.15 times their maximum voltage for 10 seconds in order to pass the terminal-to-terminal voltage proof test. Testing from the terminal to the case at 3kV for 10 seconds confirms that the IP54-rated enclosure keeps live parts away from the grounded chassis, keeping people safe while maintenance is being done.

Key Benefits and Applications of Self-Healing Low-Voltage Shunt Capacitors

Maintenance-Free Operation and Cost Savings

Older technologies needed to check for capacitance loss on a regular basis. The self-healing system gets rid of that need. When procurement managers buy these units, they expect them to last 10 to 15 years without needing to be replaced. This means that they have a lower total cost of ownership than film-foil designs, which need to be replaced every 5 to 7 years. When you add up the costs of lost production and emergency repairs, unplanned downtime from capacitor failures can add up to $15,000 per incident in factories with three shifts. Self-healing units lower the chance of these things happening by fixing up to 10,000 small problems automatically over the course of their useful life, keeping the reactive power output within ±5% of the rated kVAR. The pressure-sensitive disconnector adds an extra layer of safety. If the damage inside the device gets too bad for self-healing, it safely cuts itself off from the circuit so it doesn't break or catch fire, which meets NFPA 70 fire rules for business installations.

Industrial Plant Applications

Heavy industries use centralized APFC banks with a Low Voltage shunt Capacitor to control the power factor throughout the facility. A textile mill with 200 induction motors might set up banks with a total capacity of 2 to 3 MVAR and switch capacitor steps based on real-time tracking of the load. When the motor starts up, the BKMJ0.46-30-3 model can handle surge currents of up to 100 times its rated capacity. It does this by absorbing inrush transients that would damage regular capacitors. Localized compensation helps CNC machine shops by putting capacitors right on the workstations to cut down on voltage drop in long feeder cables. This method restores 3-7% of the energy lost in wire runs longer than 100 meters, which directly increases the efficiency of the motor and lowers demand charges.

Renewable Energy and Substation Stabilization

Voltage becomes unstable when solar generators and wind machines produce power at irregular times. At the point of common coupling, capacitor banks add reactive power during cloud changes or wind lulls. This keeps the voltage within the limits set by grid code, which are usually ±5% of nominal. The round capacitor's PU resin covering can handle temperature changes from -25°C to +55°C, making it perfect for outdoor substations in desert or mountain areas. When these units are paired with detuned reactors at 7% or 14% resistance, they make harmonic filters that stop inverter switching frequencies from amplifying resonances. A 500kW solar farm might use 300kVAR of capacitance spread out over three phases, with ten 30kVAR units in each phase for fine-grained control of reactive power.

Commercial Building Retrofits

When monthly trends fall below the 0.90-0.95 range set by utilities, hospitals, shopping areas, and office towers are charged more for power. These fees are not needed if capacitor banks are installed in the main distribution boards. Just by correcting the power factor, a 2MW commercial complex could save $8,000 to $12,000. The BKMJ0.46-30-3 model works quietly (<45dB), which makes it good for rooms with people. This is in contrast to older oil-filled models that made noticeable hums. Flame-retardant PU resin and UL94 V-0 rated casings provide fire safety margins that go beyond what is required by law. This is especially important in high-occupancy buildings where electrical failures cause people to evacuate.

Comparative Insights for Informed Decision-Making

Low-Voltage vs. High-Voltage Shunt Capacitors

Both technologies fix power factor, but depending on the structure of the network, they can be used in different ways. Low-voltage units work at 400V to 690V in industrial and business secondary circuits and connect after distribution transformers. High-voltage capacitors work at transmission levels between 6.6kV and 35kV and need oil-paper insulation and bushings that can handle being outside. When purchasing managers are looking for tools to use on the plant floor, the Low Voltage shunt Capacitor makes installation easier because it doesn't need any special high-voltage safety rules. Low voltages make the cost per kVAR go down a lot. For example, a 30kVAR/400V unit might cost $80 to $120, but a 300kVAR/11kV unit costs more than $1,500 because of the complicated insulation and safety certifications. When the voltage is high, switching transients are more difficult, so vacuum contactors or timed breakers are needed. On the other hand, standard equipment can handle capacitor switching with low-voltage contactors.

Self-Healing vs. Alternative Reactive Power Solutions

Synchronous condensers provide dynamic reactive power with millisecond response times, but they need to be maintained by rotating machinery and take up a lot of floor space—an equivalent 5MVAR synchronous condenser could weigh 15 tons, while an equivalent capacitor bank could weigh only 200 kg. Static VAR compensators (SVCs) are made up of capacitors and thyristor-controlled reactors. They offer two-way reactive power control that is great for loads that change, but they cost three to four times as much at first as fixed capacitor options. The Low Voltage shunt Capacitor has the best cost-benefit ratio for stable industrial loads with predictable reactive power demand. This is especially true when automatic controllers change the capacitance in small steps to match load profiles.

Selection Criteria for Procurement Professionals

When judging providers, you need to look at more than just the unit price per kVAR. Tolerances in capacitance affect how well compensation works. Premium units guaranty tolerances of ±5% instead of the standard ±10%, which is very important when designing APFC systems to meet precise power factor goals. Tangent delta (dissipation factor) readings less than 0.0005 show better film quality; readings higher than this limit speed up thermal age. Certification shows that the product is of good quality. For example, IEC 60831 covers normal voltage proof and capacitance readings, and CCC marks show that the product has been approved by Chinese regulators. UL or CE certifications are important to buyers who sell to other countries, but they add 8–15% to the cost of each unit. If a maker offers a 10-year warranty, it means they are confident in the quality of their materials. On the other hand, a 2- to 3-year warranty means the building isn't very good.

Procurement Guide and Supplier Evaluation

Understanding Price Components and Bulk Discounting

The prices are set by the costs of the raw materials. For example, 35–40% of the cost of production goes to polypropylene film, 15–20% to metal electrodes, and 10–12% to PU resin. The rest is made up of copper terminations and enclosure materials. If you buy 500 to 1000 units, the price of each unit usually goes down by 12 to 18%, and if you buy more than 2000 units, you might be able to get 25 to 30% off the list price. Standardized models like the BKMJ0.46-30-3 usually take three to four weeks to get from order approval to port delivery, provided the maker has enough materials on hand. Customized voltage grades or terminal configurations make wait times 6 to 8 weeks long and need to be coordinated with areas that plan production.

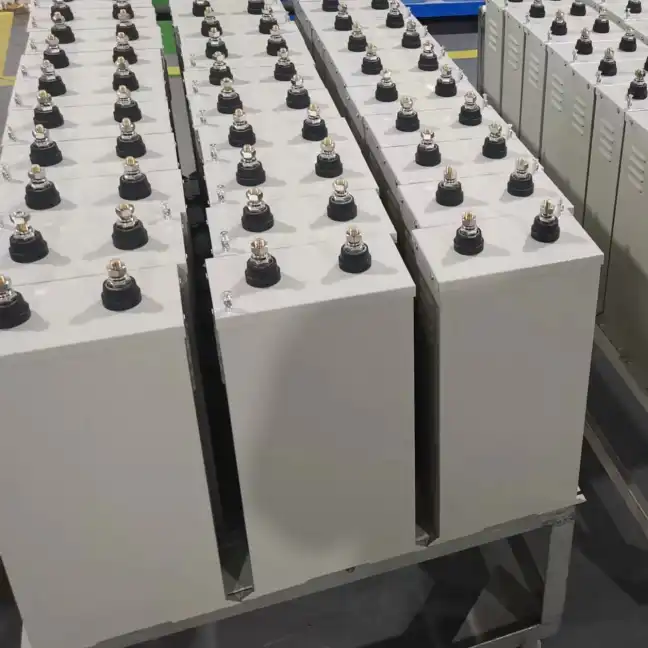

Evaluating Supplier Capabilities and Certifications

ISO 9001 quality management systems are used by trusted producers of Low Voltage shunt Capacitor units, and audit trails show how materials can be tracked and how processes are controlled. Production facilities should show off their automatic winding equipment. Manual winding adds tension errors that make self-healing less reliable. Comprehensive facilities do 72-hour load cycles at high temperatures, impulse voltage tests that mimic lightning hits, and thermal shock trials between -40°C and +85°C. These tests show a commitment to quality. These tests make sure that the design's tolerances are correct, but because they're expensive, they only do voltage proof and capacitance measurement on all production units on a regular basis. Suppliers who have worked with export markets before know what paperwork is needed, like country-of-origin certificates, material safety data sheets for shipping, and the organization of third-party inspections through SGS or Bureau Veritas.

Customization Options for Regional Requirements

For Middle Eastern building sites with a lot of dust, better IP65 cages with gasket seals are needed. These add 8–10% to the unit cost but keep the enclosures from breaking down too soon. Southeast Asian climates with a lot of humidity need conformal coatings on internal connections to keep coastal installations from rusting. For example, buyers in Europe like M8 stud terminals that make ring-lug connections easier, while buyers in North America need 1/4" quick-connect tabs. Voltage rating changes are made to account for differences in the grid. For example, 440V nominal systems in India need 525V rated capacitors to handle sustained overvoltage, while 380V networks can use 400V rated units. Talking about these specifications during the quotation stage saves a lot of money on redesigns that are needed after the first orders.

Maintenance, Testing, and Best Practices for Longevity

Preventive Maintenance Protocols

Visual inspections every three months look for things like enclosure swelling, terminal discoloration, or resin leakage that could be signs of internal overheating. Thermal imaging finds units that are 10-15°C above ambient temperature, which could mean capacitance loss or harmonic overload that needs to be looked into. Annual capacitance measurements using precision bridges make sure that the rated output stays within tolerance; units that drift beyond -5% need to be replaced to keep system power factor targets. Cleaning ventilation slots stops dust from building up and insulating heat-dissipation surfaces, which is especially important in cement plants or woodworking shops that produce airborne particles. Tightening terminal connections stops vibration-induced loosening; readings below 50 milliohms show secure connections, while readings higher show contact degradation.

Field Testing Methodologies

For capacitance measurement, AC bridges working at the rated frequency (50Hz or 60Hz) are used instead of DC methods, which give inaccurate readings for metalized film designs. Insulation resistance testing uses 500V DC for 60 seconds, and readings above 1000 megohms confirm dielectric integrity. Tangent delta measurements need special tools but give early warning of aging—values rising above 0.001 indicate moisture ingress or film deterioration, which calls for closer monitoring intervals. Voltage proof tests should only be done in a controlled factory setting, as testing at 2.15x rated voltage in the field could damage slightly old units that are still usable at nominal voltages. To make sure the overpressure disconnector works, the tear-off fuse mechanism is visually inspected to make sure the spring-loaded contacts are free of corrosion.

Troubleshooting Common Failure Modes

Bulging enclosures mean that there is internal gas generation from sustained overcurrent; check for harmonic resonance by measuring voltage distortion at the capacitor terminals with a power quality analyzer. Blackened connection points are a sign of terminal overheating, which is often caused by not applying enough torque during installation (the right torque is 8-12 N·m for M8 studs). Sudden capacitance drops exceeding 15% mean that there have been multiple self-healing events depleting the metallization area; look into upstream voltage spikes or switching transients. Tripped disconnectors need to be replaced as they could be bypassing safety features. When failures cluster in specific phases, look at load imbalance; single-phase loads exceeding 20% imbalance speed up neutral conductor heating and capacitor stress.

Conclusion

Finding the right Low Voltage shunt Capacitor means weighing up technical specs, supplier reliability, and the total cost of ownership. The self-healing cylindrical BKMJ0.46-30-3 model shows how advanced materials and precise manufacturing can deliver maintenance-free operation across demanding industrial, commercial, and renewable energy applications. Procurement professionals can tell the difference between reliable suppliers and commodity vendors by understanding voltage tolerances, dissipation factors, and certification requirements. These parts are put through strict testing protocols, both in the factory and in the field, to make sure they last the 10-15 years they were designed to, and they keep their reactive power output within specification. Whether they are used with centralized APFC banks or localized motor compensation, these capacitors provide cost-effective power factor correction that lowers utility penalties and improves system efficiency throughout their operational lifespan.

FAQ

1. What is the expected lifespan of self-healing low-voltage shunt capacitors?

Quality self-healing capacitors usually last between 100,000 and 150,000 hours under rated conditions, which is about 10 to 15 years in normal industrial settings. Lifespan depends on ambient temperature, switching frequency, and harmonic content—every 10°C above rated limits in temperature halves the expected life. Units in APFC banks that switch 20 to 30 times a day may need to be replaced after 8 to 10 years, while fixed installations in stable environments often last longer than 15 years. Regular capacitance testing finds units that are getting old before they completely fail, so replacements can be planned.

2. How do these capacitors perform in harmonic-rich environments?

Using capacitors alone in networks with more than 5% total harmonic distortion can cause resonance amplification, which speeds up aging. Pairing the Low Voltage shunt Capacitor with detuned reactors (7% or 14% impedance) moves resonance below dominant harmonic frequencies, protecting the capacitor while filtering distortion. This configuration needs higher voltage ratings (480V or 525V capacitors in 400V systems) to account for voltage rise across the series reactor. Doing proper harmonic analysis when designing the system will keep expensive failures from happening.

Partner with Xi'an Xikai for Reliable Low Voltage Shunt Capacitor Solutions

Xi'an Xikai stands as a trusted Low Voltage shunt Capacitor manufacturer with two decades of engineering expertise serving global markets. Our BKMJ0.46-30-3 cylindrical capacitors incorporate 15+ patented technologies developed through rigorous R&D programs, ensuring batch-to-batch consistency critical for high-volume procurement. ISO 9001 and ISO 14001 certifications validate our commitment to quality and environmental responsibility, while our 4-week delivery schedules and 10-year warranty provide the supply chain stability demanded by discerning buyers. We customize enclosures and terminal configurations for regional requirements—from dust-resistant IP65 variants for Middle Eastern markets to humidity-resistant coatings for Southeast Asian installations. Contact our technical team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to discuss your specific power factor correction needs. Visit xaxd-electric.com to explore our complete portfolio of reactive power solutions engineered for industrial excellence.
