Indoor Vacuum Circuit Breaker vs. SF6: Key Differences Explained

When engineers and procurement teams evaluate switching technology for medium- and high-voltage applications, the choice between an indoor vacuum circuit breaker and an SF6 breaker carries real operational weight. Both technologies interrupt fault current effectively, but they differ in arc extinction physics, maintenance demands, environmental profile, and long-term cost. This article breaks down those differences clearly, so switchgear manufacturers, OEM procurement managers, and technical engineers can align their component selections with performance targets, regulatory requirements, and total cost of ownership.

Understanding Indoor Vacuum Circuit Breakers

How Vacuum Interruption Works

The arc is put out by an indoor vacuum circuit breaker inside a tightly sealed vacuum interrupter. The pressure inside the interrupter stays below 10⁻³ Pa. When contacts break apart, a metallic vapor arc forms for a short time, but it falls apart at the first natural current zero because there are no ions in the vacuum to keep it going. Recovery voltage builds up quickly across the gap, but the spark doesn't come back. One reason vacuum technology has become the most popular choice for medium-voltage switchgear rated up to 40.5 kV is because of this speed, which is based on physics.

ZN85 Vacuum Circuit Breaker: Core Specifications

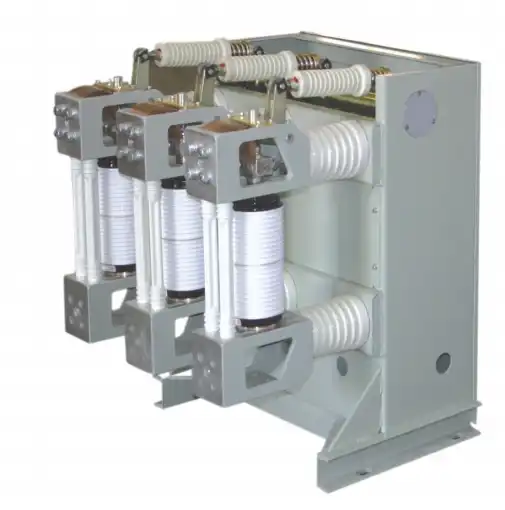

The ZN85 indoor vacuum circuit breaker from Xi'an Xikai is a great example of a well-designed medium-voltage breaker. It works well at temperatures ranging from -15 °C to +40 °C, withstanding daily average relative humidity of up to 95%, and at heights of up to 1,000 m. It is rated at 40.5 kV and 50 Hz. The mechanism is powered by a spring and is made to last more than 20,000 mechanical operations. The unit has been tested and found to be safe for more than 100 short-circuit interruption cycles by IEC 62271-100. Retrofitting costs are eliminated by pre-engineered compatibility with KYN61 switchgear cabinets, and different placement needs can be met with both handcart and fixed-mount versions.

These performance numbers directly address the main concerns of OEM switchgear makers when it comes to purchasing: reliable opening and closing even when something goes wrong, consistent vacuum integrity over a long service life, and the ability to be interchanged with standard cabinet frames in terms of size.

Maintenance and Reliability Advantages

Most of the time, vacuum interrupters are sealed for life, which means they don't need as much regular maintenance as oil or gas alternatives. Monitoring contact wear through over-travel measurement gives repair teams a clear number that shows how much service life is left. Designs like the ZN85 use modular spring mechanisms that make it possible to replace parts in the field without using special tools for handling gas. The lack of consumable gas also gets rid of the need for complicated equipment for finding leaks, storing gas, and getting rid of it.

Understanding Indoor SF6 Circuit Breakers

SF6 Technology and Performance Profile

SF6 circuit breakers use sulfur hexafluoride gas that is compressed inside the interrupter box to stop arcs and keep electricity from flowing. The electrical strength of SF6 is about 2.5 times that of air at standard pressure. This lets engineers make small, high-voltage devices, especially ones that are 72.5 kV or higher. In severe fault situations with very high short-circuit currents, the gas blast puts out the arc quickly and effectively, and the dielectric strength is quickly restored.

Regulatory and Environmental Pressure

Over a 100-year period, SF6 has a global warming potential (GWP) of 23,500. This makes it one of the most powerful greenhouse gasses listed by the Kyoto Protocol. The European Union's F-Gas Regulation and similar rules in other markets are speeding up the removal of SF6 from new equipment. When buying breakers like the indoor vacuum circuit breaker for projects in the EU or for international clients who are committed to sustainability, procurement teams need to think about whether SF6-based designs will stay legal for 20 to 30 years. OEM makers who make switchgear panels for foreign markets face a real business risk as regulations continue to move in this direction.

Key Technical Differences Between Indoor Vacuum and SF6 Circuit Breakers

The main differences that mean most to switchgear OEM engineers and purchase decision-makers are shown below in a table.

Parameter	Vacuum Circuit Breaker	SF6 Circuit Breaker
Arc Extinction Medium	High vacuum (<10⁻³ Pa)	SF6 gas under pressure
Rated Voltage Range	As much as 40.5 kV	12 kV to 1,100 kV
Short-Circuit Breaking	31.5 kA / 40 kA	31.5 kA to 63 kA
Mechanical Life	10,000 to 30,000 operations	5,000 to 10,000 operations
Maintenance Complexity	Low; interrupter is sealed	High; dealing gas is needed
Environmental Risk	None	GWP 23,500; chance of leak
Handcart Interchangeability	Compatible with standard chassis	Application-specific

Breaking Capacity and Mechanical Endurance

Vacuum technology works with voltages between 12 and 40.5 kV and has short-circuit breaking ratings of 31.5 kA and 40 kA, which are enough for most industrial substation and switchgear panel needs. The mechanical endurance ratings of 10,000 to 30,000 operations are much higher than those for SF6 designs at the same voltage levels. This makes vacuum breakers very appealing for places where switching happens a lot, like motor control centers and arc furnace substations.

Handcart Interchangeability and OEM Integration

Dimensional interchangeability is a must for switchgear manufacturers who are making OEM product lines. Vacuum-based designs like the ZN85 are made with standard frame specs, which means they can work with a lot of different types of cabinets. SF6 breakers, on the other hand, often have application-specific shapes that are determined by their gas control systems. This can make retrofitting and buying from more than one source more difficult.

Procurement Considerations for B2B Clients: Choosing Between Vacuum and SF6 Breakers

Total Cost of Ownership Analysis

When making OEM switchgear, decisions about procurement go far beyond the unit purchase price. The lifecycle costs of indoor vacuum circuit breakers are lower because they don't need to be refilled with gas or thrown away in a certain way. Over the course of 20 years, these gains can be calculated. According to studies by the IEC Technical Committee 17, vacuum breakers have much lower maintenance costs over the same length of time than their SF6 equivalents at medium voltage ratings.

When working with very high voltages, SF6 breakers are still cheaper and work better than vacuum technology. However, vacuum is the better choice for most OEM switchgear production in the 12–40.5 kV range because it is more technically and commercially sound.

Supplier Qualification and Lead Times

OEM makers who have annual framework contracts and monthly call-off orders need providers who keep stock, can respond quickly to custom specs, and can support the two to three month prototype qualification cycle that is common for new breaker formats. Verified inclusion on approved supplier lists, like the State Grid or China Southern Grid qualified vendor registries, shows consistent quality management and type-test documentation, which cuts down on the time it takes for customers to approve a supplier.

Real-World Applications and Brand Insights

Field-Proven Performance Across Harsh and High-Demand Environments

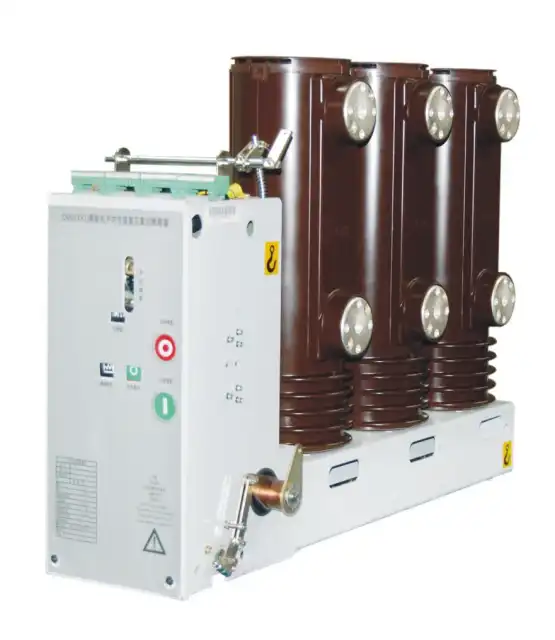

The indoor vacuum circuit breaker from Xi'an Xikai has been used in power plants, heavy industries, and networks that collect energy from green sources. When used in wind farms with 35 kV collection voltages, the breaker handles variable-generation switching with E2-class electrical endurance, so the interrupter doesn't need to be replaced too soon. In mining plants with a high switching frequency and a worry for contamination, the sealed epoxy-encapsulated pole design stops exterior flashovers that are caused by conductive dust.

These results show that the technical specifications are true to what they say they will do. The ZN85's corrosion-resistant design helps switchgear OEMs that sell to markets in South Asia, Southeast Asia, and the Middle East, where humidity, coastal salinity, and temperature ranges make equipment work harder than normal standards for temperate climates assume.

Conclusion

When picking between a vacuum-type and an SF6-type indoor vacuum circuit breaker, the voltage range, environmental compliance needs, maintenance infrastructure, and long-term cost exposure are the main things that matter. For most OEM switchgear uses in the 12–40.5 kV range, vacuum technology is both technically better and more realistic from a business point of view. That's exactly what the ZN85 indoor vacuum circuit breaker from Xi'an Xikai does with its certified performance scores, strong mechanical endurance, and standard interchangeability with common cabinet designs.

FAQ

1. How do I verify vacuum integrity in a vacuum circuit breaker without specialized equipment?

The usual way to test the field is to put a power-frequency withstand voltage across the open contacts. If the vacuum has broken down, the insulator breaks down right away at a voltage that is much lower than the stated withstand level. This means that the indoor vacuum circuit breaker interrupter needs to be replaced. Contact over-travel measurement is another way to tell how worn something is.

2. Can a vacuum circuit breaker directly replace an SF6 breaker in an existing cabinet?

Direct replacement depends on the size of the chassis and the pinouts for the secondary wiring. If you check the secondary plug setup, vacuum designs made to normal handcart dimensions, like those that work with KYN28 or KYN61 cabinets, can usually replace SF6 units with the same frame size. Before installation, you should always double-check the travel lengths and the places of the mechanical interlocks.

3. What is the practical upper voltage limit for indoor vacuum circuit breakers?

The most common vacuum device today can safely handle voltages up to 40.5 kV. Higher voltage vacuum interruption is still being worked on, but for standard switchgear OEM production, 40.5 kV is the maximum voltage that has been tested and found to be safe for this technology class.

Partner With Xi'an Xikai for Your Indoor Vacuum Circuit Breaker Needs

Xi'an Xikai designs and makes indoor vacuum circuit breakers that meet the strict requirements of making OEM switchgear. The ZN85 series has a rated voltage of 40.5 kV, can handle more than 20,000 mechanical processes, and is approved to comply with IEC 62271-100. It is also backed by the ISO 9001, ISO 14001, and ISO 45001 quality systems. As a qualified indoor vacuum circuit breaker provider, get in touch with our technical team right away for custom specs, help with prototypes, and reasonable prices. Reach us at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or visit xaxd-electric.com.
