The Function and Importance of Active Power Filter

Active Power Filters represent a transformative solution for modern electrical systems, addressing harmonic distortion and reactive power challenges that compromise power quality. By injecting compensating currents in real-time, these intelligent devices neutralize harmonics generated by nonlinear loads such as variable frequency drives, rectifiers, and switching power supplies. Their dynamic response capability ensures voltage stabilization and protection for sensitive equipment in data centers, hospitals, and precision manufacturing facilities, making them indispensable for system integrators seeking measurable improvements in power reliability and operational efficiency.

​​​​​​​

Understanding Active Power Filters: Definition, Theory, and Function

What Makes Active Power Filters Essential for Modern Power Systems

One of the main jobs of an Active Power Filter is to look at electrical disturbances and send out signals that cancel out unwanted harmonics. These devices are different from passive LC filters because they use power electronics, usually insulated gate bipolar transistors (IGBTs), along with digital signal processors to find distortions across the whole frequency range. When a nonlinear load draws warped current, the filter checks how far it is from the ideal sinusoidal pattern and injects an equal but opposite current. This stops the harmonic component from spreading through the electrical network.

Operating Principles and Control Strategies

These systems are smart because they use advanced control algorithms. Instantaneous reactive power theory (p-q theory) is the most common way to do things. It separates the active and reactive parts of three-phase systems. The device constantly takes voltage and current waveforms at rates higher than 20 kHz. This allows for detection and compensation within 10 milliseconds, which is a key requirement for safeguarding microprocessor-based equipment against voltage notching and transient disturbances. This quick reaction stops resonance conditions that can make harmful harmonic voltages stronger. This happens a lot when passive capacitor banks interact with system inductance.

Active Technology Versus Passive Solutions

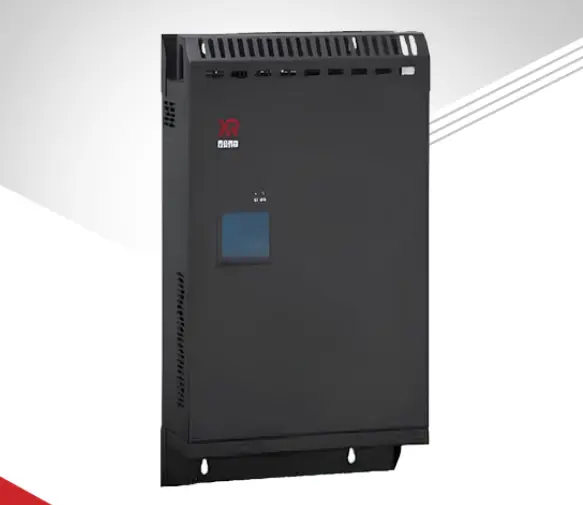

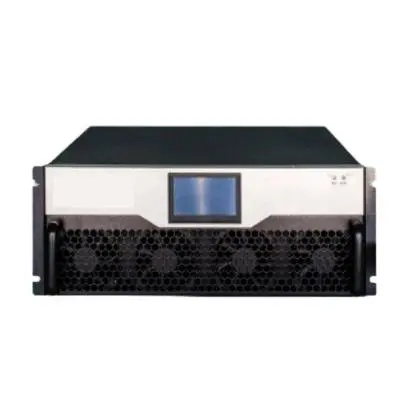

Traditional passive filters need to be fine-tuned to match the resistance of the system, which means they can become detuned when the load changes. This limitation is taken away by active technology, which adjusts to changing harmonic profiles in real time. The modular design, which comes in both rack-mounted and wall-mounted options, lets the system's capacity grow without having to be redesigned. When the voltage is low, passive filters stop working because the reactive current is lower. But active devices can still fully compensate by making the necessary corrective messages on their own. This main benefit stops resonance and harmonic enhancement, making sure that performance stays the same in all kinds of working conditions.

Advantages and Applications of Active Power Filters in Industry

Before looking into specific rollout situations, knowing the real benefits these systems offer helps quality-driven project integrators make the case for spending the money. The following core benefits solve the most important power quality problems that electricity engineers and buying teams have to deal with.

Dynamic Harmonic Suppression

Harmonic bands in modern factories are very complicated and change with each output cycle. Active harmonic compensation filters out more than 97% of the second through fiftyth harmonic orders, which meets the strict IEEE 519 guidelines for total harmonic distortion (THD). In precise CNC machine centers, this amount of suppression keeps the servo drive from breaking down and increases the life of parts by lowering the thermal stress on the motor windings. The device constantly changes its output to adapt to changes in load, keeping the power factor above 0.95 even when load changes quickly. Passive solutions can't do this.

Resistance to Grid Fluctuations

Voltage drops, spikes, and short-term disturbances must not stop critical operations in the electrical networks that supply hospitals and data centers. These filters have built-in safety features that let them handle surge currents up to 100 times their maximum capacity for millisecond periods of time. This keeps equipment further downstream safe when there is a fault. The sturdy design has flame-resistant capacitors that meet NFPA 70 fire rules. It also runs quietly at less than 45 dB, so it can be used in places with low noise levels, like medical imaging centers.

Energy Cost Reduction

Power factor fines that utilities charge for using reactive power are a regular cost of doing business. Active Power Filter devices lower the apparent power demand by fixing the displacement power factor and getting rid of the distortion power factor at the same time. In real life, installations in assembly lines for cars have shown that utility bills go down by 12 to 18%, with payback times ranging from 14 to 28 months depending on the tariff structure. Over the typical 15-year service life, the energy savings add up, giving you big total cost of ownership benefits.

Rugged Reliability

Manufacturing excellence ensures continuous performance in tough workplaces. To ensure ongoing functioning at high temperatures, units undergo 72-hour ageing tests and 100% load certification before shipping. Products with ISO 9001, ISO 14001, CE, UL, and CCC certifications fulfil worldwide quality requirements. When the dielectric breaks, metallized polypropylene film capacitors may mend themselves. The metallized layer vaporises around the fault, isolating it and continuing the process. This design element extends mean duration between failures to over 100,000 hours at acceptable operating temperatures.

These benefits improve system designers' commercial operations with selective clientele. Industries avoid power factor penalties and protect pricey CNC machines and robotic assembly systems. Green energy transformer harmonics are blocked by substations to stabilise voltage. This fixes solar and wind power's unreliability. Commercial facilities like hospitals and retail malls are replacing obsolete electrical systems with tiny, safety-certified alternatives that operate with compensation equipment.

Comparing Active Power Filters with Alternative Solutions

Performance Benchmarking Against Passive Filters

Know the advantages and drawbacks of active and passive harmonic mitigation strategies to select the correct one. Passive LC filters are cheaper to install and reliable, but they have issues. There are fixed impedance portions tuned to harmonic frequencies, usually the fifth and seventh orders. Variations in load, equipment, or grid impedance might affect system design parameters. Detuned passive filters might lose their effectiveness or generate parallel resonance with the system inductance. This resonance makes certain frequencies louder, which might cause capacitor bank failures.

Active compensation eliminates resonance by functioning as a regulated current source instead of an impedance factor. The gadget automatically adjusts to shifting frequency profiles without retuning. No tuning reactors or capacitor banks may fail from harmonic heating, therefore maintenance is minimal. The dynamic responsiveness, larger frequency coverage, and absence of resonance danger make it worth the 40–60% higher beginning cost than passive systems in cases where power quality directly influences output or equipment dependability.

Evaluating Static Var Compensators and Capacitor Banks

Static Var Compensators (SVCs) deal with reactive power compensation, but they can't precisely filter out harmonics like active devices can. SVCs use thyristor-controlled reactors and thyristor-switched capacitors to control reactive power and support voltage for large-scale applications. But the switching action adds its own harmonic content, which means that more filtering is needed. Power capacitor banks raise the displacement power factor, but they also boost harmonic voltages when resonance happens with the system's inductance.

Practical assessment aspects guide procurement decisions. Spectrum analysers measure 5th, 7th, 11th, and 13th harmonic magnitudes and harmonic distortion. Find the nonlinear/total load ratio. Active filtering is recommended for nonlinear loads above 25% of system capacity. Assess your scalability needs. To accommodate load expansion without oversizing initial configurations, modular active systems may increase in 30A, 50A, or 100A stages. When evaluating technologies, consider the entire cost of ownership, including energy savings, downtime avoidance, and equipment longevity.

Procurement Guide for Active Power Filters

Supplier Evaluation and Technical Specifications

Professionals in charge of buying things must make sure that sellers can show they are experts in power quality engineering. Ask for proof of completed projects in similar settings, like data centers that need to block 97% of harmonics, hospitals that have strict rules about electromagnetic compatibility, or factories that have a lot of different nonlinear loads. Check out the supplier's technical support system and see if they have field application techs available to do site checks and help with commissioning. Response times for expert questions during the two to four month decision cycle have a big effect on project plans.

The first step in verifying specifications is to make sure that the rated compensation capacity matches the harmonic current levels that were calculated. The gadget has to be able to handle the expected harmonic load plus an extra 20 to 30 percent in case it grows in the future. Check the response speed specs—10 milliseconds or faster keeps voltage notching from happening on sensitive loads. Check that the EMC approvals show that the equipment can handle electromagnetic interference from outside sources and that it meets the emission limits set by IEC 61000. Modular designs make it easier to keep track of extra parts and allow facilities to add capacity in stages as they grow.

Installation and Commissioning Considerations

Professional installation of the Active Power Filter guaranties the best performance and the longest life. Site surveys find out about the characteristics of the impedance upstream, the power factor correction equipment that is already there, and any possible sources of inter-harmonics. To make it work with current compensation cabinets, control methods need to be looked at to make sure that devices don't go into hunting oscillations. Setting goal power factor levels, selecting current transformer ratios, and writing harmonic suppression priorities are all part of the integration phase.

There are different lead times for each maker and volume need. Standard 50A and 100A units usually ship between 4 and 6 weeks, but special designs for high-capacity uses might take 10 to 14 weeks. A budget should include more than just the cost of the tools. It should also include the cost of installation work, system integration planning, and commissioning services. Some of the things that affect the price are the amount of reimbursement, the grade of the enclosure (IP20 for indoor use and IP54 for harsh environments), the communication ports for integrating with building management systems, and the length of the guarantee coverage.

Maintenance and Service Support

Compared to passive filter banks, they still don't need much routine maintenance. Every year, inspections make sure the cooling fans are working, check the power connections for damage from heat, and download event logs so that they can be analyzed. Manufacturers offer firmware changes that improve filtering methods and add support for more communication protocols. By making service agreements with suppliers, you can be sure that technical problems will be fixed quickly, reducing the chance that important operations will be interrupted.

Trusted makers have both technical know-how and help networks around the world. This approach is shown by Xi'an Xikai, which provides complete solutions backed by top-notch manufacturing and deep technical knowledge. The company's products fall into seven main groups, such as power electronics and switches. Plateau-type equipment can work at elevations of up to 4,000 meters. Products used in State Grid systems, train transportation, and green energy projects in China, Europe, Singapore, and Japan are based on a number of patented technologies.

Future Trends and Performance Optimization of Active Power Filters

Emerging Technologies and Smart Grid Integration

Advanced data and IoT connectivity are altering power quality alternatives quicker than before. New devices can communicate via Ethernet and Modbus TCP, allowing them to operate with SCADA systems. Real-time data streaming shows harmonic patterns, loading trends, and corrective effectiveness. Cloud-based analytics tools identify similarities in data from numerous installations to predict maintenance needs before anything breaks. By alerting facility managers when a cooling system's performance diminishes or a capacitor's equivalent series resistance exceeds permitted levels, predictive maintenance reduces unnecessary downtime.

Adaptive screening is another improvement. Machine learning systems utilise harmonic data to predict production scheduling issues that recur. When load varies quickly, smart systems modify compensation settings ahead of time to decrease response latency. Paint shops for vehicles with robotic spray systems, semiconductor cleanrooms with recurring pump loads, and pharmaceutical manufacturing lines with batch processing equipment benefit from the technique.

Regulatory Drivers and Sustainability Alignment

More and more rules are focusing on energy efficiency and power quality standards, which forces facility managers to take action against harmonic distortion. The Ecodesign Directive of the European Union sets THD boundaries for devices that are linked to public networks. Similar rules are also being made in Asian markets. Active filtering is an important part of electrical infrastructure because compliance needs recorded power quality measures and mitigation methods.

Better power supply is good for sustainability projects. I²R losses in power lines, transformers, and engines go down when harmonic distortion goes down. When data center managers try to get Power Usage Effectiveness (PUE) rates below 1.2, they find that harmonic mitigation helps by getting rid of lost reactive current flow, which adds 3 to 5 percent to the growth. The increased operating efficiency is in line with the environmental, social, and governance (ESG) goals of the company and also cuts down on carbon emissions.

Practical Optimization Strategies

To get the most out of your filters, you need to pay attention to how they are installed. To stop distortion from spreading through facility wiring, put devices as close to harmonic sources as you can. Check that there is enough short-circuit current available. If the source impedance is too low, the filter won't be able to add compensating current. Standard three-wire active filters can't fully make up for the fact that they can't balance three-phase loads to reduce neutral current. For buildings with a lot of single-phase irregular loads, four-wire layouts might be a good idea.

Performance tracking sets baselines and keeps track of how things are getting better. Put power quality monitors at service entrance points and key load centers to keep track of improvements in power factor and THD. To figure out how much you saved on demand charges, compare your utility bills from before and after the installation. Share the results with the people who matter to get their support for growing power quality programs to more sites.

Conclusion

Active Power Filters make a real difference in the quality of the power, the dependability of the equipment, and the efficiency of operations in challenging business and industry settings. The dynamic harmonic suppression, resistance to grid fluctuations, and modular scalability of the technology solve the difficult power problems that data centers, hospitals, and precision manufacturing facilities face. Even though the original investment is higher than passive options, the overall benefits, such as lower energy costs, longer equipment life, and compliance with changing power quality standards, make the purchase choice worth it for system integrators who care about quality. Choosing reliable suppliers with a track record of technical knowledge, full certifications, and strong after-sales support is the best way to make sure that implementations go smoothly and give long-term value.

FAQ

1. What factors determine whether active or passive filters suit my application?

When harmonic patterns stay fixed and certain frequencies are the most important, passive filters work well. Active solutions are needed when load factors change a lot, when multiple harmonic orders need to be suppressed, or when there is a risk of resonance with the capacitor banks that are already in place. Active technology is usually better for situations where nonlinear loads are more than 25% of the total capacity.

2. Can these devices integrate with existing power factor correction equipment?

Capacitor banks and synchronous condensers work together with modern units' transmission methods. Site surveys find possible control conflicts so engineers can program sequencing logic that stops switching at the same time. Checking for compatibility during buying makes sure that new systems will work with old ones without any problems.

3. What maintenance intervals do manufacturers recommend?

Most installations only need to be inspected once a year. Technicians check that the cooling system works, look at the electrical links, and read through the event logs. Usually, parts need to be replaced every 10 to 15 years of steady use, with capacitor banks being the most common wear item. Firmware updates make things work better without changing the hardware.

Partner with Xi'an Xikai for Superior Harmonic Mitigation Solutions

Xi'an Xikai offers tried-and-true Active Power Filter options that keep your important equipment safe and cut down on operational costs. As one of the biggest companies that makes Active Power Filters, we have a lot of experience with modern power electronics and can also fully integrate systems. With reaction times of 10 microseconds and harmonic filtration rates of 97%, our flexible designs work perfectly with data centers, substations, and factories. Our products meet the strict needs of system integrators that work with international markets. They have been certified by ISO 9001, CE, UL, and CCC, and they have also been put through rigorous 72-hour aging tests. To talk about your project needs, email serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to our technical team. You can look at all of our power quality solutions, which are backed by patented technologies and proven field performance, at xaxd-electric.com.

References

1. Akagi, H., Watanabe, E.H., and Aredes, M. (2017). Instantaneous Power Theory and Applications to Power Conditioning, 2nd Edition. IEEE Press/Wiley.

2. IEEE Standards Association (2014). IEEE Recommended Practice and Requirements for Harmonic Control in Electric Power Systems (IEEE Standard 519-2014).

3. Rashid, M.H. (2018). Power Electronics Handbook: Devices, Circuits, and Applications, 4th Edition. Butterworth-Heinemann.

4. Dugan, R.C., McGranaghan, M.F., Santoso, S., and Beaty, H.W. (2012). Electrical Power Systems Quality, 3rd Edition. McGraw-Hill Education.

5. Hingorani, N.G. and Gyugyi, L. (2000). Understanding FACTS: Concepts and Technology of Flexible AC Transmission Systems. Wiley-IEEE Press.

6. International Electrotechnical Commission (2015). Electromagnetic Compatibility (EMC) - Part 3-2: Limits for Harmonic Current Emissions (IEC 61000-3-2:2014).
