Vacuum Circuit Breaker Service Life Guide and Key Factors

Understanding vacuum circuit breaker lifespan and factors affecting it affects your facility's uptime, maintenance budget, and operational dependability. Vacuum Circuit Breakers are chosen for medium-voltage systems in industrial facilities, data centers, hospitals, and utility substations because they immediately extinguish electric arcs when contacts separate. Service life might be 20–30 years or hundreds of thousands of working cycles, depending on design quality, operational stress, and maintenance. This book examines lifespan determinants, compares vacuum technology to alternatives, and offers actionable insights to help procurement managers, facility operators, and EPC companies enhance asset performance and decrease total cost of ownership.

Understanding Vacuum Circuit Breakers and Their Service Life

How Vacuum Interrupter Technology Works?

An imperfection causes the Vacuum Circuit Breaker's contacts to isolated in milliseconds, causing an bend in the vacuum chamber. No discuss atoms bolster the bend, in this way it quenches instantly, usually within 0.1 seconds. Servers, restorative imaging gadgets, and exact fabricating disobedient are secured from voltage spikes and control quality issues by this quick interference. The fixed, maintenance-free vacuum interrupter dodges oxidation and defilement, keeping up consistent execution over thousands of exchanging cycles.

Typical Lifespan Benchmarks

Under normal conditions, 12kV to 40.5kV medium-voltage Vacuum Circuit Breakers final 20–30 a long time. A few gadgets can withstand 30,000 cycles. Blame current sum and recurrence influence electrical perseverance; visit engine begins or capacitor bank exchanging may quicken contact disintegration. Understanding these benchmarks makes a difference when acquisition groups evaluate a model's reasonableness for their application needs and substitution budget cycles.

Advantages Over Legacy Technologies

Vacuum circular segment extinguishing outflanks oil, discuss, and SF6 circuit breakers without nursery gas outflows or fire perils. Oil breakers are naturally unsafe and require normal testing. SF6 units are compelling however subject to direction due to their awesome worldwide warming potential. Discuss circuit breakers require more space and upkeep. Compact plan, natural compliance, and expanded benefit interims make vacuum units great for space-constrained substations and economical facilities.

Key Factors Affecting Vacuum Circuit Breaker Service Life

Electrical Stress and Switching Frequency

Frequent switching accelerates contact deterioration, especially at high fault currents. Periodic interruptions evaporate minuscule quantities of contact material, lowering contact surface area. Electrical stress is higher in motor control, capacitor bank switching, and transformer energization than in load isolation. A device with Class M2 mechanical endurance (10,000+ operations) and Class E2 electrical endurance allows for high duty cycles.

Environmental Conditions and Operating Climate

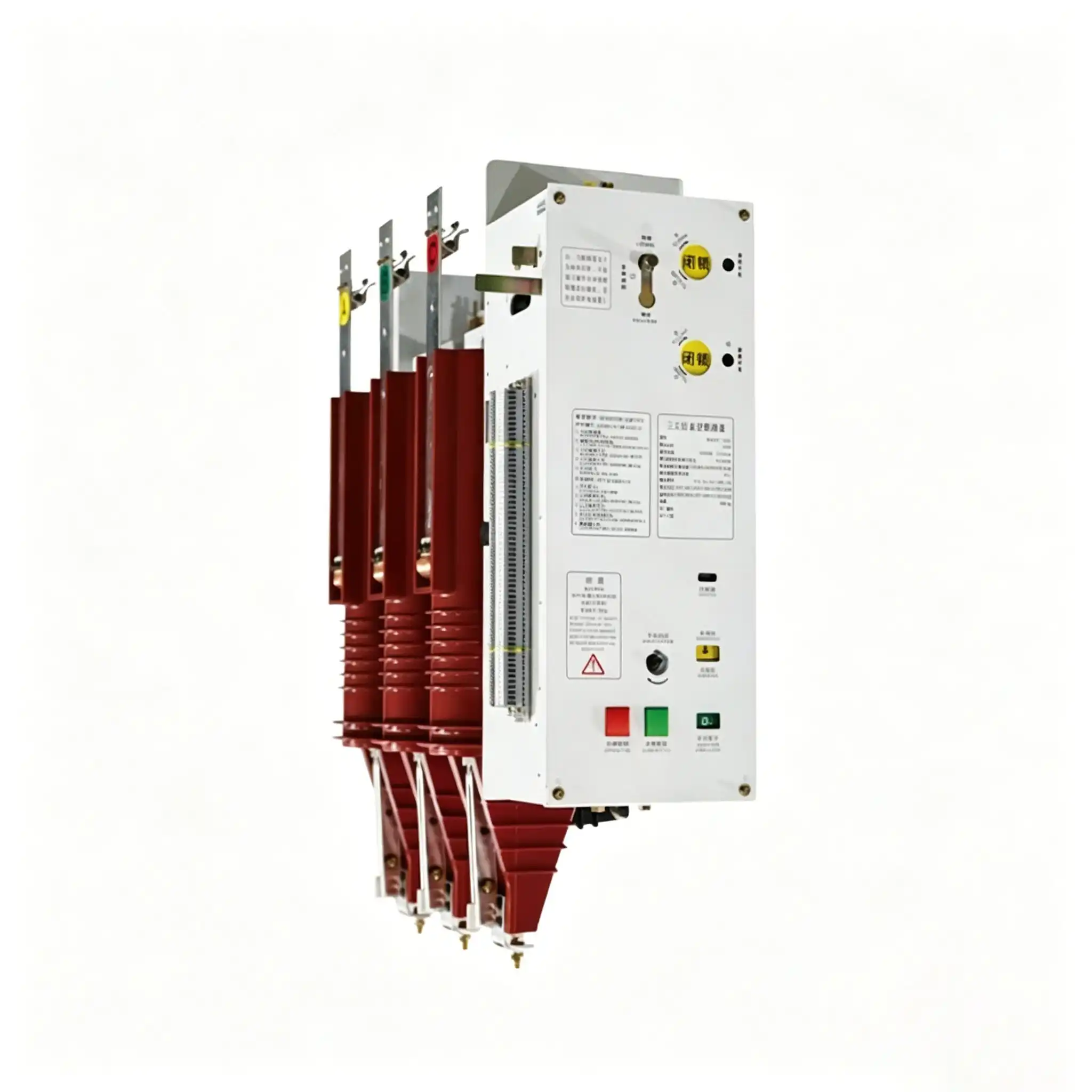

The modular spring-operated BGH Vacuum Circuit Breaker, rated at 12kV with 630A and 1250A versions, tackles these issues. Industrial mining facilities, power plants, and commercial complexes with frequent switching function better with this architecture. After 10,000 operations, its contact degradation rate is below 1%, prolonging replacement intervals and lowering lifespan costs by 20%.

Extreme temperatures, humidity, dust, and corrosion impact component lifespan and maintenance intervals. Operating mechanisms, insulating materials, and auxiliary components are sensitive to contamination, whereas vacuum interrupters are sealed. Salty air corrodes enclosures and connections in coastal facilities. Desert installations have fine dust in control cabinets. Data centers and hospitals have regulated environments, but HVAC heat cycling can stress mechanical links.

Coastal wind farms and desert substations can use the BGH model's IP65 environmental certification and operational temperature range of -40°C to +55°C. Protecting internal mechanisms from moisture and particle intrusion with corrosion-resistant coatings on structural components and sealed enclosures ensures consistent functioning without frequent intervention.

Maintenance Practices and Inspection Protocols

Service life is linked to preventive maintenance. Vacuum, contact alignment, and mechanism lubrication are checked regularly. Skipping planned checkups can cause distribution system failures from loose fasteners, deteriorated lubricants, and misaligned contacts. Facilities without specialized electrical maintenance staff may delay inspections, decreasing equipment life and increasing unscheduled downtime.

Visual examination of insulation and contacts every 2,000 operations or three to five years, lubrication of moving parts, control voltage verification (85% to 110% of rated voltage), and interlock and safety mechanism testing are part of a thorough maintenance checklist. These regular operations, frequently conducted in under two hours per unit, prevent catastrophic failures and extend operating life beyond minimal ratings.

Comparing Vacuum Circuit Breakers with Other Circuit Breaker Types

Lifecycle Cost Analysis: Vacuum Versus SF6 and Oil

Vacuum Circuit Breakers cost more than air or oil equivalents, but their total cost of ownership is lower. Environmental rules mandate gas monitoring, leak detection, and approved handler disposal of SF6 breakers. Oil breakers require sampling, filtration, replacement, and fire suppression. When vacuum systems need merely mechanical inspections and contact replacement after tens of thousands of operations, these costs disappear.

Compared to SF6 designs, vacuum technology decreases maintenance labor by 40% and material costs by 30% over 25 years, according to the Electric Power Research Institute. Multiple-substation facilities see these benefits grow across their asset base, boosting operational budgets and minimizing environmental liabilities.

Environmental Impact and Regulatory Compliance

While an effective insulator, SF6 gas has 23,500 times the global warming potential of CO2. North America and Europe are mandating leak reporting and SF6 phase-out in new installations. Zero-emission Vacuum Circuit Breakers support business sustainability and ease compliance reporting. Oil breakers can leak and be difficult to dispose of in environmentally sensitive places.

Using vacuum technology protects infrastructure from environmental regulations. Utility and industrial operators modernizing grids emphasize vacuum designs to fulfill regulatory requirements and show stakeholders and communities environmental stewardship.

Reliability and Performance in Critical Applications

Hospitals, data centers, and factories cannot tolerate long outages. Vacuum Circuit Breakers' rapid interruption times—often under 0.1 seconds—reduce arc energy release, saving downstream equipment. Their sealed design prevents air and oil from design moisture failures. Through remote monitoring and predictive maintenance, smart grid operators may schedule interventions during scheduled shutdowns rather than emergency breakdowns.

Maintenance and Troubleshooting for Maximizing VCB Service Life

Systematic Inspection and Preventive Care

Maintenance schedules that match manufacturer standards and operating intensity minimize premature failures. Simple procedures like dusting enclosures, examining mechanical connections, and testing spring charging mechanisms improve reliability. Before outages, thermal imaging assessments find hot areas suggesting weak connections or contact deterioration.

Inspection results provide a performance history for replacement planning. Maintenance teams may forecast end-of-life dates and budget for capital replacements by tracking contact erosion rates, Vacuum Circuit Breaker integrity test results, and mechanical cycle counts.

Diagnosing Common Failure Modes

Contact erosion causes longer arc extinction periods and higher closure resistance. Though rare, vacuum leaking causes arc re-ignition and catastrophic failure. High-voltage withstand or magnetic field tests can verify vacuum integrity. Broken springs, worn bearings, and misaligned connections cause strange sounds, slow performance, or reluctance to shut or open.

Make that the spring is completely charged (motor or manual winding), secondary control voltage is within 85% to 110% of rated voltage, and mechanical interlocks from grounding switches or cabinet doors are removed to diagnose a closing failure. Fixing these frequent issues prevents downtime and costly component replacements.

Repair Versus Replacement Decisions

Economic analysis directs repair-versus-replace decisions. Worn contacts, poor lubrication, and loose fasteners warrant repair. Damage including vacuum loss, fractured insulation, and structural damage can cost more to fix and cause repeated problems. Purchase managers weigh urgent repair costs against remaining service life and the chance to upgrade to newer technology with IoT diagnostics and energy efficiency.

Procurement Considerations for Long-Lasting Vacuum Circuit Breakers

Selecting Reputable Manufacturers and Certified Suppliers

Partnering with established manufacturers provides proven designs, technical assistance, and widely available replacement parts. Certification to IEC 62271-100, ANSI C37.04, and GB/T 1984 shows strict performance and safety criteria. ISO 9001, ISO 14001, and CCC certifications verify production procedures and product consistency.

With 18+ years of R&D and participation in national 863 Program projects, Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. offers Vacuum Circuit Breakers. X-ray testing for alloy purity and harsh climate simulation are among 23 quality tests. These strict measures ensure every product leaves the factory meets international and consumer requirements.

Balancing Lead Time, Pricing, and Total Cost of Ownership

Upfront price, delivery timetables, and lifespan costs must be considered in procurement plans. Cost and application appropriateness depend on voltage ratings—12kV, 24kV, 40.5kV. Custom surge arresters, sophisticated monitoring, and compact retrofit designs provide value but increase lead times. With delivery windows of six to eight weeks, bulk purchases benefit from economies of scale.

Total cost of ownership comprises maintenance intervals, spare parts availability, energy efficiency, and predicted replacement cycles. A cheaper device that needs regular maintenance and early replacement costs more over time than a premium model with longer longevity and little upkeep.

After-Sales Support and Spare Parts Availability

Suppliers stand out with reliable after-sales service. Local technical personnel for commissioning, troubleshooting, and emergency repairs reduce critical failure downtime. Access to spare parts—contacts, interrupters, springs, control modules—determines whether repairs can be done promptly or after weeks of disruption.

Xi'an Xikai's extensive spare parts inventory and local technical assistance provide fast client service. Service excellence builds long-term relationships and preserves electricity distribution infrastructure investments.

Spotlight: BGH Vacuum Circuit Breaker for Reliable Power Control

Modern grids require small, high-performance solutions for voltage variations, space limits, and hostile conditions. The BGH Vacuum Circuit Breaker is unequaled in reliability for industrial facilities, power grids, and renewable energy initiatives. At 12kV with 630A and 1250A choices, it meets IEC 62271-100, ANSI C37.04, and GB/T 1984 requirements for global acceptability and regulatory compliance.

Ideal for upgrading tiny substations, its 40% footprint-saving design saves room. The modular spring mechanism facilitates installation and maintenance, and the IP65 casing protects against dust and moisture in harsh conditions. Real-time diagnostics and SCADA connection with optional IoT sensors assist grid automation and predictive maintenance.

Power grids need voltage stability, renewable installations manage solar and wind variations, industrial facilities safeguard motors and transformers, and subways, airports, and hospitals need fail-safe power control. Low maintenance—less than 1% contact degradation after 10,000 operations—cut lifespan costs by 20%, making the BGH model a good choice for budget-conscious operators.

Manufacturing quality is ensured via X-ray inspection, 10,000 mechanical endurance cycles, and environmental simulation of temperature and humidity extremes. ISO 9001, ISO 14001, CCC, and IEC 62271-100 certifications verify worldwide quality standards. These characteristics provide 30+ years of dependable service, safeguarding investments and maintaining ongoing operations.

Conclusion

To maximize the vacuum circuit breaker service life, understand electrical stress, ambient factors, maintenance techniques, and supplier selection. Vacuum technology is popular for modern power distribution systems because of its small design, environmental compliance, and low maintenance. Procurement managers and facility operators who prioritize quality, certifications, and after-sales support guarantee reliable assets for uptime and profitability. Strategic maintenance based on manufacturer specifications and operational data extends equipment life beyond rated minimums. Organizations build sustainable, cost-effective electrical infrastructure that fulfills current and future needs by evaluating lifespan costs across technologies and choosing reliable suppliers.

FAQ

1. What is the optimal maintenance interval for vacuum circuit breakers?

Inspect units every 2,000 operations or every three to five years, whichever occurs earlier. Check vacuum, contact alignment, moving part lubrication, and fastener tightness. Frequent switching of applications may require yearly inspections to detect Vacuum Circuit Breaker contact deterioration.

2. What causes premature vacuum circuit breaker failure?

Poor maintenance, switching frequency above rated capacity, environmental pollution, incorrect installation, and undersized units for application needs are reasons. Checking specs against operational needs during purchase eliminates many failures.

3. How do environmental conditions affect maintenance planning?

Extreme heat, humidity, salt air, and dust promote component breakdown. IP65-rated enclosures, corrosion-resistant coatings, and additional checks help tough facilities. In contrast, regulated indoor settings prolong upkeep.

Partner with Xi'an Xikai for Dependable Vacuum Circuit Breaker Solutions

High-quality medium-voltage switchgear, competence, and responsive support are needed for operational excellence. Leading Vacuum Circuit Breaker maker Xi'an Xikai Medium & Low Voltage Electric Co., Ltd., provides power distribution solutions for industrial, utility, and infrastructure applications. Our BGH series maximizes uptime and reduces lifetime costs with modular spring mechanisms, international certifications, and 18+ years of R&D innovation. Technical staff help with local commissioning, predictive maintenance, and replacement parts in North America and abroad. Contact our professionals at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com about bespoke configurations, bulk pricing, and how our supplier partnerships help your project's success.
