Why a High Voltage Disconnect Switch Matters for Safe Maintenance

When substation renovation projects demand rapid equipment replacement within tight outage windows, the right isolation equipment becomes mission-critical. A high voltage disconnect switch serves as the frontline defense in maintenance safety protocols, creating a visible, physical separation between live circuits and equipment under service. This component transforms dangerous electrical environments into secure workspaces, protecting technicians while enabling efficient downtime management. Understanding how these switches function—and selecting models with proven compatibility for legacy infrastructure—determines whether your retrofit project completes on schedule or faces costly delays.

​​​​​​​

Understanding High Voltage Disconnect Switches and Their Role in Safety

What Defines a Disconnect Switch in Electrical Systems

By physically separating circuits from power sources, electrical separation devices make the workplace safe. Unlike circuit breakers, which are meant to stop fault currents, a disconnect switch only works when it is not connected to anything. This makes it clear that the equipment is really disconnected. This difference is very important during substation upgrades: trying to use these switches while they are loaded causes dangerous arcing, but their open-gap design makes it clear to maintenance crews that the power has been turned off. Modern designs use a rotating insulator mechanism to move conductive elements in precise arcs so that contacts can be reliably separated. Examples include the vertical motion systems in GN27 series switches and the horizontal rotary types in GW7B variants.

Operating Principles During Maintenance Workflows

In a normal maintenance situation at a 40.5kV substation, operators open the upstream circuit breaker to stop current flow before techs get close to the transformers or bus sections. Then they can safely turn on the disconnect switch, which physically separates the contacts and creates the needed air gap. Any remaining charge is then grounded by the built-in earthing switch, which is a standard feature of good break switches. This gets rid of any stored energy dangers. This three-step process—opening the breaker, disconnecting the power, and grounding—is the basis for safe electrical work. As a result, mechanical interlocks stop workers from going backward, which means that the disconnect switch can't be closed while the earthing link is still live.

Manual vs. Motorized Operation: Choosing the Right Method

Installation limitations often determine how things are operated. Manual switches with hook-and-stick interfaces work well in smaller substations where it's easy for people to get to them. They are simple and don't need any extra power. Motorized mechanisms are necessary for through-wall installations or outdoor switchyards that are hard to get to, where workers need to be able to handle devices from a safe distance. This is shown by the GN2 High Voltage Disconnect Switch, which can be used in both ways thanks to its modular design. When looking at options for updating old infrastructure, you should think about existing control systems. Motorized versions of these systems can connect to SCADA networks, which lets them coordinate across multiple switching points centrally and shorten the length of outages.

Why High Voltage Disconnect Switches Are Essential for Safe Maintenance

Visible Isolation Prevents Fatal Accidents

There is no way to get the same level of trust as seeing a real air gap between contacts. Electrical repair deaths are often caused by misread instruments or control system problems that give false readings of "de-energized" situations. A correctly placed disconnect switch with open contacts is clear proof that there is a safe distance. This visual proof is especially helpful when switching shifts or when multiple teams are working on systems that are linked at the same time. The three-column form of outdoor switches like the GW7B-363 series makes them even easier to see, so managers can check the state of isolation from the ground before giving permission to work at height on nearby equipment.

Preventing Accidental Energization Through Mechanical Interlocks

Electrical accidents during upkeep are still mostly caused by mistakes made by people, especially when dealing with High Voltage Disconnect Switch. Even workers who have been trained well can get distracted or have trouble communicating, which could cause the power to be turned back on too soon. Good disconnect switches have mechanical interlocking devices built in that make sure the safety is always maintained. For example, physical linkages stop the main switch from being closed while the earthing switch is still engaged, and the other way around too. This engineering approach gets rid of the need to rely on following the right steps. This idea is shown by the GN19-12 indoor switches, which have four-bar linkage mechanisms that self-lock at end positions, making it necessary to use conscious force to undo operations. When choosing tools for retrofit projects, make sure that interlock systems work without electrical controls. This way, safety is kept even if a control circuit fails.

Minimizing Arc Formation and Equipment Wear

Even though they're not meant to break loads, disconnect switches sometimes do so by accident when there isn't much current flowing through them. Contact materials and shape have a big effect on how these situations turn out. Copper-tungsten alloy contacts last longer in harsh settings because they don't wear down as easily as pure copper contacts. Precision alignment limits are kept during manufacturing, and tests of contact pressures higher than 800N on high-end models show that they work the same way after thousands of operations. Around contact zones, arc-resistant materials stop any flashovers from spreading, protecting nearby equipment and stopping failures that start a chain reaction. Devices that can withstand 10,000+ mechanical cycles without needing to be reconditioned mechanically have lower lifecycle costs that more than make up for small initial costs.

Selecting the Right High Voltage Disconnect Switch for Your Facility

Matching Voltage Rating and Current Capacity to System Requirements

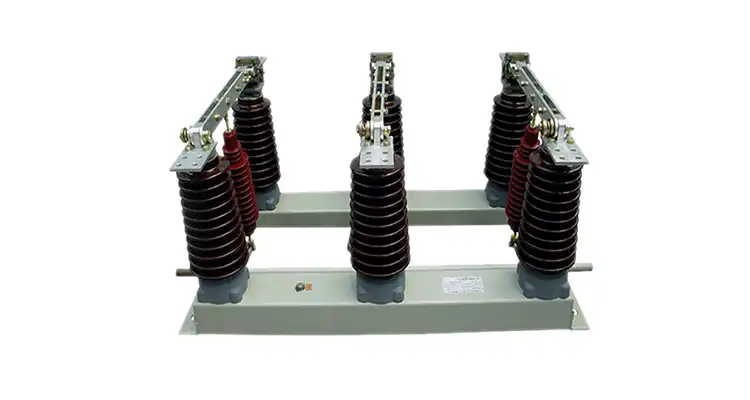

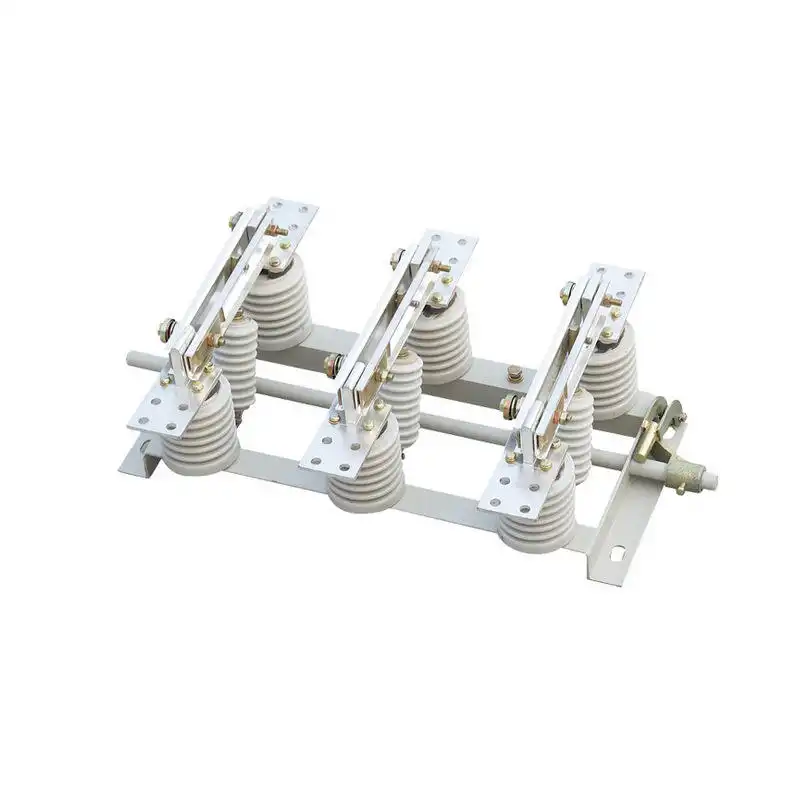

Basic switch settings are set by the substation specs. The GN2 High Voltage Disconnect Switch can handle medium voltage distribution tasks that are common in utility substations and industrial campuses. It is rated at 40.5kV and can handle currents from 400A to 2000A. The voltage ratings must be higher than the nominal values of the system by a sufficient amount. For example, a 40.5kV switch can work with 35kV systems and handle short-term overvoltages while switching. When choosing the current capacity, normal load needs are weighed against the ability to handle short-circuits. A continuous rating of 1250A is usually paired with a short-circuit current capability of 31.5kA, which is enough for most distribution situations. Undersizing causes contacts to warm and fail early, while oversizing wastes money and makes space planning harder.

Evaluating Environmental Factors and Installation Space

Coastal substations are constantly hit by salt spray, which eats away at metal areas that aren't covered. Frames and parts made of hot-dip galvanized steel and aluminum metal don't break down as easily as painted carbon steel options. The IP65 marking for outdoor switches makes sure that wetness doesn't get in and damage the insulation or cause flashovers. Ratings for temperature are also important. Standard designs work consistently up to 40°C, but equipment going to tropical areas or sealed switchgear rooms needs to be certified for 55°C. One feature that sets the GN2 series apart is its ability to be mounted through walls. This feature is especially useful when retrofitting crowded buildings where valuable indoor space is needed. This way of installing puts the switch mechanism outside while still letting you access the control panel from inside. This makes the best use of both space and weather protection.

Customization for Retrofit Projects and Legacy Infrastructure Compatibility

Modernization projects for old substations face a big problem: they have to fit new equipment on top of foundations and bus buildings that are decades old. Different brands and years have different mounting hole patterns, center-to-center dimensions, and connection heights. Leading suppliers offer customization services that fit standard products to existing layouts, which saves money on expensive changes to the building itself. When asking for quotes on retrofitting projects, you should include scaled drawings of the current equipment with clear markings of where the bolt holes are and where the bus ends. Manufacturers can then suggest solutions like fixing plates that can be adjusted or insulators that can be made to fit specific heights. This gives installers more time to complete jobs during valuable outage windows, which directly helps EPC workers who are in charge of replacing transformers or upgrading safety systems when time is of the essence.

Maintenance, Testing, and Troubleshooting of High Voltage Disconnect Switches

Essential Inspection Routines and Lubrication Schedules

Failures during critical operations can be avoided by doing regular assessments. Visual checks should be done every three months to look for things like discolored contacts that mean the wire is overheating, cracks or marks on the insulator that mean the voltage is too high, and buildups of conductive contaminants like carbon dust or metal particles. Every 1,000 actions or every two years, whichever comes first, contact surfaces need to be cleaned. Applying conductive grease made for high-voltage uses keeps the contact resistance low and stops oxidation. Even though self-lubricating bearing systems require less maintenance, they still need to be checked every so often to make sure that wear hasn't gone beyond what was planned. Write down what you find in maintenance logs and keep an eye out for trends like rising operation force or measurements of contact resistance that show problems are coming before they happen.

Diagnostic Testing Methods and Safety Precautions

Using microhm meters to test contact resistance shows degradation that can't be seen with the naked eye in High Voltage Disconnect Switch. If the readings are 20% higher than what the manufacturer recommended, it means that the item needs to be cleaned or fixed up. Megohm meters with voltages up to 5kV for one minute are used to measure the insulation resistance between phases that are not connected to each other and between phases and ground. Results less than 1,000M© call for an investigation. The mechanical operation checks the number of track cycles against the rated endurance limits. This helps with planning ahead for replacements. During testing, you should always make sure of isolation in more than one way: check the indicating lights, use properly rated voltage detectors to measure voltage, and temporarily ground the equipment before you approach it. Lock out control circuits and put up warning tags to keep things from working by accident while people are nearby working.

Identifying Common Failure Modes

Contact overheating usually happens because there isn't enough pressure, which can be caused by worn-out springs or imbalance after a mechanical shock. Using thermal imaging under load can find hot spots before they cause damage. Mechanical jamming happens when the fitting isn't done right or when the base settles and the operating linkage gets stuck. This condition usually shows up as higher torque needs that can be seen during normal operation. Carbon tracking patterns show that insulator flashover happens when there is a buildup of contamination or voltage stress that is too high compared to the design limits. Mild tracking can be fixed by cleaning with approved agents, but serious tracking needs an insulator replacement. When maintenance teams see these trends, they can step in and fix things during planned breaks instead of having to deal with forced shutdowns.

Procurement Insights: How to Buy and Choose Trusted High Voltage Disconnect Switch Suppliers

Sourcing Channels: Manufacturers vs. Distributors

When working on big projects or with specific needs, working directly with producers can be helpful. For specific uses, factory engineering teams can make designs better, and buying directly from the manufacturer saves money on markups by distributors. This method is used by Xi'an Xikai, which has a dedicated technical staff that helps with custom solutions for difficult retrofit situations. They show they are committed to new ideas by taking part in national research programs like the 863 initiative. Authorized wholesalers add value by keeping products in stock locally, shortening wait times, sending orders from multiple vendors together, and making operations easier through long-term relationships. Regional distributors also offer support after the sale, such as help with setting up the machine and quick access to spare parts.

Lead Time Considerations for Project Planning

Standard store items usually ship between 4 and 6 weeks after an order is confirmed, which works for projects with open plans. Custom configurations with non-standard voltage ratings, unique mounting arrangements, or specific environmental certifications add 10 to 14 weeks to the delivery time. Because of this, buying needs to start early on during the planning stages of a project. If an EPC provider is on a tight schedule, they should ask their suppliers about vendor stocking programs. These let suppliers keep an inventory of common setups, which allows delivery in two to three weeks. Supply contracts with penalty terms let you get out of delays, but they don't do much to lessen the effects on the project. It's better to choose suppliers whose track records of on-time delivery can be checked by calling references.

Evaluating Supplier Capabilities and Support Services

Investing in testing facilities is linked to better manufacturing quality. When suppliers are shown around production facilities, it's clear if they do real type tests or just sell rebranded goods. Look for high-voltage labs that are just for that purpose and have shock generators, temperature-controlled rooms, and mechanical endurance rigs. While ISO 9001 approval is a good starting point for security, standards that are specific to a field, like GB/T, are more important. Support services set commodity suppliers apart from partners. For example, detailed documentation like AutoCAD dimensional drawings, relay coordination studies, and maintenance manuals make engineering and operations run more smoothly. Commissioning risks are lower when technicians are trained on how to use new equipment. Technical support available 24 hours a day, seven days a week through phone, email, and videoconferencing is very helpful for fixing urgent problems in the field.

Conclusion

It's not enough to just match the voltage and current rates when choosing the right isolation tools like High Voltage Disconnect Switch. For substation projects to be successful, especially improvements that have to be done quickly, the switches have to be designed to be easy to install, work with existing infrastructure, and keep working well for decades. When visible isolation assurance, mechanical interlock protection, and strong environmental resilience come together, you have equipment that is fit for critical uses. Modern designs with built-in earthing switches, multiple mounting options through walls, and full approval to international standards provide real value by speeding up installation and lowering costs over the product's lifetime. When you're in charge of either utility distribution networks or industrial power systems, putting quality, the ability to customize, and provider support at the top of your list of priorities will help keep repair operations safe and projects on track.

FAQ

1. Can Disconnect Switches Interrupt Load Current Safely?

Standard disconnect switches don't have the arc-extinguishing features that are needed to safely cut off a load. When these devices are under load, harmful arcing happens that destroys the contacts and makes them more likely to explode. Before turning on disconnect switches, always open upstream circuit breakers to stop the flow of current. Specialized load break switches have small arc controls that can power on or off empty transformers and capacitor banks, but they can't stop fault currents like breakers can.

2. How Do Altitude and Environment Affect Switch Selection?

Conditions in the atmosphere have a big effect on how well electricity works. Low density air at high altitudes makes dielectric strength lower, so air there doesn't provide as much protection. For places like plateaus, standard equipment that is rated for installations below 1,000 meters needs to be changed. To make up for the lighter air, longer insulators and wider contact space are used. Mountainous areas have their own problems that manufacturers like Xi'an Xikai specialize in making plateau-type equipment that has been tested and proven to work at 4,000 meters. For locations near the coast, you need materials that don't rust and better covering to keep salt spray out.

3. What Distinguishes Quality Manufacturers in This Market?

Real ability to innovate sets leaders apart from commodity producers. Look for proof that they have patent portfolios to protect their own designs, that they are involved in developing industry standards, and that they have spent money on application research. It doesn't matter what level of manufacturing depth you have; suppliers who control the production of critical parts like insulators, contacts, and mechanisms have stricter quality control than assemblers who get their parts from a wide range of suppliers. A long history of working with major utilities gives people confidence; equipment that works reliably in demanding grid applications has been tested under stresses that are higher than those found in the lab.

Partner with Xi'an Xikai for Your Next Substation Project

When updating old electrical systems, you need a High Voltage Disconnect Switch provider that knows how to deal with the unique challenges of limited outage windows and compatibility with older equipment. Xi'an Xikai has a lot of experience with these tough situations because they offer full customization services, quick tech support, and GN2 series switches that are meant to make installation easier. Our manufacturing skills cover the whole production chain, so you can be sure of steady quality and shipping options that keep your project on track.

Whether you're in charge of updating the regional power grid or upgrading an industrial facility, our team can give you detailed technical advice on things like mounting compatibility, environmental requirements, and how to integrate a control system. Plateau-certified equipment and thorough testing protocols, such as mechanical endurance validation over 10,000 cycles and full dielectric testing, show that we are dedicated to reliability in harsh environments. Get in touch with our technical experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your needs. You can look at all of our switchgear options at xaxd-electric.com. We're a trusted manufacturer of High Voltage Disconnect Switches that work with utilities and contractors in tough situations. We're ready to help you succeed with long-lasting tools.

References

1. IEEE Standards Association. IEEE Std C37.32-2017: IEEE Standard for High-Voltage Air Switches, Bus Supports, and Switch Accessories Rated Above 1000 V. Institute of Electrical and Electronics Engineers, 2017.

2. International Electrotechnical Commission. IEC 62271-102:2018 High-voltage switchgear and controlgear - Part 102: Alternating current disconnectors and earthing switches. IEC Central Office, 2018.

3. Zhang, Weimin and Liu, Hongwei. Electrical Equipment for Power Systems: Design, Testing, and Maintenance Practices. China Electric Power Press, 2019.

4. National Electric Safety Code Committee. NESC C2-2023: National Electrical Safety Code Handbook. Institute of Electrical and Electronics Engineers, 2023.

5. Smith, Robert J. and Hartmann, Klaus. Substation Design and Equipment Specification for Utility and Industrial Applications. McGraw-Hill Professional, 2020.

6. Gomez, Juan Carlos et al. "Reliability Assessment of High-Voltage Disconnect Switches Under Aging Infrastructure Conditions." IEEE Transactions on Power Delivery, vol. 36, no. 4, 2021, pp. 2145-2153.
