Why Indoor High Voltage Switchgear is Crucial for Modern Systems？

In today's rapidly evolving industrial landscape, Indoor High Voltage Switchgear stands as an indispensable component for maintaining reliable, safe, and efficient power distribution across diverse applications. This sophisticated electrical equipment serves as the backbone of modern power systems, providing essential control, protection, and isolation capabilities that prevent costly downtime and ensure operational continuity. Whether deployed in manufacturing plants, data centers, hospitals, or utility substations, indoor HV switchgear delivers the robust performance and safety features that modern electrical systems demand to protect both equipment investments and personnel safety.

Understanding Indoor High Voltage Switchgear: Fundamentals and Benefits

Essential Components and Operating Principles

"Indoor High Voltage Switchgear" refers to a broad range of electrical devices that govern medium-voltage power distribution in secure enclosures. These systems featured vacuum circuit interrupters, gas-insulated parts, and complicated safety relays to switch at 3.6 kV to 40.5 kV. The key design idea is safe, compartmentalised enclosures that contain crucial switching and shielding equipment while allowing operation and maintenance. These systems' main purpose extends beyond switching. Modern interior switchgear has intelligent protection. These methods monitor electrical characteristics, detect faults, and take preventative action in milliseconds. This rapid response talent prevents equipment damage, safety issues, and system instability under atypical operating conditions.

Primary Configuration Types

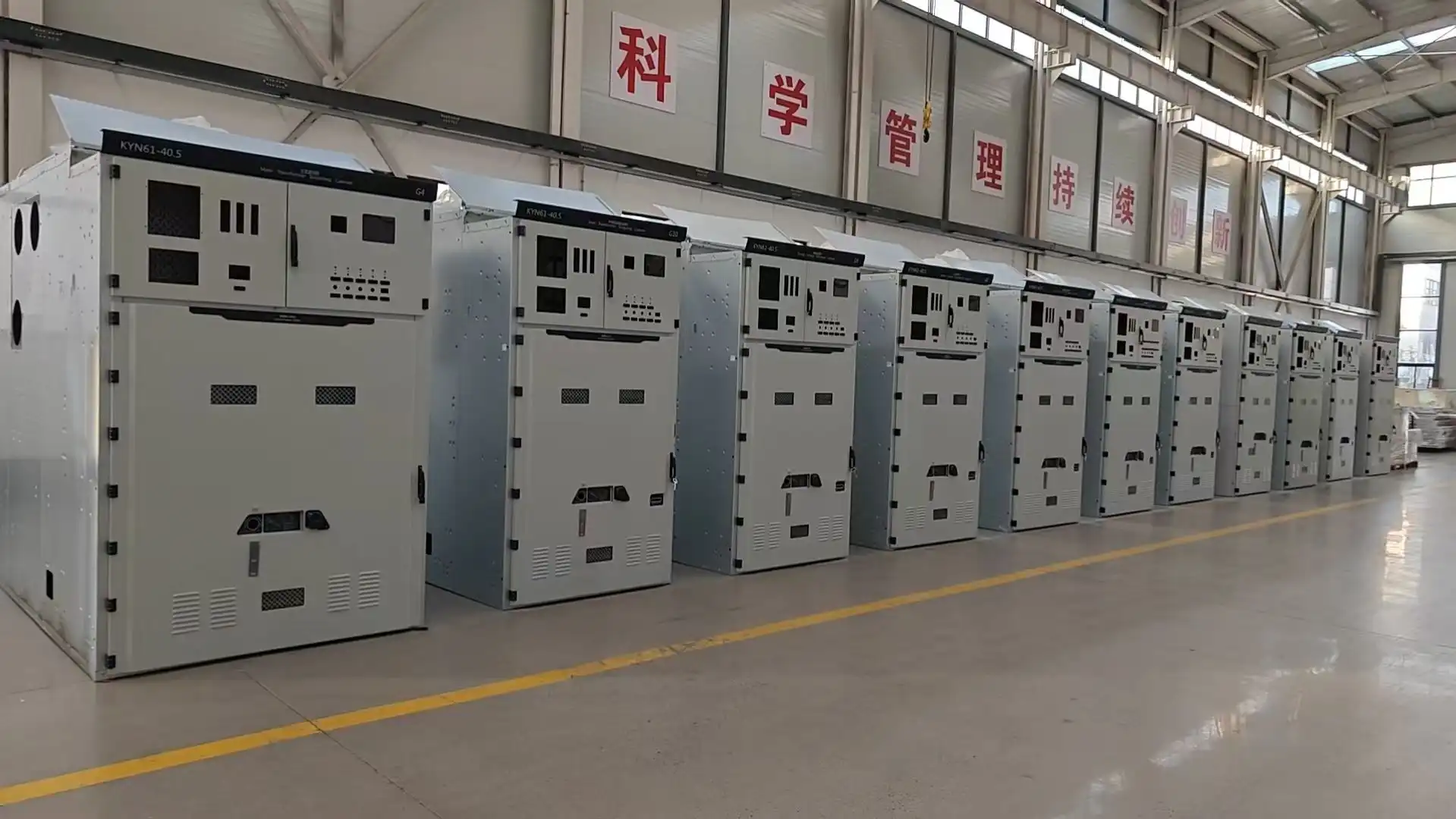

Metal-enclosed switchgear dominates indoor applications. This arrangement has robust steel frames for electromagnetic and mechanical protection. These machines employ air-insulated bus systems with vacuum circuit breakers in most industrial applications. They function reliably and affordably. Gas-insulated switchgear layouts employ sulfur-he (SF6) or other ecologically friendly gases for compact, well-insulated designs. This technique saves space, improves reliability, and lowers maintenance costs. Therefore, it is ideal for situations where space is limited.

Operational Advantages Over Outdoor Solutions

Indoor installations safeguard equipment from environmental variables that reduce performance and lifespan. Moisture penetration, temperature variations, and contaminant exposure are minimised, extending equipment lifetime and lowering maintenance expenses. Monitor and diagnose more accurately in the controlled indoor setting. Without external interference, advanced condition monitoring systems can provide precise real-time equipment health and performance data. Proactive maintenance techniques that maximise uptime and reduce operating costs benefit from increased visibility.

Comparing Indoor High Voltage Switchgear with Other Solutions

Indoor Versus Outdoor Switchgear Analysis

Facility operators must carefully examine their applications' environmental and operational needs while considering switchgear options. Indoor High Voltage Switchgear has a significant benefit in this scenario. Weatherproofing and specialised maintenance are needed for outdoor switchgear systems to operate reliably. Environmental stressors may accelerate component ageing and increase maintenance frequency. Indoor High Voltage Switchgear installations remove environmental issues and improve operating and maintenance accessibility. The controlled environment permits more advanced monitoring systems and more regular inspections without weather limits. Due to building shielding, indoor installations have better electromagnetic compatibility.

Metal-Enclosed Versus Gas-Insulated Configurations

Space, ambient circumstances, and long-term maintenance determine metal-enclosed or gas-insulated designs. Metal-enclosed switchgear is reliable and cost-effective for installations with enough space and stable climatic conditions. In compact spaces, gas-insulated alternatives provide similar electrical performance in a smaller footprint. Even under harsh climatic circumstances like extended moisture or dust exposure, these systems work well due to their sealed construction and inert gas insulating medium.

Cost-Effectiveness and Energy Efficiency Considerations

Modern interior electrical switchgear optimises conductor configurations, uses advanced magnetic materials, and reduces auxiliary power to save energy. These improvements save operational costs over the equipment's lifecycle and help meet sustainability objectives. Total cost of ownership must include initial purchase costs, installation expenses, ongoing maintenance costs, and expected service life. Indoor installations generally have better lifetime economics than outside ones due to lesser maintenance and longer equipment life.

How to Select the Right Indoor High Voltage Switchgear for Industrial Applications

Technical Specification Assessment

Successful switchgear selection begins with a thorough assessment of electrical requirements, including rated voltage, capacity, short-circuit withstand, and protective coordination. These fundamental characteristics must match the current system and future growth demands. Compatibility includes electrical features, mechanical connections, communication mechanisms, and control system integration. Modern inside switchgear supports ABB VD4 and VS1 breakers. It integrates well with current maintenance routines and spare parts stocks.

Safety Standards and Compliance Requirements

Use international safety standards like IEC 62271-200 to provide full switchgear design, evaluation, and performance verification criteria. These standards ensure reliable operation and satisfy insurance and regulatory bodies across a broad variety of industrial applications. In situations where maintenance occurs near energised equipment, arc-resistant design elements are becoming more vital for worker safety. The design improvements offer important safety margins while keeping operational flexibility for regular maintenance and inspection.

Supplier Evaluation and Procurement Strategies

The manufacturing, quality assurance, and customer service skills of a supplier must be examined before choosing. Standardised components, readily available replacement parts, and competent technical support teams help established manufacturers with vast product portfolios and global support networks give better customer value. Indoor High Voltage Switchgear requires special considerations due to its increased importance in supply chain lead times. To complete projects on time without sacrificing quality, procurement plans should include production timetables, transportation needs, and supply chain interruptions.

Best Practices for Installation, Operation, and Maintenance of Indoor HV Switchgear

Installation Planning and Site Preparation

Planning and preparation are needed for Indoor High Voltage Switchgear installation to ensure performance and safety. Long-term dependability requires structural, ventilation, and environmental control systems throughout site preparation. Cable organization and termination must be done appropriately for system dependability and safety. Installation workers must follow product requirements, electrical codes, and safety rules.

Routine Maintenance Protocols and Best Practices

Effective maintenance programs combine preventive and condition-based monitoring to maximise equipment performance and avoid downtime. Visual, electrical, and mechanical function verification should be part of routine inspections to detect flaws before they impair system dependability. Incomplete discharge monitoring, thermal inspection, and vibration analysis may show equipment health and performance trends. Maintenance personnel may detect defects earlier and plan maintenance schedules to reduce operational disturbance using these technologies.

Safety Considerations and Risk Management

Safety rules must include normal and emergency activities. Staff training should prioritise safety, equipment operation, and emergency response to maintain consistent security in all operating conditions. Indoor high voltage switchgear systems need lockout and tagout owing to energy. Complete controls and administrative processes must avoid inadvertent energisation during repairs while retaining switching flexibility.

Future Trends and Innovations in Indoor High Voltage Switchgear

Smart Grid Integration and Digital Technologies

Smart grid technologies are transforming Indoor High Voltage Switchgear design and performance. IoT-enabled monitoring solutions provide remote diagnostics and unparalleled equipment performance visibility, reducing maintenance costs and improving dependability. Digital protection systems are more flexible and precise than electromechanical ones. These sophisticated systems record and analyse data and react to changing system circumstances to allow continual development.

Environmental Sustainability and Green Technologies

Due to its large global warming potential, manufacturers are investigating alternatives to SF6 gas insulation for switchgear design. New insulating technologies offer performance and environmental sustainability.Indoor High Voltage Switchgear benefits from these developments, as energy efficiency improves conductor design, magnetic materials, and auxiliary systems innovation. These innovations boost business sustainability and save operating expenses by improving efficiency and energy use.

Predictive Maintenance and Artificial Intelligence

Maintaining indoor voltage switchgear systems is being revolutionized by uses of artificial intelligence, which are changing maintenance procedures. It is possible for machine learning algorithms to examine operational data trends in order to anticipate failures of equipment before they occur. This enables proactive maintenance tactics that limit downtime and decrease costs. Predictive analytics platforms integrate data from multiple sources to provide comprehensive equipment health assessments and maintenance optimization recommendations. These technologies enable maintenance teams to focus resources on equipment requiring attention while avoiding unnecessary interventions on healthy systems.

Xi'an Xidian: Leading Indoor High Voltage Switchgear Solutions

Comprehensive Product Portfolio for Diverse Applications

Xi'an Xidian Medium- & Small Voltage Electric Co., Ltd. is a company that specializes in providing wide-ranging solutions for indoor high voltage switchgear. These solutions are intended for use in industrial, utility, and construction applications all over the globe. Our product line includes switchgear configurations that are metal-enclosed, gas-insulated, and air-insulated. These configurations are designed to give high reliability and safety performance across a wide range of operating situations.

Extensive Range and Specialized Configurations

Our production capabilities include seven primary product categories, each of which have over one hundred varieties. Among these variants is specialist plateau-type equipment that is intended to function at elevations of up to four thousand meters. This vast variety guarantees that suitable solutions are provided for purposes ranging from distribution of power and motor starter systems to full grid monitoring systems.

Innovation and Compatibility with Industry Standards

Our many patented innovations and our adherence to both national along with international standards are indicative of the company's dedication to innovation, which is shown in both of these areas. Our systems have been shown to be compatible with industry-standard components like as ABB VD4 including VS1 circuit breakers, isolated trucks, and transformers. This compatibility ensures that our solutions may be seamlessly integrated with the infrastructure that is already operational.

Strict Quality Assurance and Advanced Manufacturing

Quality assurance processes adhere to ISO 9001 certification standards, with comprehensive testing procedures encompassing dielectric performance, mechanical endurance, and material quality verification. Manufacturing facilities utilize precision welding and robotic assembly techniques to ensure consistent quality and reliability across all product lines.

Conclusion

Indoor High Voltage Switchgear represents a critical investment for modern industrial and utility operations seeking to optimize reliability, safety, and efficiency in their electrical distribution systems. The controlled environment and advanced features of indoor installations provide measurable advantages over outdoor alternatives while supporting the integration of smart grid technologies and digital monitoring systems. As industrial facilities continue to evolve toward higher automation levels and increased reliability requirements, the importance of robust, intelligent switchgear solutions will only continue to grow. The selection of appropriate equipment requires careful consideration of technical requirements, safety standards, and long-term operational objectives to ensure optimal performance throughout the equipment lifecycle.

FAQ

1. What safety standards apply to Indoor High Voltage Switchgear installations?

Indoor High Voltage Switchgear installations must meet IEC 62271-200 switchgear and control gear standards and local electrical codes and safety laws. Arc-resistant design, electromagnetic compatibility, and personnel protection are covered by these standards. Regional and application requirements may need IEEE C37.20 series and NEMA SG-4.

2. How long can Indoor High Voltage Switchgear operate reliably?

With appropriate maintenance and operation, quality Indoor High Voltage Switchgear systems last 25-30 years. Vacuum circuit breakers may disrupt thousands of switching processes. Regular maintenance and condition monitoring may prolong equipment life and maintain performance.

3. Can Indoor High Voltage Switchgear be customized for specific applications?

Modern Indoor High Voltage Switchgear is highly customisable to satisfy application needs. Bus layouts, protection methods, communication interfaces, and mechanical designs for space and operating demands are configuration possibilities. Manufacturers may adapt conventional designs to specific voltage ratings, ambient conditions, and integration needs while retaining safety and performance.

Contact Xi'an Xidian for Expert Indoor High Voltage Switchgear Solutions

Xi'an Xidian stands ready to support your Indoor High Voltage Switchgear requirements with comprehensive technical expertise and proven manufacturing excellence. Our experienced engineering team provides personalized consultations to identify optimal solutions for your specific applications, whether you need power distribution upgrades, motor startup systems, or grid monitoring capabilities. Contact our specialists at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com for detailed product catalogs, technical specifications, and customized quotations.
