Choosing the Right Outdoor Vacuum Circuit Breaker for Utilities

Choosing the right outdoor vacuum circuit breaker for utilities means selecting equipment that delivers reliable circuit interruption under harsh environmental conditions. An outdoor vacuum circuit breaker uses vacuum arc-quenching technology enclosed within weather-resistant housings, designed specifically for 40.5kV distribution networks. For project managers overseeing substation construction or railway electrification, the decision hinges on breaking capacity (typically 31.5kA), operating mechanism reliability (spring versus permanent magnet types), and protection ratings that withstand temperature extremes and moisture ingress. This guide walks you through technical fundamentals, comparative analysis, procurement strategies, and maintenance practices to help you make confident purchasing decisions.

​​​​​​​

Understanding Outdoor Vacuum Circuit Breakers: Basics and Benefits

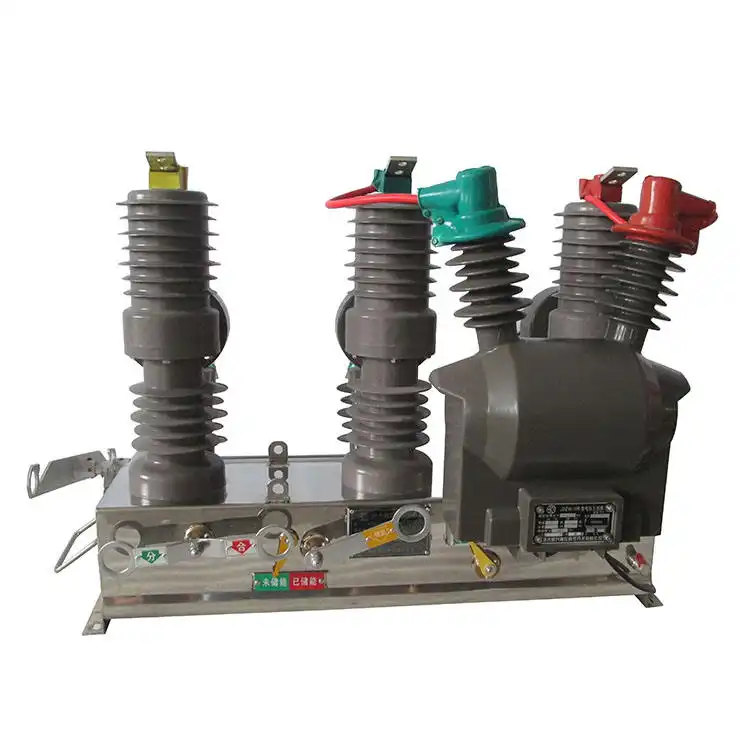

What Is an Outdoor Vacuum Circuit Breaker?

By putting out electrical sparks inside sealed vacuum interrupters, an Outdoor Vacuum Circuit Breaker functions. If there is a fault in the circuit, the breaker's contacts split inside a pressure chamber. Ionization can't happen when there is no air or other gasses present, so the arc goes away in microseconds. This technology is very different from older designs that use SF6 or oil-filled materials and rely on gas compression or liquid cooling to put out the arc. The vacuum method gets rid of the risk of external contamination and greatly shortens the time needed for upkeep.

Core Components and Operating Principles

The vacuum bottle, which is a cylinder-shaped box with fixed and moving connections, is the heart of any vacuum circuit breaker. When the operating mechanism (either spring-loaded or electromagnetically driven) goes off, the moving contact pulls back, leaving a small space. Due to the dielectric strength of the vacuum, arc plasma only lasts a short time before collapsing. Flashovers are prevented by ceramic or polymer insulators on the outside, and three-phase timing is maintained by a mechanical linkage. These breakers can handle currents between 1250A and 2000A and are rated for 40.5kV systems. This means they can be used in medium-voltage distribution lines.

Key Benefits for Utility Applications

There are clear benefits to using vacuum disruption technology. Because there isn't much contact erosion, maintenance intervals are longer than five years, compared to once a year for SF6 breakers. The sealed vacuum design keeps dust, salt spray, and industrial pollutants from getting inside, which is very important for substations near the coast or mines. Because arc energy loss drops below 0.1%, less heat is made and the contact lasts longer than 10,000 processes. This makes energy economy better. Environmental compliance improves because no greenhouse gasses are released during operation or shut down. Utilities that are in charge of expanding the grid in remote places like that they don't have to hire as many expert workers, which lowers the total cost of ownership over 30 years.

Comparing Outdoor Vacuum Circuit Breakers with Other Circuit Breaker Types

Vacuum vs. SF6 Technology

SF6 breakers are used in most older installations because they are small and can handle a lot of interruptions. But SF6 gas has 23,500 times more potential to warm the planet than CO2, which makes regulators look closely at it. This risk is taken away by vacuum circuit breakers, which can also break up to 63kA at 40.5kV. SF6 devices need to be checked for leaks and gas levels on a regular basis, which makes operations more difficult. Vacuum units only need to be checked mechanically once a year, which cuts the cost of annual maintenance by about 40%. Vacuum technology is a clear way for utilities to prioritize sustainability without losing dependability.

Performance Against Oil and Air Breakers

Oil circuit breakers used to be very useful in distribution networks, but they are no longer used because they are flammable and hard to get rid of. As time goes on, mineral oil breaks down, and it costs a lot to replace and gets environmental permits. Air-blast breakers need high-pressure blowers and valves that need to be serviced often. With Outdoor Vacuum Circuit Breaker units, none of these problems happen at all. When you put two things next to each other, you can see that vacuum units are 99.9% effective at stopping arcs, while oil breakers are only around 95% effective because of carbonization. Vacuum models have noise levels below 60 dB, while air-blast models have noise levels above 85 dB. This is important for urban substations that are close to residential areas.

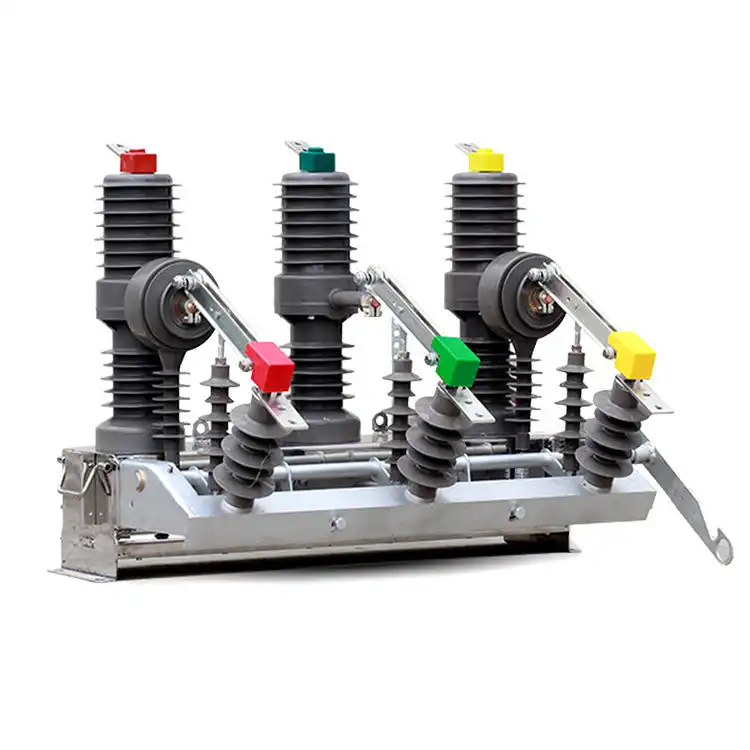

Indoor vs. Outdoor Designs

Indoor vacuum circuit breakers fit inside metal-enclosed switchgear, keeping them safe from the weather but needing building infrastructure. Outdoor versions have weatherproof covers and UV-stabilized wires that let them be installed on poles or in substation yards. The ZW7-40.5 model is a good example of this type. It has a strengthened bracket column structure that was tested to meet IEEE 693 seismic standards. It also has large-creepage porcelain plates that are rated for pollution intensity level III. By getting rid of the need for buildings, this arrangement lowers the cost of civil engineering and speeds up project timelines by 20 to 30 percent in new deployments.

How to Choose the Right Outdoor Vacuum Circuit Breaker for Utilities (Decision Support Approach)

Assessing Voltage and Current Ratings

First, make sure that the breaker's rated voltage matches the nominal level of your system. With enough safety margin, a 40.5kV breaker works with 35kV networks. Choosing the right current rating depends on the load profile. For example, 1250A is enough for rural feeders carrying 25 MVA, while 2000A is enough for industrial parks carrying close to 75 MVA. Check the ability to break short circuits (31.5kA for normal grids and up to 40kA for heavy-duty uses). Undercapacity increases the chance of a catastrophic failure during fault conditions, while overcapacity raises costs up front without improving operations.

Evaluating Environmental Adaptability

Certain design traits are needed for harsh areas. Changing temperatures from -40°C to +60°C puts a lot of stress on the oils in spring systems. Look for synthetic greases that are rated for this range of temperatures. Moisture and condensation can damage insulation. Breakers with built-in heaters in the mechanism boxes stop moisture from building up. Tracking fails happen when dust and smog build up on insulators; big creepage distance porcelain sleeves (creepage distance ≥31mm/kV) stop flashovers. In areas prone to earthquakes, make sure the breaker meets the requirements of IEEE 693 or IEC 60068-2-57 and can handle ground accelerations without breaking.

Mechanism Reliability: Spring vs. Permanent Magnet

Long-term dependability is based on how the system works. Mechanisms that work with springs store mechanical energy and then release it to move contacts apart. The ZW7-40.5 has a modularized spring system that lets old parts be replaced in the field without special tools. Permanent magnet mechanisms use electromagnetic coils to move contacts. This gives them faster response times (less than 20ms), but they need electrical control systems that can be damaged by lightning strikes. For remote substations that don't have a lot of technical support, spring mechanisms make it easier to fix problems and get replacement parts.

Protection Ratings and Enclosure Standards

Levels of entry protection are set by IP grades. An IP67 barrier keeps out dust and water for a short time, which is important in areas that are likely to flood. In seaside or industrial settings, corrosion resistance is important. Hardware made of stainless steel and frames that have been hot-dip galvanized will last decades longer than carbon steel that has been painted. UV resistance in polymer housings keeps them from breaking in direct sunlight. These specs have a direct effect on how long the equipment lasts, so make sure that the ratings are in line with the conditions at the spot that were found in environmental studies.

Maintenance, Common Issues, and Lifespan of Outdoor Vacuum Circuit Breakers

Routine Inspection Protocols

Visual checks every three months catch early signs of wear and tear. Look for cracks or changes in color in ceramic insulators that could mean tracking. Check the housings of mechanisms for rust or worn-out gaskets. Use micro-ohmmeters to check the loop resistance once a year; results above 60µohms indicate contact wear or alignment problems. Thermal imaging finds hot spots at bolted connections, which stops arcing faults from happening. These checks don't hurt anyone and only take about two hours per breaker, so they can be done during normal center security times.

Testing and Performance Verification

Opening and shutting speeds and three-phase synchrony are looked at in mechanical characteristic tests for the Outdoor Vacuum Circuit Breaker. Too much asynchrony (more than 2ms) causes voltage differences that put stress on the wiring of the transformer. Power-frequency withstand voltage tests make sure that the insulation on the outside is solid—apply 85kV for one minute without flashover. Magnetron discharge methods are used to check the vacuum degree and make sure the chamber pressure stays below 1.33×10-3 Pa. According to IEEE C37.09 rules, these tests must be done every five years or after big fault delays.

Common Faults and Troubleshooting

Extreme temperatures often cause mechanisms to break down because the grease breaks down. Some signs are slow operation or contact closing that isn't full. To fix this, during routine maintenance, use high-temperature synthetic formulations instead of grease. Arcing can be seen through the inspection ports when there is vacuum loss. Replacing the vacuum bottle right away stops the insulation from breaking down. Contact over-travel measurements (usually 3–4 mm) show when the contacts are worn; when they drop below 2 mm, they need to be replaced. Three-phase asynchrony means that the linkages are not lined up correctly. This can be fixed by following the steps outlined in the manufacturer's instructions.

Procurement Guide: How and Where to Buy Outdoor Vacuum Circuit Breakers

Navigating Purchase Channels

Genuine goods and valid warranties are guarantyd by authorized distributors. Platforms that show certified dealers help reduce the risk of fake goods; check the seller's qualifications on the manufacturer's website. When you buy directly from companies like Xi'an Xikai, you skip the markups that come from middlemen. This is especially helpful for sales of more than 20 units. Early on in the bid preparation process, involve engineering officials; technical explanations stop expensive specification mismatches. Before shipping, ask for factory acceptance testing (FAT) procedures and be there for the mechanical and insulation tests.

Understanding Pricing Structures

The base price for a 40.5kV vacuum circuit breaker is between $8,000 and $15,000. The price varies based on the current rating and extra features like built-in current transformers. Spring mechanisms cost 15% less than permanent magnet versions, but they need a little more upkeep. Above 10 units, volume discounts kick in and lower the price per unit by 10–20%. Usually, you pay 30% up front, 60% before shipping, and 10% when the job is done. For big projects, you should discuss retention rates to get performance guaranties.

Evaluating Warranty and Service Agreements

Standard guarantees last for 18 to 24 months from the date of commissioning or 30 months from the date of shipment, whichever comes first. Extra warranties (up to 5 years) raise the price by 8–12%, but they're worth it for remote sites where moving equipment around costs a lot. Service agreements that include yearly checks, spare parts kits, and emergency calls cost between $1,200 and $2,500 per breaker per year. Include these things in your calculation of the total cost of ownership. Lower prices up front often hide weak support, which raises the total cost of ownership over time.

Conclusion

When choosing the right Outdoor Vacuum Circuit Breaker, you need to think about the technical specs, how well it will work in the setting, and how reliable the provider is. The vacuum interruption principle is the best choice for modern utility infrastructure because it is easy to maintain and doesn't harm the environment. Procurement teams buy things that will last for decades by looking at things like breaking strength, how they work, protection ratings, and customer service after the sale. The ZW7-40.5 Outdoor Vacuum Circuit Breaker is a great example of these traits because it combines proven 40.5kV performance with modular serviceability and strongness against earthquakes. Whether it's upgrading old substations or building new distribution networks in dry areas, smart decisions based on thorough technical and business research protect investments and keep the grid stable.

FAQ

1. Can the ZW7-40.5 be equipped with integrated current transformers?

The ZW7-40.5 design has plenty of room inside the support porcelain bottles for two to four current transformers per phase. For metering and protection circuits, 600/5A and 1000/5A are common ratios. This combination gets rid of the need for different CT stands, which lowers the cost of installation and makes the switchyard simpler. When placing an order, make sure to include the CT needs, such as the accuracy class (0.2S for metering, 5P20 for protection), so that the right setup is made.

2. How does the breaker handle condensation in the operating mechanism?

Professional models have heaters inside the mechanisms that are controlled by thermostats. When these devices are turned on below 10°C, they keep the temperature inside above the dew point to stop humidity. When making grease, synthetic bases like polyalphaolefin or lithium complex are used. These bases stay thick even at -50°C, which keeps the mechanism working well during cold snaps. Failures caused by moisture can be avoided by checking the heater's function on a regular basis during winter maintenance.

3. What distinguishes ZW7-40.5 from ZW32-40.5 models?

ZW7 breakers are made of column-type porcelain and work well in substation frameworks with separate support structures. The ZW32 types have solid insulator poles that are made to be mounted on distribution lines. ZW7 is better for fixed substation setups that need strong measurement infrastructure because it can handle higher current ratings (up to 2000A) and is easier to integrate with CT.

Partner with Xi'an Xikai for Reliable Outdoor Vacuum Circuit Breaker Solutions

As a top Outdoor Vacuum Circuit Breaker maker, Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. has a track record of success in the utility, rail, and industry sectors. Our ZW7-40.5 model meets the standards set by IEC 62271-100 and IEEE C37.04 and blends advanced vacuum technology with modular spring systems and stronger seismic structures. We work with customers in Asia, Africa, and Southeast Asia, providing unique solutions for places that are high up, prone to earthquakes, and polluted. With ISO 9001, 14001, and 45001 certifications and technical support available 24 hours a day, seven days a week, we make sure that your projects meet strict performance and compliance standards.

You can talk to our engineering team about your 40.5kV distribution network needs at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com. Our flexible bases can be quickly changed without lowering the quality, whether breakers are set up for heat in the desert or cold in the Arctic. Technical datasheets, case studies, and buying tools for project managers and electrical experts can be found at xaxd-electric.com. Let us help you find Outdoor Vacuum Circuit Breaker solutions that are both reliable and affordable. These will protect your infrastructure investments for decades to come.

References

1. IEEE Standard C37.04-2018, IEEE Standard Rating Structure for AC High-Voltage Circuit Breakers, Institute of Electrical and Electronics Engineers, New York, 2018.

2. IEC 62271-100:2021, High-voltage switchgear and controlgear – Part 100: Alternating-current circuit-breakers, International Electrotechnical Commission, Geneva, 2021.

3. Slade, P.G., The Vacuum Interrupter: Theory, Design, and Application, CRC Press, Boca Raton, 2017.

4. IEEE Standard 693-2018, IEEE Recommended Practice for Seismic Design of Substations, Institute of Electrical and Electronics Engineers, New York, 2018.

5. Flurscheim, C.H., Power Circuit Breaker Theory and Design, Institution of Electrical Engineers, London, 1982.

6. Greenwood, A.N., Vacuum Switchgear, Institution of Electrical Engineers, London, 1994.
