Polymeric Lightning Arrester: How It Protects Power Systems

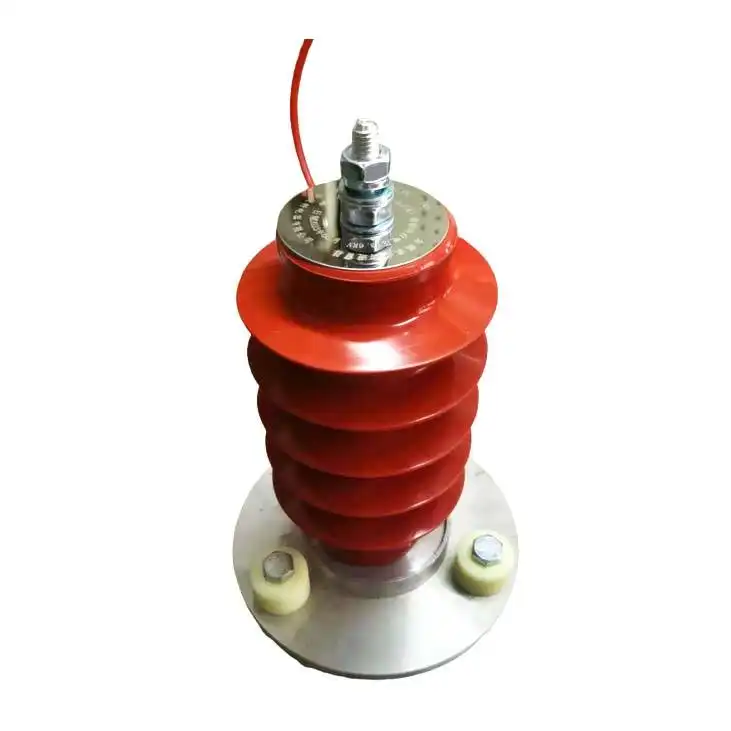

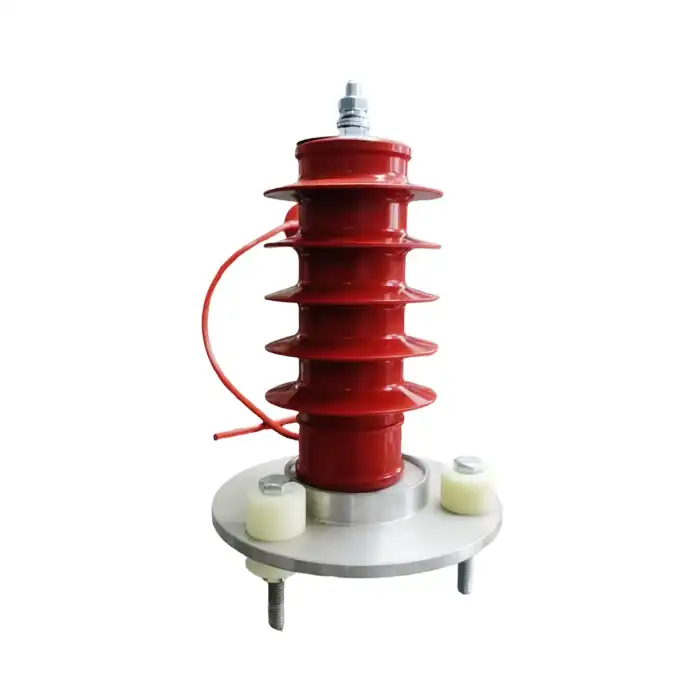

A polymeric lightning arrester is a gapless metal oxide surge protection device built with a composite polymer housing instead of the traditional porcelain or ceramic shell. It guards AC power systems against voltage surges triggered by lightning strikes and switching transients by redirecting excess energy safely to ground. Modern polymer-housed arresters combine zinc oxide varistor (ZOV) blocks with silicone rubber sheds, producing a device that is lighter, more resilient in polluted environments, and far easier to handle during substation installation than legacy ceramic units.

​​​​​​​

Understanding How a Polymeric Lightning Arrester Works

Materials that don't react evenly to voltage are used to protect high-voltage systems from surges. The zinc oxide blocks inside a polymeric lightning arrester act almost like an insulator when the voltage is normal, drawing almost no leakage current. When lightning causes an overvoltage, the resistance drops in microseconds, sending the surge current safely to ground. When the transient is over, the resistance goes back to normal right away, and there are no gaps, spark loss, or moving parts to keep.

Core Components That Define Performance

It does more than just protect the core inside the composite housing of a polymer surge arrester. Its hydrophobic silicone rubber surface keeps water away, stops pollution flashover, and cleans itself when it rains, which are all things that porcelain can't do. Along with a triple-seal system that keeps humidity out for more than 25 years, the MOV column inside is precisely stacked. These choices about materials aren't just for looks; they have a direct effect on how reliably the device works in a wide range of climates, from substations in high-altitude deserts to tropical coastal areas.

Advantages of Polymeric Lightning Arresters Over Traditional Types

Tradespeople who have worked with both ceramic and polymer parts know how different they are in real life. During an explosive failure, porcelain fragments can damage nearby switchgear and hurt people in the field. This is a known risk that polymer housings completely eliminate because the silicone rubber just splits open and lets the pressure out without projecting shrapnel.

In order to buy a project, these are the main differences in results that matter:

• Weight reduction: A polymeric lightning arrester at 220 kV class usually weighs 60–70% less than a similar ceramic unit. This means that a crane isn't needed for placement of these units, and a lot less work is done.
• Pollution tolerance: The hydrophobic silicone sheds of the polymeric lightning arrester keep their surface resistivity even when they are dirty with salt, cement dust, or industrial fallout. This is very important for coastal substations in Africa and industrial zones in Southeast Asia where creepage requirements are higher than normal.
• Impact resistance: Polymer housings can handle mechanical shock loads, which is useful for rail electrification projects and places that are likely to be hit by earthquakes, without the risk of breaking that comes with ceramic construction.
• Sealed integrity: A well-designed polymer arrester has vulcanized end fittings that connect the housing to the end caps. This gets rid of the tiny gaps where water can get in when porcelain units that are only sealed with cement get old.

These structural benefits lead to lower lifecycle costs that can be measured. Studies mentioned in IEC 60099-4 technical commentaries show that MOA units housed in polymers absorb energy as well as or better than their porcelain peers, while also being lighter and easier to maintain. Purchasing managers who put together mixed containerized shipments for export substations like the weight savings because each 20-foot container doesn't need as many shock-absorbing crates.

Selecting the Right Polymeric Lightning Arrester for Your Application

Voltage class is a good place to start, but it doesn't always tell the whole story. When used in a network that isn't properly grounded, a 220 kV system polymeric lightning arrester needs a rated voltage that is much higher than the phase-to-ground operating voltage. This is because healthy phases can rise to line voltage during a single-phase-to-ground fault. One of the most common and expensive mistakes in export transformer projects is getting this estimate wrong.

Key Selection Parameters for High-Voltage Export Projects

It works with 220 kV class AC systems and has a rated voltage of 216 kV and a DC reference voltage of ≥314 kV. The YH10W-216/562W polymeric lightning arrester is made by Xi'an Xikai. The two units stacked on top of each other give it both voltage compliance and physical support. With a creepage distance of 31 mm/kV, it can work in environments with heavy pollution and middling altitude without needing a different upgraded model. This makes it easier for traders who are in charge of project portfolios in more than one country to find the right suppliers. The temperature range of -40 °C to +85 °C is wide enough to cover almost any deployment site, from sub-Saharan Africa to highland substations in South America.

Matching Creepage Distance to Local Environmental Class

IEC 60815 divides pollution severity into four levels, from very light (c1) to very heavy (c4), and sets minimum creepage distance standards for each level. A lot of projects in coastal West Africa or humid equatorial Southeast Asia need at least 31 mm/kV. If you choose a polymeric lightning arrester with high creepage built in, you won't need to use field-applied RTV coats or special pollution-grade ceramic insulators elsewhere in the string. This makes it easier to buy and takes less time to install on-site.

Procurement Considerations for B2B Clients

Certification Compliance, Cost Balance, and Logistics Protection

When export electrical traders look at surge protection providers, they face a common problem: meeting IEC certification requirements is what makes specifications acceptable, but the supplied unit cost is what decides which bid wins. Both conditions must be met at the same time.

Xi'an Xikai's YH10W-216/562W polymeric lightning arrester goes through strict manufacturing quality control checks, including being able to trace the raw materials used to make high-purity zinc oxide, going through a triple-sealing process that is approved by IEC 60099-4, and passing high-voltage withstand tests that simulate surge currents up to the specified discharge class. This is how the production process is controlled by ISO 9001, ISO 14001, and ISO 45001 awards. These certifications make it much easier for traders to get approval when they need to show a project owner's engineer a credible technical dossier.

Export trading often has a mix of procurement cycles, where stock items ship within 3–7 days and project-specific configurations need a planned lead time. Spot inventory and scheduled production batches can both handle these situations. When you place a lot of orders at once, you can get better shipping rates by shipping them all at once in a container that is designed to keep wetness out. This keeps the sealed polymer case safe during the long ocean journey. This directly addresses the risk of humidity getting in, which worries experienced traders who know how containers can condense during long-haul trips.

Ensuring Long-Term Performance and Risk Mitigation

A polymeric lightning arrester doesn't need as much regular maintenance as its silicon carbide predecessor did. However, "maintenance-free" does not mean "inspection-free." Visual checks should be done once a year to make sure that shed surfaces don't have any cracks, tracking marks, or white mineral layers that could be signs of ongoing pollution flashover activity. At the same time, you should check the link between the ground line and any attached discharge counter or leakage current monitor.

Warning Signs That Demand Immediate Action

A clamp-on milliampmeter at the ground terminal of the polymeric lightning arrester can measure high resistive leakage current, which is the best early sign of MOV block degradation. If the number has gone up by more than 50% from the initial value recorded during setup, a DC reference voltage test should be done during the next planned outage. On a transmission center transformer bay, waiting for a failure to be seen is not a good way to control risk.

Emerging smart monitoring options, including IoT-enabled discharge counters with RS485 communication output, now let condition data from a polymer surge arrester go straight into a SCADA system at a substation. Xi'an Xikai's wide range of products includes an integrated solution that can meet the needs of more and more intelligent substation projects in Southeast Asia.

Conclusion

Surge protection is not a common line item, as it is the only thing that stands between a lightning strike and an expensive transformer. A well-designed polymeric lightning arrester responds faster, lasts longer, and is more resistant to weather damage than older clay options. When international electrical sellers are putting together full substation packages, making sure that the arrester specs match the local voltage class, pollution severity, and altitude requirements from the start saves them a lot of money later on. The YH10W-216/562W is a good choice for protecting 220 kV class AC systems in demanding international project settings because it is technically sound and meets IEC standards.

FAQ

1. How often should a polymeric lightning arrester be inspected?

The business norm is to do a visual check once a year for a polymeric lightning arrester. In seaside areas with a lot of pollution, it's a good idea to do a mid-year check after the rainy season. Instead of taking the MOV apart, leakage current monitoring at the ground terminal is used to check its internal condition.

2. Can these arresters operate at high altitude?

Yes. The YH10W-216/562W is designed to have a creepage distance of 31 mm/kV, which means it can work in areas with modest elevation and a lot of pollution. For locations higher than 2,000 meters, the IEC 60099-4 Annex should be used to confirm that the continuous operating voltage is lowered for sites at higher elevations.

3. What certifications should I verify before purchasing?

Test reports of the IEC 60099-4 type are needed for all international substation projects. Along with the shipment paperwork, there should be ISO 9001 production approval and, if needed by the target country, regional compliance marks. Always ask for original test results that can be tracked back to a recognized lab.

Partner With Xi'an Xikai for Your Next Substation Project

Xi'an Xikai sells polymeric lightning arresters that are IEC-certified and made for difficult export substation projects. Our expert team helps with specifications, offers low prices on large orders, and makes sure the packaging is ready for sea freight. Get in touch with our export experts at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com. You can get a catalog or a price for a specific project from a reliable polymeric lightning arrester source at xaxd-electric.com. They have a history of getting orders delivered on time.

References

1. International Electrotechnical Commission. IEC 60099-4: Metal-Oxide Surge Arresters Without Gaps for A.C. Systems. IEC, 2014.

2. International Electrotechnical Commission. IEC 60815-1: Selection and Dimensioning of High-Voltage Insulators Intended for Use in Polluted Conditions. IEC, 2008.

3. Christodoulou, C. A., et al. "Condition Monitoring of Metal Oxide Surge Arresters." IEEE Transactions on Dielectrics and Electrical Insulation, 2014.

4. Gorur, R. S., Cherney, E. A., & Burnham, J. T. Outdoor Insulators. Ravi S. Gorur Inc., 1999.

5. Lundquist, J., Carlsson, L., Engström, A., & Engström, S. "New Method for Measurement of the Resistive Leakage Currents of Metal-Oxide Surge Arresters in Service." IEEE Transactions on Power Delivery, 1990.

6. Hinrichsen, V. Metal-Oxide Surge Arresters in High-Voltage Power Systems: Fundamentals. Siemens AG, 2011.
