Best Metal-Clad Withdrawable Switchgear for Industrial Use

When you compare the different ways that factories can distribute power, Metal-Clad Withdrawable Switchgear is clearly the best choice for places that require security, reliability, and have a small downtime. The metal cases of this adapter are solid, and the circuit breakers can be taken off and put back on. This way, upkeep teams can work on certain parts without having to turn off the control to the entire framework. Producers, utility companies, and individuals who construct frameworks are depending more and more on this innovation to keep laborers safe, secure essential loads, and keep production going smoothly when maintenance is being done.

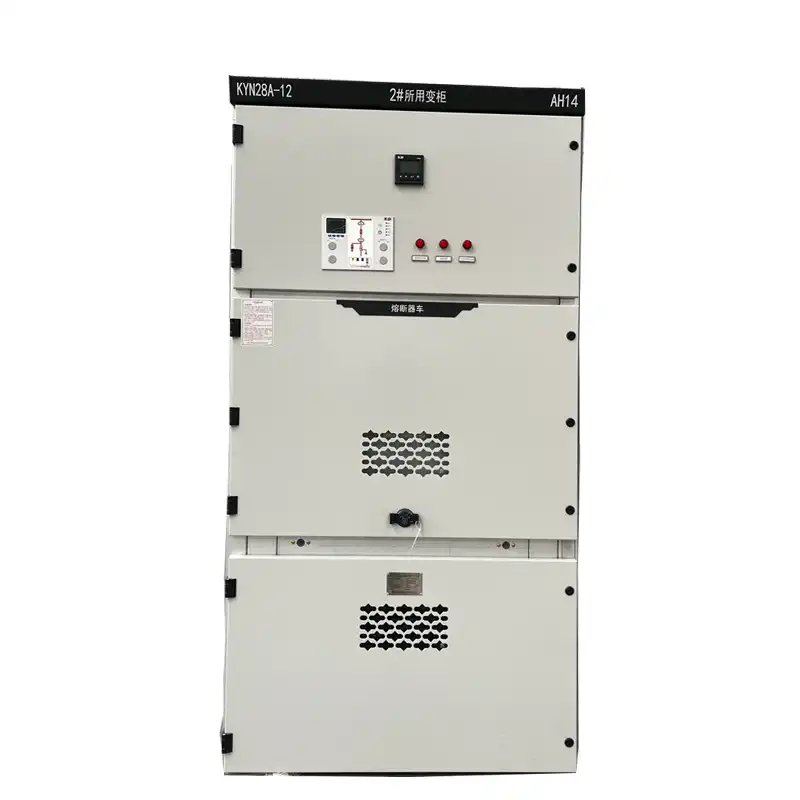

Understanding Metal-Clad Withdrawable Switchgear

A certain kind of medium-voltage distribution equipment is Metal-Clad Withdrawable Switchgear. It is made with partitioned compartments and circuit components that can be taken out and replaced. The primary parts, such as busbars, circuit breakers, cable associations, and control frameworks, are part into metal-enclosed areas that are clearly isolated from each other by the center architecture.

Core Components and Operational Mechanisma

In Metal-Clad Withdrawable Switchgear, circuit breakers are mounted on mobile trucks that work in three positions: benefit, test, and detached. In benefit position, essential contacts are completely locked in for ordinary control stream. The test position permits control circuit checks without energizing the fundamental circuit, empowering secure hand-off testing. In the disengaged position, the breaker is disconnected and can be securely expelled. Mechanical interlocks anticipate risky operations, such as racking beneath a stack or getting to energized compartments. Frameworks like KYN28-12 incorporate different interlocks to guarantee secure sequencing, establishing, and upkeep protection.

Comparison with Alternative Technologies

Compared with alternatives, Metal-Clad Withdrawable Switchgear offers a adjusted arrangement. Metal-enclosed switchgear gives compartmentalization but needs full withdrawable usefulness, expanding support complexity. Air-insulated switchgear is cost-effective but requires bigger establishment space due to lower separator productivity. Gas-insulated switchgear (GIS) employments SF6 for compact plan but includes higher costs and natural contemplations. Metal-clad withdrawable plans combine security, seclusion, and operational adaptability, empowering simpler development and support. This makes them perfect for mechanical situations where unwavering quality, versatility, and long-term execution are critical.

Advantages and Industrial Applications

Metal-Clad Withdrawable Switchgear is useful for more than just conveying power. These benefits offer assistance administrators of mechanical offices, utility companies, and designing temporary workers with certain issues they are having with their operations.

Enhanced Safety and Arc Resistance

It is secure for individuals to be in buildings that are made with arc-resistant materials that have been tried to meet the measures set by IEEE C37.20.7 and IEC 62271-200. In places where they are utilized, blame gasses can elude through weight alleviation frameworks, and blame vitality remains in certain zones with compartmental boundaries. The bend streak occurrence vitality levels are much lower since of these plan highlights. This makes a difference meet NFPA 70E security measures for the work environment. If there are electrical issues, they might lead to other issues that influence generation regions. This is particularly accommodating for manufacturing plants that work with perilous materials.

Maintenance Advantages and Downtime Reduction

Withdrawable circuit breakers let you do condition-based support on loads that are associated without having to turn them off. Amid arranged control blackouts, upkeep groups can take out circuit breakers, test and settle them in a controlled workshop, and at that point put them back in inside hours instep of days. In places like information centers and healing centers, where control blackouts can truly mess up things, this include is utilized to meet 99.99% uptime objectives. If you keep additional circuit breaker trucks on hand, you can rapidly supplant any that break. This keeps benefit going whereas repairs are being made.

Energy Efficiency and Lifecycle Benefits

High-tech switchgear with way better materials, low-resistance transport associations, and temperature observing frameworks makes a difference keep vitality utilize moo when the gear is in typical use. These little improvements in productivity may not appear like much for a single piece of hardware, but they save a parcel of cash when utilized on a large scale. If you purchase way better switchgear to begin with, it will spare you cash in the long run since it will last longer, require fewer repairs, and not be down for long periods of time, which costs a part. The KYN28-12 switchgear is made in production lines that are ISO 9001-certified and go through strict dielectric testing at 42kV and mechanical endurance approval through 10,000 work cycles or more. This keeps the taken a toll on possession moo and makes beyond any doubt that it works for a long time.

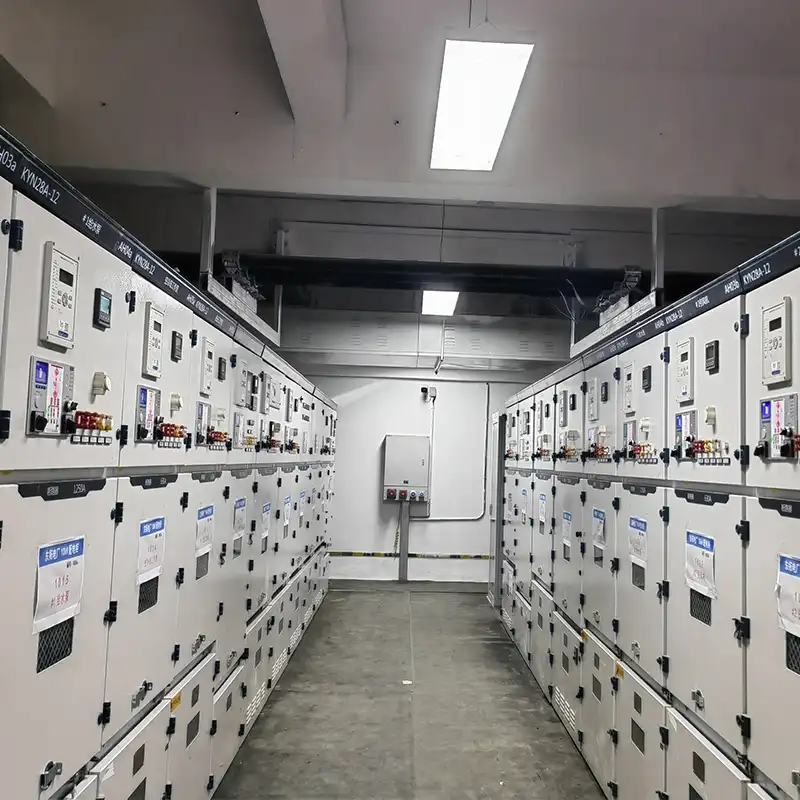

Industrial Application Scenarios

Heavy fabricating plants like steel plants and auto gathering plants utilize metal-clad switchgear to direct engine beginning loads, keep handle hardware secure, and let support happen amid arranged breaks in production. They can handle the shaking, cleaning, and enormous changes in temperature that happen in these places since the format is part of it. This equipment is utilized by places that generate power to interface with transmission networks, send additional control to other places, and keep their generators secure. Airplane terminals, traditional centers, and other expansive trade complexes need to be able to include to their electrical frameworks as their tenants' needs change. Building secluded switchgear truly sparkles in this case. Utility dispersion substations that serve tens of thousands of clients can do upkeep on individual feeders without influencing the entire system when they utilize switchgear that can be pulled out. To meet objectives for client fulfillment and utility unwavering quality, circuits can be disconnected, tested, and repaired on their own. The extreme development is esteemed in inaccessible mining regions since it can handle tall and low temperatures (-25°C to +55°C), changes in mugginess, and destructive conditions that would harm less strong gear.

How to Choose the Best Metal-Clad Withdrawable Switchgear for Your Industry

To pick the right Metal-Clad Withdrawable Switchgear, you should carefully consider its technical specs, how it will be used, and how much it costs, all while keeping the needs of your facility in mind.

Critical Technical Specifications

Rated voltage defines the maximum system level at which Metal-Clad Withdrawable Switchgear operates safely, typically ranging from 4.16kV to 36kV, with 12kV widely used in industrial and public distribution systems. Current ratings must support normal loads and future expansion without overheating. Short-circuit withstand capacity must exceed calculated fault levels based on system impedance and upstream sources to avoid catastrophic failure. Environmental factors such as temperature, altitude, seismic risk, and pollution also influence selection, requiring derating, enhanced insulation, or corrosion-resistant enclosures for reliable long-term performance.

Evaluating Manufacturers and Product Lines

Global leaders like Siemens, ABB, and Schneider Electric provide proven Metal-Clad Withdrawable Switchgear with strong engineering support and global service networks. While premium-priced, they meet international standards and ensure consistency. Regional manufacturers such as Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. offer customization, cost advantages, and rapid service. Compatibility with systems like ABB VD4 or VS1 breakers enhances integration. Procurement teams should evaluate warranties, spare parts availability, and real project references to ensure reliability and lifecycle value.

Scalability and Future Expansion

Modular design allows Metal-Clad Withdrawable Switchgear to expand as facility demands grow. Additional breaker panels can be integrated without replacing the entire system, supporting phased investments. Planning bus capacity, layout space, and structural provisions in advance ensures future upgrades are simple and cost-effective. This approach aligns capital spending with actual load growth while maintaining operational flexibility. Instead of overbuilding initially, facilities can install minimum required capacity and scale progressively, optimizing budget use while ensuring long-term adaptability and uninterrupted system performance.

Maintenance, Safety, and Troubleshooting Best Practices

For Metal-Clad Withdrawable Switchgear to work well and last as long as possible, it needs structured maintenance programs, strict adherence to safety rules, and organized ways to fix problems.

Preventive Maintenance Protocols

Effective maintenance for Metal-Clad Withdrawable Switchgear includes regular visual inspections, operational checks, electrical testing, and cleaning. Quarterly inspections detect overheating, contamination, or wear, while annual tests verify interlocks, racking mechanisms, and control circuits. Electrical testing evaluates contact resistance, insulation integrity, and breaker timing. Rising resistance values indicate degradation requiring corrective action. Insulation tests reveal moisture or aging issues. Mechanical components need lubrication every 2–3 years or after 500 operations. Addressing early warning signs such as misalignment or excessive force prevents failures, ensuring safe operation and extending equipment service life.

International Safety Standards Compliance

Compliance with standards like IEEE C37.20.2 and International Electrotechnical Commission 62271-200 ensures Metal-Clad Withdrawable Switchgear meets global safety and performance requirements. Arc-resistant testing under IEEE C37.20.7 verifies protection against internal faults, with accessibility ratings indicating personnel safety levels. Certification requires third-party testing and continuous quality audits, distinguishing verified products from uncertified ones. Procurement specifications must clearly demand compliance to guarantee reliability, regulatory acceptance, and safe operation across different regions and applications.

Troubleshooting Common Operational Issues

Systematic troubleshooting of Metal-Clad Withdrawable Switchgear begins with analyzing symptoms, relay data, and measurements to locate faults. Common issues include nuisance tripping from miscoordination, overheating contacts due to poor pressure or contamination, and interlock failures. Solutions involve reviewing fault records, adjusting relay settings, measuring contact resistance, and inspecting for damage. Misaligned or worn interlock components may require repair or replacement. Maintaining detailed records enables trend analysis, while predictive tools like thermal imaging and partial discharge monitoring help detect issues early, allowing planned maintenance instead of emergency repairs.

Procurement and Transaction Insights for B2B Buyers

You need to know how much Metal-Clad Withdrawable Switchgear costs, when it will be delivered, how it should be set up, and the contract rules that apply to buying big pieces of equipment.

Pricing Components and Budget Optimization

Switchgear pricing includes base equipment, testing, documentation, spare parts, and logistics. Higher voltage, current ratings, and advanced features increase costs for Metal-Clad Withdrawable Switchgear. Customization adds engineering complexity and longer lead times. Bulk purchasing and standardized specifications reduce costs and simplify maintenance. Lifecycle cost analysis—covering energy efficiency, maintenance, and downtime—often shows that higher-quality equipment delivers better long-term value. Investing in reliable systems minimizes failures and operational disruptions, ensuring cost efficiency over a 20–30 year service life.

Lead Times and Installation Considerations

Delivery of Metal-Clad Withdrawable Switchgear typically ranges from 12–20 weeks for standard units and up to 30 weeks for custom designs. Lead times depend on manufacturing capacity, component availability, and testing requirements. International shipping adds logistics and customs delays. Installation requires skilled contractors experienced in medium-voltage systems, ensuring proper clearances, grounding, and compliance with electrical codes. Commissioning tests verify functionality before operation. Adequate planning of installation schedules and resources prevents project delays and ensures smooth system integration.

Payment Terms and Warranty Frameworks

Procurement of Metal-Clad Withdrawable Switchgear often involves staged payments, including deposits, progress payments, and final acceptance. Financial tools like letters of credit or bonds reduce risks in large or international transactions. Warranties typically cover materials and performance for 12–36 months, depending on terms. Understanding exclusions—such as misuse or improper maintenance—prevents disputes. Extended warranties can provide additional protection and reduce long-term risk. Clear contractual agreements ensure financial security, reliable performance, and protection of investment throughout the equipment lifecycle.

Conclusion

Take a close look at the technical specs, operational needs, manufacturer capabilities, and overall lifecycle costs of the Metal-Clad Withdrawable Switchgear equipment you want to buy. The compartmentalized, withdrawable design offers the highest level of safety thanks to its arc-resistant construction and mechanical interlocks. It also lets maintenance work be done with as little interruption to operations as possible. All over the world, this technology is used in factories, power plants, and infrastructure projects to make sure the power system works well and can handle important tasks. Following strict maintenance procedures, international safety standards, and organized ways to fix problems will make equipment work better and last longer, protecting investments and keeping workers safe.

Frequently Asked Questions About Metal-Clad Switchgear

1. How often should preventive maintenance be performed on withdrawable switchgear?

Maintenance needs are different for each machine based on how it is used, what the manufacturer recommends, and what the law says. Every three months, problems that are easy to see are found during visual inspections. Once a year, full testing is done to make sure that all of the mechanical and electrical systems are working properly. There may need to be stricter schedules in places with a lot of dirt, extreme temperatures, or a lot of switching. Measurements that are based on conditions are used to find the best times for maintenance.

2. What distinguishes metal-clad switchgear from gas-insulated alternatives?

Metal-Clad Withdrawable Switchgear designs use air insulation, metal enclosures with different parts, and circuit breakers that can be taken out. It has been shown that these designs work well and are simple to keep up. With gas-insulated switchgear, SF6 gas is sealed inside small enclosures that make it small enough for installations with limited space. However, it costs more and needs more specialized maintenance. The technology is picked based on how much space, money, and the conditions of the application are available.

3. Can existing switchgear accommodate circuit breaker upgrades from different manufacturers?

How well two things work together depends on how big the mechanical interface is, how strong the electrical connections are, and how the control circuit is made. There are companies that make circuit breakers that work with switchgear made by other companies, and companies that use their own interfaces. The KYN28-12 switchgear can hold both ABB VD4 and VS1 circuit breakers, so you can buy new ones or upgrade the ones you have. Check the electrical specifications and dimension drawings of the new circuit breakers to make sure they fit and work right before you buy them.

Partner With Xi'an Xikai for Reliable Switchgear Solutions

The Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. can help you with your Metal-Clad Withdrawable Switchgear distribution needs. They use switchgear technology that has been tested and is made in factories that are ISO 9001 certified. Our engineering team makes custom solutions to help businesses in the infrastructure, renewable energy, manufacturing, and utility sectors run more smoothly. Because it has five layers of interlocking systems, the KYN28-12 metal-clad switchgear is quite safe. It also works with well-known circuit breakers like the ABB VD4 and VS1, and it has been put through a lot of tests to show that it will last. We make metal-clad retractable switchgear and are a well-known company that does so. We offer fair prices, quick technical support, and reliable delivery. Feel free to email our team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to talk about your project needs, get detailed quotes, and learn how our solutions protect your operational investments while making power distribution more reliable.

References

1. IEEE Standard C37.20.2-2015, "IEEE Standard for Metal-Clad Switchgear," Institute of Electrical and Electronics Engineers, New York, 2015.

2. IEC 62271-200:2021, "High-voltage switchgear and controlgear – Part 200: AC metal-enclosed switchgear and controlgear for rated voltages above 1 kV and up to and including 52 kV," International Electrotechnical Commission, Geneva, 2021.

3. IEEE Standard C37.20.7-2017, "IEEE Guide for Testing Metal-Enclosed Switchgear Rated Up to 38 kV for Internal Arcing Faults," Institute of Electrical and Electronics Engineers, New York, 2017.

4. NFPA 70E-2021, "Standard for Electrical Safety in the Workplace," National Fire Protection Association, Quincy, Massachusetts, 2021.

5. Hemmiljö, Gustav and Sörqvist, Thomas, "Medium Voltage Switchgear Technology: Planning, Selection and Life Cycle Management," Springer Publishing, Berlin, 2019.

6. Das, J.C., "Power System Analysis: Short-Circuit Load Flow and Harmonics, Second Edition," CRC Press, Boca Raton, Florida, 2018.
